AV-140

< BASIC INSPECTION >

[NAVIGATION WITHOUT BOSE]

INSPECTION AND ADJUSTMENT

This mode is designed to align the boundary between each camera image that could not be aligned in the

“Calibrating Camera Image” mode.

CONSULT work support

1. Select “FINE TUNING OF BIRDS-EYE VIEW” by touching CONSULT screen.

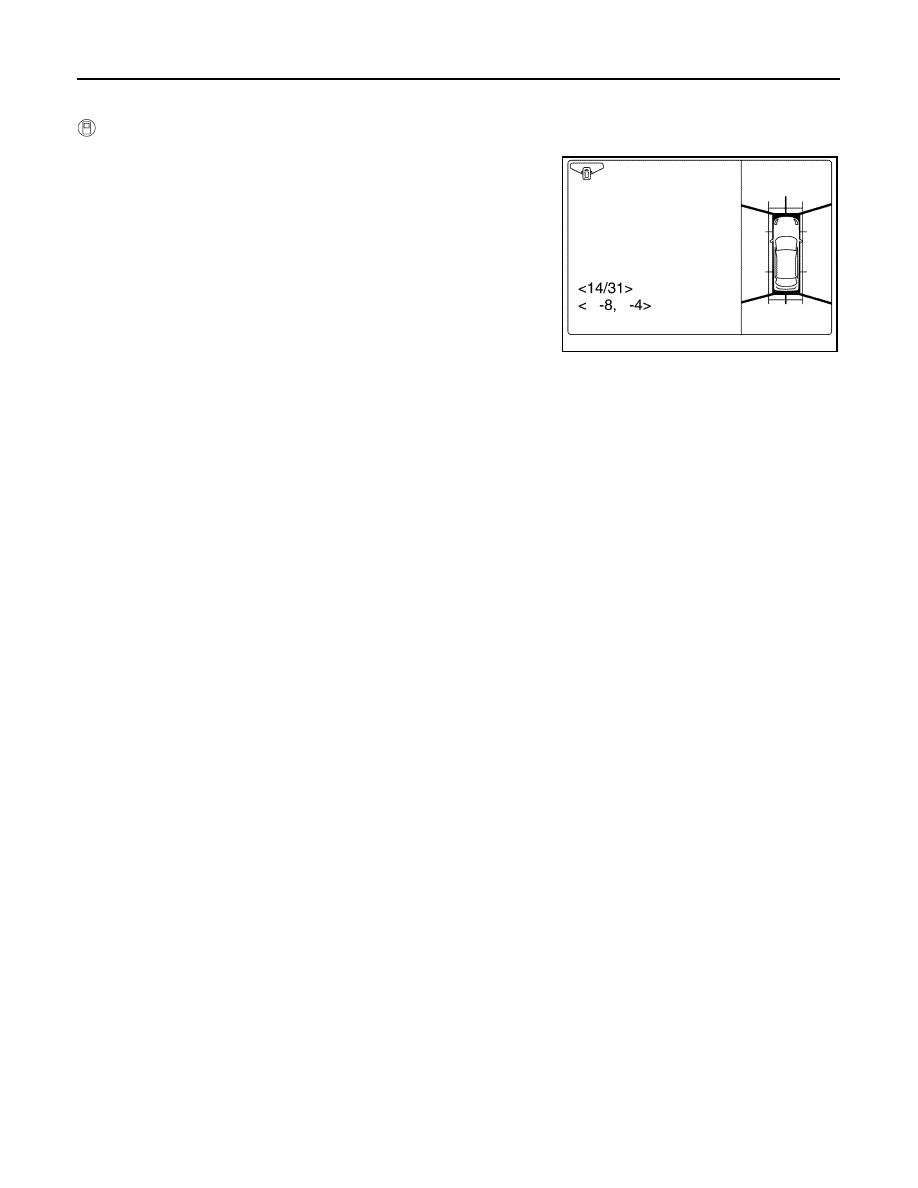

2. On the adjustment screen of each camera, adjust the parameter

by touching the “AXIS X” button, “AXIS Y” button”, and

“ROTATE” button to place the calibration marker shown on the

camera screen on the target line drawn on the ground.

NOTE:

Touch “SELECT” button on the CONSULT screen to select the

target camera.

3. Touch “APPLY” button on the CONSULT screen. “PRCSNG” is

displayed and adjustment results are shown on the camera

screen.

CAUTION:

Check that “PRCSNG” is displayed. Never perform other

operations while “PRCSNG” is displayed.

4. Touch “OK” button on the CONSULT screen. “PRCSNG” is displayed and adjustment results are written to

the around view monitor control unit.

CAUTION:

• Check that “PRCSNG” is displayed. Never perform other operations while “PRCSNG” is dis-

played.

• After pressing the “OK” button, never press buttons other than the “BACK” button.

NOTE:

• It can be initialized to the NISSAN factory default condition with “Initialize Camera Image Calibration”.

• The adjustment value is cancelled in this mode by performing “Initialize Camera Image Calibration”.

>> Calibration End.

JSNIA4214ZZ

AV

U0428 STEERING ANGLE SENSOR

AV-141

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DTC/CIRCUIT DIAGNOSIS

U0428 STEERING ANGLE SENSOR

DTC Logic

INFOID:0000000011276825

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000011276826

1.

ADJUST THE NEUTRAL POSITION OF THE STEERING ANGLE SENSOR

When U0428 is detected, adjust the neutral position of the steering angle sensor.

>> Perform adjustment of the neutral position of the steering angle sensor. Refer to

AV-96, "CON-

SULT Function"

.

CONSULT Display

DTC Detection Condition

Possible Cause

ST ANG SEN CALIB
 [U0428]

The neutral position adjustment of the steering
angle sensor is incomplete.

Adjust neutral position of the steering angle sen-
sor.

AV-142

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITHOUT BOSE]

U1000 CAN COMM CIRCUIT

U1000 CAN COMM CIRCUIT

AV CONTROL UNIT
AV CONTROL UNIT : DTC Logic

INFOID:0000000011276827

DTC DETECTION LOGIC

AV CONTROL UNIT : Diagnosis Procedure

INFOID:0000000011276828

1.

PERFORM SELF DIAGNOSTIC RESULT

1. Turn ignition switch ON and wait for 2 seconds or more.

2. Perform “Self Diagnostic Result” for “MULTI AV”.
Is CAN COMM CIRCUIT displayed?

YES

>> Refer to

LAN-17, "Trouble Diagnosis Flow Chart"

.

NO

>> Refer to

GI-44, "Intermittent Incident"

.

AROUND VIEW MONITOR CONTROL UNIT
AROUND VIEW MONITOR CONTROL UNIT : DTC Logic

INFOID:0000000011276829

DTC DETECTION LOGIC

AROUND VIEW MONITOR CONTROL UNIT : Diagnosis Procedure

INFOID:0000000011276830

1.

PERFORM SELF DIAGNOSTIC RESULT

1. Turn ignition switch ON and wait for 2 seconds or more.

2. Perform “Self Diagnostic Result” for “AVM”.
Is CAN COMM CIRCUIT displayed?

YES

>> Refer to

LAN-17, "Trouble Diagnosis Flow Chart"

.

NO

>> Refer to

GI-44, "Intermittent Incident"

.

CONSULT Display

DTC Detection Condition

Possible Cause

CAN COMM CIRCUIT
[U1000]

AV control unit is not transmitting or receiving
CAN communication signal for 2 seconds or
more.

CAN communication system.

CONSULT Display

DTC Detection Condition

Possible Cause

CAN COMM CIRCUIT
[U1000]

Around view monitor control unit is not transmit-
ting or receiving CAN communication signal for 2
seconds or more.

CAN communication system.

AV

U1010 CONTROL UNIT (CAN)

AV-143

< DTC/CIRCUIT DIAGNOSIS >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

U1010 CONTROL UNIT (CAN)

AV CONTROL UNIT
AV CONTROL UNIT : DTC Logic

INFOID:0000000011276831

DTC DETECTION LOGIC

AROUND VIEW MONITOR CONTROL UNIT
AROUND VIEW MONITOR CONTROL UNIT : DTC Logic

INFOID:0000000011276832

DTC DETECTION LOGIC

CONSULT Display

DTC Detection Condition

Possible Cause

CONTROL UNIT (CAN)
[U1010]

Error during CAN controller hardware initializa-
tion (VCAN).

Replace the AV control unit if the malfunction oc-
curs constantly.
Refer to

AV-200, "Removal and Installation"

.

CONSULT Display

DTC Detection Condition

Possible Cause

CONTROL UNIT (CAN)
[U1010]

Error during CAN controller hardware initializa-
tion (VCAN).

Replace the Around view monitor control unit if
the malfunction occurs constantly.
Refer to

AV-208, "Removal and Installation"

.
