Nissan Rogue. Manual - part 33

AV-124

< WIRING DIAGRAM >

[NAVIGATION WITHOUT BOSE]

NAVIGATION WITHOUT BOSE

AANIA3280GB

AV

NAVIGATION WITHOUT BOSE

AV-125

< WIRING DIAGRAM >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

AANIA3281GB

AV-126

< WIRING DIAGRAM >

[NAVIGATION WITHOUT BOSE]

NAVIGATION WITHOUT BOSE

AANIA3282GB

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-127

< BASIC INSPECTION >

[NAVIGATION WITHOUT BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000011276808

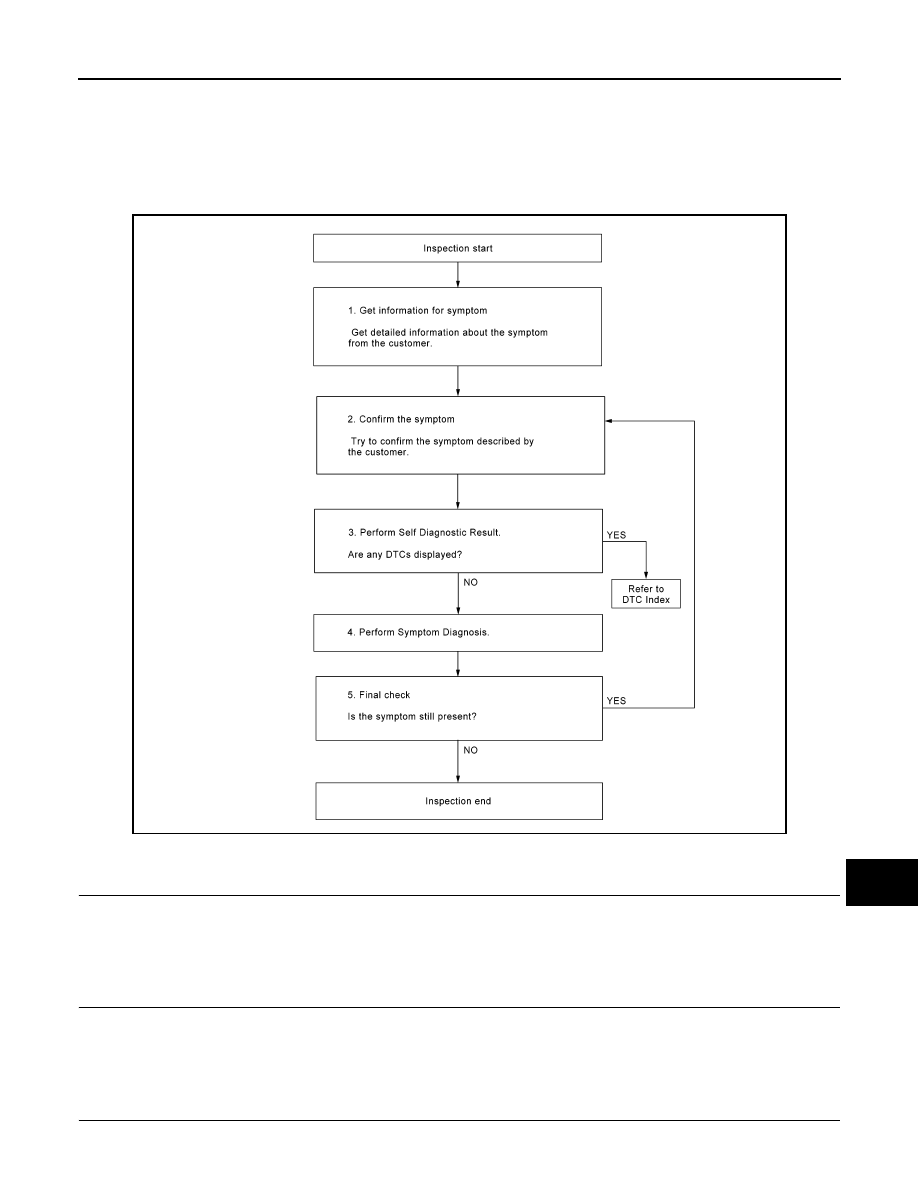

OVERALL SEQUENCE

DETAILED FLOW

1.

GET INFORMATION FOR SYMPTOM

Get detailed information from the customer about the symptom (the condition and the environment when the

incident/malfunction occurred).

>> GO TO 2.

2.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer. Verify relation between the symptom and the condition

when the symptom is detected.

>> GO TO 3.

3.

PERFORM SELF DIAGNOSTIC RESULT

1. Turn ignition switch ON and wait for 2 seconds or more.

AWNIA2982GB
