Nissan Rogue. Manual - part 13





AV-44

< BASIC INSPECTION >

[DISPLAY AUDIO]

DIAGNOSIS AND REPAIR WORKFLOW

Is malfunctioning part detected?

YES

>> GO TO 4.

NO

>> GO TO 2.

4.

REPAIR OR REPLACE THE MALFUNCTIONING PART

1. Repair or replace the malfunctioning part.

2. Reconnect parts or connectors disconnected during Diagnostic Procedure.

>> GO TO 5.

5.

FINAL CHECK

Refer to confirmed symptom in step 2, and make sure that the symptom is not detected.
Was the repair confirmed?

YES

>> Inspection End.

NO

>> GO TO 2.

AV

INSPECTION AND ADJUSTMENT

AV-45

< BASIC INSPECTION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

INSPECTION AND ADJUSTMENT

REGISTRATION (AUDIO UNIT)
REGISTRATION (AUDIO UNIT) : Description

INFOID:0000000011276747

AFTER REPLACEMENT

If the audio unit is replaced with a new audio unit, the new audio unit must be registered using the Bluetooth D/

C(serial #).

CAUTION:

If the new audio unit Bluetooth D/C(serial #) is not registered, the “APPS” mode will not function.

REGISTRATION (AUDIO UNIT) : Work Procedure

INFOID:0000000011276748

1.

RECORD BLUETOOTH D/C(SERIAL #) FOR REPLACEMENT AUDIO UNIT

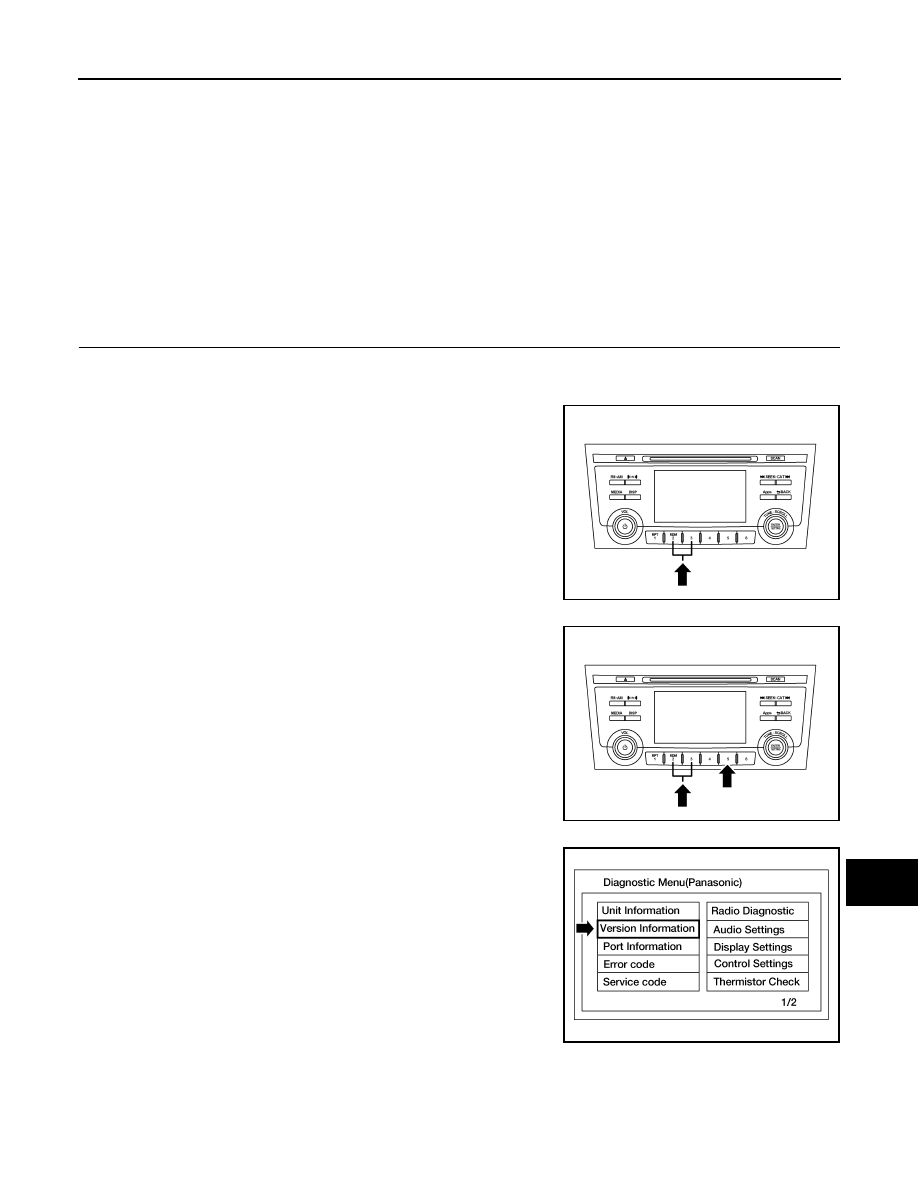

1. Turn ignition switch ON.

2. Turn audio unit OFF.

3. Access the diagnostic menu as follows:

-

Press and hold preset buttons 2 and 3.

-

While holding preset buttons 2 and 3, press preset button 5

three times.

4. Select Version Information from the Diagnostic Menu.

AWNIA3612ZZ

AWNIA3613ZZ

ALNIA1652ZZ

AV-46

< BASIC INSPECTION >

[DISPLAY AUDIO]

INSPECTION AND ADJUSTMENT

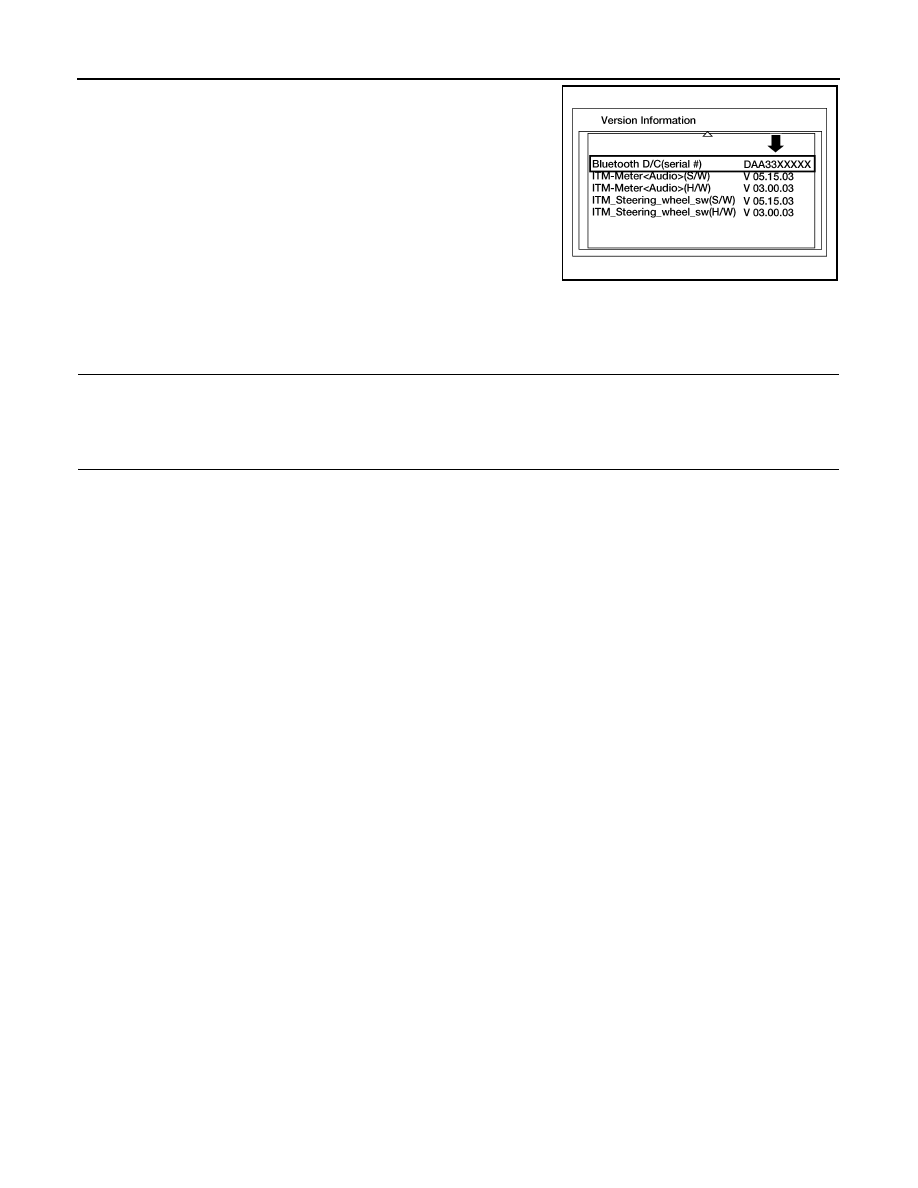

5. Scroll through the menu pages to Bluetooth D/C(serial #) and

record the number displayed.

>> GO TO 2.

2.

REGISTER REPLACEMENT AUDIO UNIT

Register the replacement audio unit by contacting NISSAN Owner Services. Refer to TSB.

>> GO TO 3.

3.

OPERATION CHECK

Verify that the audio unit “APPS” function operates normally.

>> Work End.

ALNIA1653ZZ

AV

POWER SUPPLY AND GROUND CIRCUIT

AV-47

< DTC/CIRCUIT DIAGNOSIS >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DTC/CIRCUIT DIAGNOSIS

POWER SUPPLY AND GROUND CIRCUIT

AUDIO UNIT
AUDIO UNIT : Diagnosis Procedure

INFOID:0000000011276749

Regarding Wiring Diagram information, refer to

AV-28, "Wiring Diagram"

.

1.

CHECK FUSE

Check that the following fuses are not blown:

Are the fuses blown?

YES

>> Replace the blown fuse after repairing the affected circuit.

NO

>> GO TO 2.

2.

CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect audio unit connector M83.

3. Check voltage between audio unit connector M83 and ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace harness or connectors.

3.

CHECK GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect audio unit connector M87.

3. Check continuity between audio unit connectors and ground.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Repair or replace harness or connectors.

Terminal No.

Signal name

Fuse No.

7

Ignition power supply

30 (10A)

19

Battery power supply

16 (20A)

Audio unit

Ground

Condition

Voltage

(Approx.)

Connector

Terminal

M83

7

Ignition switch: ON

Battery voltage

19

Ignition switch: OFF

Audio unit

Ground

Continuity

Connector

Terminal

M83

20

Yes

M87

52
