Nissan Rogue. Manual - part 5

AV-12

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO]

COMPONENT PARTS

SYSTEM DESCRIPTION

COMPONENT PARTS

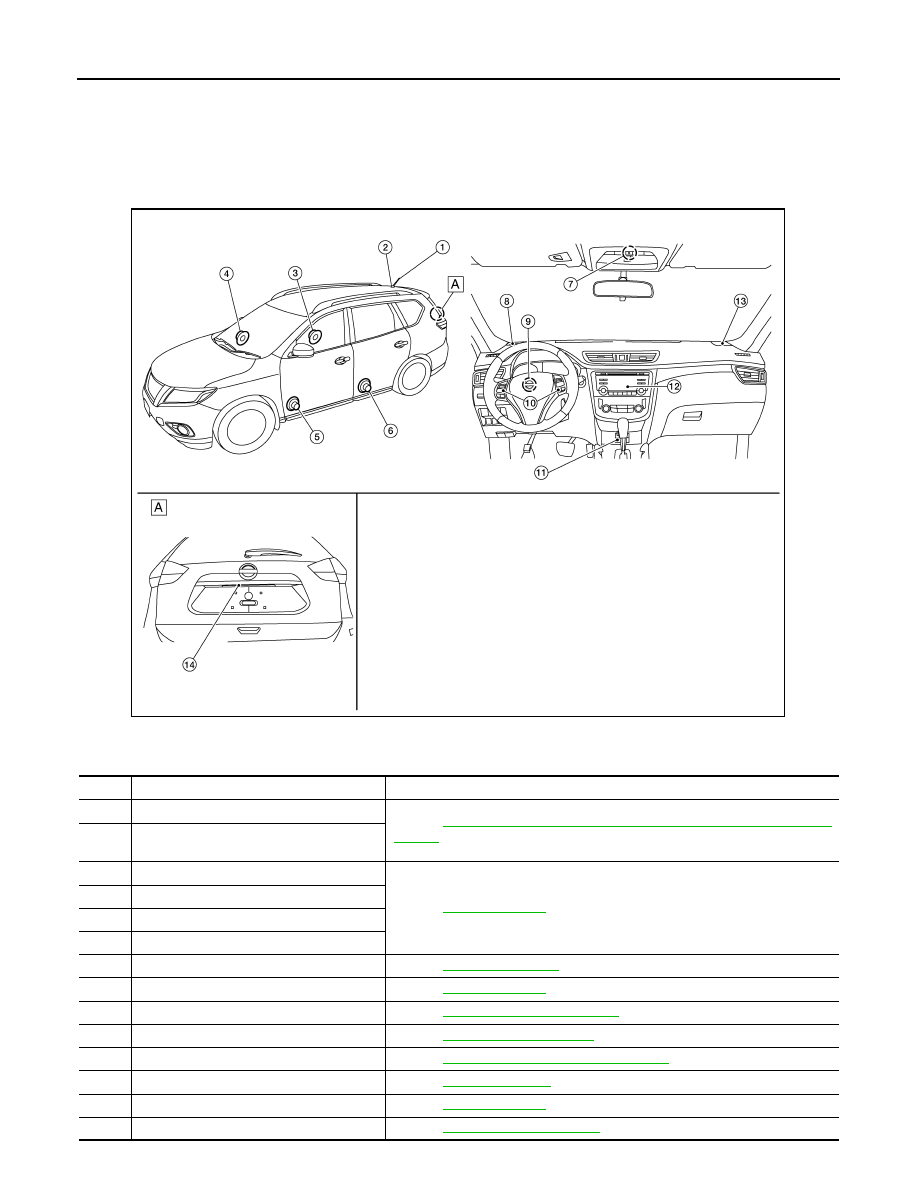

Component Parts Location

INFOID:0000000011276732

A. Center of back door

AWNIA3325ZZ

No.

Component

Function

1.

Rod antenna

Refer to

AV-15, "Rod Antenna, Antenna Amp., Satellite Antenna and Antenna

Feeder"

.

2.

Antenna base (antenna amp. and satellite
antenna)

3.

Rear door speaker RH

Refer to

AV-13, "Speakers"

.

4.

Front door speaker RH

5.

Front door speaker LH

6.

Rear door speaker LH

7.

Microphone

Refer to

AV-14, "Microphone"

.

8.

Front tweeter LH

Refer to

AV-13, "Speakers"

.

9.

Steering angle sensor

Refer to

AV-15, "Steering Angle Sensor"

.

10.

Steering switches

Refer to

AV-14, "Steering Switches"

.

11.

USB interface and AUX in jack

Refer to

AV-14, "USB Interface and AUX in Jack"

.

12.

Audio unit

Refer to

AV-13, "Audio Unit"

.

13.

Front tweeter RH

Refer to

AV-13, "Speakers"

.

14.

Rear view camera

Refer to

AV-14, "Rear View Camera"

.

AV

COMPONENT PARTS

AV-13

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

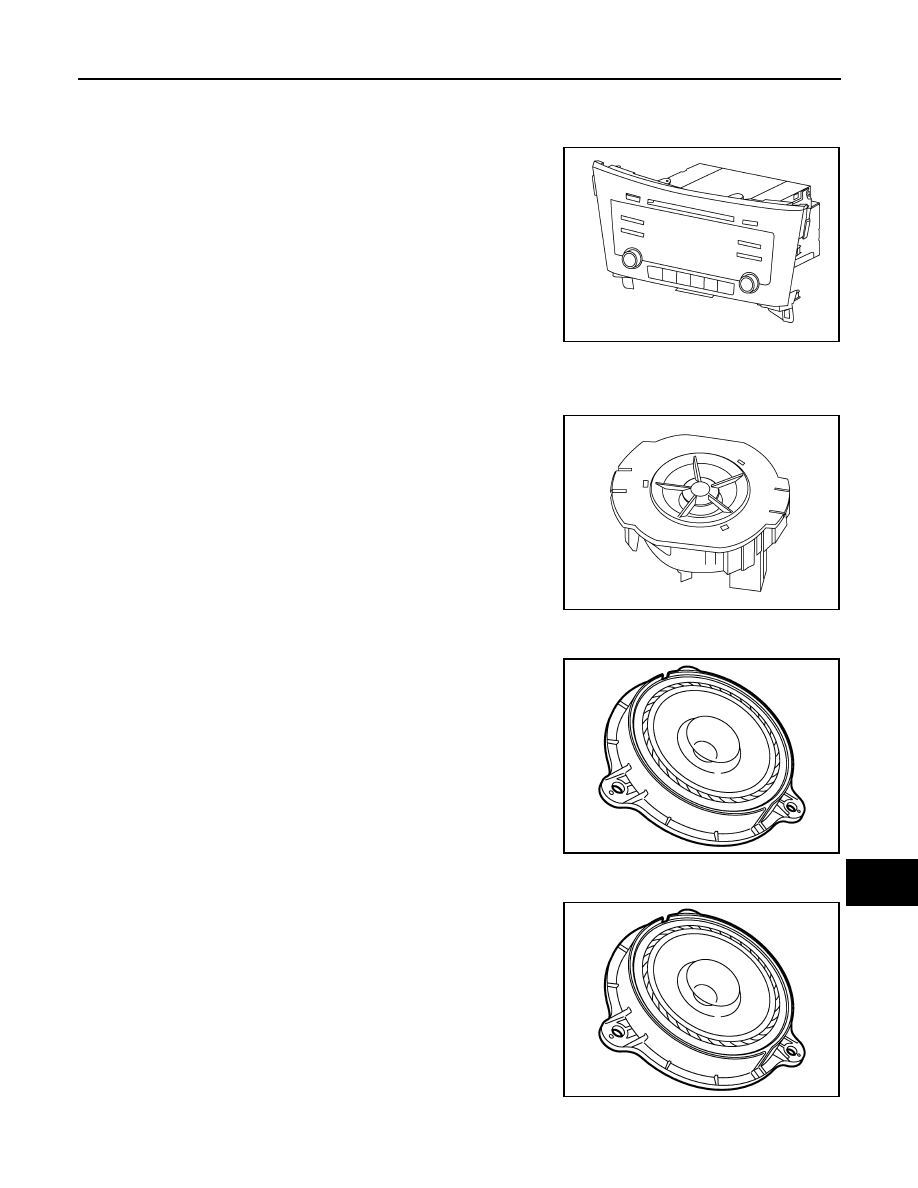

Audio Unit

INFOID:0000000011276733

Description

• AM/FM electronic tuner radio, CD drive and camera controller are

integrated into the audio unit.

• The display can show audio status and rear view monitor images.
• Music files stored in iPod

®*

/USB memory can be played using the

separate USB connector.

• Music files stored in an external audio device can be played using

the separate AUX in jack.
*: iPod

®

 is a registered trademark of Apple, Inc. All rights reserved.

Speakers

INFOID:0000000011276734

FRONT TWEETER

• 2.5 cm (1 in) tweeters are installed in the top front corners of the

instrument panel.

• Sound signals are input from the audio unit to output high range

sounds.

FRONT DOOR SPEAKER

• 16.5 cm (6.5 in) speakers are installed in the bottom of the front doors.

• Sound signals are input from the audio unit to output high, mid and

low range sounds.

REAR DOOR SPEAKER

• 16.5 cm (6.5 in) speakers are installed in the bottom of the rear doors.

• Sound signals are input from the audio unit to output high, mid and

low range sounds.

ALNIA1592ZZ

ALNIA1593ZZ

JPNIA1454ZZ

JPNIA1454ZZ

AV-14

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO]

COMPONENT PARTS

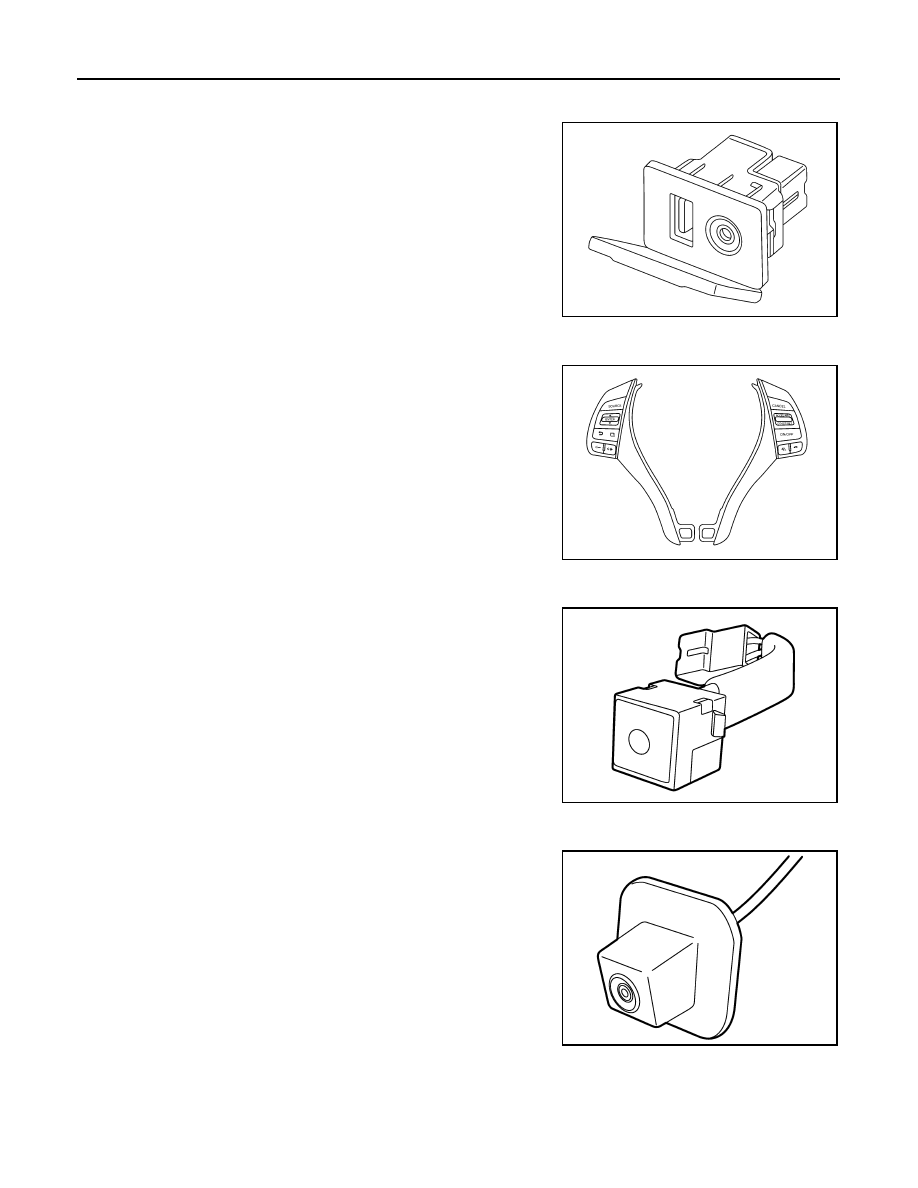

USB Interface and AUX in Jack

INFOID:0000000011276735

• USB Interface and AUX in jack is installed in the console.
• iPod

®

 and USB memory can be connected to the audio unit

through the USB interface.

• An external audio device can be connected to the audio unit

through the AUX in jack.

Steering Switches

INFOID:0000000011276736

• Steering switches are installed in the steering wheel.

• Operations for audio and hands-free phone are possible.

• Switches are connected to the combination meter.

• Combination meter is connected to the audio unit via AV communi-

cation.

Microphone

INFOID:0000000011276737

• The microphone is installed in the roof in the map lamp assembly.

• Power is supplied from the audio unit.

Rear View Camera

INFOID:0000000011276738

• The rear view camera is installed to the back door finisher.

• Power is supplied from the audio unit.

ALNIA1523ZZ

ALNIA1594ZZ

JPNIA1448ZZ

JPNIA1452ZZ

AV

COMPONENT PARTS

AV-15

< SYSTEM DESCRIPTION >

[DISPLAY AUDIO]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

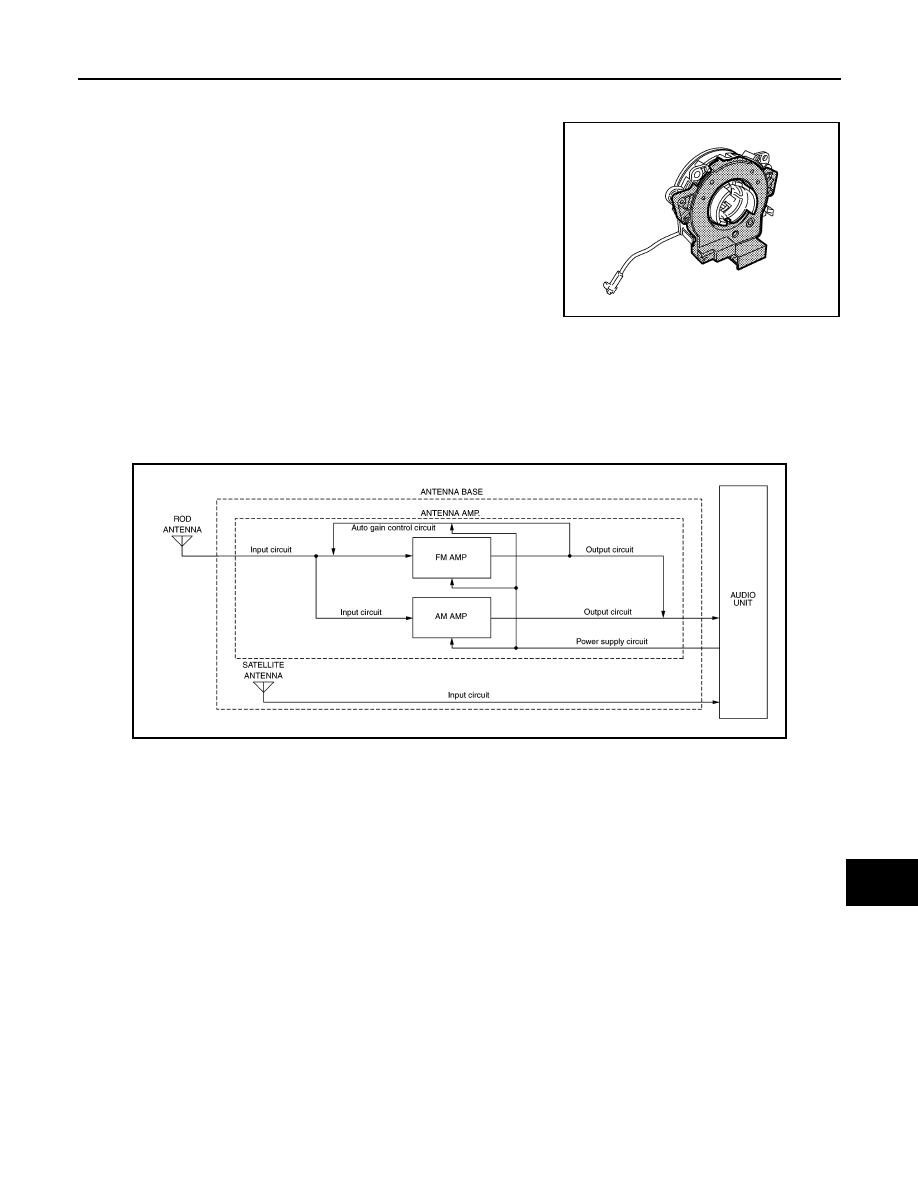

Steering Angle Sensor

INFOID:0000000011276739

• Steering sensor is installed to the spiral cable.

• Steering angle sends the steering signal necessary for predictive

course line via CAN communication.

Rod Antenna, Antenna Amp., Satellite Antenna and Antenna Feeder

INFOID:0000000011276740

RADIO ANTENNA AND SATELLITE ANTENNA

AM/FM radio rod antenna, antenna base and satellite antenna are located on the rear of the roof. The antenna

amp. and satellite antenna are built into the antenna base.

ANTENNA FEEDER LAYOUT

JSNIA1571ZZ

AWNIA3133GB
