SUNSHADE MOTOR ASSEMBLY

RF-133

< WIRING DIAGRAM >

[WITH DUAL PANEL SUNROOF]

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

ABKIA2722GB

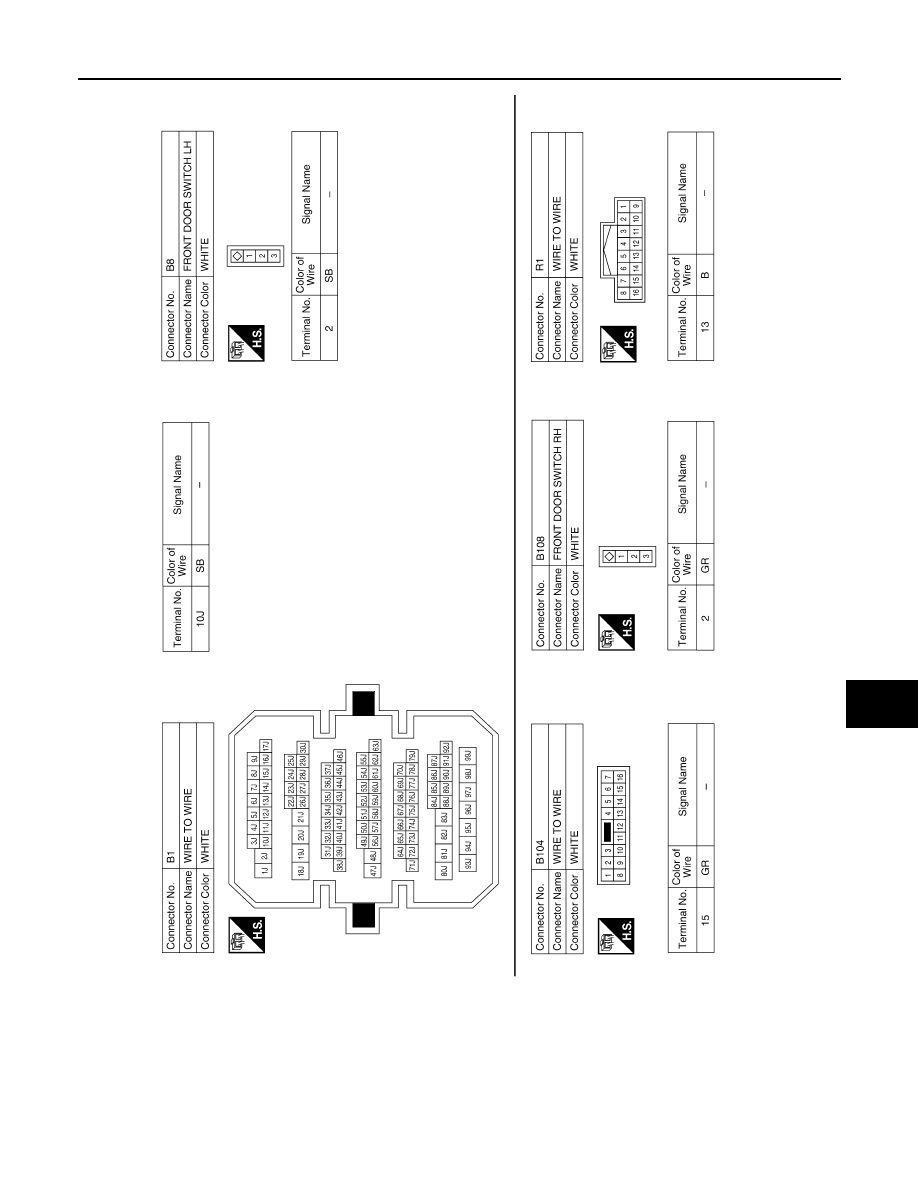

RF-134

< WIRING DIAGRAM >

[WITH DUAL PANEL SUNROOF]

SUNSHADE MOTOR ASSEMBLY

ABKIA3848GB

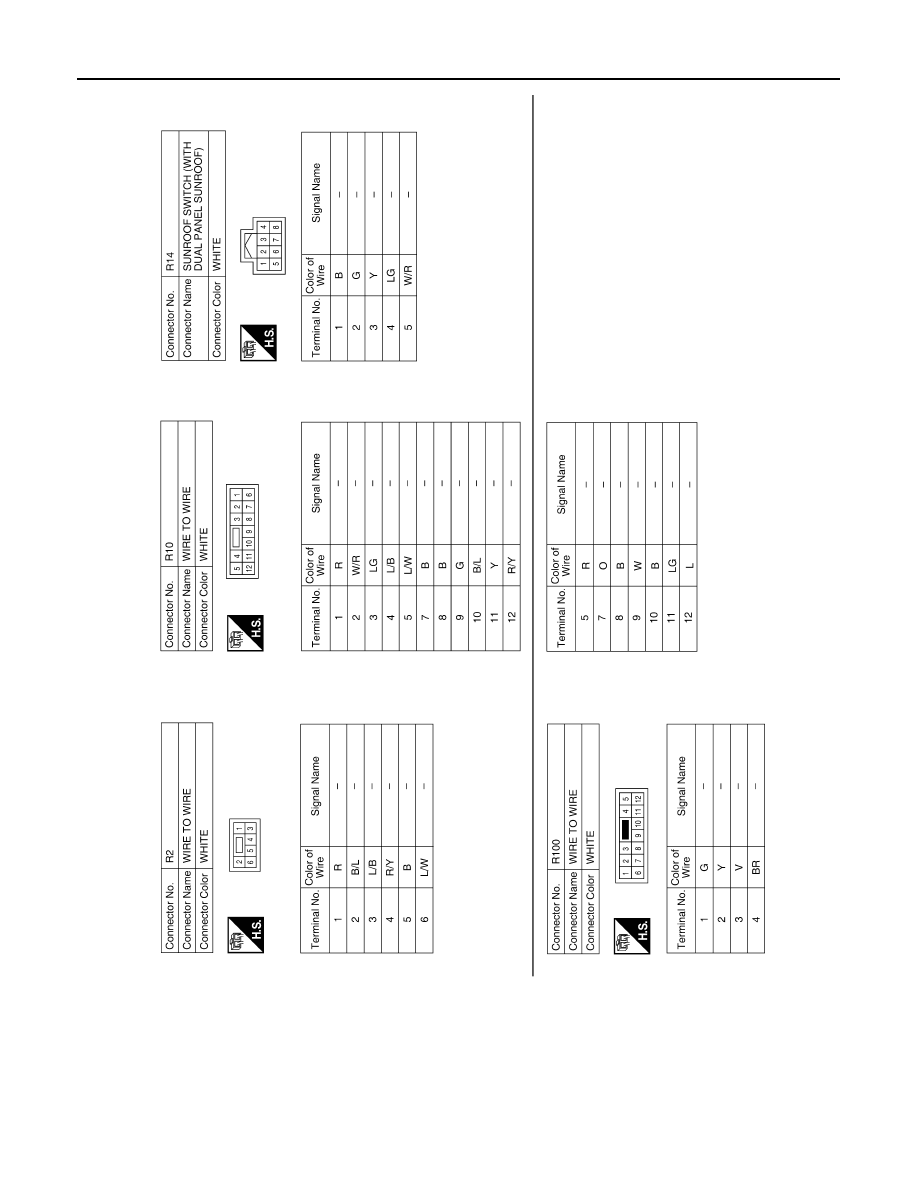

SUNSHADE MOTOR ASSEMBLY

RF-135

< WIRING DIAGRAM >

[WITH DUAL PANEL SUNROOF]

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

ABKIA4879GB

RF-136

< SYMPTOM DIAGNOSIS >

[WITH DUAL PANEL SUNROOF]

SUNROOF DOES NOT OPERATE PROPERLY

SYMPTOM DIAGNOSIS

SUNROOF DOES NOT OPERATE PROPERLY

Diagnosis Procedure

INFOID:0000000010049005

1.

CHECK SUNROOF MECHANISM

Check the following.

• Operation malfunction caused by sunroof mechanism deformation, pinched harness or other foreign materi-

als

• Operation malfunction and interference with other parts by poor installation
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CHECK SUNROOF MOTOR ASSEMBLY POWER SUPPLY AND GROUND CIRCUIT

Check sunroof motor assembly power supply and ground circuit.

Refer to

RF-83, "SUNROOF MOTOR ASSEMBLY : Diagnosis Procedure"

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace the malfunctioning parts.

3.

CHECK SUNROOF SWITCH

Check sunroof switch.

Refer to

RF-88, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace the malfunctioning parts.

4.

CONFIRM THE OPERATION

Confirm the operation again.
Is the result normal?

YES

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

NO

>> GO TO 1.
