B2562: LOW VOLTAGE

—

—

—

BCS-35

B2601: SHIFT POSITION

×

×

—

SEC-50

B2602: SHIFT POSITION

×

×

—

SEC-53

B2603: SHIFT POSI STATUS

×

×

—

SEC-56

B2604: PNP SWITCH

×

×

—

SEC-59

B2605: PNP SWITCH

×

×

—

SEC-61

B2608: STARTER RELAY

×

×

—

SEC-63

B260A: IGNITION RELAY

×

×

—

PCS-48

B260F: ENG STATE SIG LOST

×

×

—

SEC-65

B2614: ACC RELAY CIRC

—

×

—

PCS-50

B2615: BLOWER RELAY CIRC

—

×

—

PCS-53

B2616: IGN RELAY CIRC

—

×

—

PCS-56

B2617: STARTER RELAY CIRC

×

×

—

SEC-67

B2618: BCM

×

×

—

PCS-59

B261A: PUSH-BTN IGN SW

—

×

—

PCS-60

B2622: INSIDE ANTENNA

—

—

—

DLK-60

B2623: INSIDE ANTENNA

—

—

—

DLK-63

B26E1: ENG STATE NO RES

×

×

—

SEC-66

C1704: LOW PRESSURE FL

—

—

×

WT-43

C1705: LOW PRESSURE FR

—

—

×

WT-43

C1706: LOW PRESSURE RR

—

—

×

WT-43

C1707: LOW PRESSURE RL

—

—

×

WT-43

C1708: [NO DATA] FL

—

—

×

WT-13

C1709: [NO DATA] FR

—

—

×

WT-13

C1710: [NO DATA] RR

—

—

×

WT-13

C1711: [NO DATA] RL

—

—

×

WT-13

C1712: [CHECKSUM ERR] FL

—

—

×

WT-15

C1713: [CHECKSUM ERR] FR

—

—

×

WT-15

C1714: [CHECKSUM ERR] RR

—

—

×

WT-15

C1715: [CHECKSUM ERR] RL

—

—

×

WT-15

C1716: [PRESSDATA ERR] FL

—

—

×

WT-17

C1717: [PRESSDATA ERR] FR

—

—

×

WT-17

C1718: [PRESSDATA ERR] RR

—

—

×

WT-17

C1719: [PRESSDATA ERR] RL

—

—

×

WT-17

C1720: [CODE ERR] FL

—

—

×

WT-15

C1721: [CODE ERR] FR

—

—

×

WT-15

C1722: [CODE ERR] RR

—

—

×

WT-15

C1723: [CODE ERR] RL

—

—

×

WT-15

C1724: [BATT VOLT LOW] FL

—

—

×

WT-15

C1725: [BATT VOLT LOW] FR

—

—

×

WT-15

C1726: [BATT VOLT LOW] RR

—

—

×

WT-15

C1727: [BATT VOLT LOW] RL

—

—

×

WT-15

CONSULT display

Fail-safe

Intelligent Key

warning lamp ON

Tire pressure

monitor warning

lamp ON

Reference page

RF-46

< ECU DIAGNOSIS INFORMATION >

[WITH SINGLE PANEL SUNROOF]

BCM (BODY CONTROL MODULE)

C1729: VHCL SPEED SIG ERR

—

—

×

WT-19

C1734: CONTROL UNIT

—

—

×

WT-20

CONSULT display

Fail-safe

Intelligent Key

warning lamp ON

Tire pressure

monitor warning

lamp ON

Reference page

SUNROOF MOTOR ASSEMBLY

RF-47

< ECU DIAGNOSIS INFORMATION >

[WITH SINGLE PANEL SUNROOF]

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

SUNROOF MOTOR ASSEMBLY

Reference Value

INFOID:0000000009465684

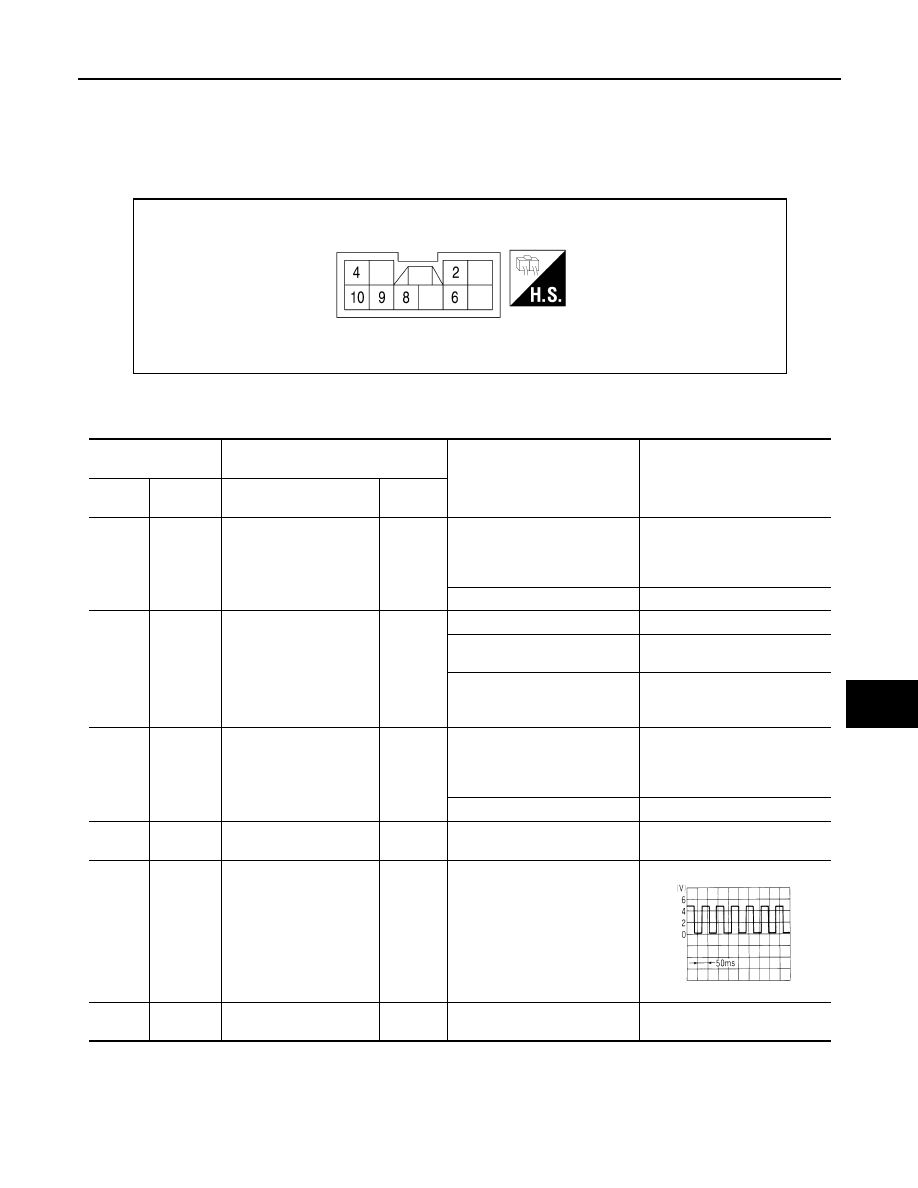

TERMINAL LAYOUT

PHYSICAL VALUES

AWKIA1414ZZ

Terminal No.

(Wire color)

Description

Condition

Voltage (V)

+

-

Signal name

Input/

Output

2

(LG)

Ground

Sunroof close switch (BIT
1) signal

Input

Sunroof switch in following posi-
tion
• TILT  UP
• SLIDE  CLOSE

0

Other than above

Battery voltage

4

(L/W)

Ground

RAP signal

Input

Ignition switch ON

Battery voltage

Within 45 seconds after ignition
switch is turned to OFF.

Battery voltage

When driver side or passenger
side door is opened during re-
tained power operation.

0

6

(Y)

Ground

Sunroof open switch (BIT
0) signal

Input

Sunroof switch in following posi-
tion
• TILT  DOWN
• SLIDE OPEN

0

Other than above

Battery voltage

8

(B)

Ground

Ground

—

—

0

9

(L/B)

Ground

Vehicle speed signal (2-
pulse)

Input

Speedometer operated [When
vehicle speed is approx.40km/ h
(25MPH)]

10

(R/Y)

Ground

Sunroof power supply

Input

—

Battery voltage

ELF1080D

RF-48

< WIRING DIAGRAM >

[WITH SINGLE PANEL SUNROOF]

SUNROOF SYSTEM

WIRING DIAGRAM

SUNROOF SYSTEM

Wiring Diagram

INFOID:0000000009465685

ABKWA1560GB
