Nissan Maxima. Manual - part 903





PCS-92

< ECU DIAGNOSIS INFORMATION >

[POWER DISTRIBUTION SYSTEM]

BCM (BODY CONTROL MODULE)

B2562: LOW VOLTAGE

BCS-35

B2601: SHIFT POSITION

×

×

SEC-50

B2602: SHIFT POSITION

×

×

SEC-53

B2603: SHIFT POSI STATUS

×

×

SEC-56

B2604: PNP SWITCH

×

×

SEC-59

B2605: PNP SWITCH

×

×

SEC-61

B2608: STARTER RELAY

×

×

SEC-63

B260A: IGNITION RELAY

×

×

PCS-48

B260F: ENG STATE SIG LOST

×

×

SEC-65

B2614: ACC RELAY CIRC

×

PCS-50

B2615: BLOWER RELAY CIRC

×

PCS-53

B2616: IGN RELAY CIRC

×

PCS-56

B2617: STARTER RELAY CIRC

×

×

SEC-67

B2618: BCM

×

×

PCS-59

B261A: PUSH-BTN IGN SW

×

PCS-60

B2622: INSIDE ANTENNA

DLK-60

B2623: INSIDE ANTENNA

DLK-63

B26E1: ENG STATE NO RES

×

×

SEC-66

C1704: LOW PRESSURE FL

×

WT-43

C1705: LOW PRESSURE FR

×

WT-43

C1706: LOW PRESSURE RR

×

WT-43

C1707: LOW PRESSURE RL

×

WT-43

C1708: [NO DATA] FL

×

WT-13

C1709: [NO DATA] FR

×

WT-13

C1710: [NO DATA] RR

×

WT-13

C1711: [NO DATA] RL

×

WT-13

C1712: [CHECKSUM ERR] FL

×

WT-15

C1713: [CHECKSUM ERR] FR

×

WT-15

C1714: [CHECKSUM ERR] RR

×

WT-15

C1715: [CHECKSUM ERR] RL

×

WT-15

C1716: [PRESSDATA ERR] FL

×

WT-17

C1717: [PRESSDATA ERR] FR

×

WT-17

C1718: [PRESSDATA ERR] RR

×

WT-17

C1719: [PRESSDATA ERR] RL

×

WT-17

C1720: [CODE ERR] FL

×

WT-15

C1721: [CODE ERR] FR

×

WT-15

C1722: [CODE ERR] RR

×

WT-15

C1723: [CODE ERR] RL

×

WT-15

C1724: [BATT VOLT LOW] FL

×

WT-15

C1725: [BATT VOLT LOW] FR

×

WT-15

C1726: [BATT VOLT LOW] RR

×

WT-15

C1727: [BATT VOLT LOW] RL

×

WT-15

CONSULT display

Fail-safe

Intelligent Key

warning lamp ON

Tire pressure

monitor warning

lamp ON

Reference page

PCS

BCM (BODY CONTROL MODULE)

PCS-93

< ECU DIAGNOSIS INFORMATION >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

C1729: VHCL SPEED SIG ERR

×

WT-19

C1734: CONTROL UNIT

×

WT-20

CONSULT display

Fail-safe

Intelligent Key

warning lamp ON

Tire pressure

monitor warning

lamp ON

Reference page

PCS-94

< ECU DIAGNOSIS INFORMATION >

[POWER DISTRIBUTION SYSTEM]

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE
ROOM)

Reference Value

INFOID:0000000010049517

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

MOTOR FAN REQ

Engine idle speed

Changes depending on engine
coolant temperature, air conditioner
operation status, vehicle speed,
etc.

1,2,3,4

AC COMP REQ

Engine running

A/C switch OFF

Off

A/C switch ON
(Compressor is operating)

On

TAIL&CLR REQ

Lighting switch OFF

Off

Lighting switch 1ST, 2ND, HI or AUTO (Light is illuminated)

On

HL LO REQ

Lighting switch OFF

Off

Lighting switch 2ND HI or AUTO (Light is illuminated)

On

HL HI REQ

Lighting switch OFF

Off

Lighting switch HI

On

FR FOG REQ

Lighting switch 2ND or
AUTO (Light is illuminated)

Front fog lamp switch OFF

Off

• Front fog lamp switch ON
• Daytime running light activated

(Only for Canada models)

On

FR WIP REQ

Ignition switch ON

Front wiper switch OFF

STOP

Front wiper switch INT

1LOW

Front wiper switch LO

Low

Front wiper switch HI

Hi

WIP AUTO STOP

Ignition switch ON

Front wiper stop position

STOP P

Any position other than front wiper
stop position

ACT P

WIP PROT

Ignition switch ON

Front wiper operates normally

Off

Front wiper stops at fail-safe opera-
tion

BLOCK

IGN RLY1 -REQ

Ignition switch OFF or ACC

Off

Ignition switch ON

On

IGN RLY

Ignition switch OFF or ACC

Off

Ignition switch ON

On

PUSH SW

Release the push-button ignition switch

Off

Press the push-button ignition switch

On

INTER/NP SW

Ignition switch ON

CVT selector lever in any position
other than P or N

Off

Ignition switch ON

CVT selector lever in P or N posi-
tion

On

ST RLY CONT

Ignition switch ON

Off

At engine cranking

On

IHBT RLY -REQ

Ignition switch ON

Off

At engine cranking

On

PCS

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)

PCS-95

< ECU DIAGNOSIS INFORMATION >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

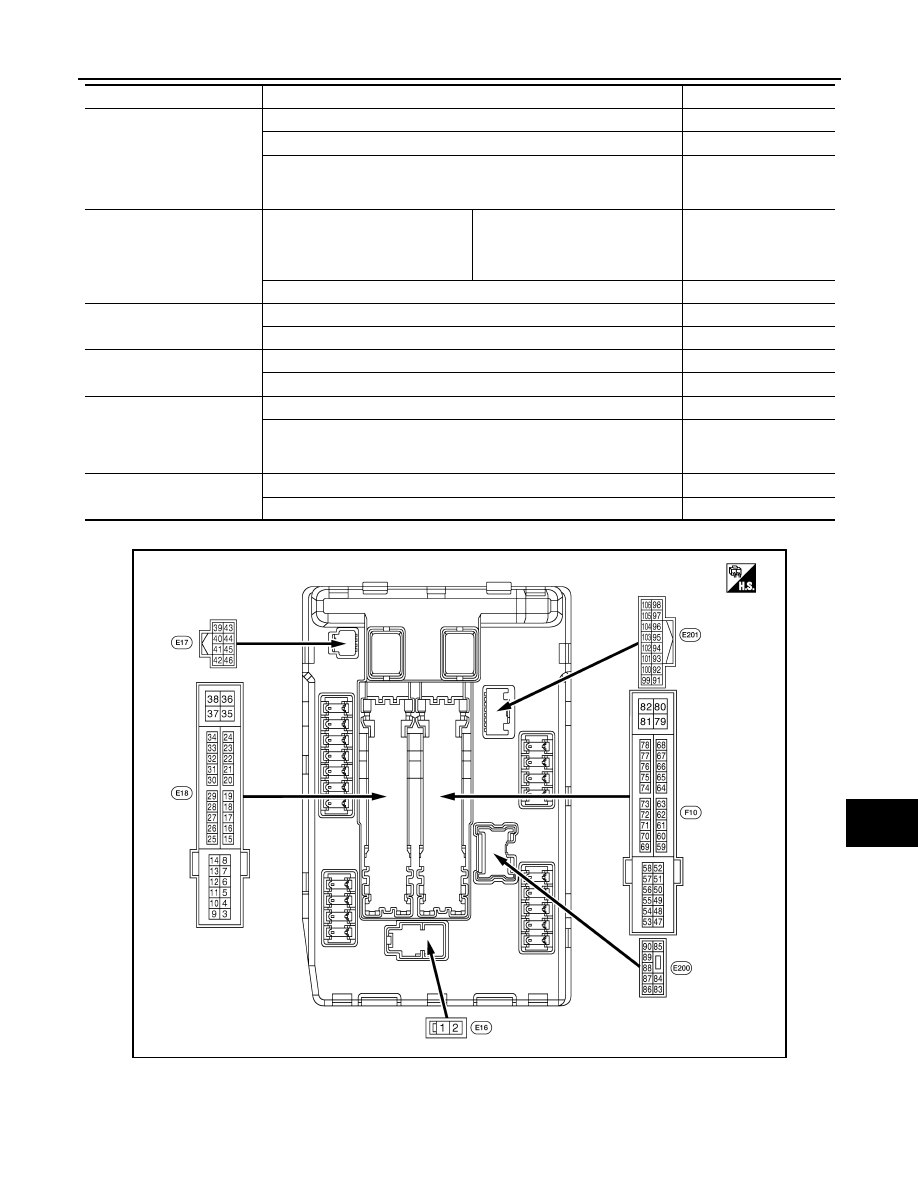

TERMINAL LAYOUT

PHYSICAL VALUES

ST/INHI RLY

Ignition switch ON

Off

At engine cranking

ST

→INHI

The status of starter relay or starter control relay cannot be recognized by
the battery voltage malfunction, etc. when the starter relay is ON and the
starter control relay is OFF

UNKWN

DETENT SW

Ignition switch ON

• Press the selector button with

CVT selector lever in P position

• CVT selector lever in any posi-

tion other than P

Off

Release the CVT selector button with CVT selector lever in P position

On

DTRL -REQ

DTRL ON

On

DTRL OFF

Off

OIL P SW

Ignition switch OFF, ACC or engine running

Open

Ignition switch ON

Close

THFT HRN REQ

Not operated

Off

• Panic alarm is activated
• Horn is activated with VEHICLE SECURITY (THEFT WARNING) SYS-

TEM

On

HORN CHIRP

Not operated

Off

Door locking with Intelligent Key (horn chirp mode)

On

Monitor Item

Condition

Value/Status

ALMIA0128ZZ
