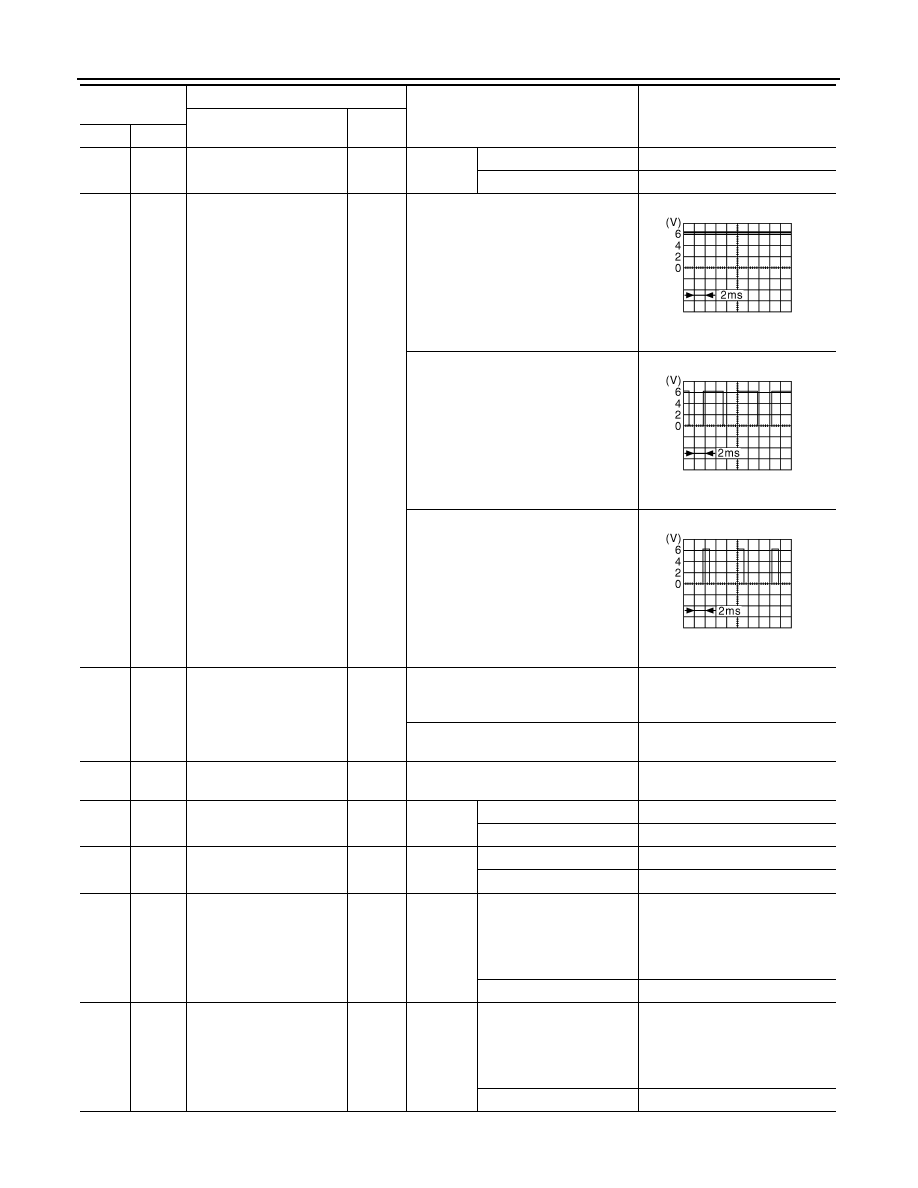

PCS-24 < ECU DIAGNOSIS INFORMATION > [IPDM E/R] IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) 75 (LG) Ground Oil pressure switch Input Ignition Engine stopped 0 V Engine running Battery voltage 76 (SB) Ground Power generation com- Output Ignition switch ON 6.3 V 40% is set on “Active test”, “ALTERNA- 3.8 V 80% is set on “Active test”, “ALTERNA- 1.4 V 77 (GR) Ground Fuel pump relay control Output • Approximately 1 second after turning the ignition switch ON • Engine running 0 - 1.0 V Approximately 1 second or more after Battery voltage 80 (B) Ground Starter motor Output At engine cranking Battery voltage 83 (R/Y) Ground Headlamp LO (RH) Output Ignition Lighting switch OFF 0 V Lighting switch 2ND Battery voltage 84 (L) Ground Headlamp LO (LH) Output Ignition Lighting switch OFF 0 V Lighting switch 2ND Battery voltage 86 (W/R) Ground Front fog lamp (RH) Output Lighting • Front fog lamp switch ON • Daytime running light activated (Only for Can- Battery voltage Front fog lamp switch OFF 0 V 87 (L/Y) Ground Front fog lamp (LH) Output Lighting • Front fog lamp switch ON • Daytime running light activated (Only for Can- Battery voltage Front fog lamp switch OFF 0 V Terminal No. (Wire color) Description Condition Value (Approx.) Signal name Input/ Output + − JPMIA0001GB JPMIA0002GB JPMIA0003GB |
