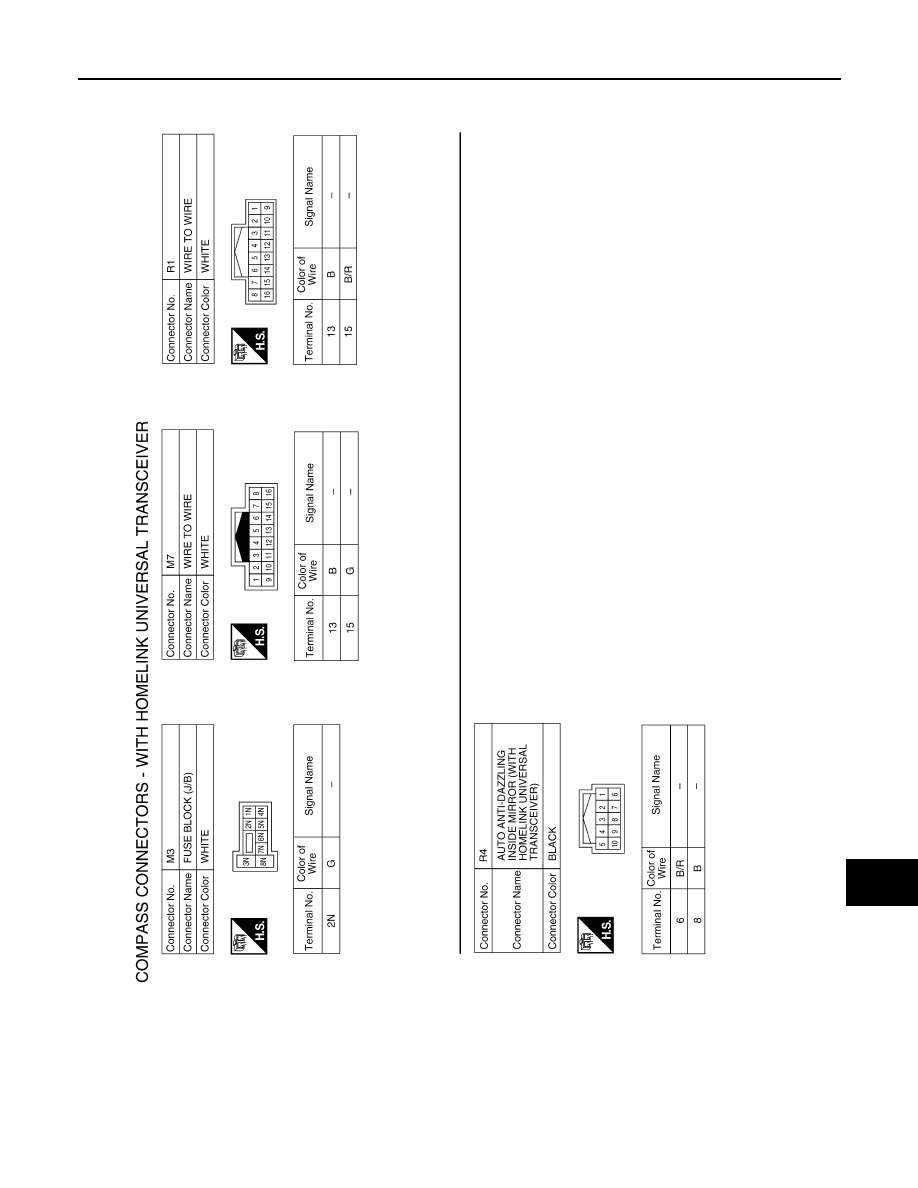

MWI

COMPASS

MWI-107

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNIA3738GB

MWI-108

< WIRING DIAGRAM >

COMPASS

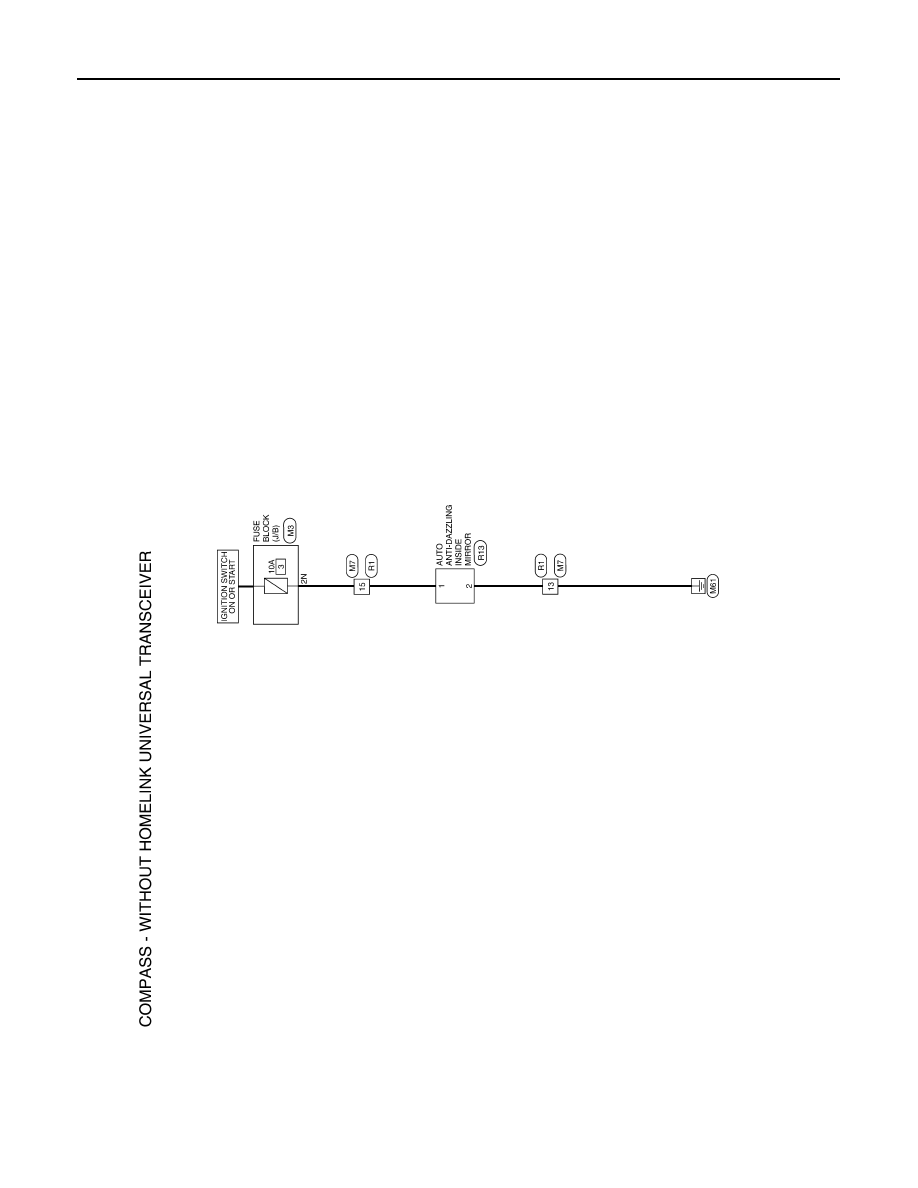

Wiring Diagram - WITHOUT HOMELINK UNIVERSAL TRANSCEIVER

INFOID:0000000010049613

ABNWA1306GB

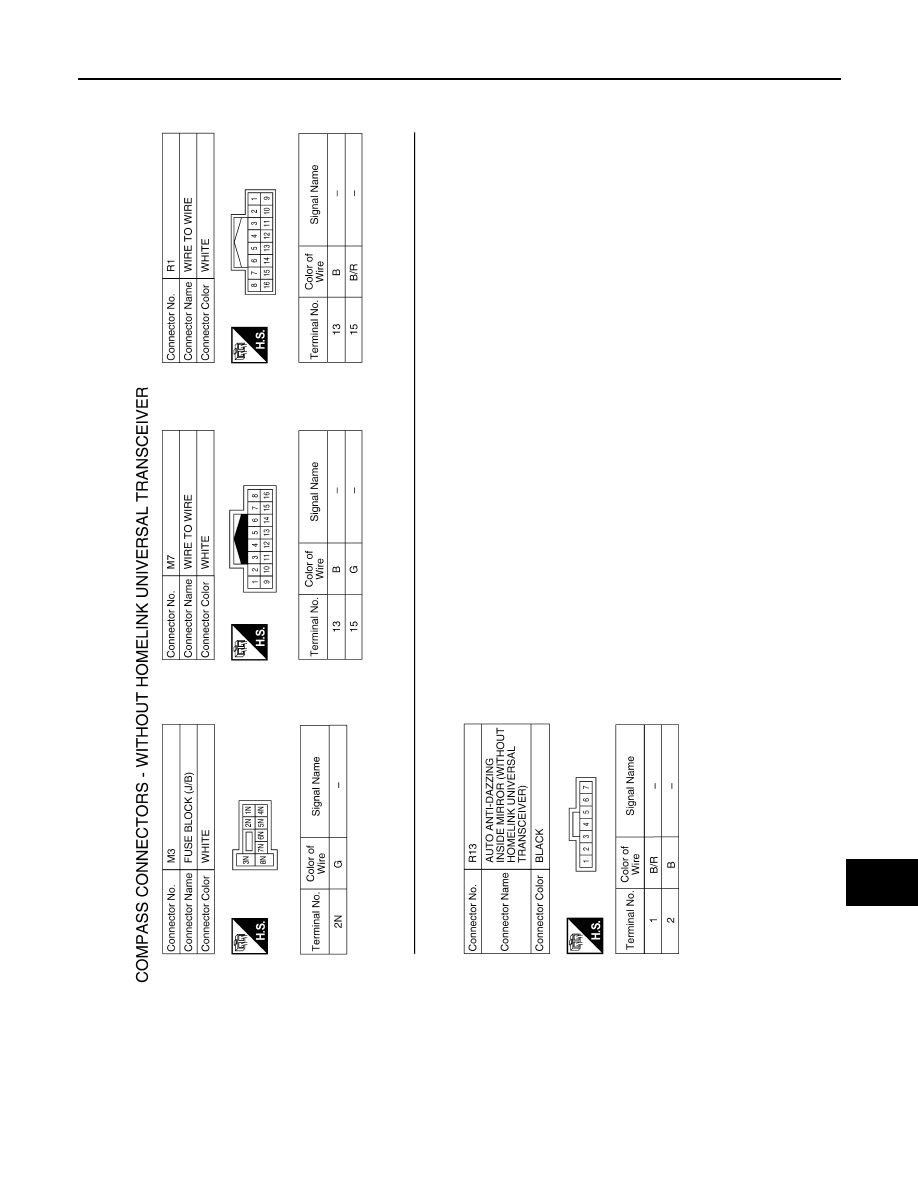

MWI

COMPASS

MWI-109

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNIA5149GB

MWI-110

< SYMPTOM DIAGNOSIS >

THE FUEL GAUGE POINTER DOES NOT MOVE

SYMPTOM DIAGNOSIS

THE FUEL GAUGE POINTER DOES NOT MOVE

Description

INFOID:0000000010049614

Fuel gauge needle will not move from a certain position.

Diagnosis Procedure

INFOID:0000000010049615

1.

CHECK COMBINATION METER INPUT SIGNAL

1. Select “METER/M&A” on CONSULT.

2. Using “FUEL METER” of “DATA MONITOR”, compare the monitor value with the fuel gauge reading on

the combination meter. Refer to

MWI-40, "Component Function Check"

.

Does monitor value match fuel gauge reading?

YES

>> GO TO 2

NO

>> Replace combination meter. Refer to

MWI-122, "Removal and Installation"

.

2.

CHECK FUEL LEVEL SENSOR SIGNAL CIRCUIT

Check the fuel level sensor signal circuit. Refer to

MWI-40, "Diagnosis Procedure"

.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair harness or connector.

3.

CHECK FUEL LEVEL SENSOR UNIT AND FUEL PUMP (FUEL LEVEL SENSOR)

Perform a unit check for the fuel level sensor unit and fuel pump (fuel level sensor). Refer to

MWI-41, "Compo-

nent Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Replace fuel level sensor unit and fuel pump (fuel level sensor). Refer to

FL-6, "Removal and

Installation"

.

4.

CHECK FLOAT INTERFERENCE

Check that the float arm does not interfere or bind with any of the components in the fuel tank.
Is the inspection result normal?

YES

>> Replace combination meter. Refer to

MWI-122, "Removal and Installation"

.

NO

>> Repair or replace malfunctioning parts.
