Nissan Maxima. Manual - part 794





PREPARATION

IP-9

< PREPARATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

PREPARATION

PREPARATION

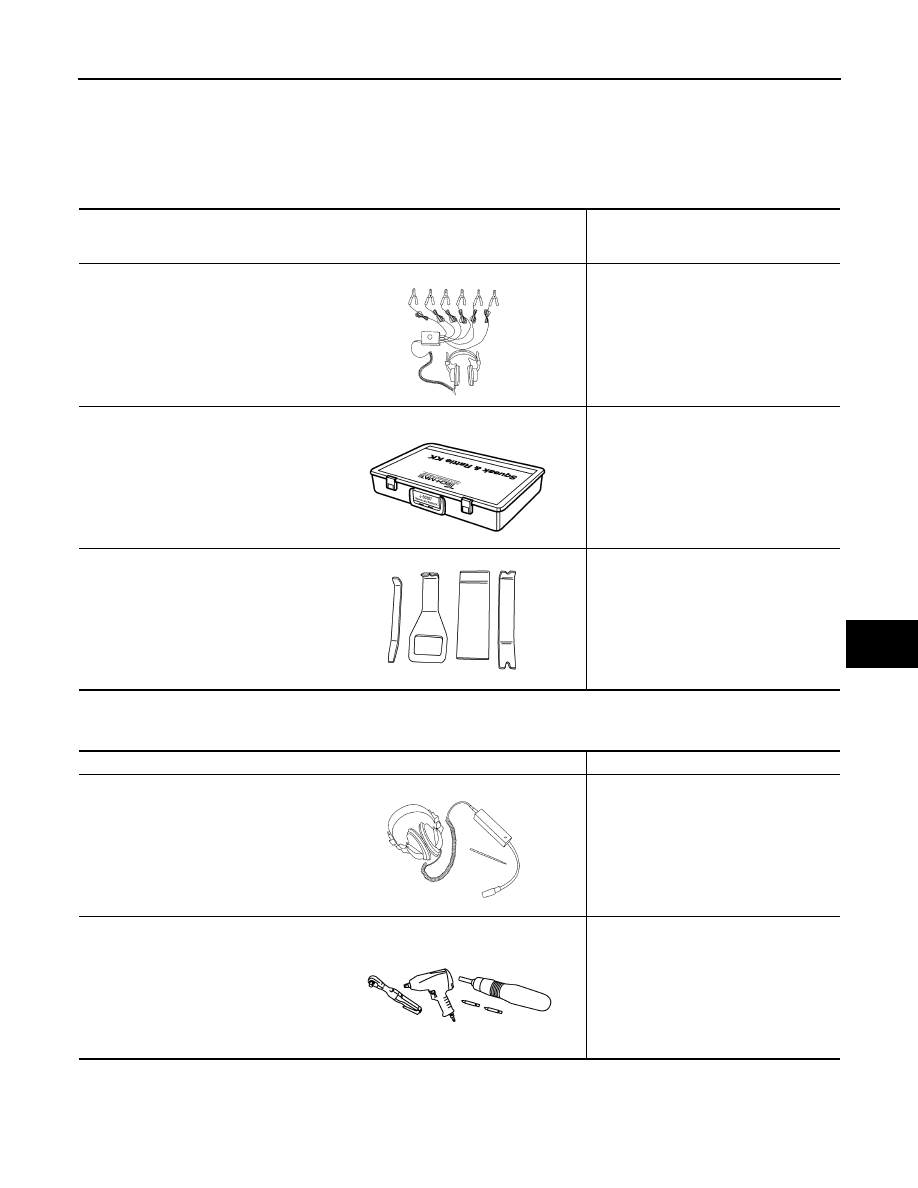

Special Service Tool

INFOID:0000000009465901

The actual shapes of the tools may differ from those illustrated here.

Commercial Service Tools

INFOID:0000000009465902

Tool number
(TechMate No.)
Tool name

Description

(J-39570)
Chassis Ear

Locating the noise

(J-50397)
NISSAN Squeak and Rattle Kit

Repairing the cause of noise

(J-46534)
Trim Tool Set

Removing trim components

SIIA0993E

ALJIA1232ZZ

AWJIA0483ZZ

Tool name

Description

Engine Ear

Locating the noise

Power Tool

Loosening nuts, screws and bolts

SIIA0995E

PIIB1407E

IP-10

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

REMOVAL AND INSTALLATION

INSTRUMENT PANEL ASSEMBLY

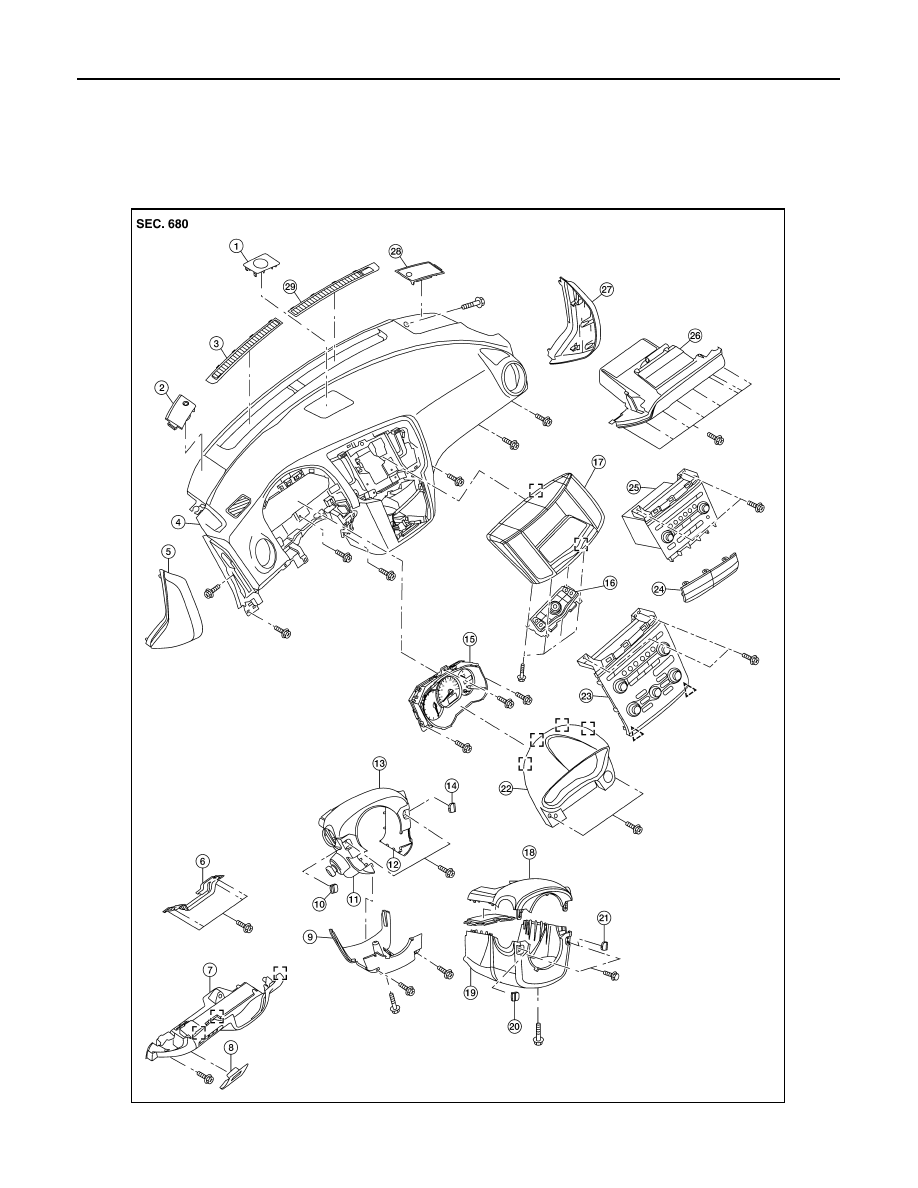

Exploded View

INFOID:0000000009465903

ALJIA0328ZZ

INSTRUMENT PANEL ASSEMBLY

IP-11

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

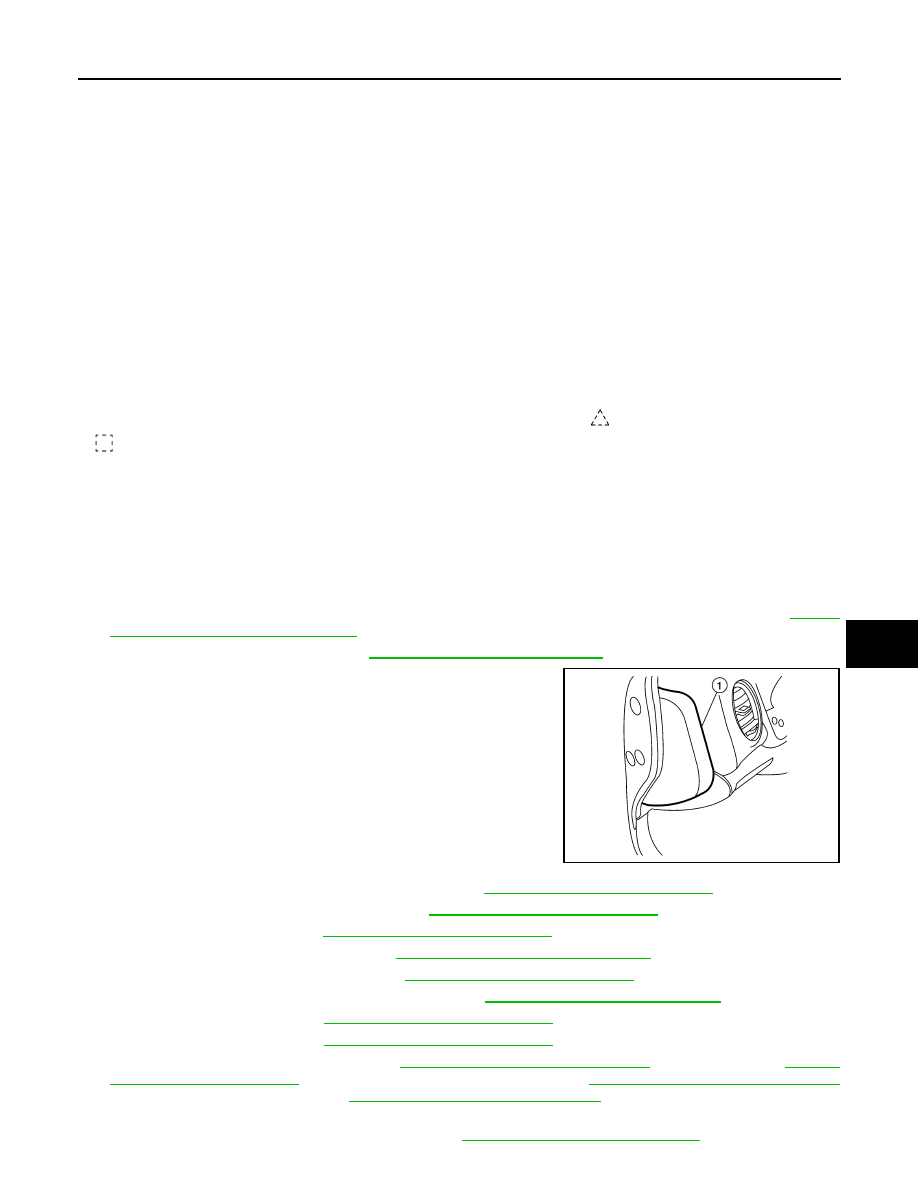

Removal and Installation

INFOID:0000000009465904

CAUTION:

• Be careful not to scratch instrument panel pad and other parts.

• Before servicing, turn ignition switch OFF, disconnect both battery terminals and wait at least three

minutes.

REMOVAL

1. Disconnect the negative and positive battery terminals, then wait at least three minutes. Refer to

PG-67,

"Removal and Installation (Battery)"

.

2. Remove the steering wheel. Refer to

ST-17, "Removal and Installation"

.

3. Using a suitable tool, gently remove both instrument panel side

finishers (1).

4. Remove the instrument lower panel (LH) (1). Refer to

IP-19, "Removal and Installation"

.

5. Remove the steering column covers. Refer to

IP-13, "Removal and Installation"

.

6. Remove cluster lid A. Refer to

IP-16, "Removal and Installation"

.

7. Remove the combination meter. Refer to

MWI-122, "Removal and Installation"

.

8. Remove the glove box assembly. Refer to

IP-20, "Removal and Installation"

.

9. Remove the front passenger air bag module. Refer to

SR-17, "Removal and Installation"

10. Remove cluster lid D. Refer to

IP-18, "Removal and Installation"

.

11. Remove cluster lid C. Refer to

IP-17, "Removal and Installation"

12. Remove the display screen. Refer to

AV-75, "Removal and Installation"

 (BASE AUDIO),

AV-163,

"Removal and Installation"

 (BOSE W/MONOCHROME DISPLAY),

AV-484, "Removal and Installation"

(BOSE W/COLOR DISPLAY) or

AV-655, "Removal and Installation"

 (BOSE W/COLOR DISPLAY W/

NAVI).

13. Remove the front pillar finishers (LH/RH). Refer to

INT-24, "Removal and Installation"

.

1.

Center speaker grille (if equipped)

2.

Tweeter speaker grille (LH)

3.

Front defroster grille (LH)

4.

Instrument panel

5.

Instrument side finisher (LH)

6.

Lower knee protector (LH)

7.

Instrument lower panel (LH)

8.

Fuse block cover

9.

Steering column lower cover (power
tilt)

10. Steering column screw finisher (LH)

(power tilt)

11. Steering column side cover (LH) (pow-

er tilt)

12.  Steering column side cover (RH)

(power tilt)

13. Steering column upper cover (power

tilt)

14. Steering column screw cover finisher

(RH) (power tilt)

15. Combination meter

16.  Multifunction switch (with color dis-

play) or A/C switch assembly (with
monochrome display)

17. Cluster lid D

18. Steering column upper cover (manu-

al tilt)

19. Steering column lower cover (manual

tilt)

20. Steering column screw finisher (LH)

(manual tilt)

21. Steering column screw cover finisher

(RH) (manual tilt)

22. Cluster lid A

23. Cluster lid C (with color display)

24. Cluster lid C lower finisher (with

monochrome display)

25. Cluster lid C (with monochrome dis-

play)

26. Glove box assembly

27. Instrument side finisher (RH)

28. Tweeter speaker grille (RH)

29. Front defroster grille (RH)

Clip

Metal clip

ALJIA0335ZZ

IP-12

< REMOVAL AND INSTALLATION >

INSTRUMENT PANEL ASSEMBLY

14. Remove the center console side finishers (LH/RH). Refer to

IP-21, "Exploded View"

.

15. Remove both tweeter speaker grilles and disconnect the harness connectors.
16. Remove the tweeter speakers (LH/RH). Refer to

AV-76, "Removal and Installation"

 (BASE AUDIO),

AV-

166, "Removal and Installation"

 (BOSE W/MONOCHROME DISPLAY),

AV-490, "Removal and Installa-

tion"

 (BOSE W/COLOR DISPLAY) or

AV-661, "Removal and Installation"

 (BOSE W/COLOR DISPLAY W/

NAVI).

17. Remove the center speaker (if equipped). Refer to

AV-165, "Removal and Installation"

 BOSE W/MONO-

CHROME DISPLAY),

AV-489, "Removal and Installation"

 (BOSE W/COLOR DISPLAY) or

AV-660,

"Removal and Installation"

 (BOSE W/COLOR DISPLAY W/NAVI).

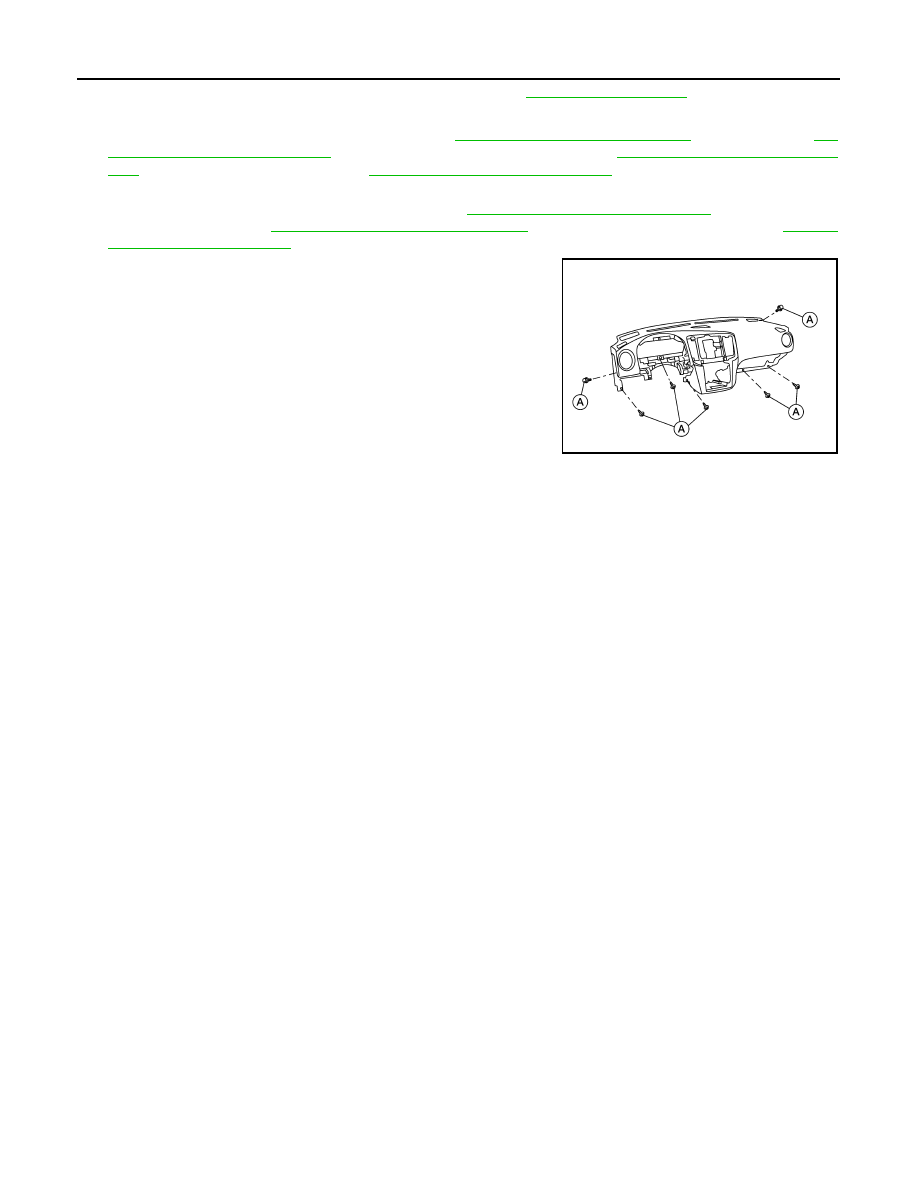

18. Remove the remaining instrument panel screws (A).

19. Disconnect the audio harness connectors located near the RH A-pillar.
20. Lift the instrument panel high enough in order to disconnect the harness clip attached to the air duct, and

all the necessary harness connectors, then remove the instrument panel.

INSTALLATION

Installation is in the reverse order of removal.

• If replacing the instrument panel, transfer all the necessary parts to the new instrument panel.

ALJIA0342ZZ
