INTAKE SENSOR

INTAKE SENSOR

Removal and Installation

INFOID:0000000009466353

REMOVAL

1. Remove the evaporator (2). Refer to

HA-48, "EVAPORATOR :

Removal and Installation"

.

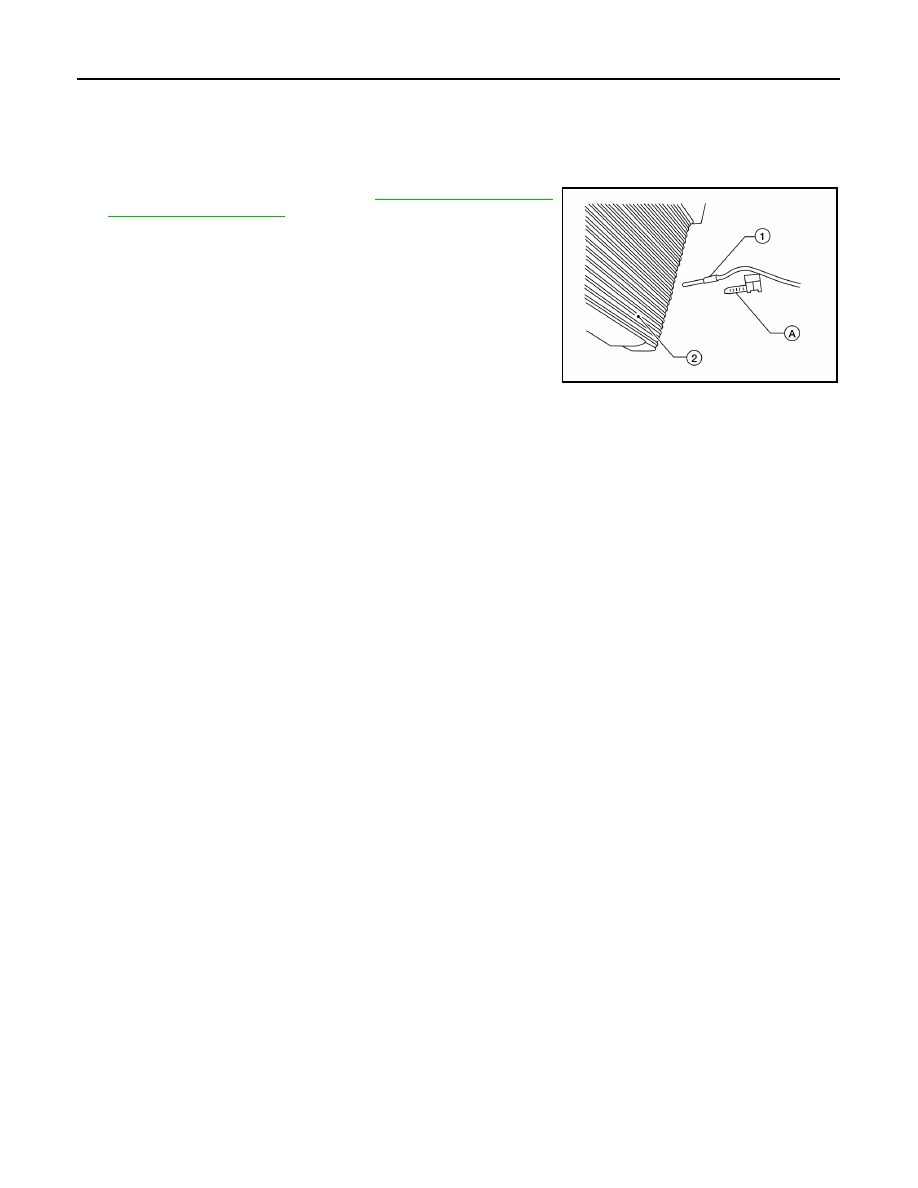

2. Release the intake sensor clip (A), then remove the intake sen-

sor (1).

CAUTION:

• Mark the mounting position of the intake sensor.

• Do not damage the evaporator core.

INSTALLATION

Installation is in the reverse order of removal.

AWIIA1602ZZ

REFRIGERANT PRESSURE SENSOR

HAC-105

< REMOVAL AND INSTALLATION >

[WITH COLOR DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

REFRIGERANT PRESSURE SENSOR

Removal and Installation

INFOID:0000000009466354

REMOVAL

1. Discharge the refrigerant. Refer to

HA-28, "Recycle Refrigerant"

.

2. Remove the core support upper cover.
3. Disconnect the harness connector from the refrigerant pressure sensor.
4. Remove the refrigerant pressure sensor.

CAUTION:

Cap or wrap the opening of the refrigerant pressure sensor with suitable material such as vinyl

tape to avoid the entry of air.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Do not reuse O-ring.

• Apply A/C oil to the O-ring of the refrigerant pressure sensor for installation.

• After charging refrigerant, check for leaks. Refer to

HA-26, "Leak Test"

.

HAC-106

< REMOVAL AND INSTALLATION >

[WITH COLOR DISPLAY]

DOOR MOTOR

DOOR MOTOR

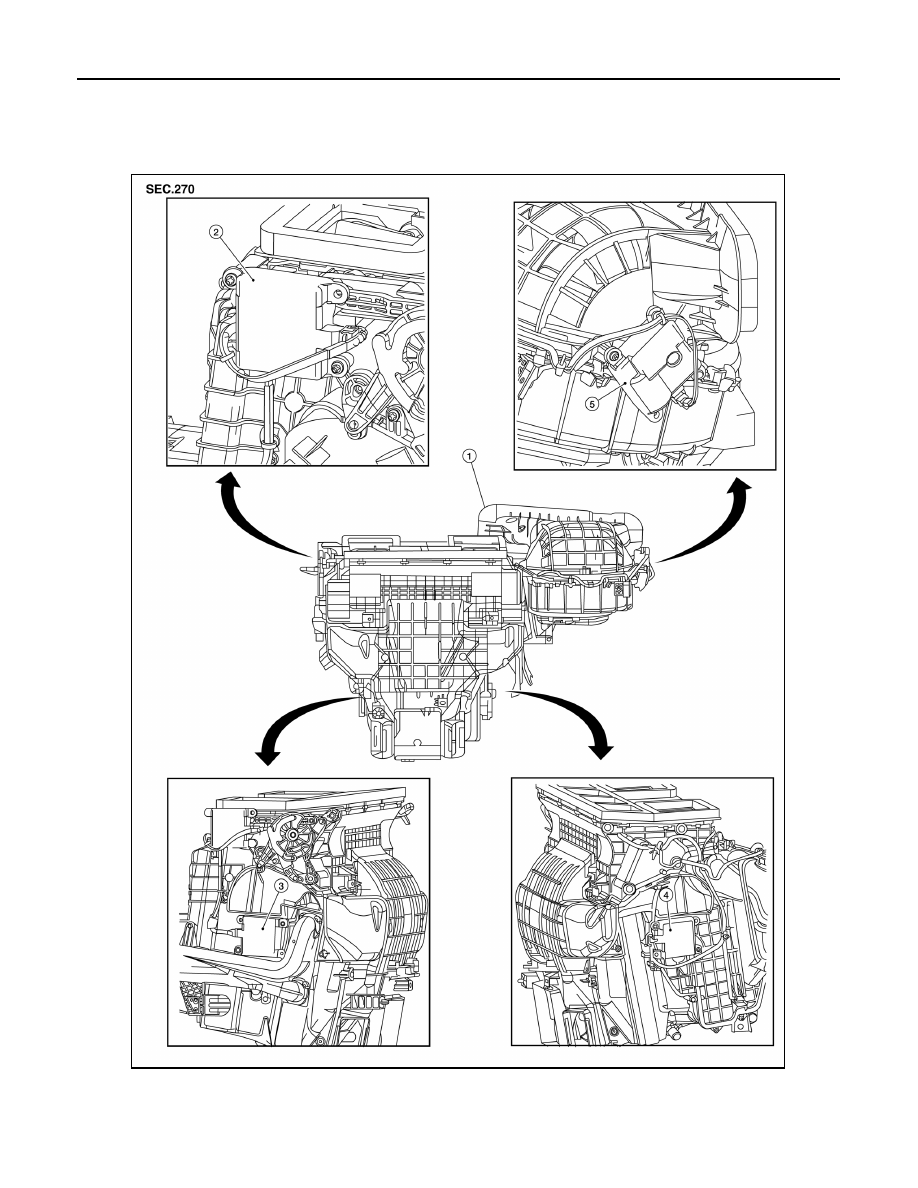

Exploded View

INFOID:0000000009466355

1.

Heating and cooling unit assembly

2.

Mode door motor

3.

Air mix door motor (driver side)

4.

Air mix door motor (passenger side) 5.

Intake door motor

ALIIA0644ZZ

DOOR MOTOR

HAC-107

< REMOVAL AND INSTALLATION >

[WITH COLOR DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

INTAKE DOOR MOTOR
INTAKE DOOR MOTOR : Removal and Installation

INFOID:0000000009466356

REMOVAL

1. Remove the glove box assembly. Refer to

VTL-16, "BLOWER UNIT : Removal and Installation"

.

2. Remove the remote keyless entry receiver and bracket to reposition out of the way.
3. Disconnect the harness connector from the intake door motor.
4. Remove the intake door motor screws and intake door motor from the blower unit.

INSTALLATION

Installation is in the reverse order of removal.

MODE DOOR MOTOR
MODE DOOR MOTOR : Removal and Installation

INFOID:0000000009466357

REMOVAL

1. Remove the combination meter. Refer to

MWI-122, "Removal and Installation"

.

2. Remove the BCM. Refer to

BCS-79, "Removal and Installation"

.

3. Disconnect the harness connector from the mode door motor.
4. Remove the mode door motor screws and the mode door motor.

INSTALLATION

Installation is in the reverse order of removal.

AIR MIX DOOR MOTOR
AIR MIX DOOR MOTOR : Removal and Installation - Air Mix Door Motor (Driver Side)

INFOID:0000000009466358

REMOVAL

1. Remove the instrument lower panel LH. Refer to

IP-19, "Removal and Installation"

.

2. Remove the upper floor connecting duct (LH). Refer to

HA-47, "Exploded View"

.

3. Remove the tire pressure receiver.
4. Disconnect the harness connector from the air mix door motor.
5. Remove the air mix door motor screws and the air mix door motor (driver side).

INSTALLATION

Installation is in the reverse order of removal.

AIR MIX DOOR MOTOR : Removal and Installation - Air Mix Door Motor (Passenger
Side)

INFOID:0000000009466359

REMOVAL

1. Remove the glove box assembly. Refer to

IP-19, "Removal and Installation"

.

2. Remove the upper floor connecting duct (RH). Refer to

HA-47, "Exploded View"

.

3. Disconnect the harness connector from the air mix door motor.
4. Remove the air mix door motor screws and the air mix door motor (passenger side).

INSTALLATION

Installation is in the reverse order of removal.
