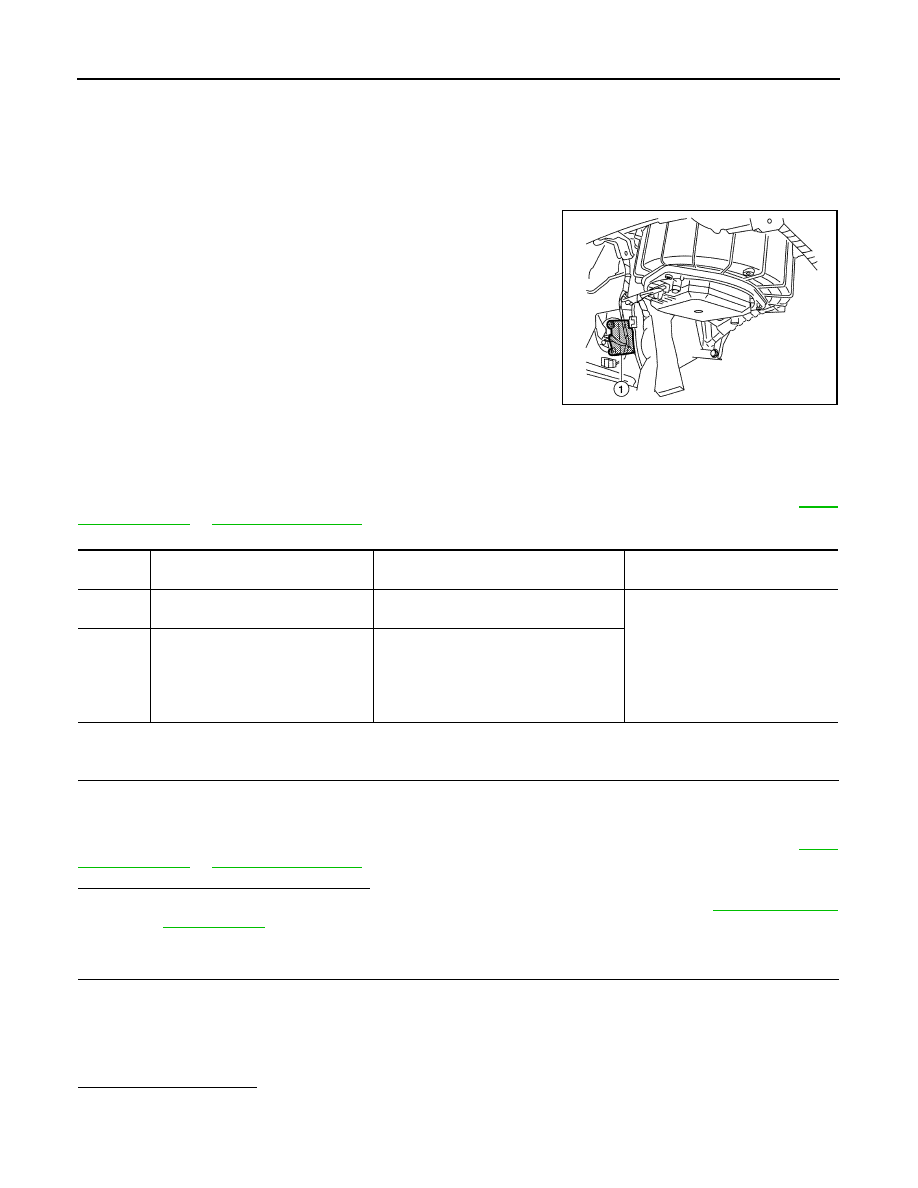

HAC-44

< DTC/CIRCUIT DIAGNOSIS >

[WITH COLOR DISPLAY]

B2632, B2633 AIR MIX DOOR MOTOR (DRIVER SIDE)

B2632, B2633 AIR MIX DOOR MOTOR (DRIVER SIDE)

Description

INFOID:0000000010050986

COMPONENT DESCRIPTION

Air Mix Door Motor (Driver side)

• The air mix door motor (driver side) (1) is attached to the heater &

cooling unit assembly.

• It rotates so that the air mix door is opened or closed to a position

set by the A/C auto amp.

• Motor rotation is then conveyed through a shaft and the air mix

door position feedback is then sent to the A/C auto amp. by PBR

built-in air mix door motor.

DTC Logic

INFOID:0000000010050987

DTC DETECTION LOGIC

NOTE:

If DTC is displayed along with DTC U1000 or U1010, first diagnose the DTC U1000 or U1010. Refer to

HAC-

30, "DTC Logic"

 or

HAC-31, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

CHECK WITH SELF-DIAGNOSIS FUNCTION OF CONSULT

1. Using CONSULT, perform “SELF-DIAGNOSIS RESULTS” of HVAC.

2. Check if any DTC No. is displayed in the self-diagnosis results.

NOTE:

If DTC is displayed along with DTC U1000 or U1010, first diagnose the DTC U1000 or U1010. Refer to

HAC-

30, "DTC Logic"

 or

HAC-31, "DTC Logic"

.

Is DTC No.“B2632” or “B2633” displayed?

YES

>> Perform trouble diagnosis for the air mix door motor (driver side). Refer to

HAC-45, "Diagnosis

Procedure"

.

NO

>> GO TO 2.

2.

FUNCTION INSPECTION

1. Turn the temperature control dial (driver side) until 32

°C (90°F) is displayed.

2. Check for warm air at discharge air outlets.

3. Operate the compressor.

4. Turn the temperature control dial (driver side) until 18

°C (60°F) is displayed.

5. Check for cool air at air discharge outlets.
Does it operate normally?

YES

>> Inspection End.

AWIIA0024ZZ

DTC

Items

 (CONSULT screen terms)

Diagnostic item is detected when...

Possible cause

B2632

DR AIRMIX ACTR (SHORT)

Air mix door PBR (driver side) position
5% or less

• Air mix door motor (driver side)
• A/C auto amp.
• Harness and connector

(CAN communication line is
open or shorted)
(Air mix door motor is open or
shorted)

B2633

DR AIRMIX ACTR (OPEN)

Air mix door PBR (driver side) position
95% or more

B2632, B2633 AIR MIX DOOR MOTOR (DRIVER SIDE)

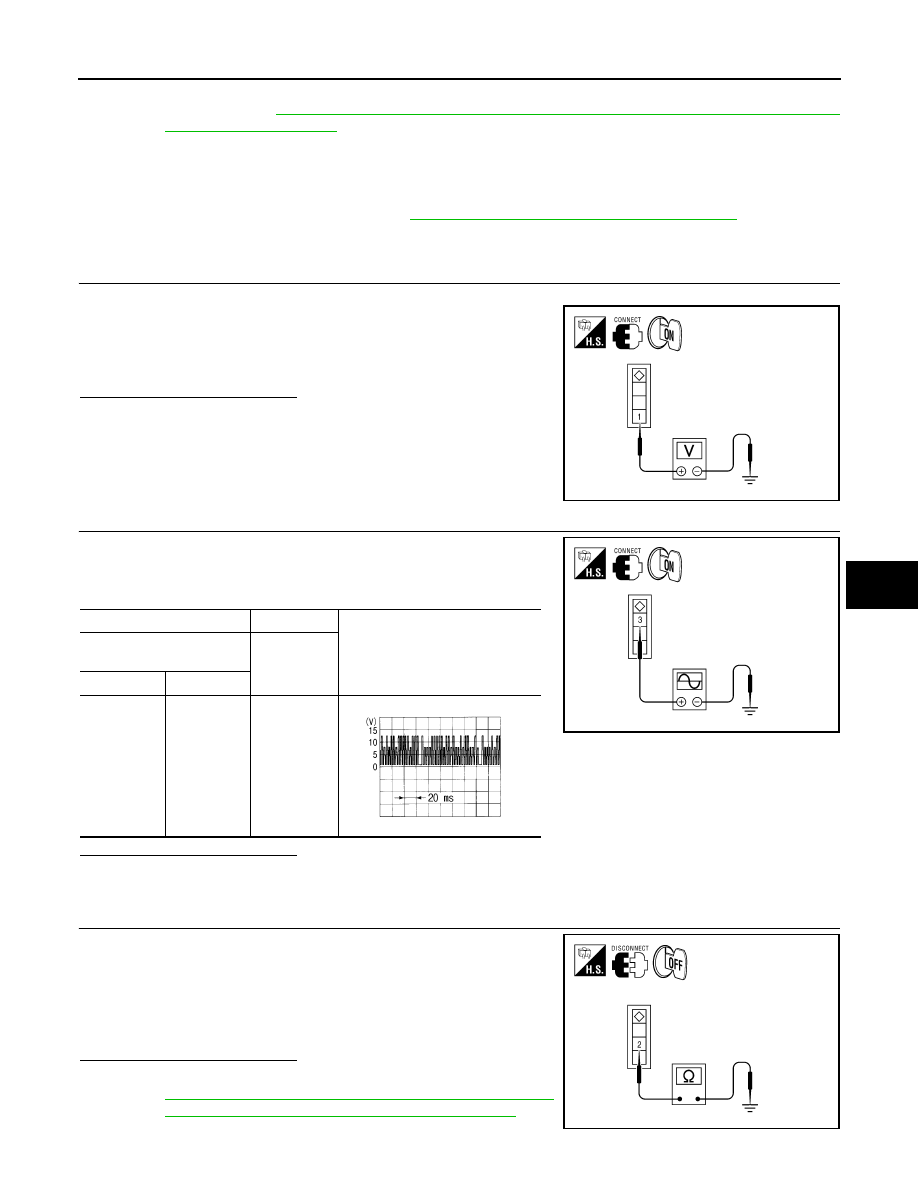

HAC-45

< DTC/CIRCUIT DIAGNOSIS >

[WITH COLOR DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

NO

>> Check air mix door motor (driver side) installation, and repair or replace the malfunctioning parts.

Refer to

HAC-107, "AIR MIX DOOR MOTOR : Removal and Installation - Air Mix Door Motor

(Driver Side)"

.

Diagnosis Procedure

INFOID:0000000010050988

Regarding Wiring Diagram information, refer to

HAC-67, "Wiring Diagram - With Color Display"

.

1.

CHECK AIR MIX DOOR MOTOR (DRIVER SIDE) POWER SUPPLY

1. Turn ignition switch ON.

2. Check voltage between air mix door motor (driver side) harness

connector M128 terminal 1 and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the harnesses or connectors.

2.

CHECK SIGNAL FOR AIR MIX DOOR MOTOR (DRIVER SIDE)

Check the output waveform (LAN signal) between air mix door motor

(driver side) harness connector M128 terminal 3 and ground using

an oscilloscope.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair the harnesses or connectors.

3.

CHECK AIR MIX DOOR MOTOR (DRIVER SIDE) GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect air mix door motor (driver side) connector.

3. Check continuity between air mix door motor (driver side) har-

ness connector M128 terminal 2 and ground.

Is the inspection result normal?

YES

>> Replace air mix door motor (driver side). Refer to

HAC-

107, "AIR MIX DOOR MOTOR : Removal and Installa-

tion - Air Mix Door Motor (Driver Side)"

.

NO

>> Repair harness or connector.

1 - Ground

: Battery Voltage

AWIIA1142ZZ

(+)

(

−)

Voltage

Air mix door motor

 (driver side)

—

Connector

Terminal

M128

3

Ground

AWIIA1143ZZ

SJIA1453J

2 - Ground

: Continuity should exist.

AWIIA1144ZZ

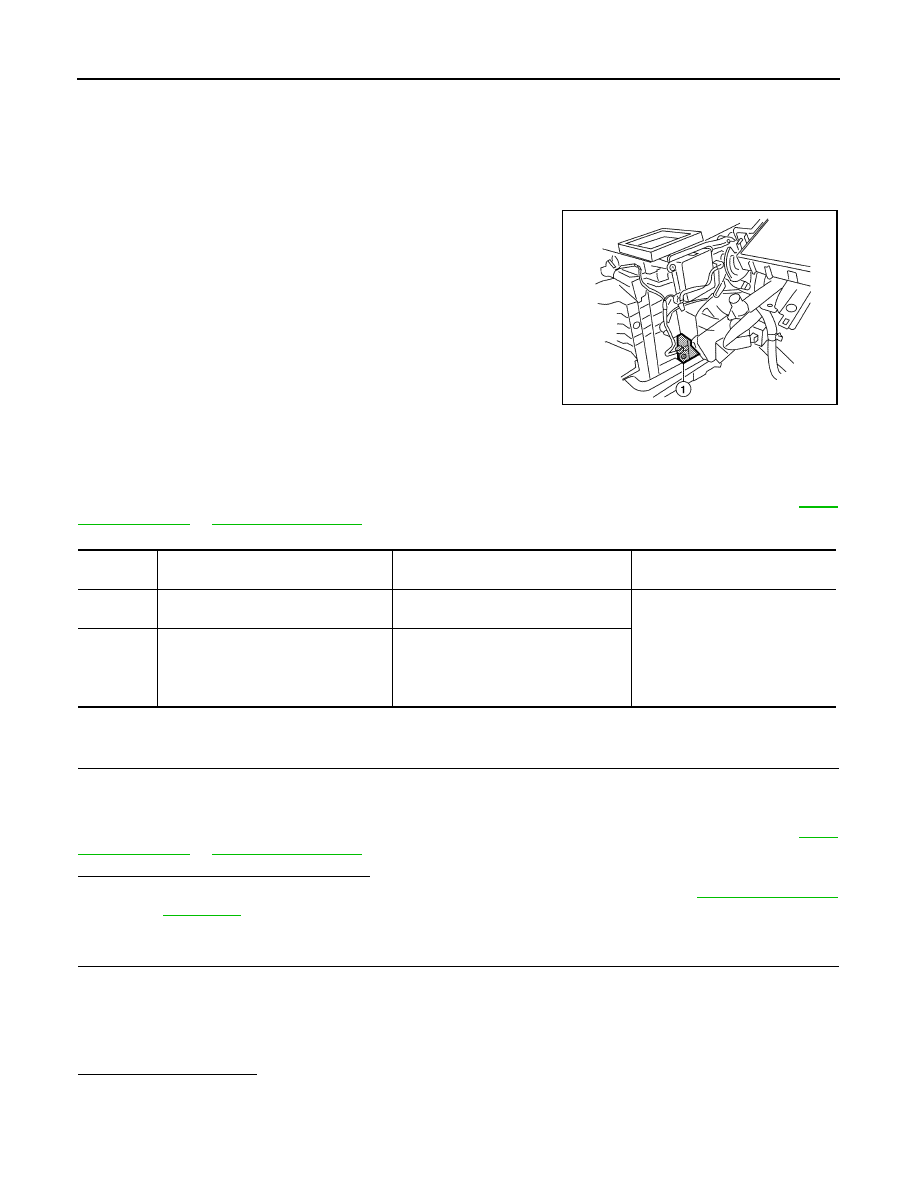

HAC-46

< DTC/CIRCUIT DIAGNOSIS >

[WITH COLOR DISPLAY]

B2634, B2635 AIR MIX DOOR MOTOR (PASSENGER SIDE)

B2634, B2635 AIR MIX DOOR MOTOR (PASSENGER SIDE)

Description

INFOID:0000000010050989

COMPONENT DESCRIPTION

Air Mix Door Motor (Passenger Side)

• The air mix door motor (passenger side) (1) is attached to the

heater & cooling unit assembly.

• It rotates so that the air mix door is opened or closed to a position

set by the A/C auto amp.

• Motor rotation is then conveyed through a shaft and the air mix

door position feedback is then sent to the A/C auto amp. by PBR

built-in air mix door motor.

DTC Logic

INFOID:0000000010050990

DTC DETECTION LOGIC

NOTE:

If DTC is displayed along with DTC U1000 or U1010, first diagnose the DTC U1000 or U1010. Refer to

HAC-

30, "DTC Logic"

 or

HAC-31, "DTC Logic"

.

DTC CONFIRMATION PROCEDURE

1.

CHECK WITH SELF-DIAGNOSIS FUNCTION OF CONSULT

1. Using CONSULT, perform “SELF-DIAGNOSIS RESULTS” of HVAC.

2. Check if any DTC No. is displayed in the self-diagnosis results.

NOTE:

If DTC is displayed along with DTC U1000 or U1010, first diagnose the DTC U1000 or U1010. Refer to

HAC-

30, "DTC Logic"

 or

HAC-31, "DTC Logic"

.

Is DTC No.“B2634” or “B2635” displayed?

YES

>> Perform trouble diagnosis for the air mix door motor (passenger side). Refer to

HAC-47, "Diagno-

sis Procedure"

.

NO

>> GO TO 2.

2.

FUNCTION INSPECTION

1. Turn the temperature control dial (passenger side) until 32

°C (90°F) is displayed.

2. Check for warm air at discharge air outlets.

3. Operate the compressor.

4. Turn the temperature control dial (passenger side) until 18

°C (60°F) is displayed.

5. Check for cool air at air discharge outlets.
Does it operate normally?

YES

>> Inspection End.

AWIIA1118ZZ

DTC

Items

 (CONSULT screen terms)

Diagnostic item is detected when...

Possible cause

B2634

PASS AIRMIX ACTR (SHORT)

Air mix door PBR (passenger side) position
5% or less

• Air mix door motor (passenger

side)

• A/C auto amp.
• Harness and connector

(CAN communication line is open
or shorted)
(Air mix door motor is open or
shorted)

B2635

PASS AIRMIX ACTR (OPEN)

Air mix door PBR (passenger side) position
95% or more

B2634, B2635 AIR MIX DOOR MOTOR (PASSENGER SIDE)

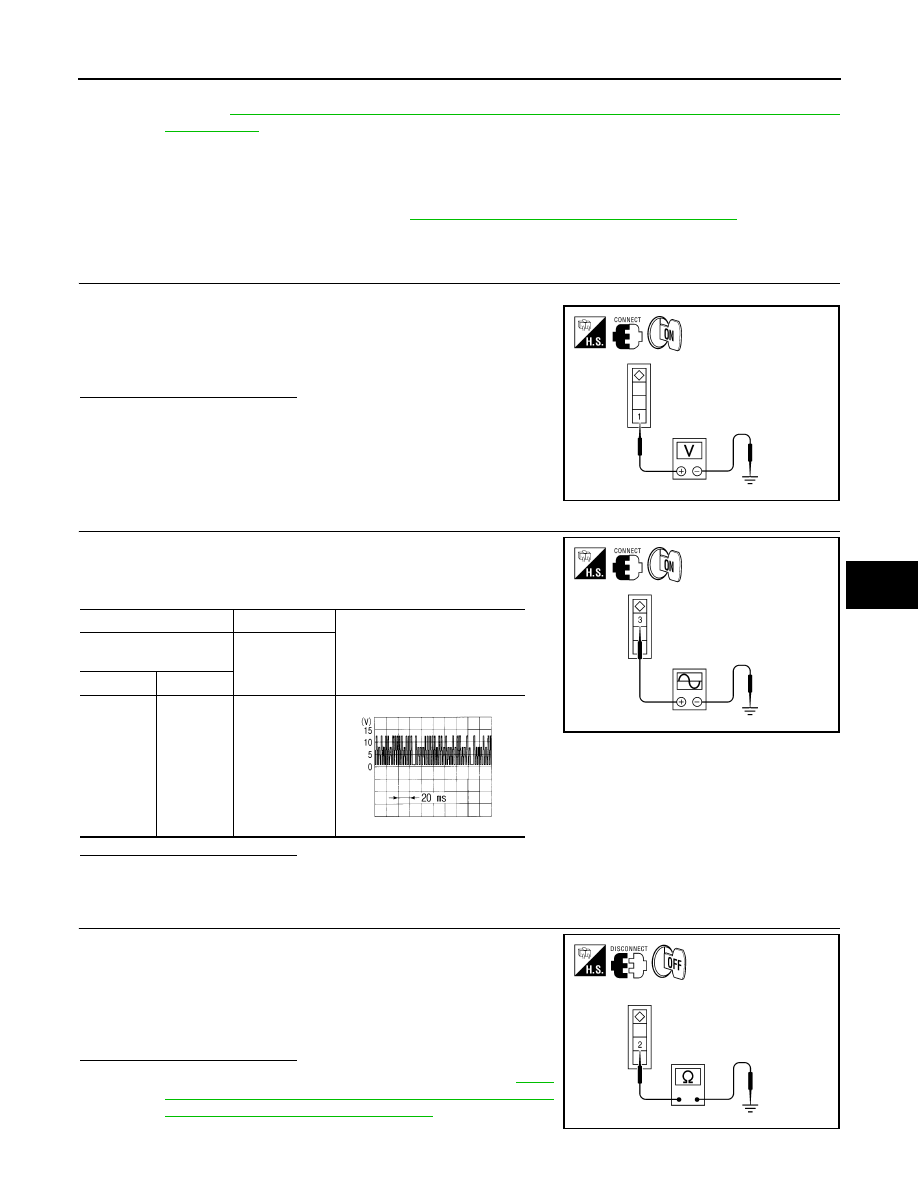

HAC-47

< DTC/CIRCUIT DIAGNOSIS >

[WITH COLOR DISPLAY]

C

D

E

F

G

H

J

K

L

M

A

B

HAC

N

O

P

NO

>> Check air mix door motor (passenger side) installation, and repair or replace the malfunctioning

parts. Refer to

HAC-107, "AIR MIX DOOR MOTOR : Removal and Installation - Air Mix Door

Motor (Passenger Side)"

.

Diagnosis Procedure

INFOID:0000000010050991

Regarding Wiring Diagram information, refer to

HAC-67, "Wiring Diagram - With Color Display"

.

1.

CHECK AIR MIX DOOR MOTOR (PASSENGER SIDE) POWER SUPPLY

1. Turn ignition switch ON.

2. Check voltage between air mix door motor (passenger side) har-

ness connector M129 terminal 1 and ground.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the harnesses or connectors.

2.

CHECK SIGNAL FOR AIR MIX DOOR MOTOR (PASSENGER SIDE)

Check the output waveform (LAN signal) between air mix door motor

(passenger side) harness connector and ground using an oscillo-

scope.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair the harnesses or connectors.

3.

CHECK AIR MIX DOOR MOTOR (PASSENGER SIDE) GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect air mix door motor (passenger side) connector.

3. Check continuity between air mix door motor (passenger side)

harness connector M129 terminal 2 and ground.

Is the inspection result normal?

YES

>> Replace air mix door motor (passenger side). Refer to

HAC-107, "AIR MIX DOOR MOTOR : Removal and

Installation - Air Mix Door Motor (Passenger Side)"

.

NO

>> Repair harness or connector.

1 - Ground

:Battery Voltage

AWIIA1145ZZ

(+)

(

−)

Voltage

Air mix door motor

 (passenger side)

—

Connector

Terminal

M129

3

Ground

AWIIA1146ZZ

SJIA1453J

2 - Ground

: Continuity should exist.

AWIIA1147ZZ
