REMOVAL AND INSTALLATION

WINDSHIELD GLASS

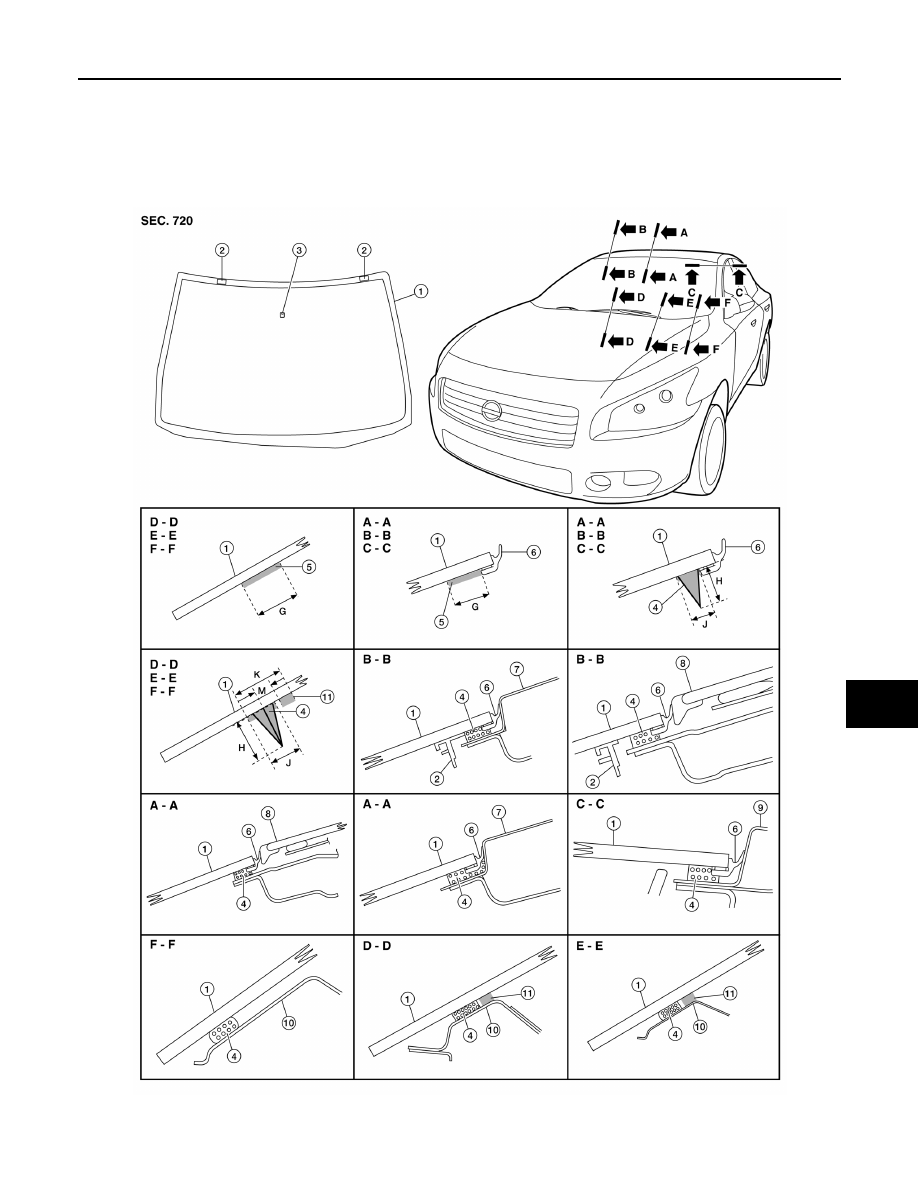

Exploded View

INFOID:0000000009471559

AWKIA1818ZZ

GW-12

< REMOVAL AND INSTALLATION >

WINDSHIELD GLASS

Removal and Installation

INFOID:0000000009471560

REMOVAL

1. Remove the cowl top. Refer to

EXT-21, "Removal and Installation"

.

2. Remove roof side molding (if equipped).Refer to

EXT-29, "Removal and Installation"

3. Remove inside mirror. Refer to

MIR-18, "Removal and Installation"

.

4. Partially remove the headlining (front edge). Refer to

INT-33, "Removal and Installation"

.

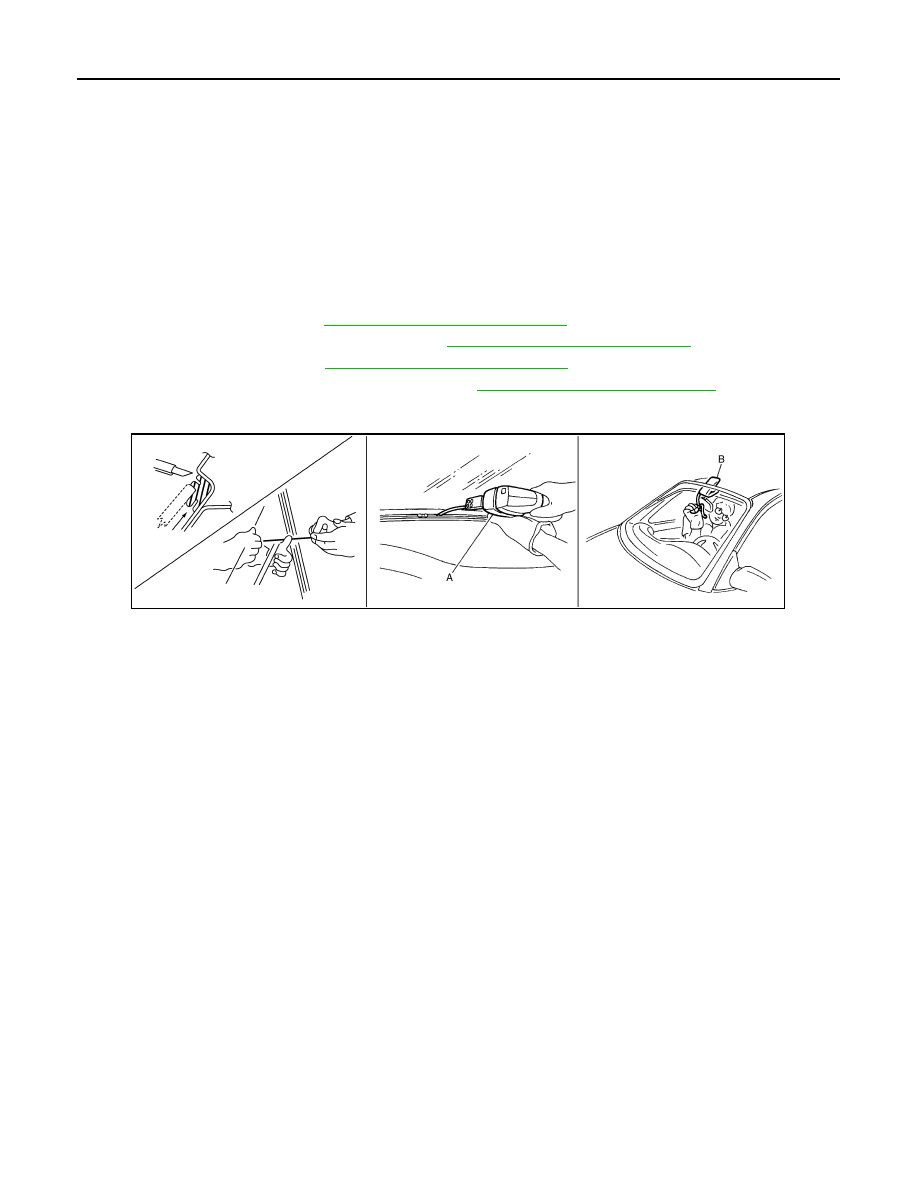

5. After removing moldings, remove glass using piano wire or power cutting tool (A) and an inflatable pump

bag (B).

• Apply a protective tape around the windshield glass to protect the painted surface from damage.

• If the windshield glass is to be reused, mark the body and the glass with mating marks.

WARNING:

When cutting the glass from the vehicle, always wear safety glasses and heavy gloves to help prevent

glass splinters from entering your eyes or cutting your hands.

CAUTION:

• Be careful not to scratch the glass when removing.

• Do not set or stand the glass on its edge. Small chips may develop into cracks.

• When the windshield glass is to be reused, do not use a cutting knife or power cutting tool.

INSTALLATION

Installation is in the reverse order of removal.

• Use a genuine Nissan Urethane Adhesive Kit (if available) or equivalent and follow the instructions furnished

with it.

• While the urethane adhesive is curing, open a door window. This will prevent the glass from being forced out

by passenger compartment air pressure when a door is closed.

• The molding must be installed securely so that it is in position and leaves no gap.

• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely

cured (preferably 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.

• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Avoid

contact with the skin and eyes.

• Use in an open, well ventilated location. Avoid breathing the vapors. They can be harmful if inhaled.

If affected by vapor inhalation, immediately move to an area with fresh air.

• Driving the vehicle before the urethane adhesive has completely cured may affect the performance

of the windshield in case of an accident.

CAUTION:

1.

Windshield glass

2.

Spacer

3.

Mirror base

4.

Adhesive

5.

Primer

6.

Windshield molding

7.

Metal roof

8.

Dual Panel Sunroof

9.

Front pillar

10. Cowl top

11. Rubber dam

G.

16 mm (0.63 in) for top and sides
25 mm (0.98 in) for bottom

H.

12 + 2, - 0 mm (0.47 + 0.08 - 0 in)

J.

7 + 2, - 0 mm (0.28 + 0.08, - 0 in)

K.

15 mm (0.59 in)

M.

6.5 mm (0.26 in)

PIIB5779E

WINDSHIELD GLASS

GW-13

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

• Do not use an adhesive which is past its usable term. Shelf life of this product is limited to six

months after the date of manufacture. Carefully adhere to the expiration or manufacture date printed

on the box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.

• Do not leave primers or adhesive cartridge unattended with their caps open or off.

• The vehicle should not be driven for at least 24 hours or until the urethane adhesive has completely

cured. Curing time varies depending on temperature and humidity. The curing time will increase

under lower temperature and lower humidity.

Inspection

INFOID:0000000009471561

Repairing water Leaks for Windshield

Leaks can be repaired without removing and reinstalling glass.

If water is leaking between the urethane adhesive material and body or glass, determine the extent of leakage.

This can be done by applying water to the windshield area while pushing glass outward.

To stop the leak, apply primer (if necessary) and then urethane adhesive to the leak point.
