Nissan Maxima. Manual - part 687





CONSULT CHECKING SYSTEM

GI-49

< BASIC INSPECTION >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

CONSULT CHECKING SYSTEM

Description

INFOID:0000000009471901

NOTE:

This vehicle is diagnosed using CONSULT-III plus.

• When CONSULT is connected with a data link connector equipped

on the vehicle side, it will communicate with the control unit

equipped in the vehicle and then enable various kinds of diagnos-

tic tests.

• Refer to CONSULT-III plus Operation Manual for more information.

Function and System Application

INFOID:0000000009471902

x: Applicable
*1: With color display
*2: With automatic drive positioner

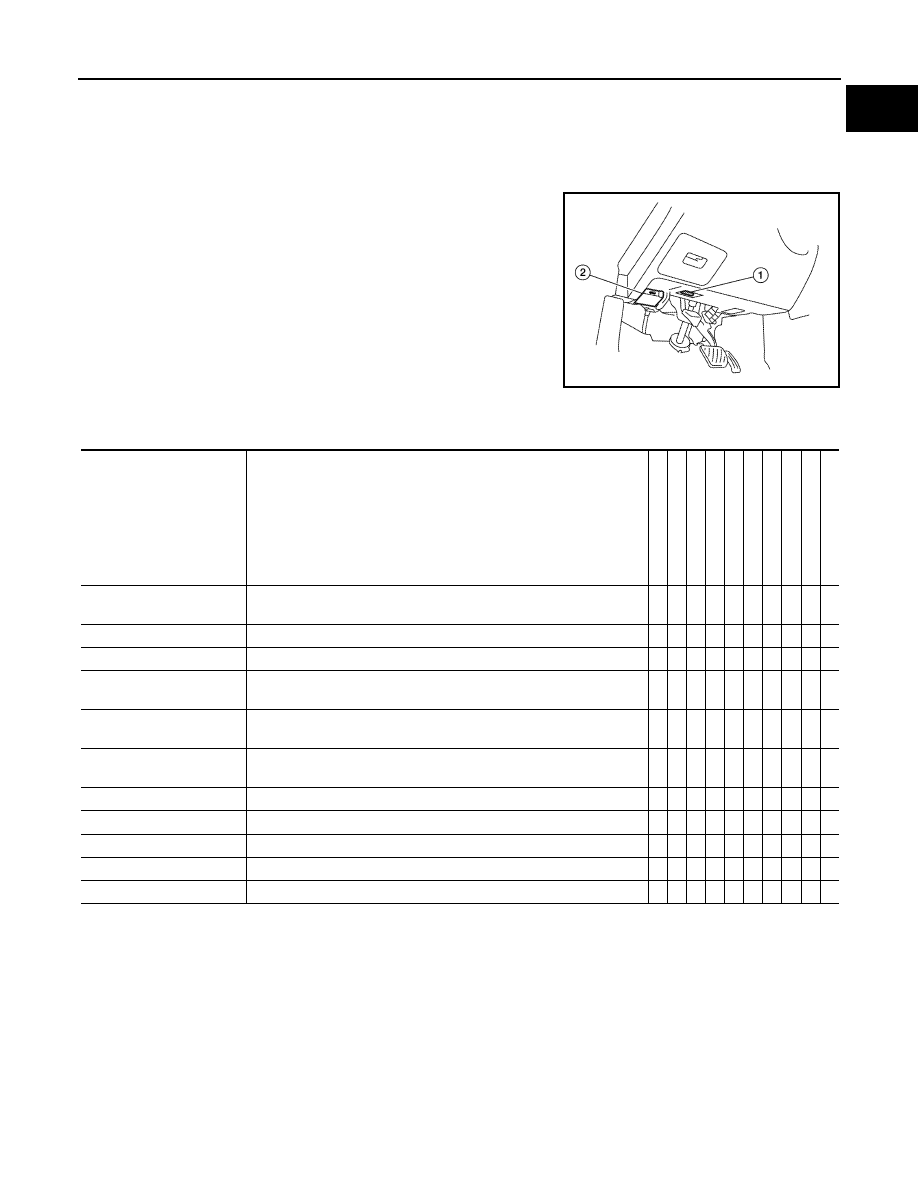

CONSULT Data Link Connector (DLC) Circuit

INFOID:0000000009471903

INSPECTION PROCEDURE

If the CONSULT cannot diagnose the system properly, check the following items.

1

: Data link connector

2

: Hood release handle

ALBIA0609ZZ

Diagnostic test mode

Function

ENGINE

TRANSMISSION

AIR BAG

METER/M

&

A

BCM

ABS

IP

DM E/

R

MUL

TI

 A

V

*1

HV

AC

AUT

O

 DRIVE

POS.

*2

ECU identification

Displays the ECU identification number (part number etc.) of the se-
lected system.

x x x - x x x x x x

Self Diagnostic Result

Retrieve DTC from ECU and display diagnostic items.

x x x x x x x x x x

Data Monitor

Monitor the input/output signal of the control unit in real time.

x x x x x x x x x x

Active Test

Sends a drive signal from the CONSULT to the actuator. The operation
check can be performed.

x -

-

- x x x -

x x

Work support

This mode enables a technician to adjust some devices faster and
more accurately.

x x - x x x -

x x x

DTC Work Support

The status of system monitoring tests and the self-diagnosis status/re-
sult can be confirmed.

x -

-

-

-

- -

-

-

-

Configuration

Function to READ/WRITE vehicle configuration.

-

-

-

-

x -

-

x -

-

TROUBLE DIAG RECORD Other results or histories, etc. that are recorded in ECU are displayed. - -

x -

-

- -

-

-

-

Warning History

Displays the history of the combination meter warning lamp indicators. - -

- x -

- -

-

-

-

CALIB DATA

The calibration values of the ECU are displayed.

- x -

-

-

- -

-

-

-

CAN Diag Support Mntr

It monitors the status of CAN communication.

x x -

x x x x x x x

GI-50

< BASIC INSPECTION >

CONSULT CHECKING SYSTEM

NOTE:

The DDL2 circuits and CAN communication lines from DLC pins 6, 7 and 14 may be connected to more than

one system. A short in a DDL circuit or CAN lines connected to a control unit in one system may affect CON-

SULT access to other systems. For a complete DDL circuit layout, refer to

GI-51, "Wiring Diagram"

. For a com-

plete CAN line layout, refer to

LAN-28, "Wiring Diagram"

.

Symptom

Check item

CONSULT cannot access any
system.

• CONSULT DLC power supply circuit (Terminal 8 and 16) and ground circuit (Terminal 4 and 5)

CONSULT cannot access indi-
vidual system. (Other systems
can be accessed.)

• Power supply and ground circuit for the control unit of the system. (For detailed circuit, refer to wiring

diagram for each system.)

• Open or short circuit between the system and CONSULT DLC. (For detailed circuit, refer to wiring

diagram for each system.)

• Open or short circuit CAN communication line. Refer to

LAN-15, "Trouble Diagnosis Flow Chart"

.

CONSULT CHECKING SYSTEM

GI-51

< WIRING DIAGRAM >

C

D

E

F

G

H

I

J

K

L

M

B

GI

N

O

P

WIRING DIAGRAM

CONSULT CHECKING SYSTEM

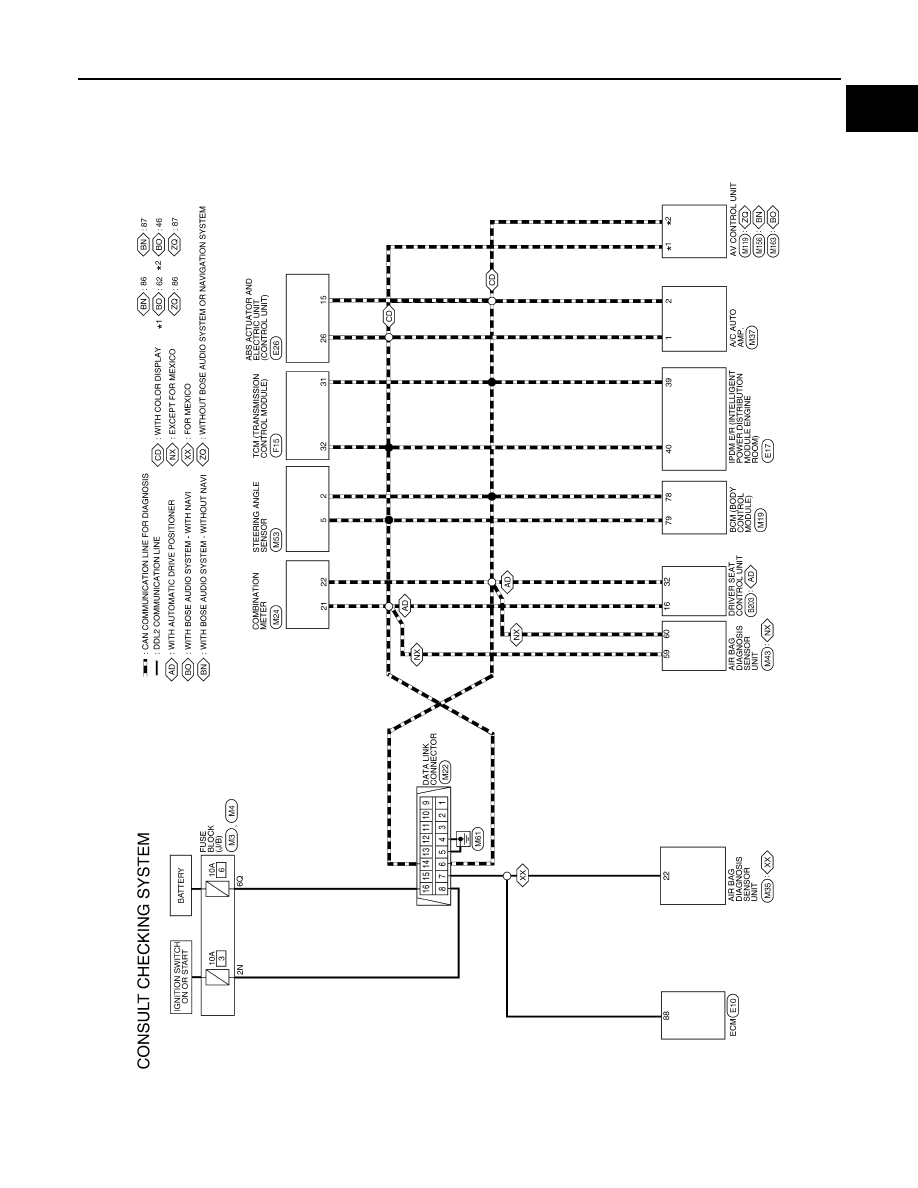

Wiring Diagram

INFOID:0000000009471904

ABAWA0152GB

GW-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

GW

A

B

GW

N

O

P

CONTENTS

GLASS & WINDOW SYSTEM

PRECAUTION ...............................................

2

PRECAUTIONS ...................................................

2

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

2

Procedure without Cowl Top Cover .......................

2

Handling for Adhesive and Primer  ............................

2

Precaution for Work  ..................................................

3

PREPARATION ............................................

4

PREPARATION ...................................................

4

Special Service Tools ..............................................

4

Commercial Service Tools .......................................

4

SYMPTOM DIAGNOSIS  ...............................

5

SQUEAK AND RATTLE TROUBLE DIAG-
NOSES ................................................................

5

Work Flow  .................................................................

5

Generic Squeak and Rattle Troubleshooting  ............

6

Diagnostic Worksheet  ...............................................

9

REMOVAL AND INSTALLATION ...............

11

WINDSHIELD GLASS ........................................

11

Exploded View  ........................................................

11

Removal and Installation .........................................

12

Inspection ................................................................

13

REAR WINDOW GLASS  ..................................

14

Exploded View .........................................................

14

Removal and Installation  .........................................

14

Inspection ................................................................

15

FRONT DOOR GLASS  .....................................

16

Exploded View .........................................................

16

Removal and Installation  .........................................

16

Inspection and Adjustment  ......................................

17

FRONT REGULATOR .......................................

18

Exploded View .........................................................

18

Removal and Installation  .........................................

18

Inspection and Adjustment  ......................................

20

REAR DOOR GLASS  .......................................

21

Exploded View .........................................................

21

Removal and Installation  .........................................

21

Inspection and Adjustment  ......................................

22

REAR REGULATOR .........................................

23

Rear Door Glass Regulator  .....................................

23

UNIT DISASSEMBLY AND ASSEMBLY  ....

24

FRONT REGULATOR .......................................

24

Exploded View .........................................................

24

Disassembly ............................................................

24

Assembly .................................................................

24
