EXL-330

< REMOVAL AND INSTALLATION >

[HALOGEN TYPE]

LICENSE PLATE LAMP

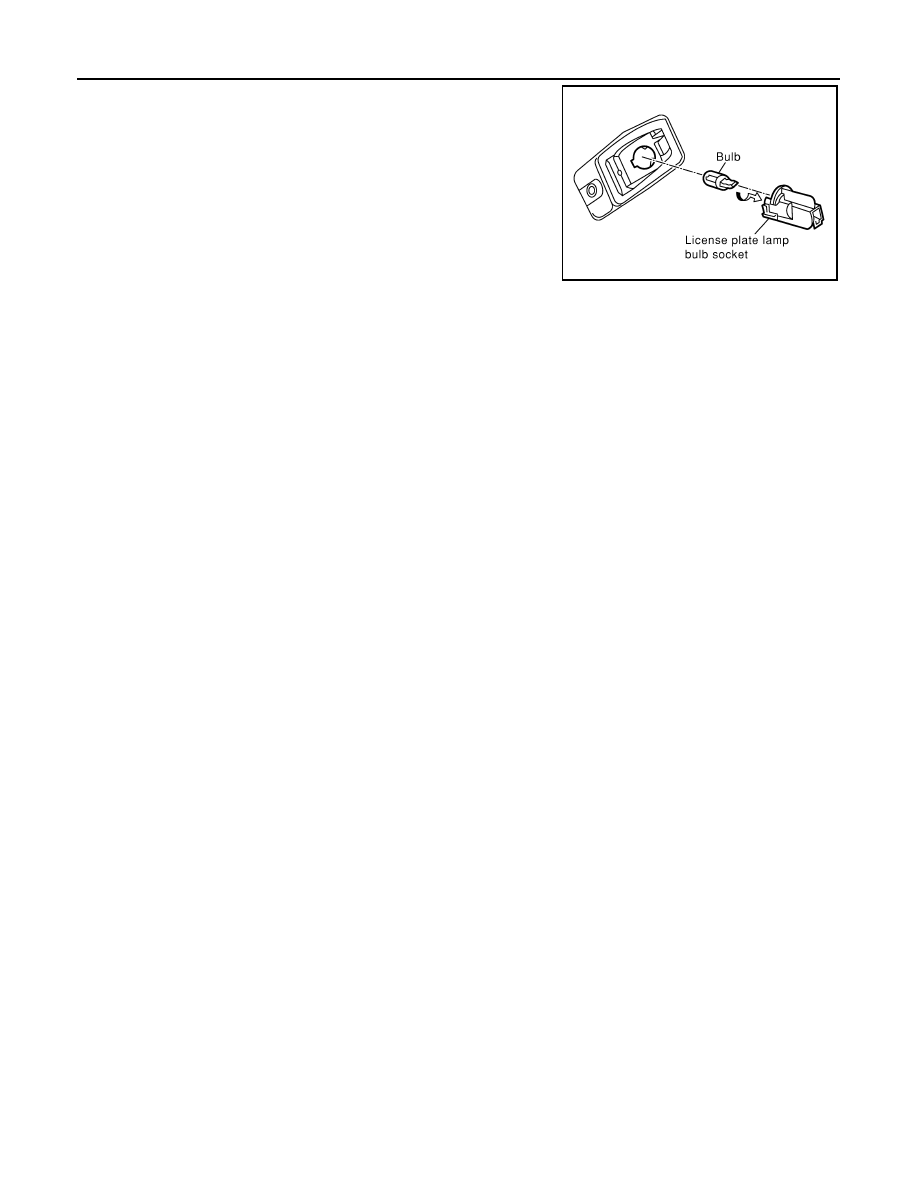

2. Turn the license plate lamp bulb socket counterclockwise and

unlock it.

3. Remove the bulb from the license plate lamp bulb socket.

Installation

Installation is in the reverse order of removal.

WKIA3384E

FRONT COMBINATION LAMP

EXL-331

< UNIT DISASSEMBLY AND ASSEMBLY >

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

FRONT COMBINATION LAMP

Disassembly and Assembly

INFOID:0000000009465403

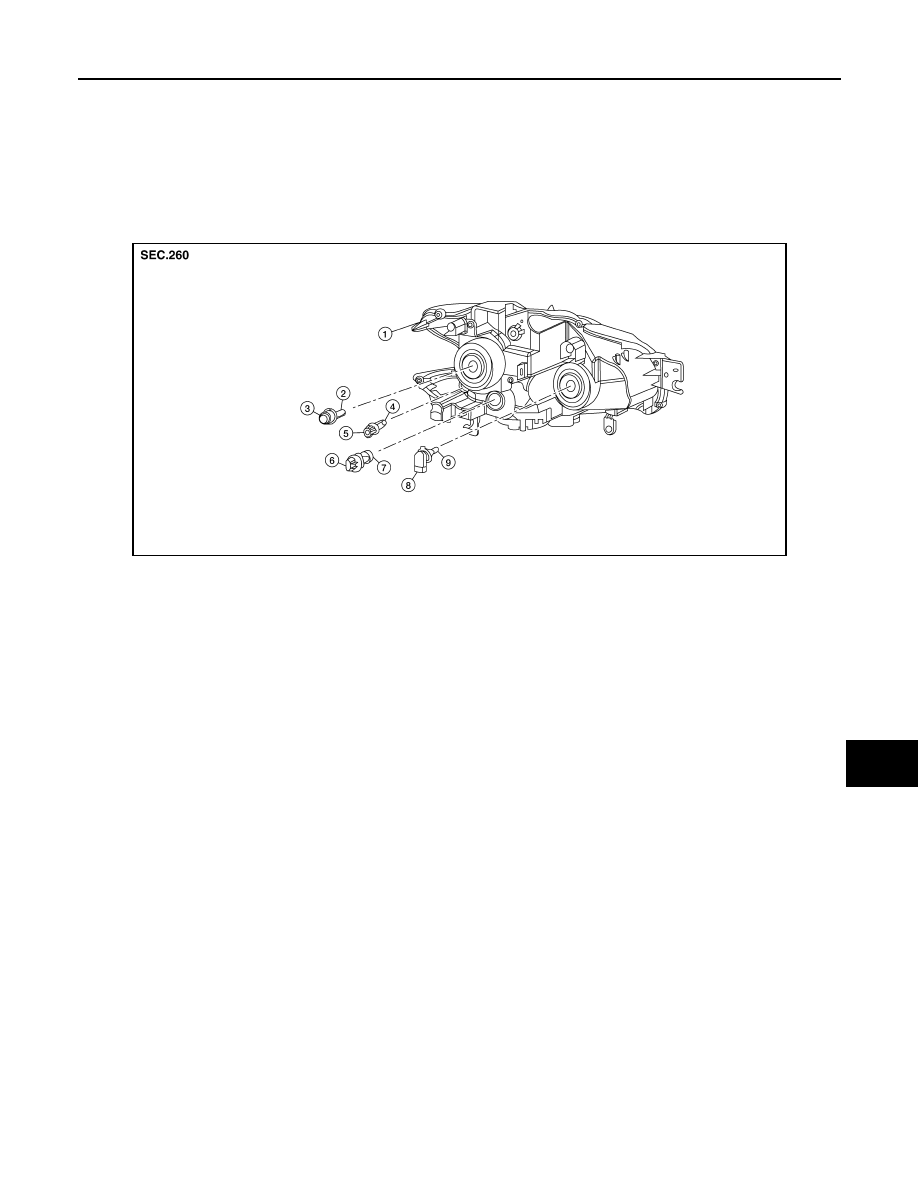

EXPLODED VIEW

DISASSEMBLY

1. Rotate the halogen bulb socket (low beam) counterclockwise and unlock it.
2. Remove the bulb from halogen bulb socket (low beam).
3. Rotate the halogen bulb socket (high beam) counterclockwise and unlock it.
4. Remove the bulb from halogen bulb socket (high beam).
5. Rotate the front turn signal lamp socket counterclockwise and unlock it.
6. Remove the bulb from front turn signal lamp socket.
7. Rotate the front side marker lamp socket counterclockwise and unlock it.
8. Remove the bulb from front side marker lamp socket.

ASSEMBLY

Assembly is in the reverse order of disassembly.

ALLIA0907ZZ

1.

Front combination lamp

2.

Halogen bulb (low beam)

3.

Halogen bulb socket (low beam)

4.

Side marker lamp bulb

5.

Side marker lamp socket

6.

Front turn signal lamp socket

7.

Front turn signal lamp bulb

8.

Halogen bulb socket (high beam)

9.

Halogen bulb (high beam)

EXL-332

< UNIT DISASSEMBLY AND ASSEMBLY >

[HALOGEN TYPE]

REAR COMBINATION LAMP

REAR COMBINATION LAMP

Disassembly and Assembly

INFOID:0000000009465404

DISASSEMBLY

1. Rotate the rear side marker lamp socket counterclockwise and unlock it.
2. Remove the bulb from rear side marker lamp socket.
3. Rotate the rear turn signal lamp socket counterclockwise and unlock it.
4. Remove the bulb from rear turn signal lamp socket.
5. Rotate the back-up lamp socket counterclockwise and unlock it.
6. Remove the bulb from back up lamp socket.

ASSEMBLY

Assembly is in the reverse order of disassembly.

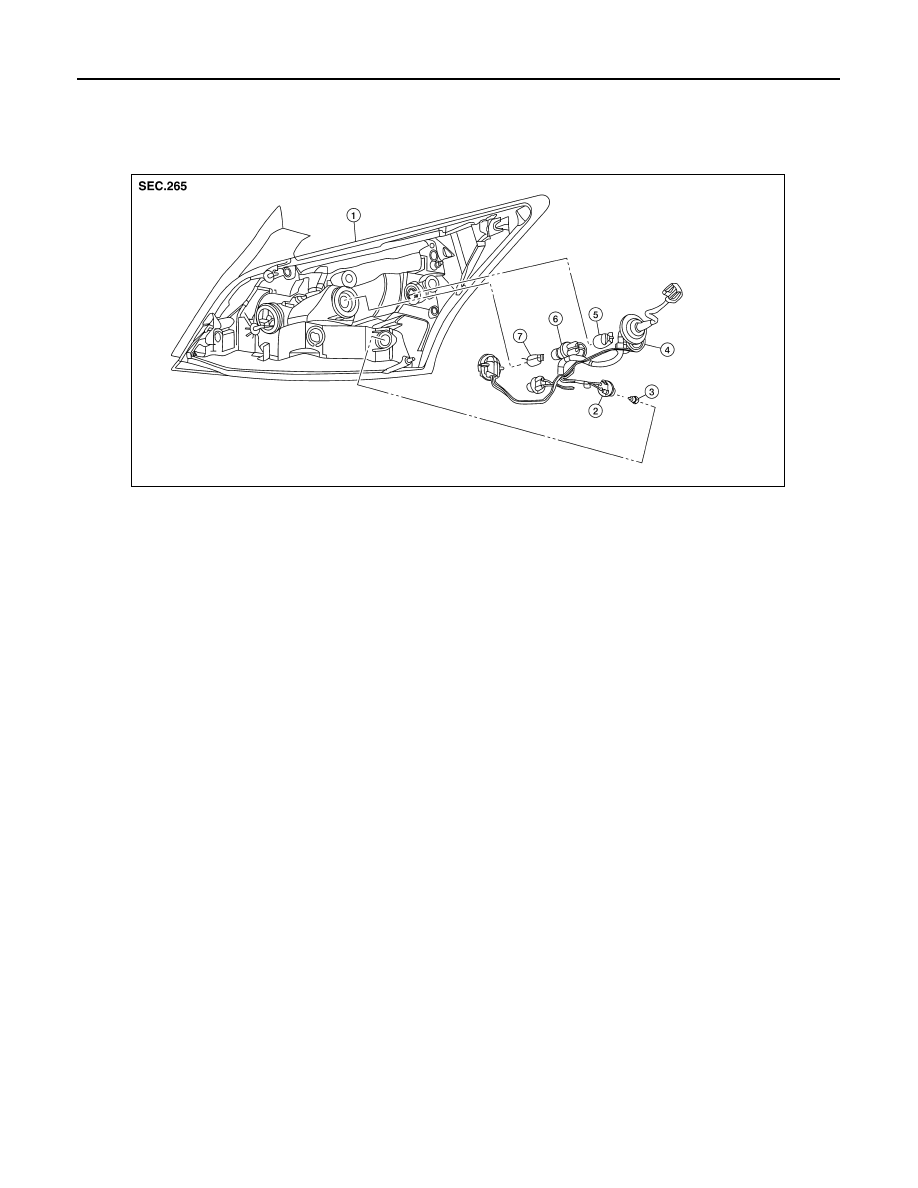

1.

Rear combination lamp

2.

Rear side marker lamp socket

3.

Rear side marker lamp bulb

4.

Rear turn signal lamp socket

5.

Rear turn signal lamp bulb

6.

Back-up lamp socket

7.

Back-up lamp bulb

ALLIA0903ZZ

SERVICE DATA AND SPECIFICATIONS (SDS)

EXL-333

< SERVICE DATA AND SPECIFICATIONS (SDS)

[HALOGEN TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Bulb Specifications

INFOID:0000000009465405

*: Always check with the Parts Department for the latest parts information.

Item

Wattage (W)*

Front combination lamp

Headlamp (Halogen low beam)

55

Headlamp (Halogen high beam)

65

Park/Turn lamp

28/8

Front side marker lamp

5

Front fog lamp

55

Door mirror turn signal lamp

—

Rear combination lamp

Stop lamp

—

Tail lamp

—

Rear turn signal lamp

21

Rear side marker lamp

5

Back-up lamp

18

License plate lamp

5

High-mounted stop lamp

Without rear spoiler

—

With rear spoiler

—
