HEADLAMP AIMING ADJUSTMENT

PERIODIC MAINTENANCE

HEADLAMP AIMING ADJUSTMENT

Description

INFOID:0000000009465271

PREPARATION BEFORE ADJUSTING

CAUTION:

Do not use organic solvent (thinner, gasoline etc.).

NOTE:

• For details, refer to the regulations in your own country.

• Perform aiming adjustment if the vehicle front body has been repaired and/or the headlamp assembly has

been replaced.

Before performing aiming adjustment, check the following.

• Keep all tires inflated to correct pressure.

• Place vehicle on level ground.

• See that the vehicle is unloaded (except for full levels of coolant, engine oil and fuel, and spare tire, jack, and

tools). Have the driver or equivalent weight placed in drivers seat.

AIMING ADJUSTMENT SCREW

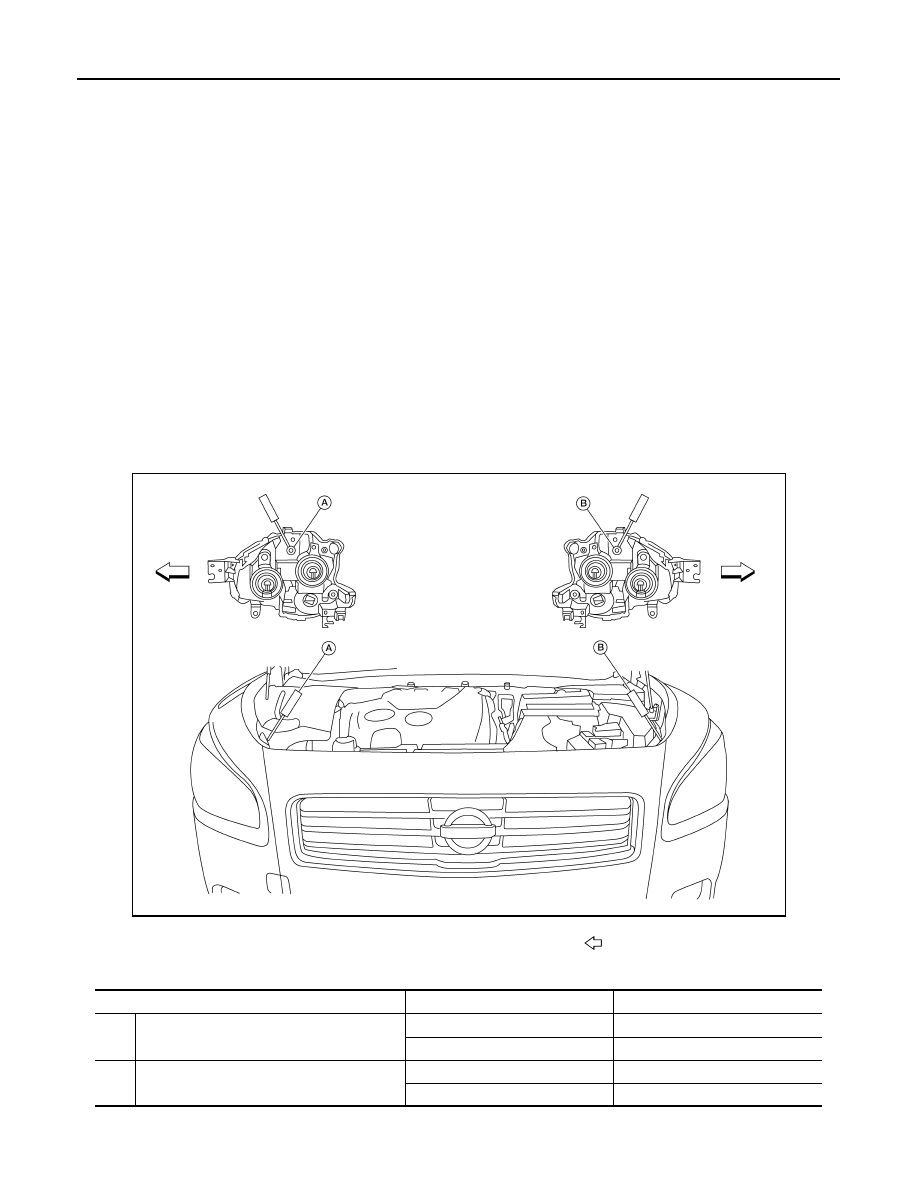

ALLIA0891ZZ

A. Headlamp RH (UP/DOWN) adjust-

ment screw

B. Headlamp LH (UP/DOWN) adjust-

ment screw

Vehicle center

Adjustment screw

Screw driver rotation

Facing direction

A

Headlamp RH (UP/DOWN)

Clockwise

DOWN

Counterclockwise

UP

B

Headlamp LH (UP/DOWN)

Clockwise

DOWN

Counterclockwise

UP

HEADLAMP AIMING ADJUSTMENT

EXL-151

< PERIODIC MAINTENANCE >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Aiming Adjustment Procedure

INFOID:0000000009465272

NOTE:

Set the screen so that it is perpendicular to the road.
1. Position the screen.
2. Make the distance between the headlamp center and the screen 7.62 m (25 ft).
3. Start the engine and illuminate the headlamp (LO).

CAUTION:

Do not cover the lens surface with tape, etc. The lens is made of plastic.

NOTE:

Block the light from the headlamp that is not being adjusted with a thick fabric or similar object, so that it

does not reach the screen.

4. Use the adjustment screw to adjust the low beams on the screen, so that it is within the aiming adjustment

area.

Adjustment Using An Adjustment Screen (Light/Dark Borderline)

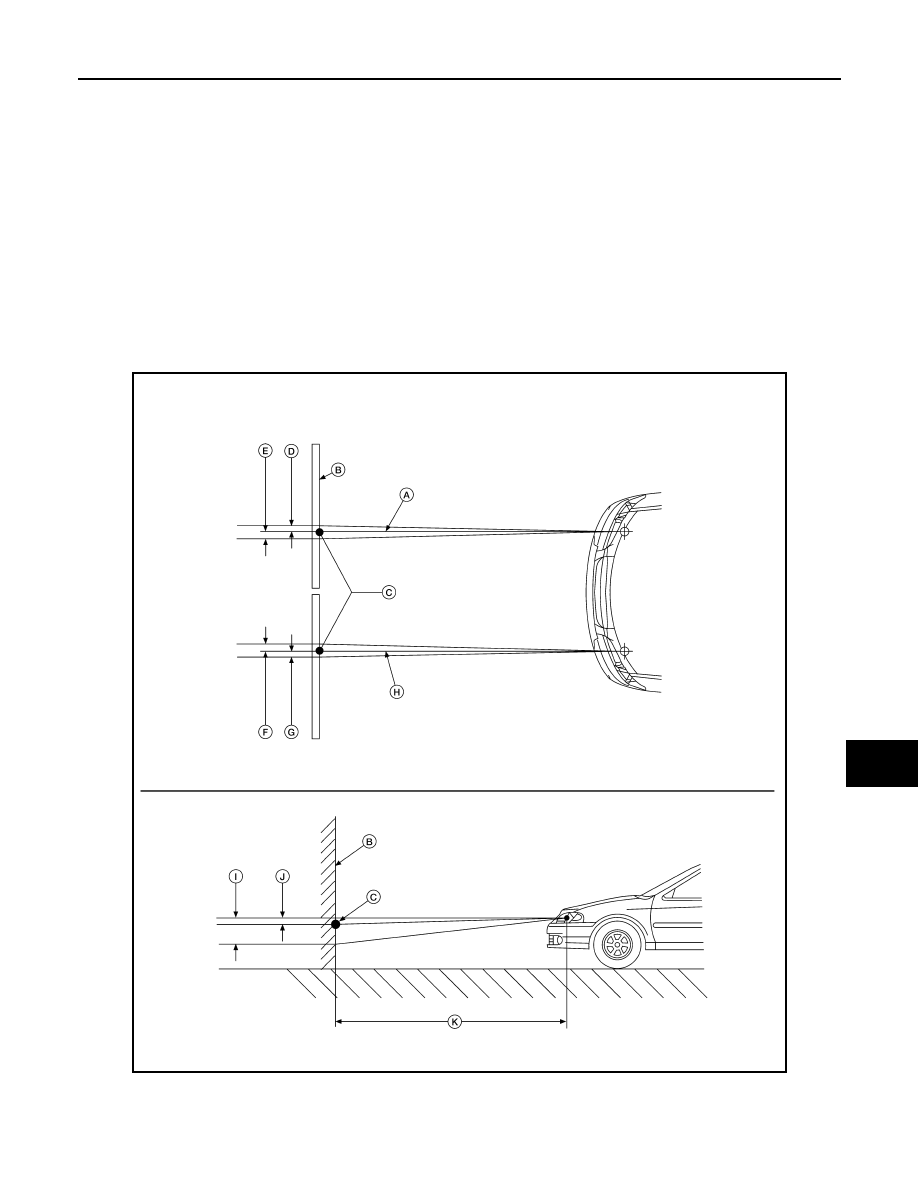

LKIA0884E

A. Headlamp beam (RH)

B. Screen

C. Horizontal/Vertical center point of headlamp

D. 66.5 mm (2.6 in)

E. 66.5 mm (2.6 in)

F. 66.5 mm (2.6 in)

EXL-152

< PERIODIC MAINTENANCE >

[XENON TYPE]

HEADLAMP AIMING ADJUSTMENT

G. 66.5 mm (2.6 in)

H. Headlamp beam (LH)

I.

53.2 mm (2.1 in)

J. 13.3 mm (0.5 in)

K. 7.62 m (25 ft)

FRONT FOG LAMP AIMING ADJUSTMENT

EXL-153

< PERIODIC MAINTENANCE >

[XENON TYPE]

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

FRONT FOG LAMP AIMING ADJUSTMENT

Description

INFOID:0000000009465273

PREPARATION BEFORE ADJUSTING

NOTE:

For details, refer to the regulations in your area.

Before performing aiming adjustment, check the following.

• Adjust the tire pressure to specification.

• Position vehicle and screen on level surface.

• Ensure there is no load in vehicle other than the driver (or equivalent weight placed in driver's position).

• Ensure engine coolant and engine oil are filled to correct levels and fuel tank is full.

• Confirm spare tire, jack and tools are properly stowed.

• Wipe off dirt on the fog lamp.

CAUTION:

Do not use organic solvent (thinner, gasoline etc.).

AIMING ADJUSTMENT SCREW

• Turn the aiming adjusting screw for adjustment as shown.

NOTE:

A screwdriver or hexagonal wrench [6 mm (0.24 in)] can be used

for adjustment.

• A:  Up

• B: Down

Aiming Adjustment Procedure

INFOID:0000000009465274

NOTE:

Set the screen so that it is perpendicular to the road.

1. Position the screen.

2. Make the distance between the fog lamp center and the screen 7.62 m (25.0 ft).

3. Start the engine and illuminate fog lamp.

CAUTION:

Do not cover the lens surface with tape, etc. because it is made of plastic.

NOTE:

Block the light from the headlamp that is not being adjusted with a thick fabric or similar object, so that it

does not reach the screen..

4. Adjust the cutoff line height (A) with the aiming adjustment

screw so that the distance (X) between the horizontal center line

of front fog lamp (H) and (A) becomes 100 mm (4.0 in).

• Front fog lamp light distribution on the screen is as shown.

• A: Cutoff line

• B: High illuminance area

• H: Horizontal center line of front fog lamp

• V: Vertical center line of front fog lamp

• X: Cutoff line height

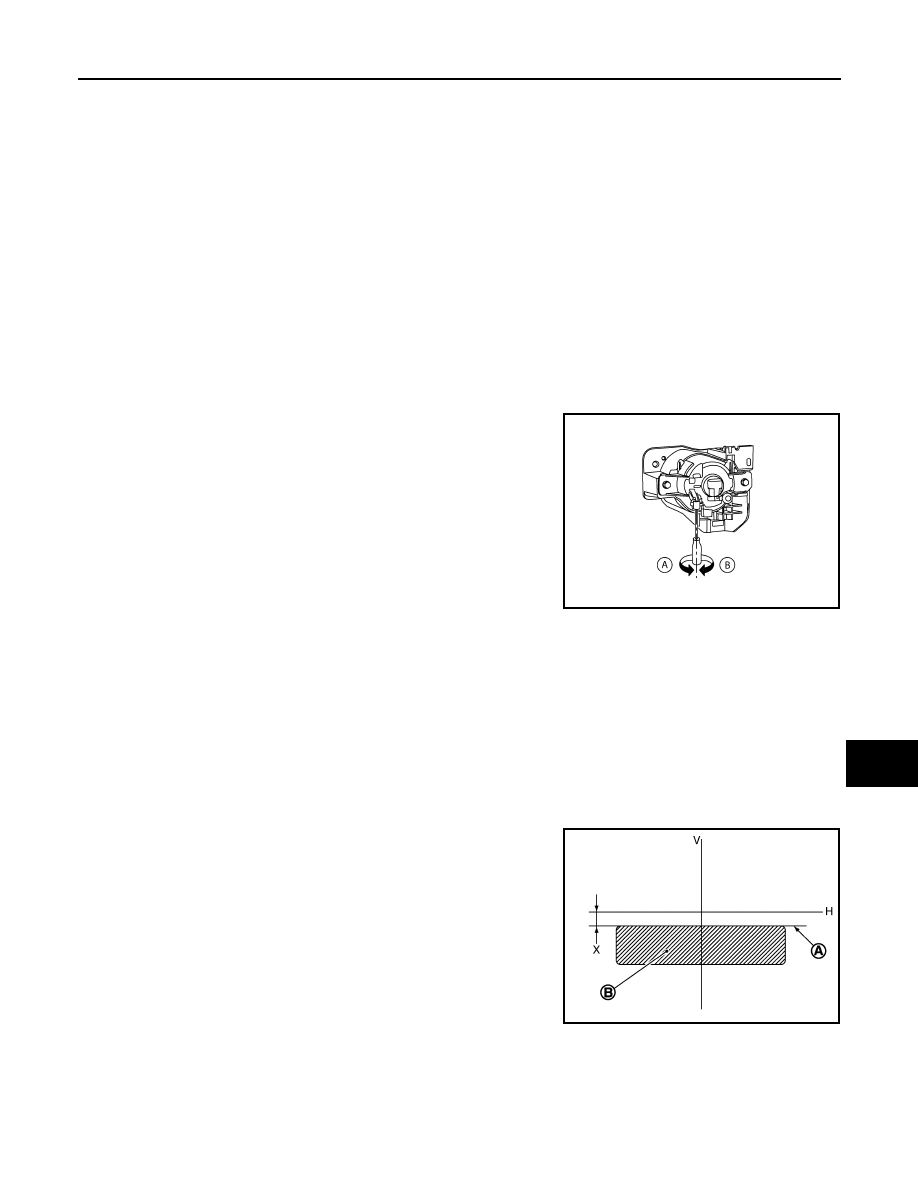

ALLIA0893ZZ

JPLIA0008ZZ
