Nissan Maxima. Manual - part 529





EM-4

< PRECAUTION >

PRECAUTIONS

Precaution for Assembly and Installation

INFOID:0000000009465995

• Use torque wrench to tighten bolts or nuts to specification.

• When tightening nuts and bolts, as a basic rule, equally tighten in several different steps starting with the

ones in center, then ones on inside and outside diagonally in this order. If the order of tightening is specified,

do exactly as specified.

• Replace with new gasket, packing, oil seal or O-ring.

• Thoroughly wash, clean, and air-blow each part. Carefully check oil or coolant passages for any restriction

and blockage.

• Avoid damaging sliding or mating surfaces. Completely remove foreign materials such as cloth lint or dust.

Before assembly, oil sliding surfaces well.

• Release air within route after draining coolant.

• Before starting engine, apply fuel pressure to fuel lines with turning ignition switch ON (with engine stopped).

Then make sure that there are no leaks at fuel line connections.

• After repairing, start engine and increase engine speed to check coolant, fuel, oil, and exhaust systems for

leakage.

Parts Requiring Angular Tightening

INFOID:0000000009465996

• Use an angle wrench for the final tightening of the following engine parts:

- Cylinder head bolts

- Main bearing cap bolts

- Connecting rod cap nuts

- Crankshaft pulley bolt (No angle wrench is required as the bolt flange is provided with notches for angular

tightening)

• Do not use a torque value for final tightening.

• The torque value for these parts are for a preliminary step.

• Ensure thread and seat surfaces are clean and coated with engine oil.

Precaution for Liquid Gasket

INFOID:0000000009465997

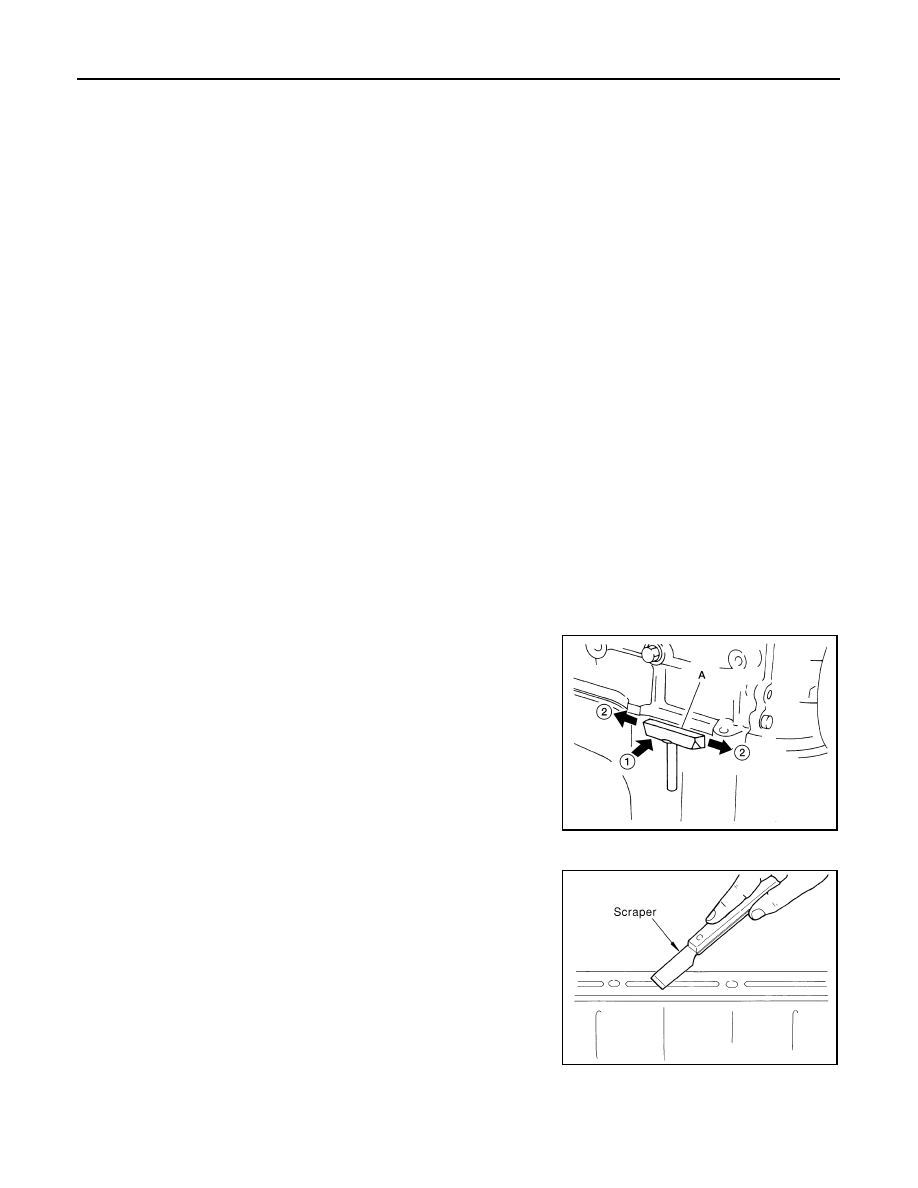

REMOVAL OF LIQUID GASKET

• After removing the bolts and nuts, separate the mating surface and

remove the liquid gasket using Tool (A).

CAUTION:

Be careful not to damage the mating surfaces.

• In areas where the cutter is difficult to use, use a plastic hammer to

lightly tap (1) the cutter where the liquid gasket is applied. Use a

plastic hammer to slide (2) the cutter by tapping on the side.

CAUTION:

Do not damage the mating surfaces.

LIQUID GASKET APPLICATION PROCEDURE

1. Remove the old liquid gasket adhering to the gasket application

surface and the mating surface using suitable tool.

• Remove the liquid gasket completely from the groove of the

liquid gasket application surface, bolts, and bolt holes.

2. Thoroughly clean the mating surfaces and remove adhering

moisture, grease and foreign material.

Tool Number:

 KV10111100 (J-37228)

AWBIA1249GB

PBIC0003E

PRECAUTIONS

EM-5

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

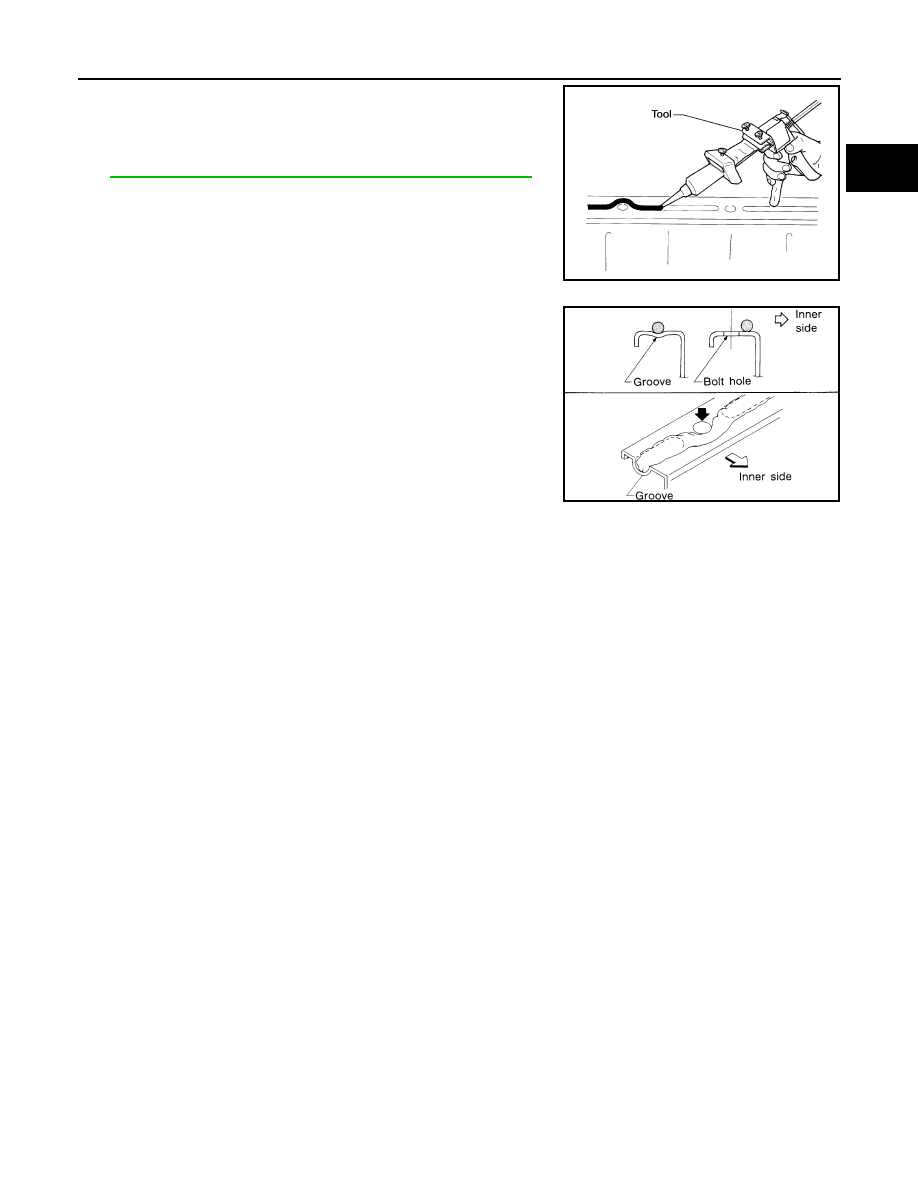

3. Attach the liquid gasket tube to the Tool.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-21, "Recommended Chemical Products and Sealants"

4. Apply the liquid gasket without breaks to the specified location

with the specified dimensions.

• If there is a groove for the liquid gasket application, apply the

liquid gasket to the groove.

• Normally apply the liquid gasket on the inside edge of the bolt

holes. Also apply to the outside edge of the bolt holes when

specified in the procedure.

• Within five minutes of liquid gasket application, install the mat-

ing component.

• If the liquid gasket protrudes, wipe it off immediately.

• Do not retighten after the installation.

• Wait 30 minutes or more after installation before refilling the

engine with oil or coolant.

CAUTION:

If there are more specific instructions in the procedures contained in this manual concerning liq-

uid gasket application, observe them.

Tool number

: WS39930000 ( — )

WBIA0567E

SEM159F

EM-6

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

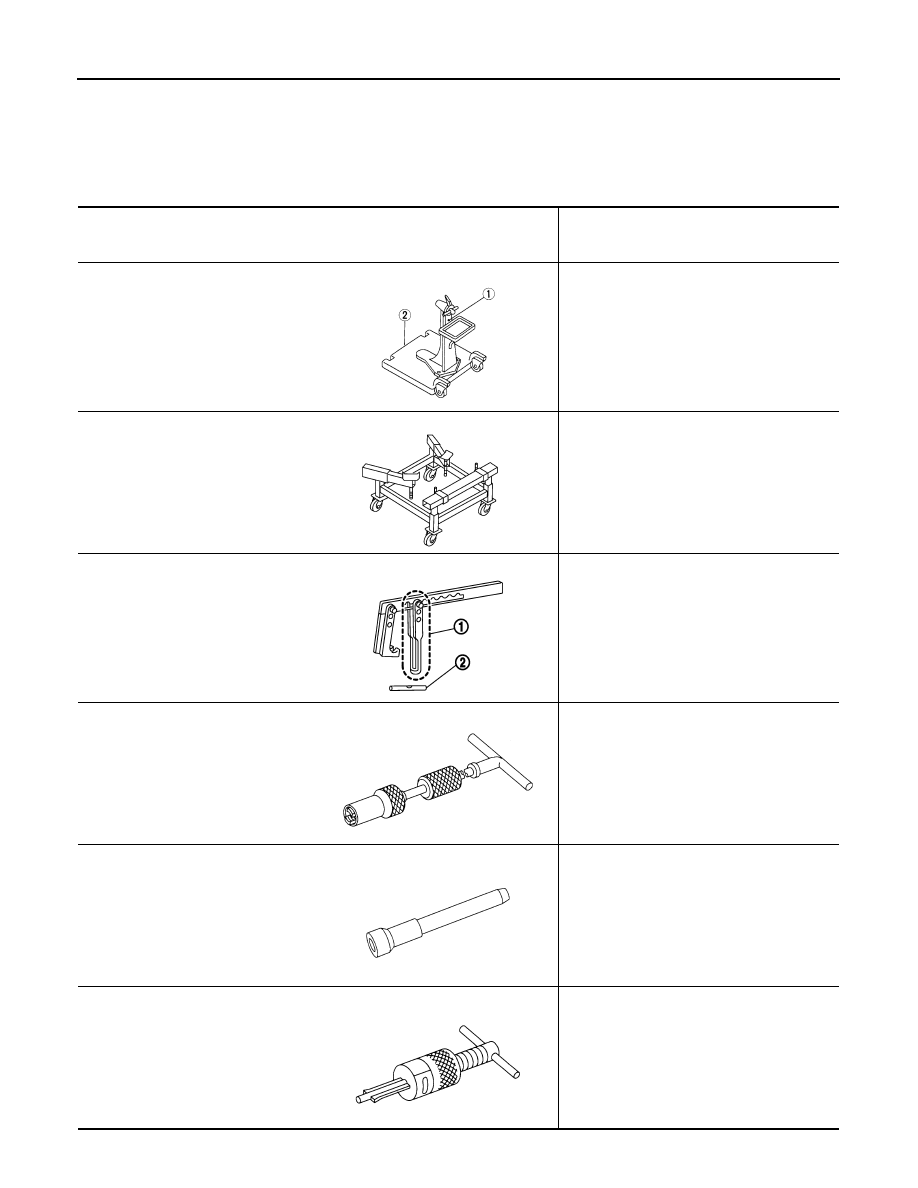

Special Service Tool

INFOID:0000000009465998

The actual shapes of the tools may differ from those illustrated here.

Tool number
(TechMate No.)
Tool name

Description

ST0501S000
(

)

Engine stand assembly
1 ST05011000
(

)

Engine stand
2 ST05012000
(

)

Base

Disassembling and assembling

KV101J0010
(J-47242)
Engine support table

Removal engine and transmission assembly

KV10116200
(J-26336-A)
Valve spring compressor
1. KV10115900
(J-26336-20)
Attachment
2. KV10109220
(  —  )
Adapter

Disassembling valve mechanism
Part (1) is a component of KV10116200 (J-
26336-A), but part (2) is not.

KV10107902
(J-38959)
Valve oil seal puller

Removing valve oil seal


(J-39386)
Valve oil seal drift

Installing valve oil seal

ST16610001
(J-23907)
Pilot bushing puller

Removing crankshaft pilot bushing

NT042

WBIA0658E

PBIC1650E

S-NT011

NT024

NT045

PREPARATION

EM-7

< PREPARATION >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

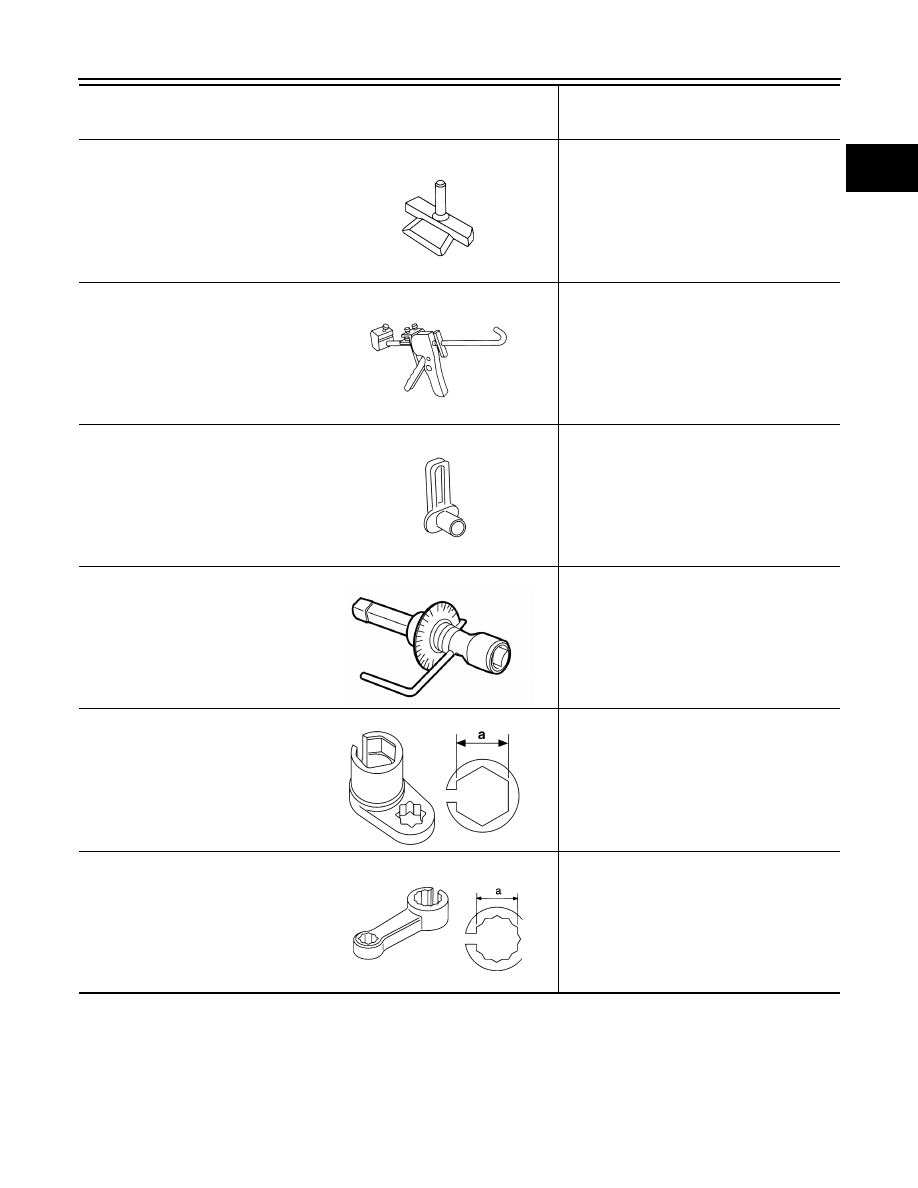

KV10111100
(J-37228)
Seal cutter

Removing steel oil pan and rear timing chain
case

WS39930000
(

)

Tube presser

Pressing the tube of liquid gasket

16441 6N210
(J-45488)
Quick connector release

Removing fuel tube quick connectors in en-
gine room
(Available in SEC. 164 of PARTS CATALOG:
Part No. 16441 6N210)

KV10112100
(BT-8653-A)
Angle wrench

Tightening bolts for cylinder head, main bear-
ing cap and connecting rod cap

KV991J0050
(J-44626)
Air fuel sensor Socket

Loosening or tightening air fuel ratio A/F sen-
sor
a: 22 mm (0.87 in)

KV10114400
(J-38365)
Heated oxygen sensor wrench

Loosening or tightening rear heated oxygen
sensor
a: 22 mm (0.87 in)

Tool number
(TechMate No.)
Tool name

Description

NT046

NT052

PBIC0198E

AWBIA1043ZZ

LBIA0444E

NT636
