Nissan Maxima. Manual - part 476





EC-388

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

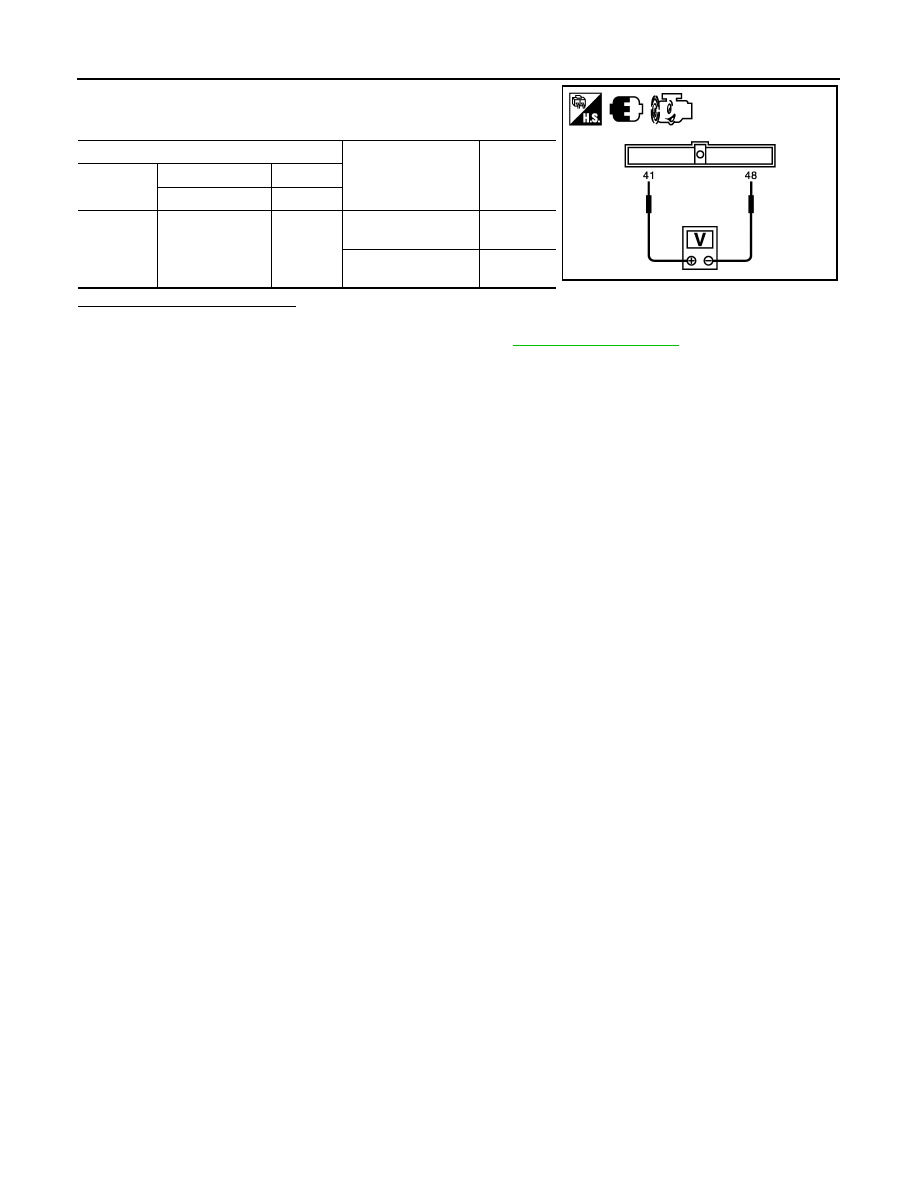

P0550 PSP SENSOR

3. Check the voltage between ECM terminals under the following

conditions.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace power steering pressure sensor. Refer to

ST-29, "Exploded View"

.

ECM

Condition

Voltage

Connector

+

Terminal

Terminal

F13

41

(Power steering

pressure sensor

signal)

48

(Sensor
ground)

Steering wheel: Being
turned.

0.5 - 4.5 V

Steering wheel: Not
being turned.

0.4 - 0.8 V

JMBIA1873ZZ

P0603 ECM POWER SUPPLY

EC-389

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P0603 ECM POWER SUPPLY

Description

INFOID:0000000010095069

Battery voltage is supplied to the ECM even when the ignition switch

is turned OFF for the ECM memory function of the DTC memory, the

air-fuel ratio feedback compensation value memory, the idle air vol-

ume learning value memory, etc.

DTC Logic

INFOID:0000000010095070

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-

ing the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON and wait at least 10 second.

2. Turn ignition switch OFF and wait at least 5 minutes.

3. Turn ignition switch ON, wait at least 10 seconds.

4. Repeat steps 2 and 3 for five times.

5. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Go to

EC-389, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000010095071

Regarding Wiring Diagram information, refer to

EC-554, "Wiring Diagram"

.

1.

CHECK ECM POWER SUPPLY

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

PBIA9222J

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0603

ECM power supply cir-
cuit

ECM back up RAM system does not function
properly.

• Harness or connectors

[ECM power supply (back up) circuit is
open or shorted.]

• ECM

EC-390

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

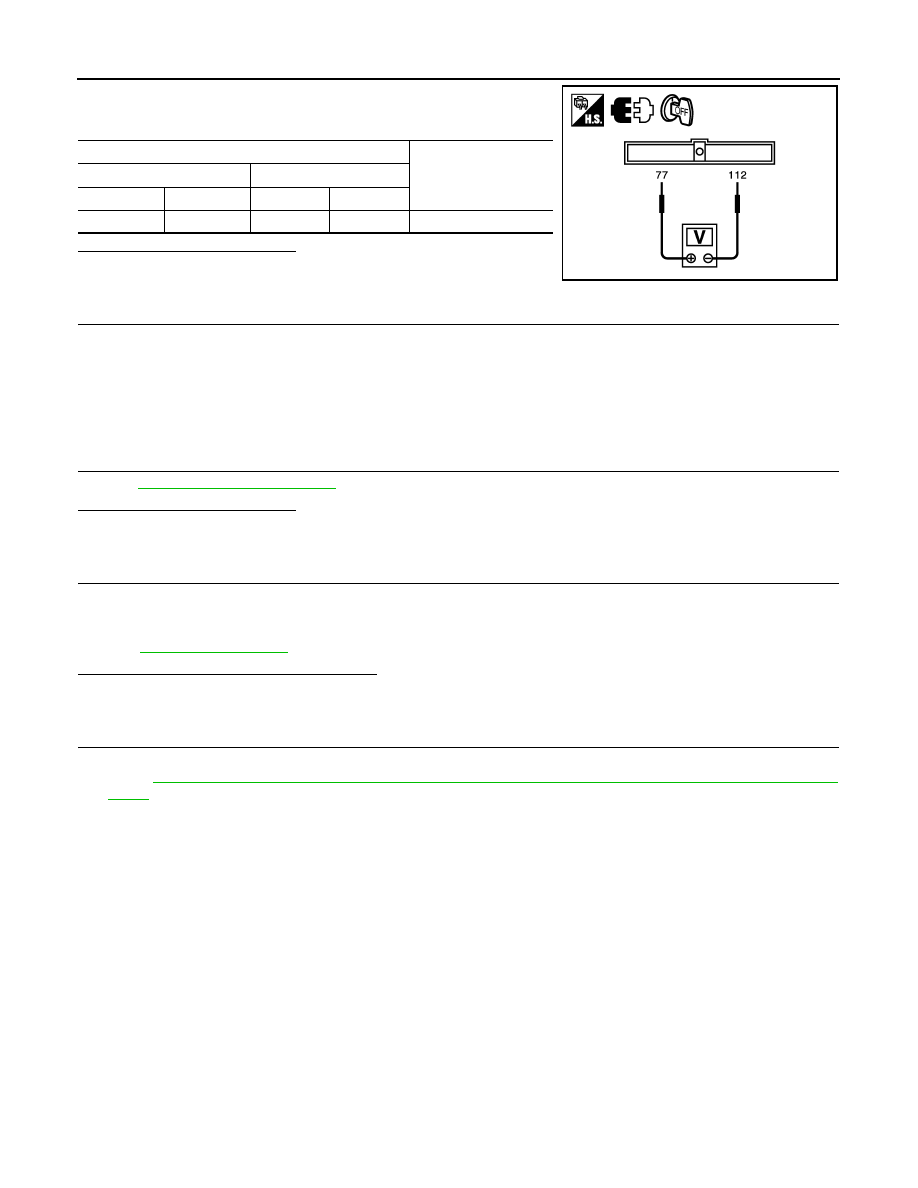

P0603 ECM POWER SUPPLY

3. Check the voltage between ECM harness connector and

ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> GO TO 2.

2.

DETECT MALFUNCTIONING PART

Check the following.

• 15 A fuse (No. 42)

• IPDM E/R harness connector F10

• Harness for open or short between ECM and battery

>> Repair or replace harness or connectors.

3.

CHECK INTERMITTENT INCIDENT

Refer to

GI-41, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace harness or connectors.

4.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON.

2. Erase DTC.

3. Perform DTC CONFIRMATION PROCEDURE.

See

EC-389, "DTC Logic"

.

Is the 1st trip DTC P0603 displayed again?

YES

>> GO TO 5.

NO

>> INSPECTION END

5.

REPLACE ECM

1. Replace ECM.

2. Go to

EC-17, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Require-

ment"

.

>> INSPECTION END

ECM

Voltage

+

Connector

Terminal

Connector

Terminal

F13

77

E10

112

Battery voltage

JMBIA1889ZZ

P0605 ECM

EC-391

< DTC/CIRCUIT DIAGNOSIS >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

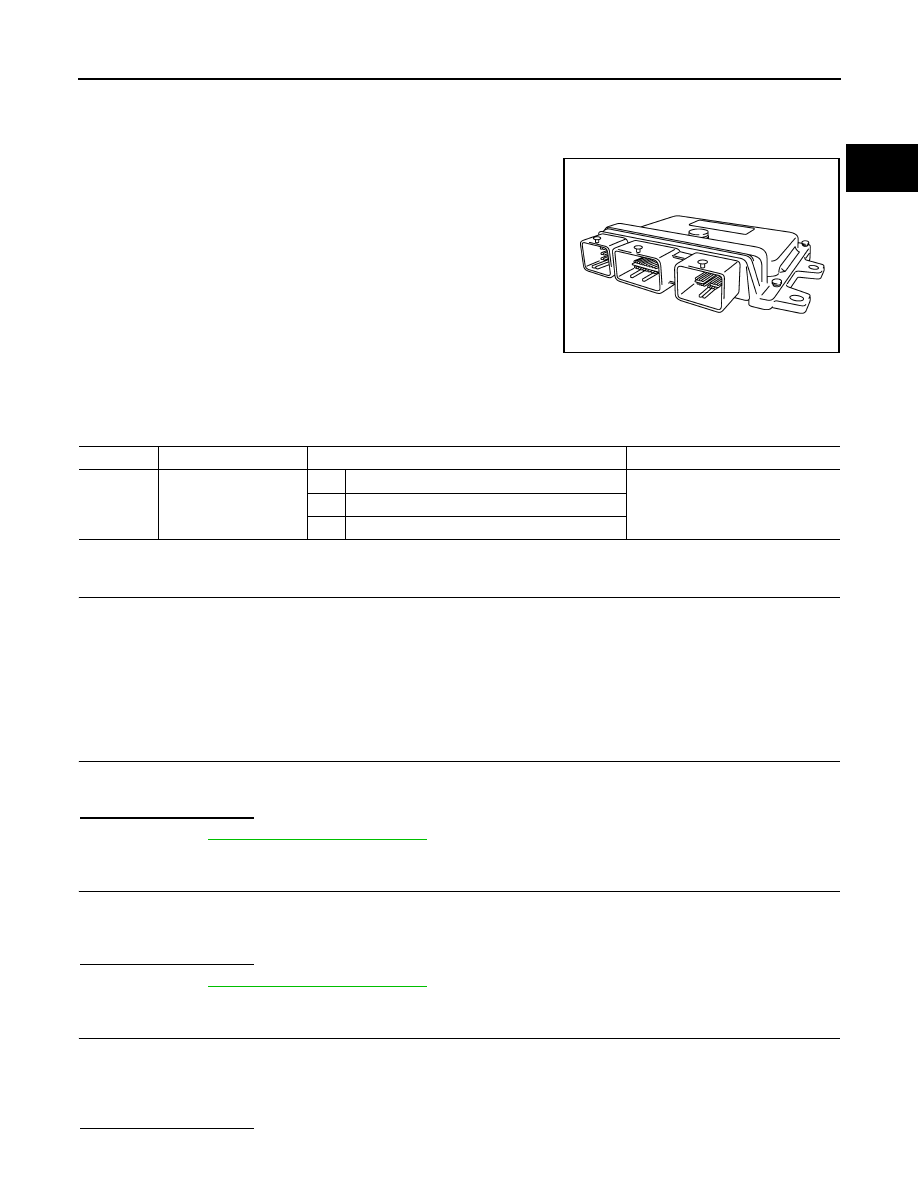

P0605 ECM

Description

INFOID:0000000010095072

The ECM consists of a microcomputer and connectors for signal

input and output and for power supply. The ECM controls the engine.

DTC Logic

INFOID:0000000010095073

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-

ing the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION A

1. Turn ignition switch ON.

2. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Go to

EC-392, "Diagnosis Procedure"

.

NO

>> GO TO 3.

3.

PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION B

1. Turn ignition switch ON and wait at least 1 second.

2. Turn ignition switch OFF, wait at least 10 seconds, and then turn it ON.

3. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Go to

EC-392, "Diagnosis Procedure"

.

NO

>> GO TO 4.

4.

PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION C

1. Turn ignition switch ON and wait at least 1 second.

2. Turn ignition switch OFF, wait at least 10 seconds, and then turn it ON.

3. Repeat step 2 for 32 times.

4. Check 1st trip DTC.
Is 1st trip DTC detected?

PBIA9222J

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0605

Engine control module

A)

ECM calculation function is malfunctioning.

• ECM

B)

ECM EEP-ROM system is malfunctioning.

C)

ECM self shut-off function is malfunctioning.
