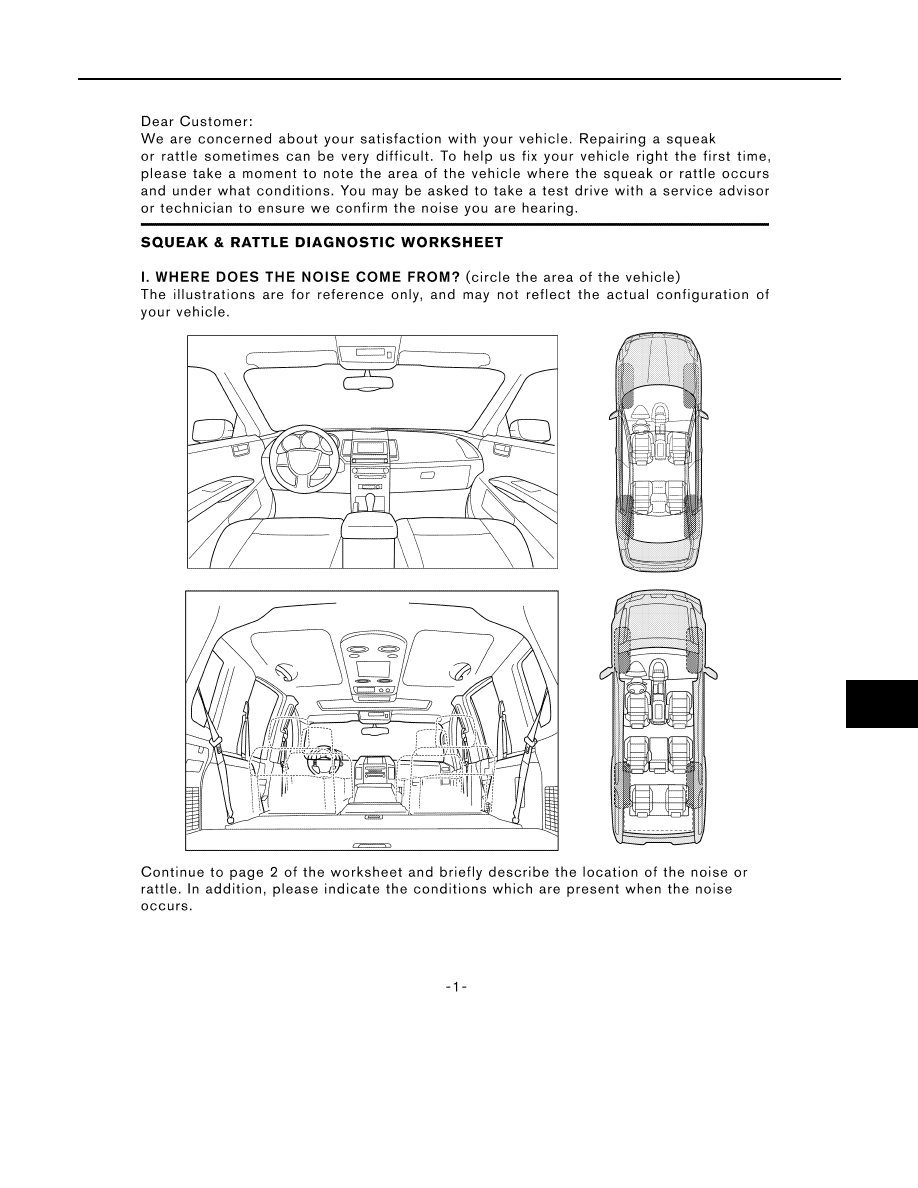

Diagnostic Worksheet

INFOID:0000000009895355

LAIA0072E

DLK-200

< SYMPTOM DIAGNOSIS >

SQUEAK AND RATTLE TROUBLE DIAGNOSES

LAIA0071E

HOOD

DLK-201

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REMOVAL AND INSTALLATION

HOOD

HOOD ASSEMBLY

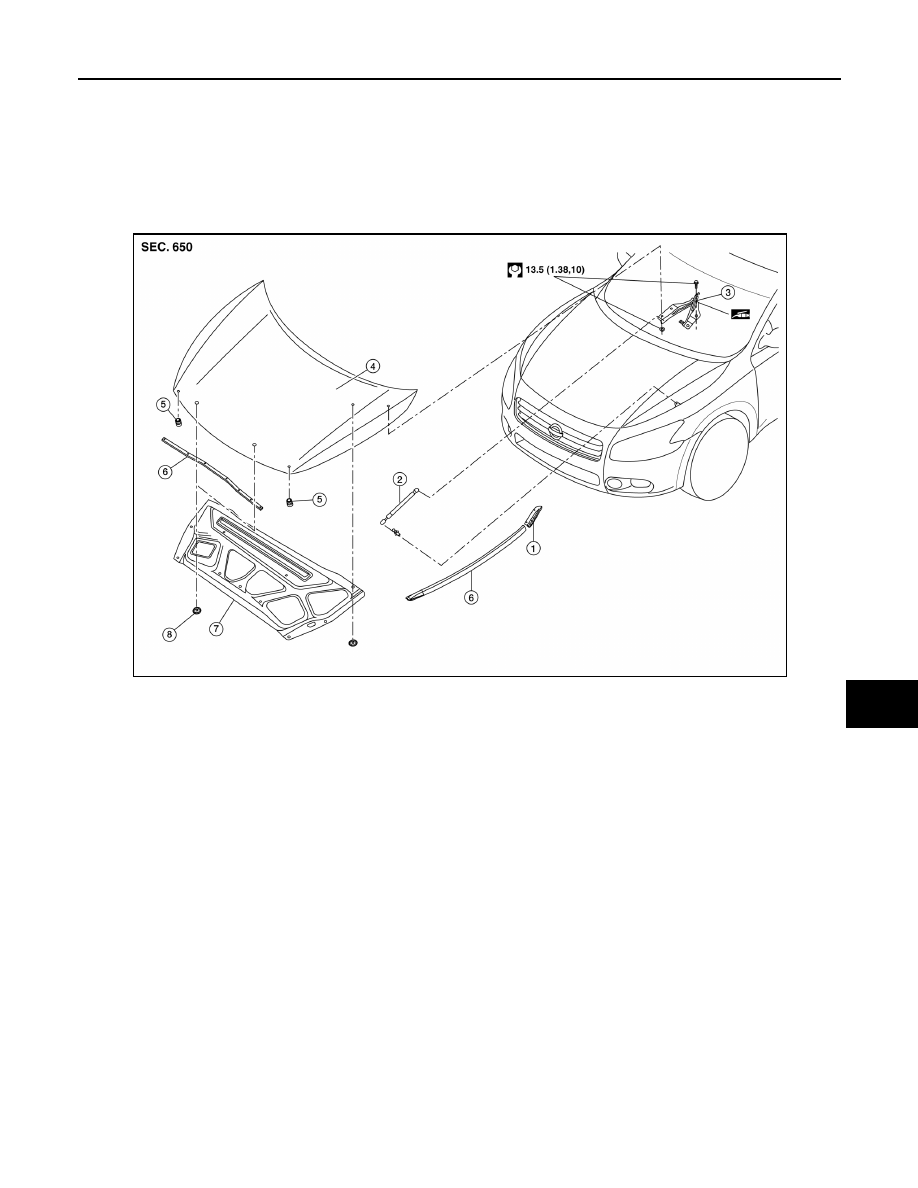

HOOD ASSEMBLY : Exploded View

INFOID:0000000009471755

HOOD ASSEMBLY : Removal and Installation

INFOID:0000000009471756

CAUTION:

• Use two people when removing or installing hood assembly due to its heavy weight.

• Use protective tape or shop cloths to protect surrounding components from damage during removal

and installation of hood assembly.

REMOVAL

1. Support the hood assembly using a suitable tool.

WARNING:

Bodily injury may occur if hood assembly is not supported properly when removing hood assem-

bly.

1.

Hood hinge cover (LH)

2.

Hood stay (LH)

3.

Hood hinge (LH)

4.

Hood assembly

5.

Hood bumper rubber

6.

Seal

7.

Hood insulator

8.

Hood insulator clips

AWKIA1737GB

DLK-202

< REMOVAL AND INSTALLATION >

HOOD

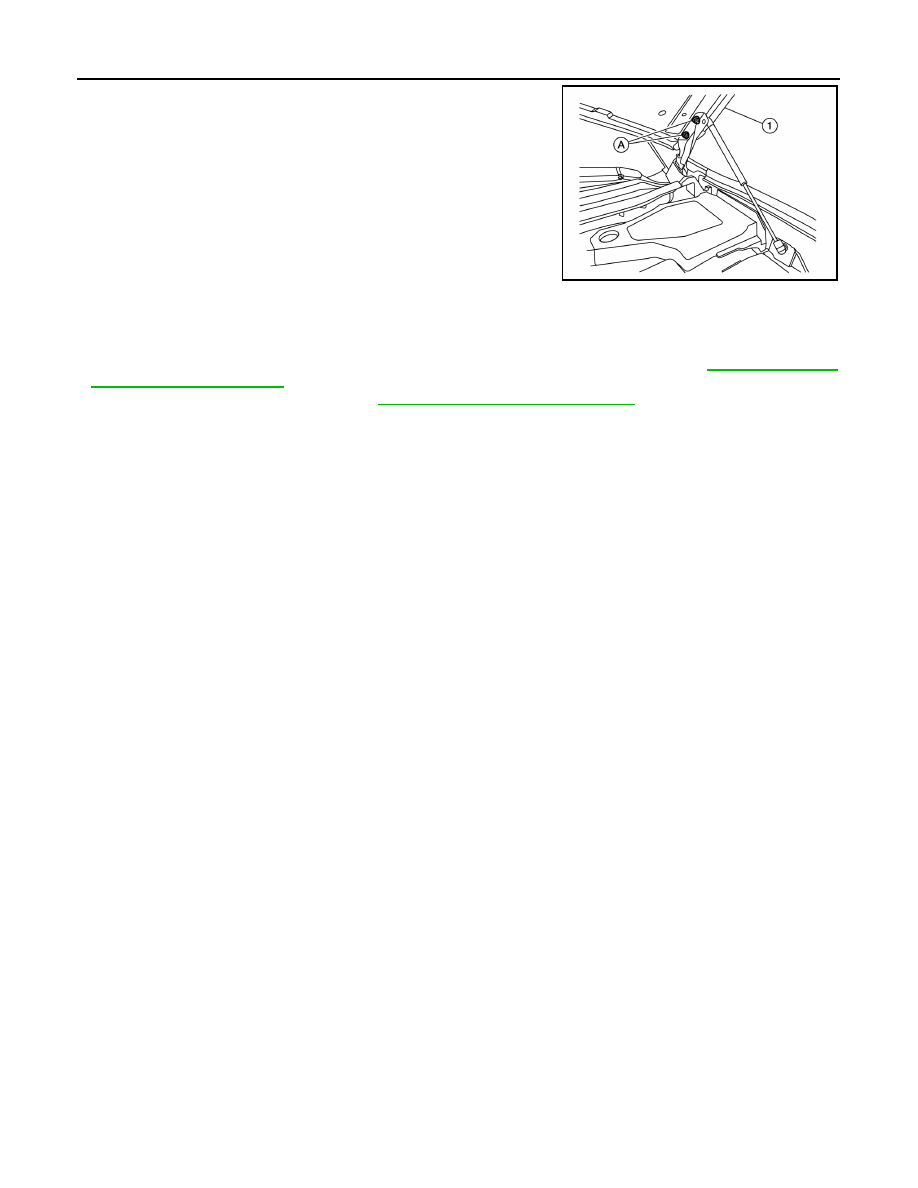

2. Remove hood hinge to hood nuts (A) and then remove the hood

assembly (1).

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After installation, perform the hood assembly adjustment procedure. Refer to

DLK-203, "HOOD

ASSEMBLY : Adjustment"

.

• When replacing hood stay(s). Refer to

DLK-208, "HOOD STAY : Disposal"

ALKIA2780ZZ
