Nissan Maxima. Manual - part 308

DRIVER SIDE DOOR MIRROR DEFOGGER

DEF-17

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

YES

>> GO TO 4

NO

>> Replace door mirror LH. Refer to

MIR-19, "Removal and Installation"

.

4.

 CHECK INTERMITTENT INCIDENT

Check intermittent incident.

Refer to

GI-41, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Check the following.

• Battery power supply circuit.

• Fuse block (J/B).

NO

>> Repair or replace the malfunctioning parts.

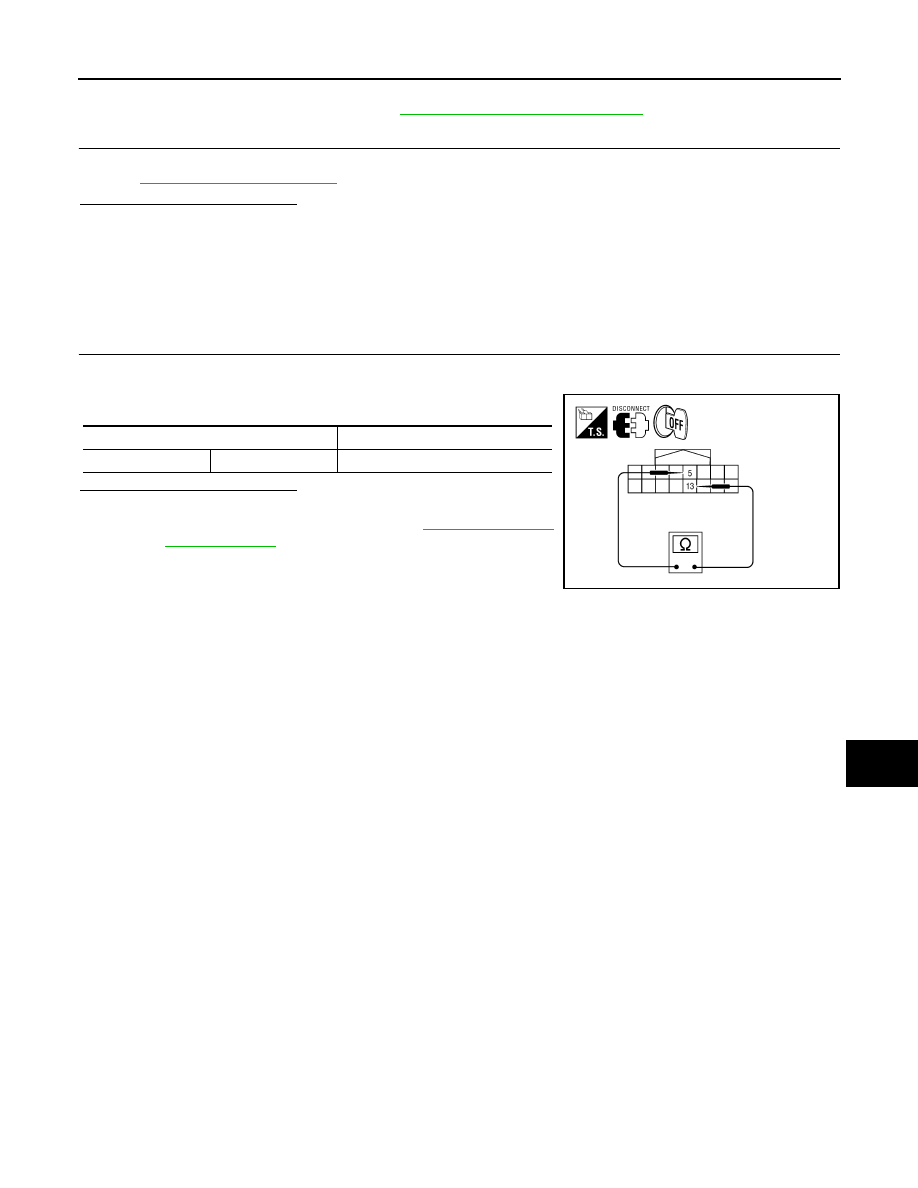

Component Inspection

INFOID:0000000010045593

1.

 CHECK DOOR MIRROR DEFOGGER LH

1. Turn ignition switch OFF.

2. Disconnect door mirror LH.

3. Check continuity between door mirror terminals 5 and 13.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace door mirror LH. Refer to

MIR-19, "Removal and

Installation"

.

Terminal Continuity

5

13

Yes

ALLIA0919ZZ

DEF-18

< DTC/CIRCUIT DIAGNOSIS >

PASSENGER SIDE DOOR MIRROR DEFOGGER

PASSENGER SIDE DOOR MIRROR DEFOGGER

Description

INFOID:0000000010045594

Heats the heating wire with the power supply from the rear window defogger relay to prevent the door mirror

from fogging up.

Component Function Check

INFOID:0000000010045595

1.

CHECK DOOR MIRROR DEFOGGER RH

Check that the heating wire of door mirror defogger RH is heated when turning the rear window defogger

switch ON.
Is the inspection result normal?

YES

>> Door mirror defogger RH is OK.

NO

>> Refer to

DEF-18, "Diagnosis Procedure"

.

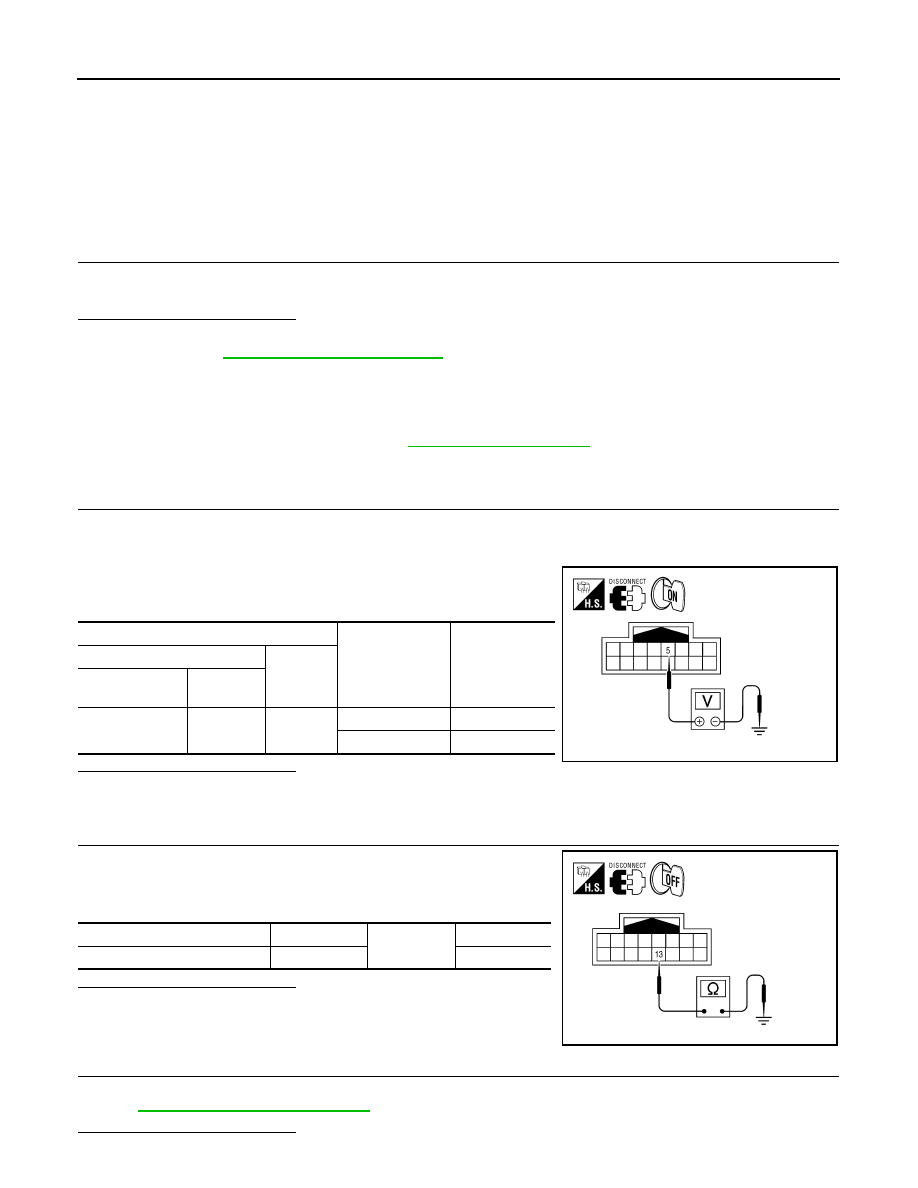

Diagnosis Procedure

INFOID:0000000010045596

Regarding Wiring Diagram information, refer to

DEF-46, "Wiring Diagram"

.

1.

 CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect door mirror RH.

3. Turn ignition switch ON.

4. Check voltage between door mirror RH harness connector D107

terminal 5 and ground.

Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace harness.

2.

 CHECK GROUND CIRCUIT

1. Turn ignition switch OFF.

2. Check continuity between door mirror RH harness connector

D107 terminal 13 and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK PASSENGER SIDE DOOR MIRROR DEFOGGER

Check door mirror defogger RH.

Refer to

DEF-19, "Component Inspection"

.

Is the inspection result normal?

Terminals

Condition of rear

window defogger

switch

Voltage (V)

(Approx.)

(+)

(–)

Door mirror RH

connector

Terminal

D107

5

Ground

ON

Battery voltage

OFF

0

ALLIA0917ZZ

Door mirror RH connector

Terminal

Ground

Continuity

D107

13

Yes

ALLIA0918ZZ

PASSENGER SIDE DOOR MIRROR DEFOGGER

DEF-19

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

YES

>> GO TO 4

NO

>> Replace door mirror RH. Refer to

MIR-19, "Removal and Installation"

.

4.

 CHECK INTERMITTENT INCIDENT

Check intermittent incident.

Refer to

GI-41, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> Check the following.

• Battery power supply circuit.

• Fuse block (J/B).

NO

>> Repair or replace the malfunctioning parts.

Component Inspection

INFOID:0000000010045597

1.

 CHECK DOOR MIRROR DEFOGGER RH

1. Turn ignition switch OFF.

2. Disconnect door mirror RH.

3. Check continuity between door mirror terminals 5 and 13.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace door mirror RH. Refer to

MIR-19, "Removal

and Installation"

.

Terminal Continuity

5

13

Yes

ALLIA0919ZZ

DEF-20

< ECU DIAGNOSIS INFORMATION >

BCM (BODY CONTROL MODULE)

ECU DIAGNOSIS INFORMATION

BCM (BODY CONTROL MODULE)

Reference Value

INFOID:0000000010065033

NOTE:

The Signal Tech II Tool (J-50190) can be used to perform the following functions. Refer to the Signal Tech II

User Guide for additional information.

• Activate and display TPMS transmitter IDs

• Display tire pressure reported by the TPMS transmitter

• Read TPMS DTCs

• Register TPMS transmitter IDs

• Check Intelligent Key relative signal strength

• Confirm vehicle Intelligent Key antenna signal strength

VALUES ON THE DIAGNOSIS TOOL

Monitor Item

Condition

Value/Status

FR WIPER HI

Other than front wiper switch HI

OFF

Front wiper switch HI

ON

FR WIPER LOW

Other than front wiper switch LO

OFF

Front wiper switch LO

ON

FR WASHER SW

Front washer switch OFF

OFF

Front washer switch ON

ON

FR WIPER INT

Other than front wiper switch INT

OFF

Front wiper switch INT

ON

FR WIPER STOP

Front wiper is not in STOP position

OFF

Front wiper is in STOP position

ON

INT VOLUME

Wiper intermittent dial is in a dial position 1 - 7

Wiper intermittent dial position

TURN SIGNAL R

Other than turn signal switch RH

OFF

Turn signal switch RH

ON

TURN SIGNAL L

Other than turn signal switch LH

OFF

Turn signal switch LH

ON

TAIL LAMP SW

Other than lighting switch 1ST and 2ND

OFF

Lighting switch 1ST or 2ND

ON

HI BEAM SW

Other than lighting switch HI

OFF

Lighting switch HI

ON

HEAD LAMP SW 1

Other than lighting switch 2ND

OFF

Lighting switch 2ND

ON

HEAD LAMP SW 2

Other than lighting switch 2ND

OFF

Lighting switch 2ND

ON

PASSING SW

Other than lighting switch PASS

OFF

Lighting switch PASS

ON

AUTO LIGHT SW

Other than lighting switch AUTO

OFF

Lighting switch AUTO

ON

FR FOG SW

Front fog lamp switch OFF

OFF

Front fog lamp switch ON

ON

DOOR SW-DR

Driver door closed

OFF

Driver door opened

ON
