CHG-10

< DTC/CIRCUIT DIAGNOSIS >

CHARGING SYSTEM PRELIMINARY INSPECTION

DTC/CIRCUIT DIAGNOSIS

CHARGING SYSTEM PRELIMINARY INSPECTION

Diagnosis Procedure

INFOID:0000000009465970

1.

CHECK BATTERY TERMINALS CONNECTION

Check if battery terminals are clean and tight.
Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair battery terminals connection.Confirm repair by performing complete Charging system test

using EXP-800 NI or GR8-1200 NI (if available). Refer to applicable Instruction Manual for proper

testing procedures.

2.

CHECK FUSE

Check for blown fuse and fusible link.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Be sure to eliminate cause of malfunction before installing new fuse or fusible link.

3.

CHECK GENERATOR GROUND TERMINAL CONNECTION

Check if connector E230 terminal 5 (generator ground harness) is clean and tight.
Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair connection.

4.

CHECK DRIVE BELT TENSION

Check drive belt tension. Refer to

CHG-29, "Inspection"

.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Repair as needed.

Unit

Power source (Power supply terminals)

Fuse or Fusible Link

Generator

Battery (terminal 3)

Fuse 29

Battery (terminal 1)

Fusible Link A

Combination meter

Ignition switch ON (terminal 2)

Fuse 4

CHG

POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM OPERATION

INSPECTION

CHG-11

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM OPER-
ATION INSPECTION

Diagnosis Procedure

INFOID:0000000009465971

Regarding Wiring Diagram information, refer to

CHG-18, "Wiring Diagram"

.

CAUTION:

When performing this inspection, always use a charged battery that has completed the battery inspec-

tion. (When the charging rate of the battery is low, the response speed of the voltage change will

become slow. This can cause an incorrect inspection.)

1.

CHECK ECM (CONSULT)

Perform ECM self-diagnosis with CONSULT. Refer to

EC-138, "CONSULT Function"

.

Self-diagnostic results content

No malfunction detected>> GO TO 2

Malfunction detected>> Check applicable parts, and repair or replace corresponding parts.

2.

CHECK OPERATION OF POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM

1. Connect CONSULT and start the engine.

2. The selector lever is in “P” or “N” position and all of the electric loads and A/C, etc. are turned OFF.

3. Select “ALTERNATOR DUTY” in “Active Test” of “ENGINE”, and then check the value of “BATTERY

VOLT” monitor when DUTY value of “ALTERNATOR DUTY” is set to 40.0 %.

4. Check the value of “BATTERY VOLT” monitor when DUTY value of “ALTERNATOR DUTY” is set to

80.0%.

Is the measurement value within the specification?

YES

>> Inspection End.

NO

>> GO TO 3

3.

CHECK IPDM E/R (CONSULT)

Perform IPDM E/R self-diagnosis with CONSULT. Refer to

PCS-13, "CONSULT Function (IPDM E/R)"

.

Self-diagnostic results content

No malfunction detected>> GO TO 4

Malfunction detected>> Check applicable parts, and repair or replace corresponding parts.

4.

CHECK HARNESS BETWEEN GENERATOR AND IPDM E/R

1. Turn ignition switch OFF.

2. Disconnect generator connector and IPDM E/R connector.

“BATTERY VOLT”
2 seconds after setting the
DUTY value of “ALTERNA-
TOR DUTY” to 40.0 %

: 12 - 13.6 V

“BATTERY VOLT”
20 seconds after setting
the DUTY value of “ALTER-
NATOR DUTY” to 80.0 %

: +0.5 V or more against
the value of “BATTERY
VOLT” monitor when
DUTY value is 40.0 %

CHG-12

< DTC/CIRCUIT DIAGNOSIS >

POWER GENERATION VOLTAGE VARIABLE CONTROL SYSTEM OPERATION

INSPECTION

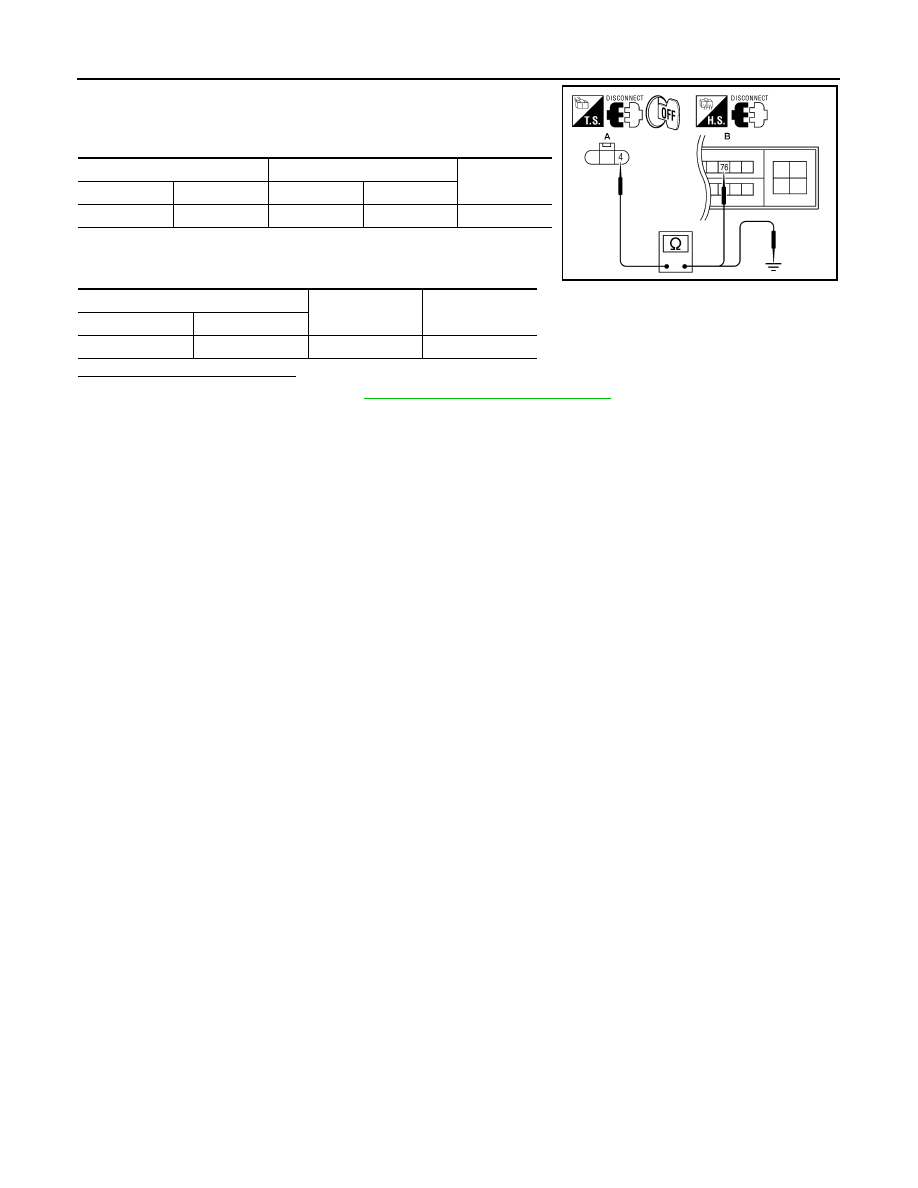

3. Check continuity between generator harness connector F7 (A)

terminal 4 and IPDM E/R harness connector F10 (B) terminal

76.

4. Check continuity between generator harness connector F7 (A)

terminal 4 and ground.

Is the inspection result normal?

YES

>> Replace IPDM E/R. Refer to

PCS-35, "Removal and Installation"

.

NO

>> Repair harness or connector between IPDM E/R and generator.

A

B

Continuity

Connector

Terminal

Connector

Terminal

F7

4

F10

76

Yes

A

Continuity

Connector

Terminal

F7

4

Ground

No

ALMIA0343ZZ

CHG

B TERMINAL CIRCUIT

CHG-13

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

B TERMINAL CIRCUIT

Description

INFOID:0000000009465972

 “B” terminal circuit supplies power to charge the battery and operate the vehicle’s electrical system.

Diagnosis Procedure

INFOID:0000000009465973

Regarding Wiring Diagram information, refer to

CHG-18, "Wiring Diagram"

.

1.

CHECK “B” TERMINAL CONNECTION

1. Turn ignition switch OFF.

2. Check if “B” terminal is clean and tight.
Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair terminal “1” connection. Confirm repair by performing complete Charging system test

using EXP-800 NI or GR8-1200 NI (if available). Refer to applicable Instruction Manual for proper

testing procedures.

2.

CHECK “B” TERMINAL CIRCUIT

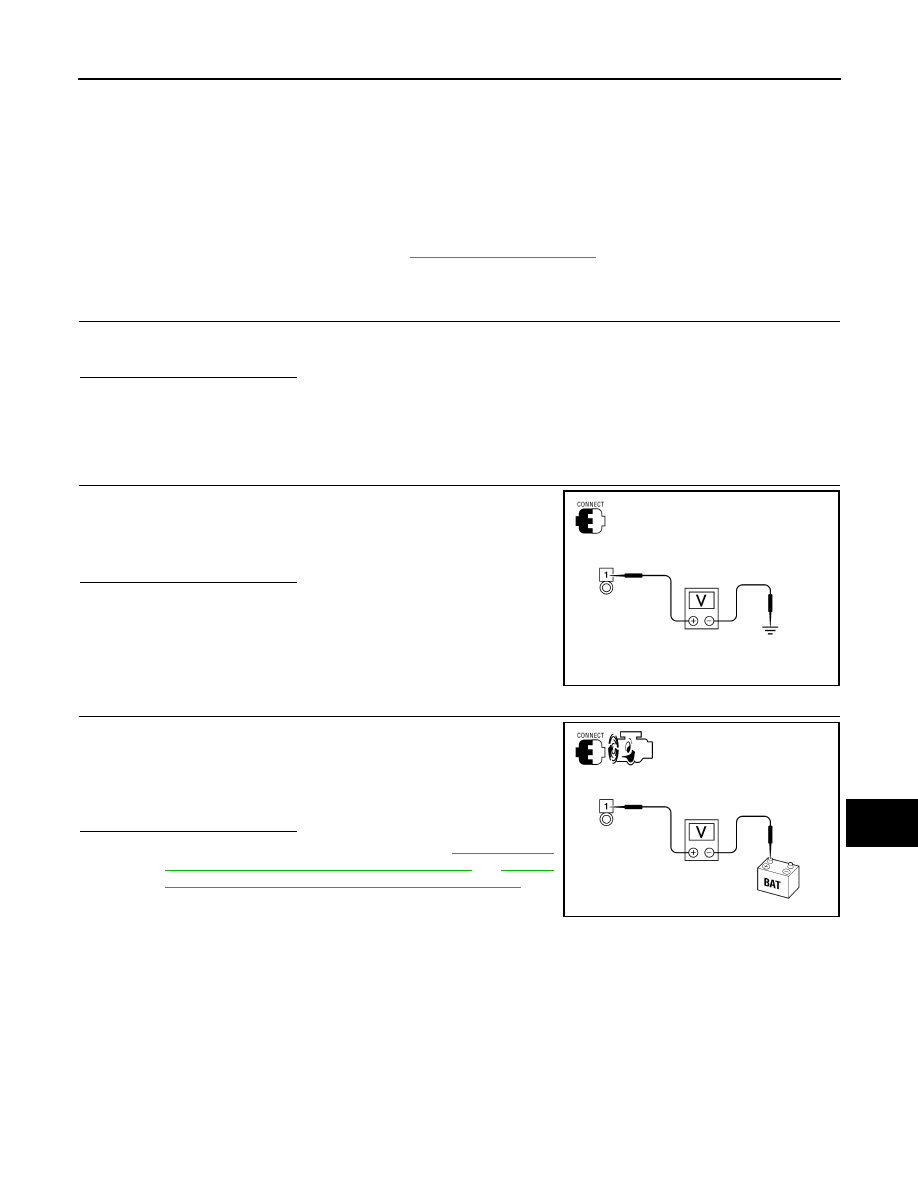

Check voltage between generator connector F6 terminal 1 and

ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Check harness for open between generator and fusible

link.

3.

CHECK “B” TERMINAL CONNECTION (VOLTAGE DROP TEST)

1. Start engine, then engine running at idle and warm.

2. Check voltage between battery positive terminal and generator

connector F6 terminal 1.

Is the inspection result normal?

YES

>> “B” terminal circuit is normal. Refer to

CHG-2, "Work

Flow (With EXP-800 NI or GR8-1200 NI)"

 or

CHG-5,

"Work Flow (Without EXP-800 NI or GR8-1200 NI)"

.

NO

>> Check harness between battery and generator for high

resistance.

1 - ground

Battery voltage

ALMIA0344ZZ

1 - B+

Less than 0.2V

ALMIA0345ZZ
