TCS

BRC-13

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

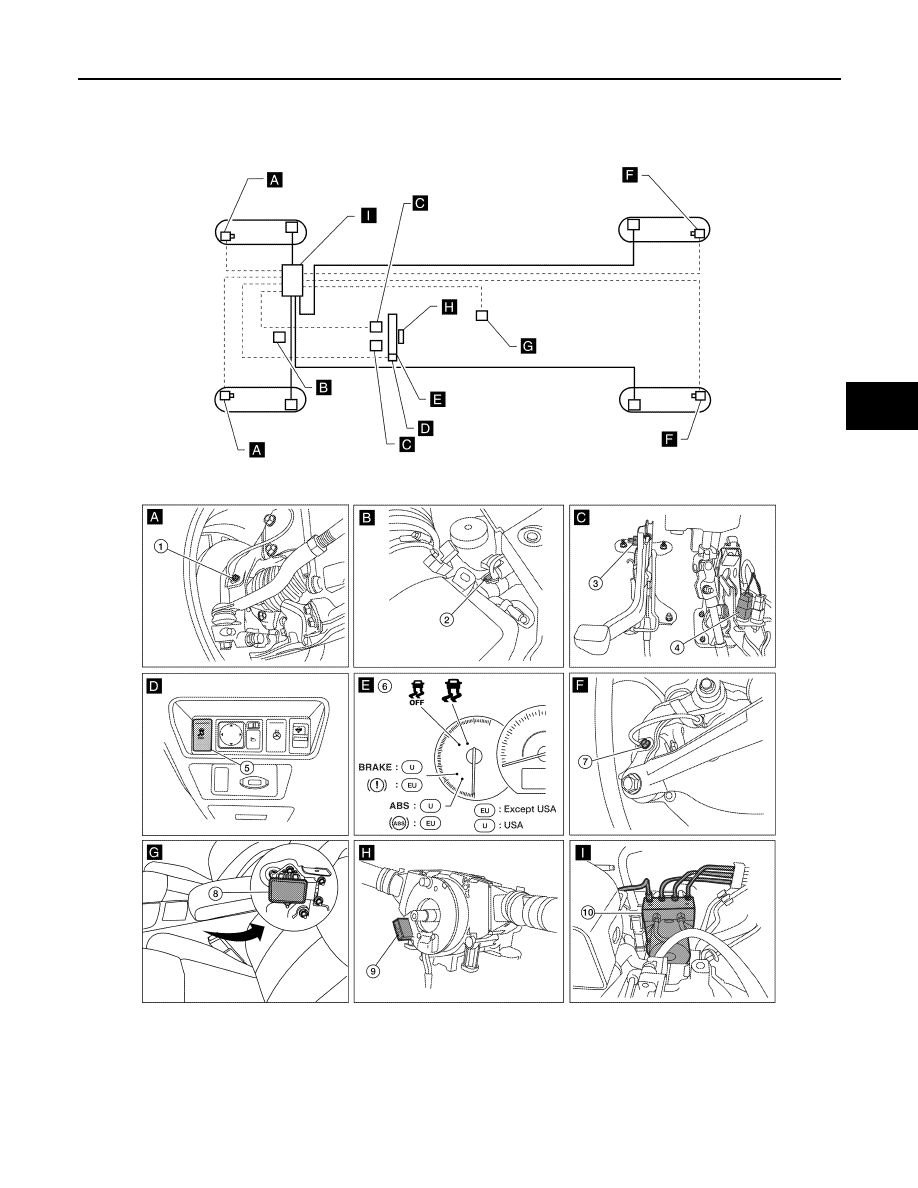

Component Parts Location

INFOID:0000000010049027

AWFIA0942GB

1.

Front wheel sensor LH E19
Front wheel sensor RH E41

2.

Brake fluid level switch E24

3.

Parking brake switch E35

4.

Stop lamp switch E38

5.

VDC OFF switch M72

6.

Combination meter M24

BRC-14

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

TCS

Component Description

INFOID:0000000010049028

7.

Rear wheel sensor LH C1
Rear wheel sensor RH C2

8.

Yaw rate/side/decel G sensor M55

9.

Steering angle sensor M53 (view with steer-
ing wheel removed)

10. ABS actuator and electric unit (con-

trol unit) E26

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-35, "Description"

Motor

Actuator relay (Main relay)

BRC-37, "Description"

Solenoid valve

BRC-44, "Description"

Pressure sensor

BRC-51, "Description"

VDC switch-over valve (HSV1, HSV2, USV1,
USV2)

BRC-59, "Description"

Wheel sensor

BRC-39, "Description"

Stop lamp switch

BRC-42, "Description"

Steering angle sensor

BRC-54, "Description"

Yaw rate/side/G sensor

BRC-56, "Description"

Brake fluid level switch

BRC-64, "Description"

Parking brake switch

BRC-68, "Description"

VDC OFF switch

BRC-70, "Description"

ABS warning lamp

BRC-72, "Description"

Brake warning lamp

BRC-73, "Description"

VDC OFF indicator lamp

BRC-75, "Description"

Slip indicator lamp

BRC-77, "Description"

ABS

BRC-15

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

ABS

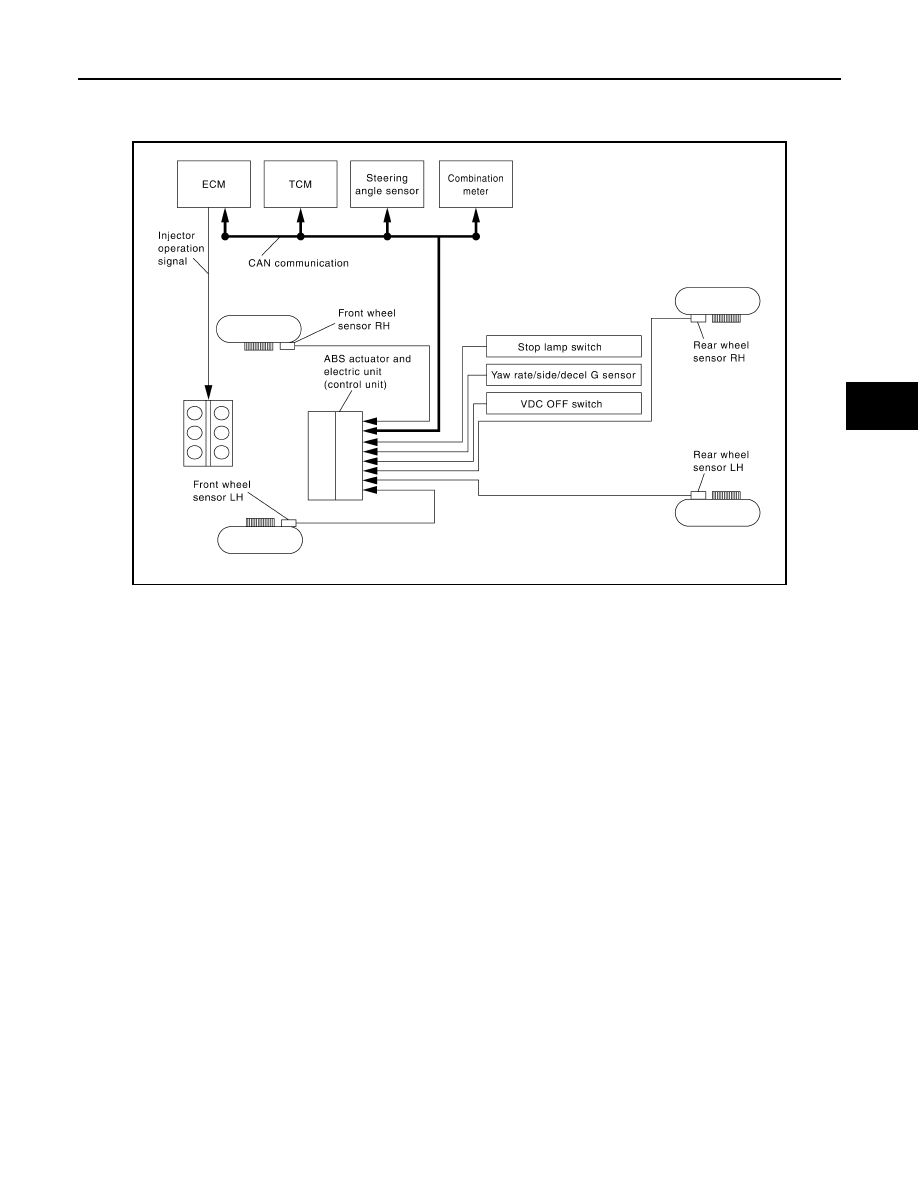

System Diagram

INFOID:0000000010049029

System Description

INFOID:0000000010049030

• Anti-Lock Braking System is a function that detects wheel revolution while braking, electronically controls

braking force, and prevents wheel locking during sudden braking. It improves handling stability and maneu-

verability for avoiding obstacles.

• Electrical system diagnosis by CONSULT is available.

AWFIA0440GB

BRC-16

< SYSTEM DESCRIPTION >

[VDC/TCS/ABS]

ABS

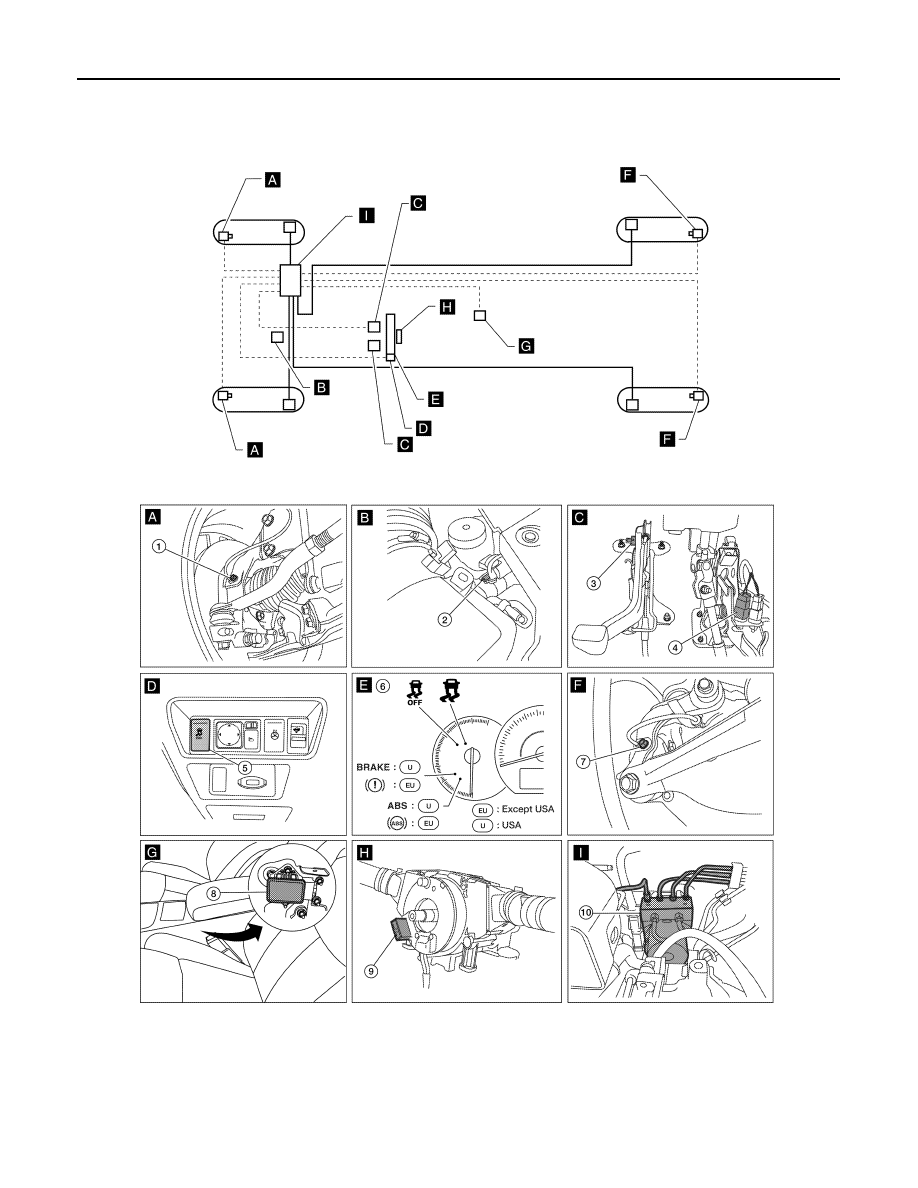

Component Parts Location

INFOID:0000000010049031

AWFIA0942GB

1.

Front wheel sensor LH E19
Front wheel sensor RH E41

2.

Brake fluid level switch E24

3.

Parking brake switch E35

4.

Stop lamp switch E38

5.

VDC OFF switch M72

6.

Combination meter M24
