BCM (BODY CONTROL MODULE)

BCS-67

< WIRING DIAGRAM >

[BCM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

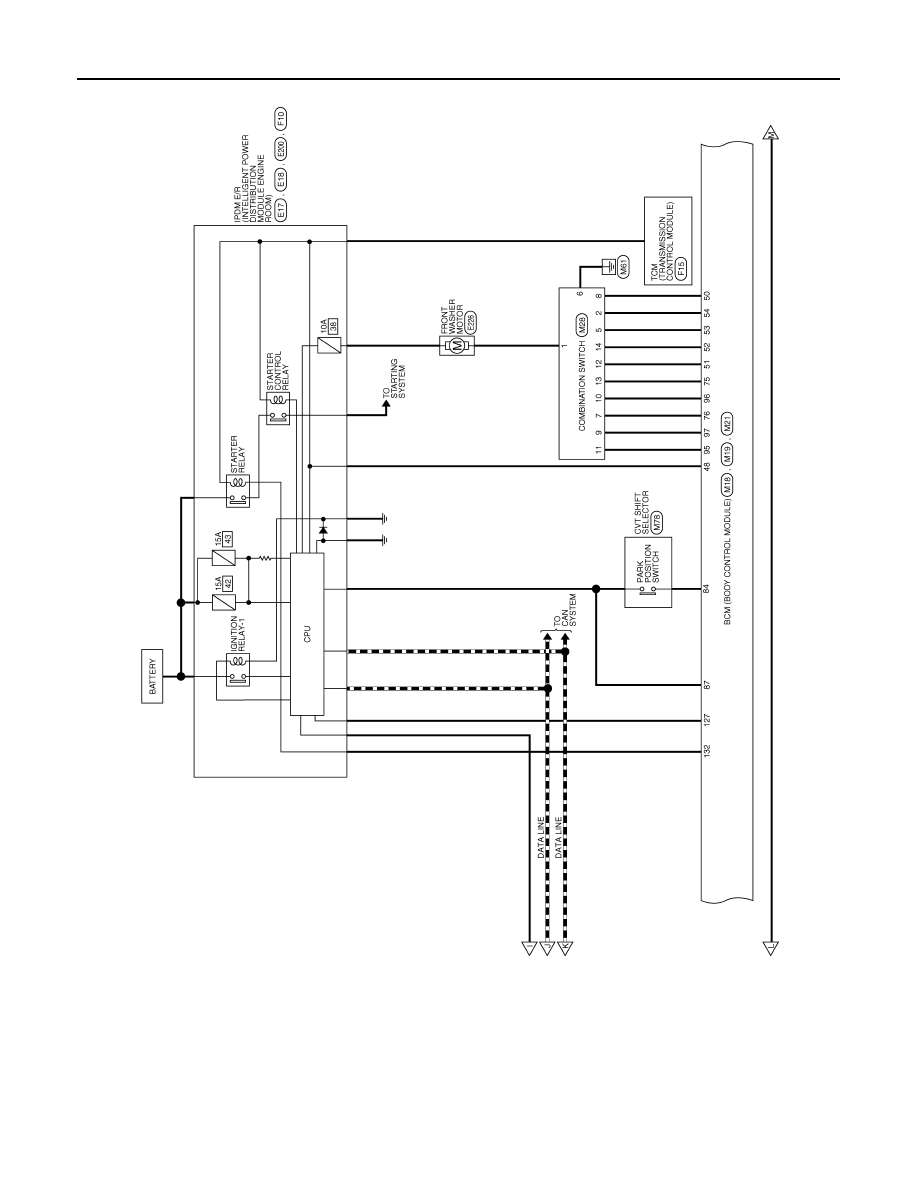

WIRING DIAGRAM

BCM (BODY CONTROL MODULE)

Wiring Diagram

INFOID:0000000009467080

ABMWA2203GB

BCS-68

< WIRING DIAGRAM >

[BCM]

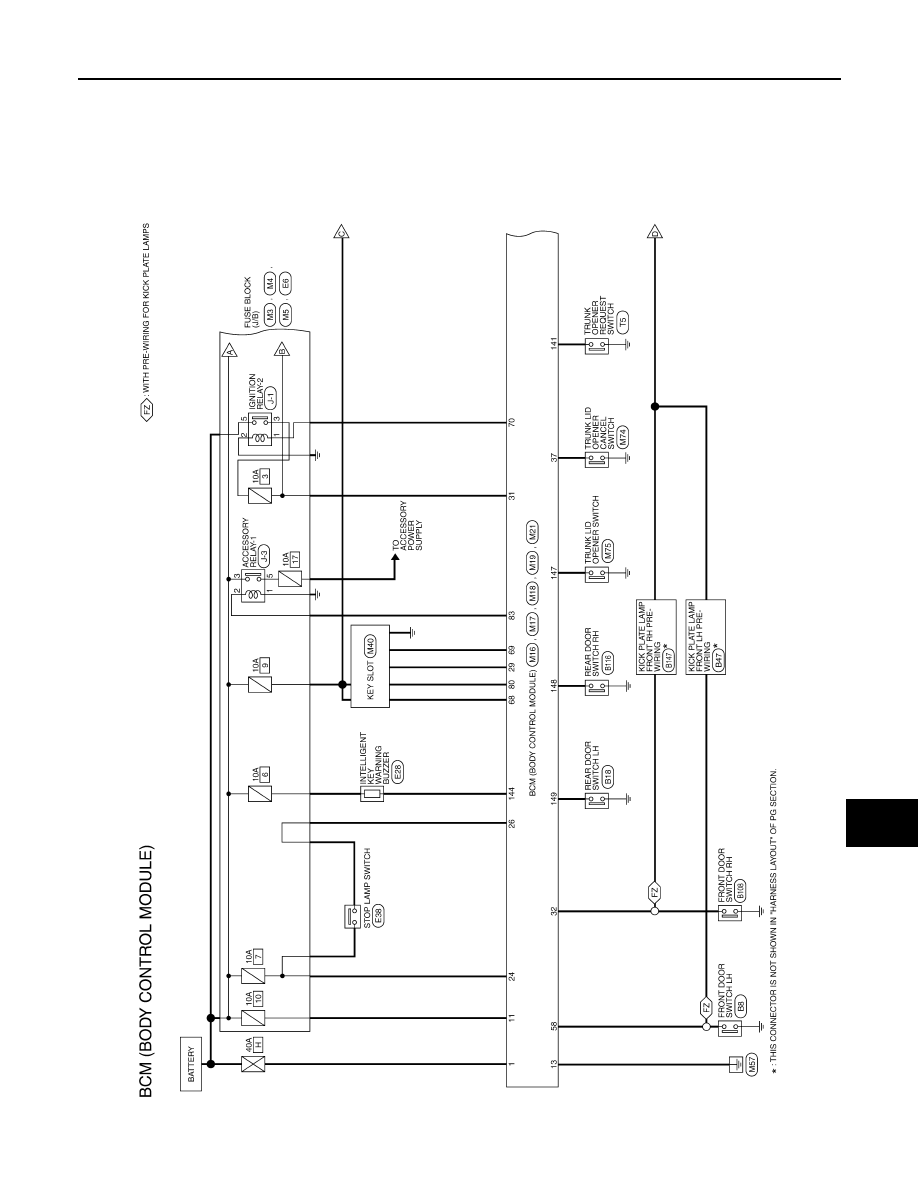

BCM (BODY CONTROL MODULE)

ABMWA2204GB

BCS

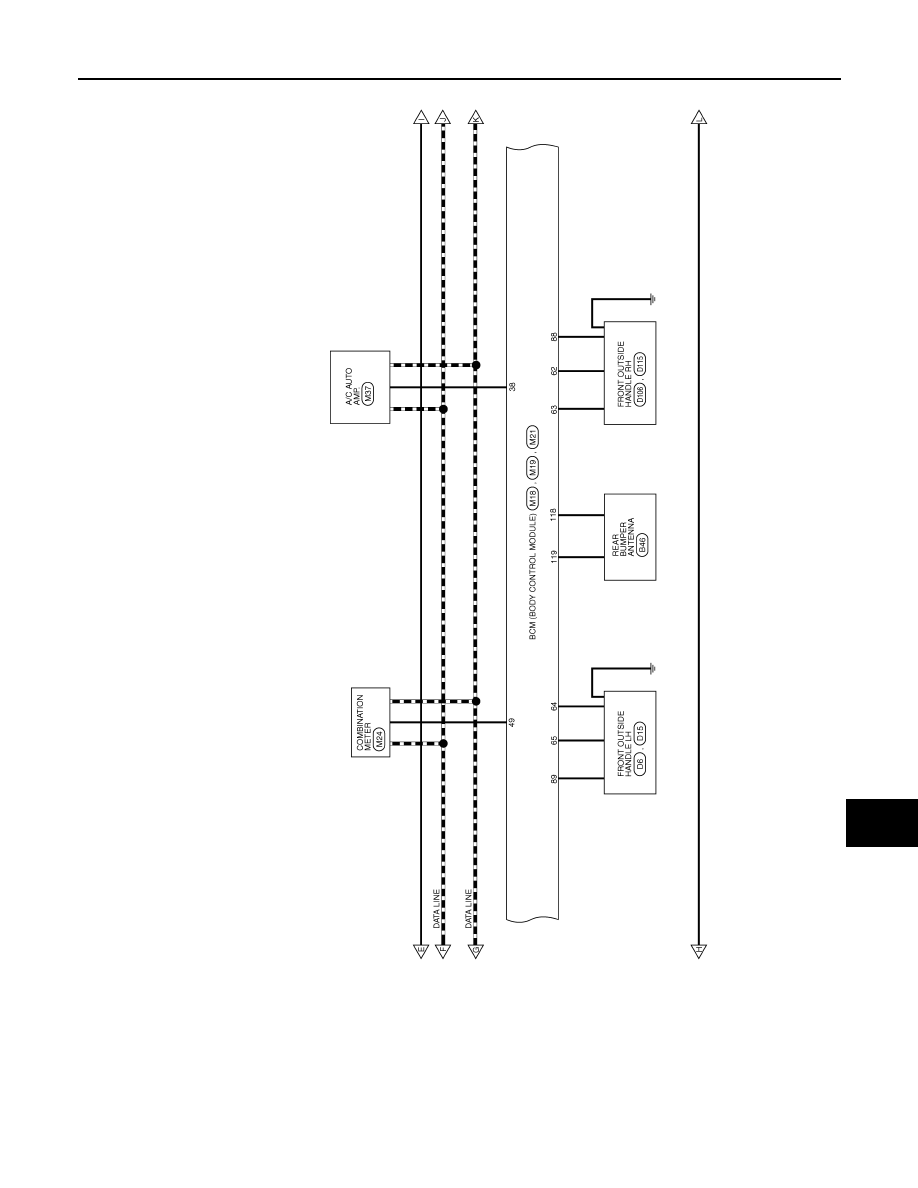

BCM (BODY CONTROL MODULE)

BCS-69

< WIRING DIAGRAM >

[BCM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

ABMWA2205GB

BCS-70

< WIRING DIAGRAM >

[BCM]

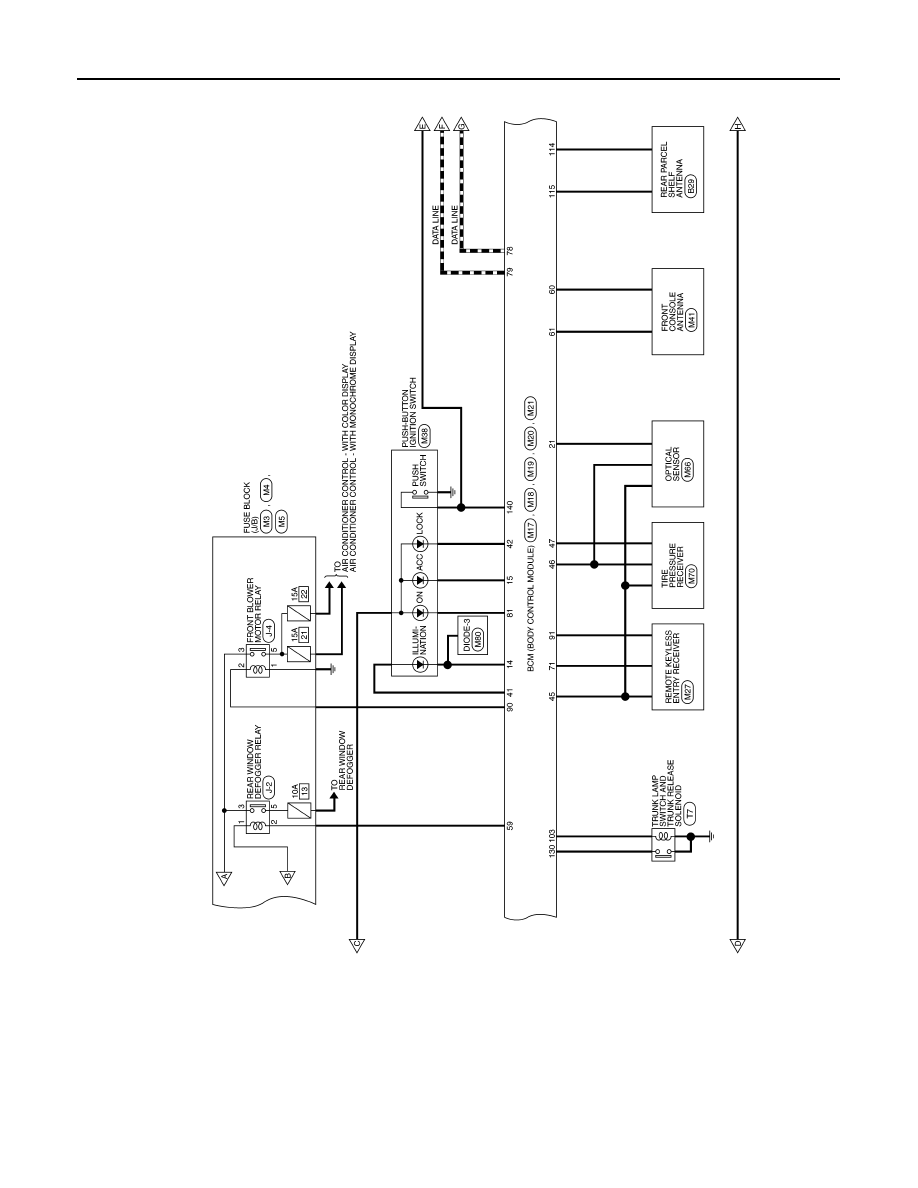

BCM (BODY CONTROL MODULE)

ABMWA2206GB
