P1723 SPEED SENSOR

3.

CHECK PRIMARY SPEED SENSOR SYSTEM

Check primary speed sensor system. Refer to

TM-57, "DTC Logic"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace damaged parts.

4.

CHECK ENGINE SPEED SIGNAL SYSTEM

Check engine speed signal system. Refer to

TM-64, "DTC Logic"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace damaged parts.

5.

DETECT MALFUNCTIONING ITEMS

Check TCM connector pin terminals for damage or loose connection with harness connector.
Is the inspection result normal?

YES

>> Replace TCM. Refer to

TM-168, "Exploded View"

.

NO

>> Repair or replace damaged parts.

P1726 THROTTLE CONTROL SIGNAL

TM-105

< DTC/CIRCUIT DIAGNOSIS >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

P1726 THROTTLE CONTROL SIGNAL

Description

INFOID:0000000010113674

The electric throttle control actuator consists of throttle control motor, accelerator pedal position sensor, throt-

tle position sensor, etc. The actuator sends a signal to the ECM, and ECM sends the signal to TCM via CAN

communication.

DTC Logic

INFOID:0000000010113675

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

NOTE:

Immediately after performing any “DTC CONFIRMATION PROCEDURE”, always turn ignition switch OFF.

Then wait at least 10 seconds before performing the next test.

1.

CHECK DTC DETECTION

With CONSULT

1. Start engine and let it idle for 5 seconds.

2. Perform “Self Diagnostic Results” in “TRANSMISSION”.
Is “P1726” detected?

YES

>> Go to

TM-105, "Diagnosis Procedure"

.

NO

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

Diagnosis Procedure

INFOID:0000000010113676

1.

CHECK DTC WITH ECM

With CONSULT

1. Turn ignition switch ON.

2. Select “Self Diagnostic Results” in “ENGINE”.
Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Check DTC Detected Item. Refer to

EC-542, "DTC Index"

.

2.

CHECK DTC WITH TCM

With CONSULT

Perform “Self Diagnostic Results” in “TRANSMISSION”.
Is “P1726” detected?

YES

>> Replace TCM. Refer to

TM-168, "Exploded View"

.

NO

>> GO TO 3.

3.

DETECT MALFUNCTIONING ITEMS

Check TCM connector pin terminals for damage or loose connection with harness connector.
Is the inspection result normal?

YES

>> Replace TCM. Refer to

TM-168, "Exploded View"

.

NO

>> Repair or replace damaged parts.

DTC

Trouble diagnosis name

DTC is detected if...

Possible cause

P1726

Throttle Control Signal Cir-
cuit

The electronically controlled throttle for ECM
is malfunctioning.

Harness or connectors
(Sensor circuit is open or shorted.)

TM-106

< DTC/CIRCUIT DIAGNOSIS >

[CVT: RE0F09B]

P1740 SELECT SOLENOID

P1740 SELECT SOLENOID

Description

INFOID:0000000010113677

• The lock-up select solenoid valve controls lock-up clutch pressure or forward clutch pressure (reverse brake

pressure).

• When controlling lock-up clutch, the valve is turned OFF. When controlling forward clutch, it is turned ON.

DTC Logic

INFOID:0000000010113678

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

CAUTION:

Always drive vehicle at a safe speed.

NOTE:

Immediately after performing any “DTC CONFIRMATION PROCEDURE”, always turn ignition switch OFF.

Then wait at least 10 seconds before performing the next test.

1.

CHECK DTC DETECTION

With CONSULT

1. Turn ignition switch ON.

2. Select “Data Monitor” in “TRANSMISSION”.

3. Start engine and maintain the following conditions for at least 5 consecutive seconds.

With GST

Follow the procedure “With CONSULT”.
Is “P1740” detected?

YES

>> Go to

TM-106, "Diagnosis Procedure"

.

NO

>> Check intermittent incident. Refer to

GI-41, "Intermittent Incident"

.

Diagnosis Procedure

INFOID:0000000010113679

Regarding Wiring Diagram information, refer to

TM-126, "Wiring Diagram"

.

1.

CHECK LOCK-UP SELECT SOLENOID VALVE CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect TCM connector.

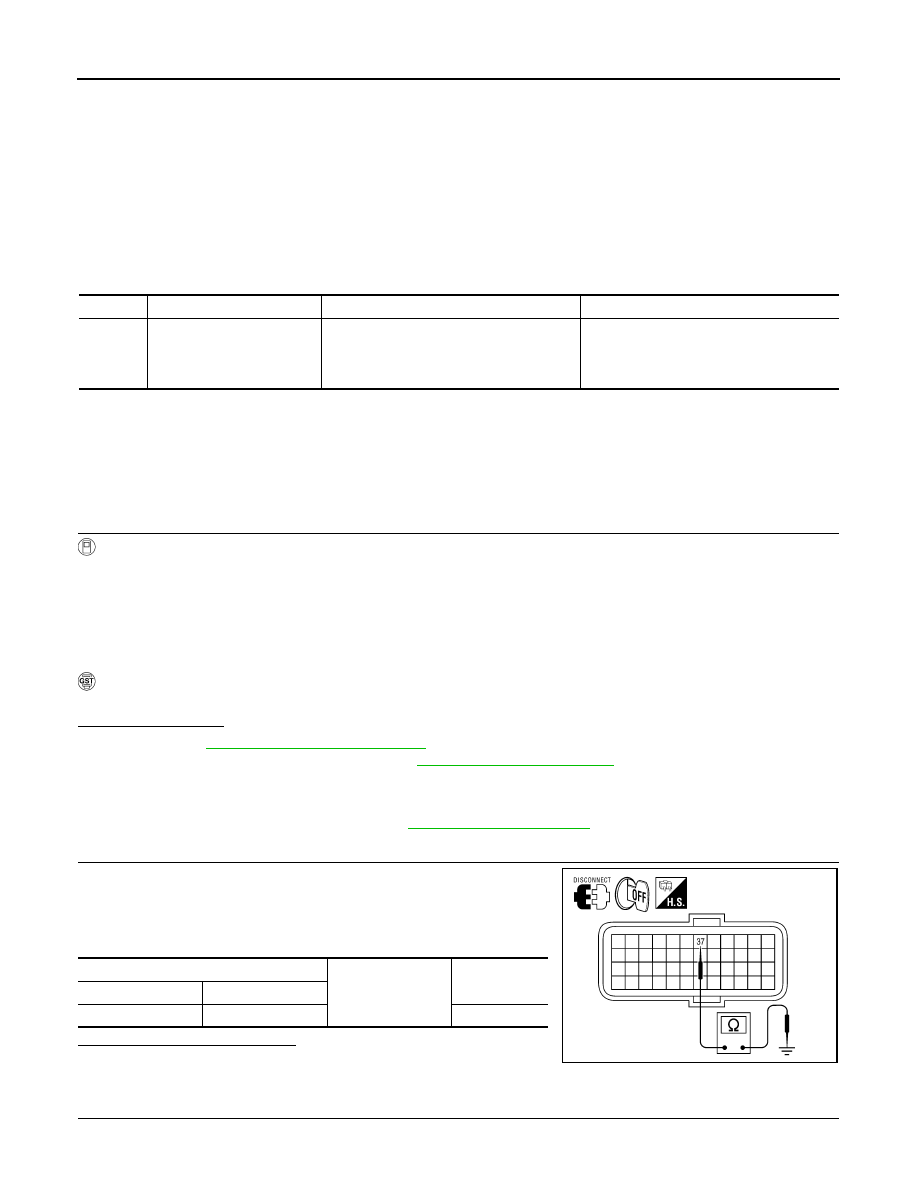

3. Check resistance between TCM vehicle side harness connector

terminal and ground.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> GO TO 2.

2.

CHECK HARNESS BETWEEN TCM AND CVT UNIT (LOCK-UP SELECT SOLENOID VALVE) (PART 1)

DTC

Trouble diagnosis name

DTC is detected if...

Possible cause

P1740

Lock-up Select Solenoid
Valve Circuit

• Normal voltage is not applied to solenoid

due to cut line, short, etc.

• TCM detects as irregular by comparing

target value with monitor value.

• Harness or connectors

(Solenoid circuit is open or shorted.)

• Lock-up select solenoid valve

RANGE

: “D” and “N” position

(At each time, wait for 5 seconds.)

TCM vehicle side harness connector

Ground

Resistance

(Approx.)

Connector

Terminal

F15

37

6.0 – 19.0

Ω

AWDIA0146ZZ

P1740 SELECT SOLENOID

TM-107

< DTC/CIRCUIT DIAGNOSIS >

[CVT: RE0F09B]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

1. Disconnect CVT unit connector.

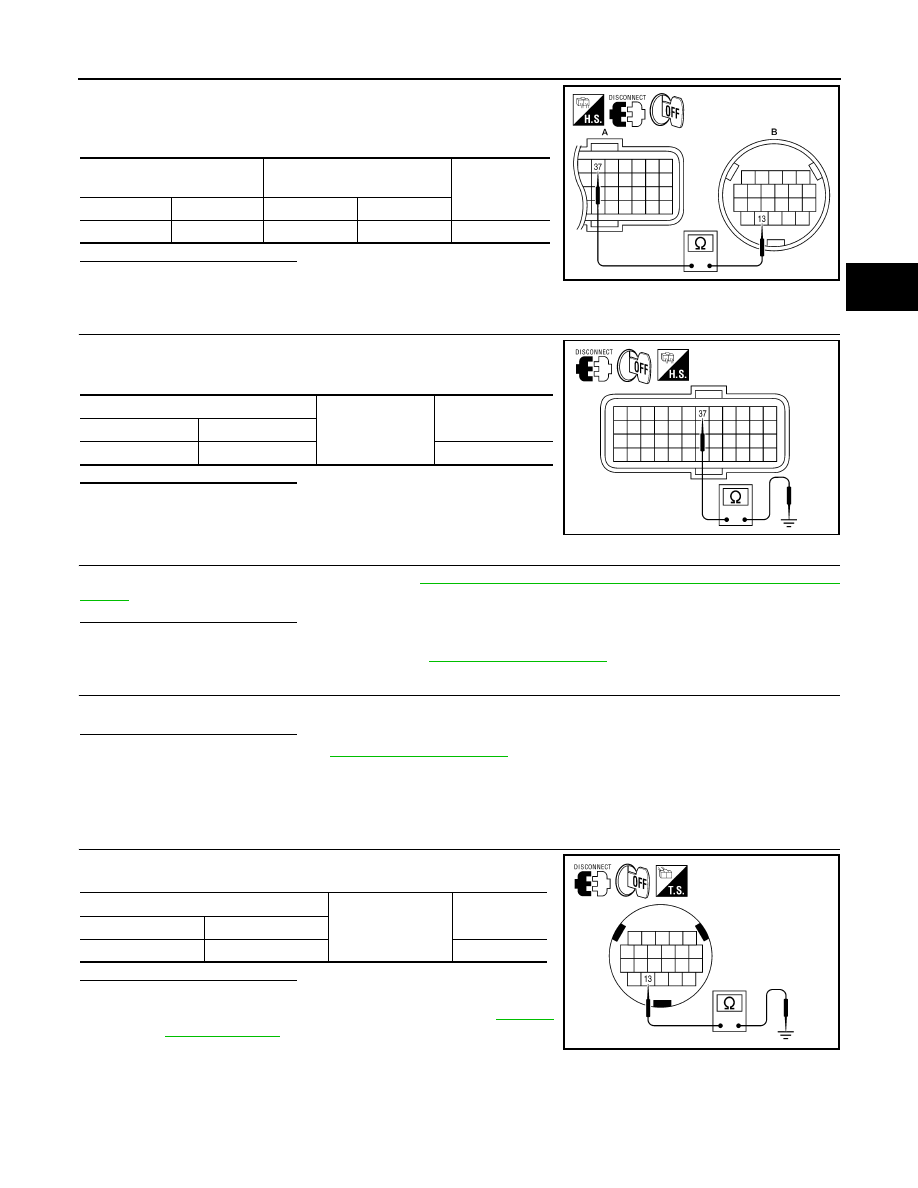

2. Check continuity between TCM vehicle side harness connector

terminal and CVT unit vehicle side harness connector terminal.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace damaged parts.

3.

CHECK HARNESS BETWEEN TCM AND CVT UNIT (LOCK-UP SELECT SOLENOID VALVE) (PART 2)

Check continuity between TCM vehicle side harness connector ter-

minal and ground.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace damaged parts.

4.

CHECK LOCK-UP SELECT SOLENOID VALVE

Check lock-up select solenoid valve. Refer to

TM-107, "Component Inspection (Lock-up Select Solenoid

Valve)"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Replace transaxle assembly. Refer to

TM-188, "Exploded View"

.

5.

DETECT MALFUNCTIONING ITEMS

Check TCM connector pin terminals for damage or loose connection with harness connector.
Is the inspection result normal?

YES

>> Replace TCM. Refer to

TM-168, "Exploded View"

.

NO

>> Repair or replace damaged parts.

Component Inspection (Lock-up Select Solenoid Valve)

INFOID:0000000010113680

1.

CHECK LOCK-UP SELECT SOLENOID VALVE

Check resistance between CVT unit connector terminal and ground.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Replace transaxle assembly. Refer to

TM-188,

"Exploded View"

.

TCM vehicle side harness

connector

CVT unit vehicle side harness

connector

Continuity

Connector

Terminal

Connector

Terminal

F15 (A)

37

F46 (B)

13

Existed

AWDIA0147ZZ

TCM vehicle side harness connector

Ground

Continuity

Connector

Terminal

F15

37

Not existed

AWDIA0146ZZ

CVT unit connector

Ground

Resistance

(Approx.)

Connector

Terminal

F46

13

6.0 – 19.0

Ω

AWDIA0119ZZ
