Nissan Maxima. Manual - part 1133

STR-16

< SYMPTOM DIAGNOSIS >

[VQ35DE]

STARTING SYSTEM

SYMPTOM DIAGNOSIS

STARTING SYSTEM

Symptom Table

INFOID:0000000009465007

Symptom

Reference

No normal cranking

Refer to

STR-2, "Work Flow (With GR8-1200 NI)"

 or

STR-6, "Work

Flow (Without GR8-1200 NI)"

.

Starter motor does not rotate

PRECAUTIONS

STR-17

< PRECAUTION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009465008

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

STR-18

< PREPARATION >

[VQ35DE]

PREPARATION

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000009465009

The actual shapes of the tools may differ from those illustrated here.

Commercial Service Tools

INFOID:0000000009465010

Tool number
(TechMate No.)
Tool name

Description

—

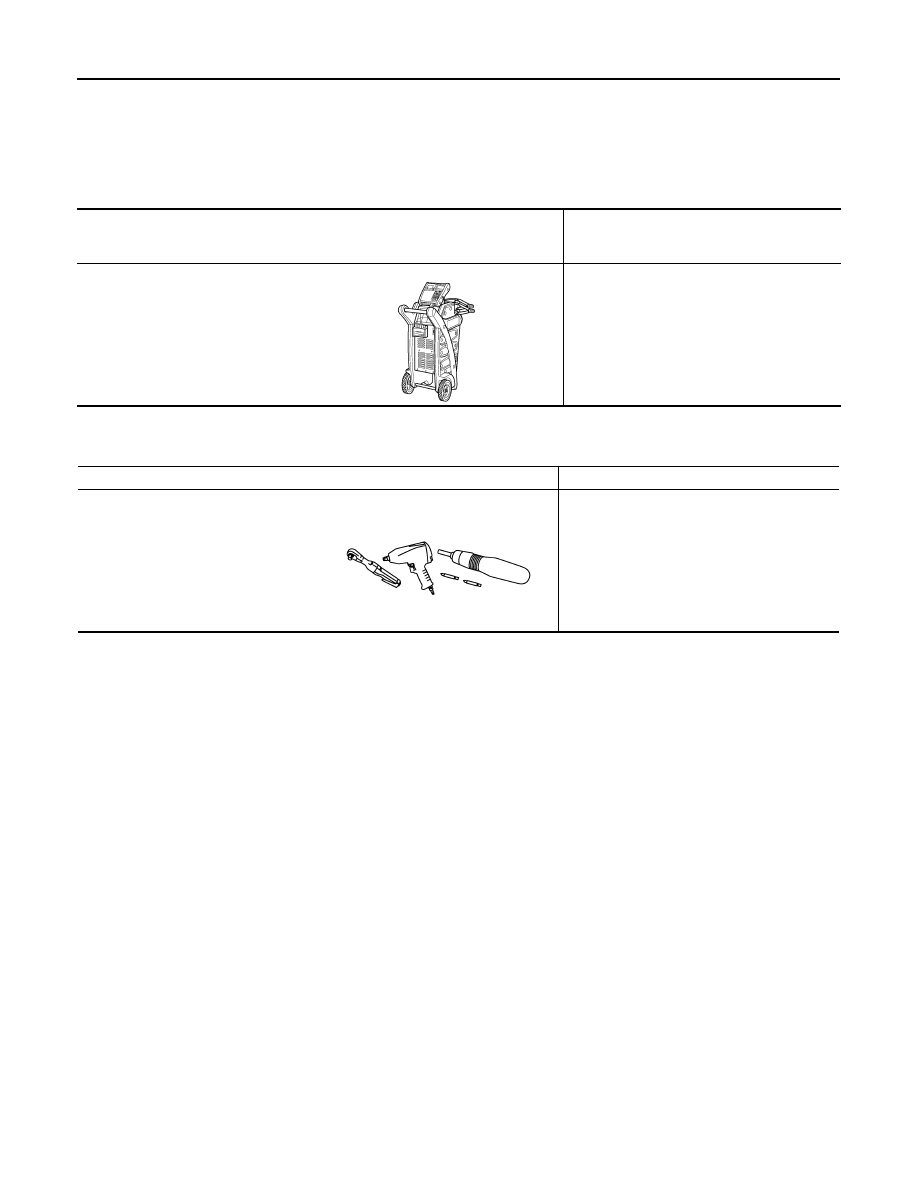

(—) Model GR8-1200 NI
Multitasking battery and electrical di-
agnostic station

Tests batteries, starting and charging sys-
tems and charges batteries.
For operating instructions, refer to diagnostic
station instruction manual.

AWIIA1239ZZ

Tool name

Description

Power tools

Loosening nuts, screws and bolts

PIIB1407E

STARTER MOTOR

STR-19

< REMOVAL AND INSTALLATION >

[VQ35DE]

C

D

E

F

G

H

I

J

K

L

M

A

STR

N

P

O

REMOVAL AND INSTALLATION

STARTER MOTOR

Removal and Installation

INFOID:0000000009465011

REMOVAL

1. Remove the battery tray. Refer to

PG-68, "Removal and Installation (Battery Tray)"

.

2. Disconnect the battery cable (A) and starter harness connector.
3. Remove the starter bolts, then remove the starter.

INSTALLATION

Installation is in the reverse order of removal.

• Reset electronic systems as necessary. Refer to

PG-5, "ADDITIONAL SERVICE WHEN REMOVING BAT-

TERY NEGATIVE TERMINAL : Special Repair Requirement"

.

CAUTION:

Carefully tighten the battery cable nut.

AWBIA0988ZZ
