CONTENTS

STEERING SYSTEM

SYSTEM DESCRIPTION  ..............................

3

HEATED STEERING WHEEL .............................

3

System Diagram ........................................................

3

System Description  ...................................................

3

Component Parts Location ........................................

3

Component Description .............................................

4

WIRING DIAGRAM .......................................

5

HEATED STEERING WHEEL .............................

5

Wiring Diagram  .........................................................

5

SYMPTOM DIAGNOSIS  ...............................

8

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

8

NVH Troubleshooting Chart  ......................................

8

PRECAUTION ...............................................

9

PRECAUTIONS ...................................................

9

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

9

Service Notice or Precautions ...................................

9

PREPARATION ...........................................

10

PREPARATION ..................................................

10

Special Service Tool  ...............................................

10

Commercial Service Tool  ........................................

11

PERIODIC MAINTENANCE .........................

12

POWER STEERING FLUID  ...............................

12

Inspection ................................................................

12

Draining ...................................................................

12

Refilling ...................................................................

12

STEERING WHEEL ............................................

14

Inspection ................................................................

14

POWER STEERING OIL PUMP  .......................

16

Inspection ................................................................

16

REMOVAL AND INSTALLATION ...............

17

STEERING WHEEL  ..........................................

17

Removal and Installation  .........................................

17

TILT MOTOR .....................................................

18

Exploded View .........................................................

18

Removal and Installation  .........................................

18

TELESCOPIC MOTOR  .....................................

20

Exploded View .........................................................

20

Removal and Installation  .........................................

20

STEERING COLUMN ........................................

22

Exploded View .........................................................

22

Removal and Installation  .........................................

23

STEERING GEAR AND LINKAGE  ...................

26

Exploded View .........................................................

26

Removal and Installation  .........................................

26

POWER STEERING OIL PUMP  .......................

28

Exploded View .........................................................

28

Removal and Installation  .........................................

28

HYDRAULIC LINE  ............................................

29

Exploded View .........................................................

29

Removal and Installation  .........................................

30

UNIT DISASSEMBLY AND ASSEMBLY  ....

31

STEERING COLUMN ........................................

31

Disassembly and Assembly .....................................

31

STEERING GEAR AND LINKAGE  ...................

33

Exploded View .........................................................

33

Disassembly ............................................................

33

Inspection ................................................................

33

Assembly .................................................................

34

HEATED STEERING WHEEL

ST-3

< SYSTEM DESCRIPTION >

C

D

E

F

H

I

J

K

L

M

A

B

ST

N

O

P

SYSTEM DESCRIPTION

HEATED STEERING WHEEL

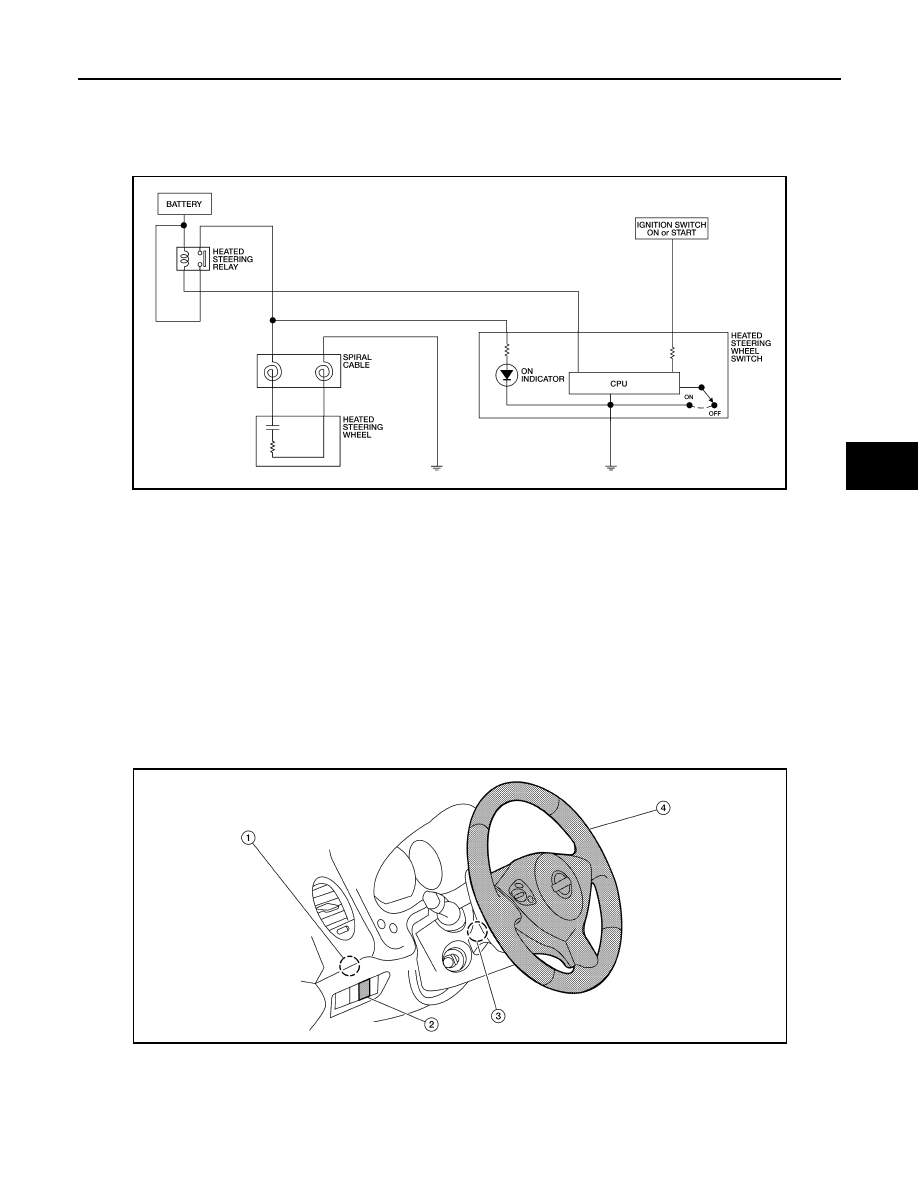

System Diagram

INFOID:0000000009465758

System Description

INFOID:0000000009465759

The heated steering wheel switch controls the heated steering relay. When the switch is turned on, the relay is

energized and the heated steering system will operate. The heated steering system will turn off when the

steering wheel temperature reaches approximately 86

° F (30° C). Heated steering system operation can also

be canceled by pressing the heated steering wheel switch again.

NOTE:

If the surface temperature of the steering wheel is below 68

° F (20° C), the system will heat the steering wheel

and cycle off and on to maintain a temperature above 68

° F (20° C). The indicator light will remain on as long

as the system is on. Push the switch again to turn the heated steering wheel system off manually. The indica-

tor light will go off.

Component Parts Location

INFOID:0000000009465760

AWGIA0104GB

1.

Heated steering relay M97

2.

Heated steering wheel switch M96

3.

Spiral cable M26

4.

Heated steering wheel M114

AWGIA0088ZZ

ST-4

< SYSTEM DESCRIPTION >

HEATED STEERING WHEEL

Component Description

INFOID:0000000009465761

Heated steering wheel switch

• Controls the heated steering relay and operates the heated steering wheel system.
• Turns the indicator lamp ON when the system is activated.

Heated steering relay

• Operates the heated steering system with the control signal from the heated steering

wheel switch.

Heated steering wheel

• Heats the heating element with the power supplied from the heated steering relay.
