NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

SEC-17

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

Component Parts Location

INFOID:0000000010051906

Component Description

INFOID:0000000010051907

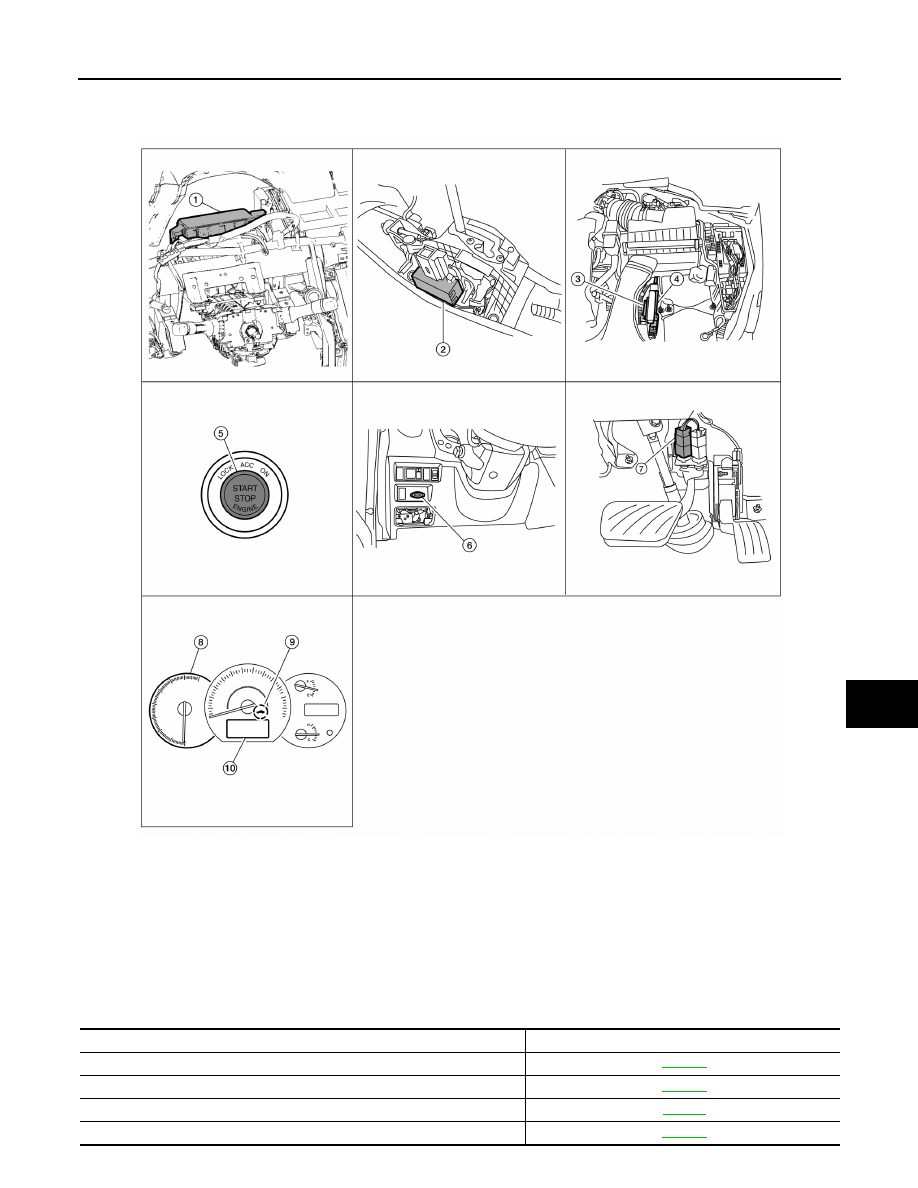

AWKIA1701ZZ

1.

BCM M16, M17, M18, M19, M21
(view with instrument panel removed)

2.

CVT shift selector M78

3.

TCM F15

4.

ECM E10

5.

Push button ignition switch M38

6.

Key slot M40

7.

Stop lamp switch E38
(view with lower LH instrument panel removed)

8.

Combination meter M24

9.

Security indicator lamp

10. Information display

Component Reference

BCM

SEC-31

Push-button ignition switch

SEC-46

Door switch

DLK-67

CVT shift selector

SEC-50

SEC-18

< SYSTEM DESCRIPTION >

NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

Inside key antenna

DLK-60

Remote keyless entry receiver

DLK-110

Stop lamp switch

SEC-43

Transmission range switch

SEC-59

Starter relay

SEC-63

Starter control relay

SEC-49

Security indicator

SEC-92

Key warning lamp

SEC-91

Component Reference

VEHICLE SECURITY SYSTEM

SEC-19

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

L

M

A

B

SEC

N

O

P

VEHICLE SECURITY SYSTEM

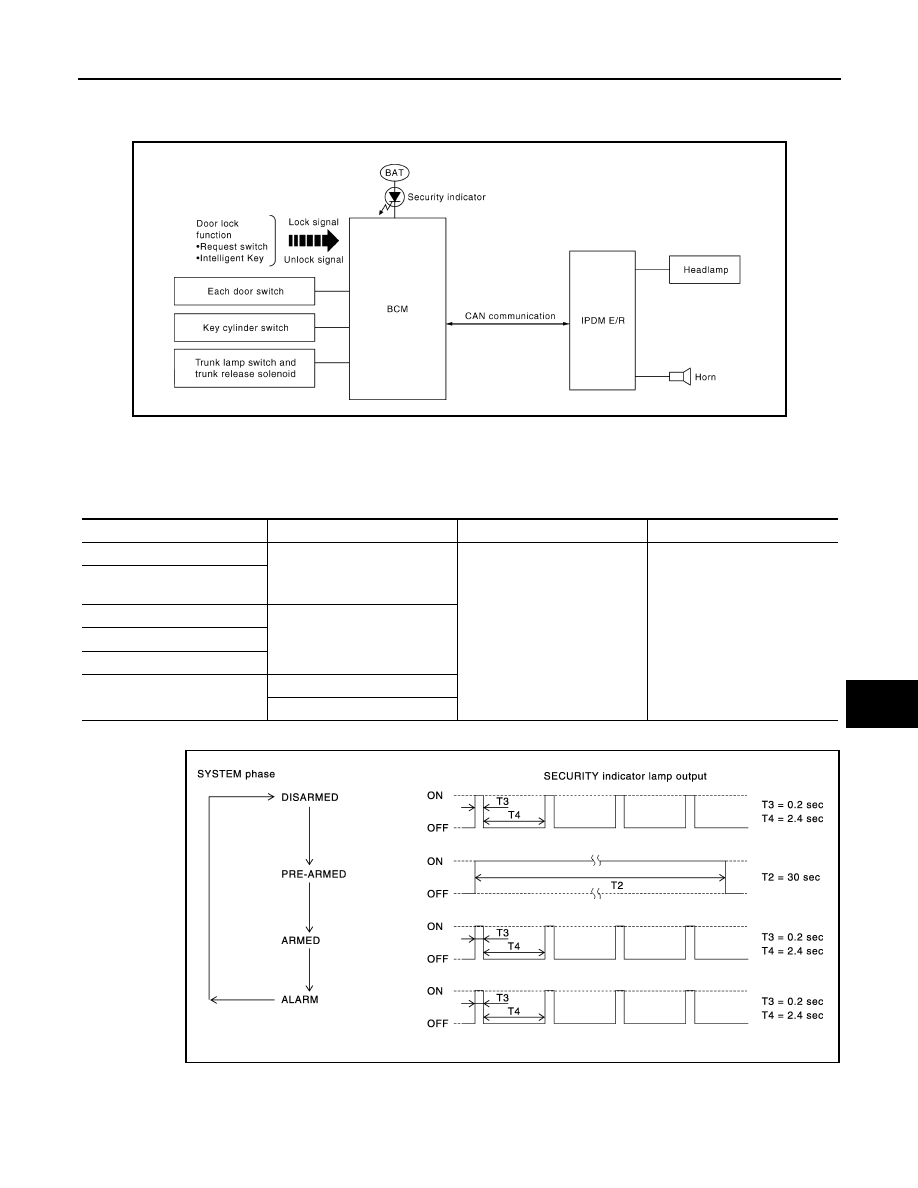

System Diagram

INFOID:0000000010051908

System Description

INFOID:0000000010051909

INPUT/OUTPUT SIGNAL CHART

OPERATION FLOW

SETTING THE VEHICLE SECURITY SYSTEM

Initial Condition

• Ignition switch is in OFF position.

ALKIA1640GB

Switch

Input signal to BCM

BCM system

Actuator

All door switches

Open or close

Vehicle security system

• IPDM  E/R
• Headlamp
• Horn
• Security indicator lamp

Trunk lamp switch and trunk
release solenoid

Door key cylinder switch

Lock or unlock

Door lock and unlock switch

Door request switch

Intelligent Key

Lock or unlock

Panic alarm

PIIA1367E

SEC-20

< SYSTEM DESCRIPTION >

VEHICLE SECURITY SYSTEM

Disarmed Phase

• When doors or trunk is open, the vehicle security system is set in the disarmed phase on the assumption

that the owner is inside or near the vehicle.

• When the vehicle security system is in the disarmed phase, the security indicator lamp blinks every 2.4 sec-

onds.

Pre-armed Phase and Armed Phase

When the following operation 1 or 2 is performed, the vehicle security system turns into the “pre-armed”

phase. (The security indicator lamp illuminates.)
1. BCM receives LOCK signal from front door key cylinder switch or Intelligent Key, after trunk and all doors

are closed.

2. Trunk and all doors are closed after front doors are locked by key or door lock and unlock switch.

The security indicator lamp illuminates for 30 seconds. Then, the system automatically shifts into the

“armed” phase.

CANCELING THE SET VEHICLE SECURITY SYSTEM

When one of the following operations is performed, the armed phase is canceled.
1. Unlock the doors with the key or Intelligent Key.
2. Turn ignition switch to “ON” or “ACC” position.

CANCELING THE ALARM OPERATION OF THE VEHICLE SECURITY SYSTEM

When unlocking the door with the key or Intelligent Key, the alarm operation is canceled.

ACTIVATING THE ALARM OPERATION OF THE VEHICLE SECURITY SYSTEM

Check that the system is in the armed phase. (The security indicator lamp blinks every 2.4 seconds.)

When the following operation 1 or 2 is performed, the system sounds the horns and flashes the headlamps for

about 50 seconds.
1. Trunk or any door is opened during armed phase.
2. Disconnecting and connecting the battery connector before canceling armed phase.

PANIC ALARM OPERATION

Intelligent Key system will not operate horn and headlamps if the ignition switch is in the ACC or ON position.

When the Intelligent Key system is triggered, ground is supplied intermittently to both headlamp relay and horn

relay.

When headlamp relay and horn relay are energized, then power is supplied to headlamps (LH and RH) and

horns (HIGH and LOW).

The headlamp flashes and the horn sounds intermittently.

The alarm automatically turns off after 50 seconds or when BCM receives any signal from Intelligent Key.
