Nissan Maxima. Manual - part 1030

REAR SEAT

SE-93

< UNIT DISASSEMBLY AND ASSEMBLY >

[WITH CLIMATE CONTROLLED SEATS]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

19. Side bolster pad (LH)

20. Side bolster trim (LH)

21. Seat belt guide (LH)

22. Seatback latch assembly

23. Seatback latch cover

24. Side bolster pad (RH)

25. Side bolster trim (RH)

26. Seat belt guide (RH)

27. Seatback assembly (RH)

28. Headrest holder (locked)

29. Headrest holder (free)

30. Headrest

SE-94

< WIRING DIAGRAM >

[W/O CLIMATE CONTROLLED SEATS]

POWER SEAT FOR DRIVER SIDE

WIRING DIAGRAM

POWER SEAT FOR DRIVER SIDE

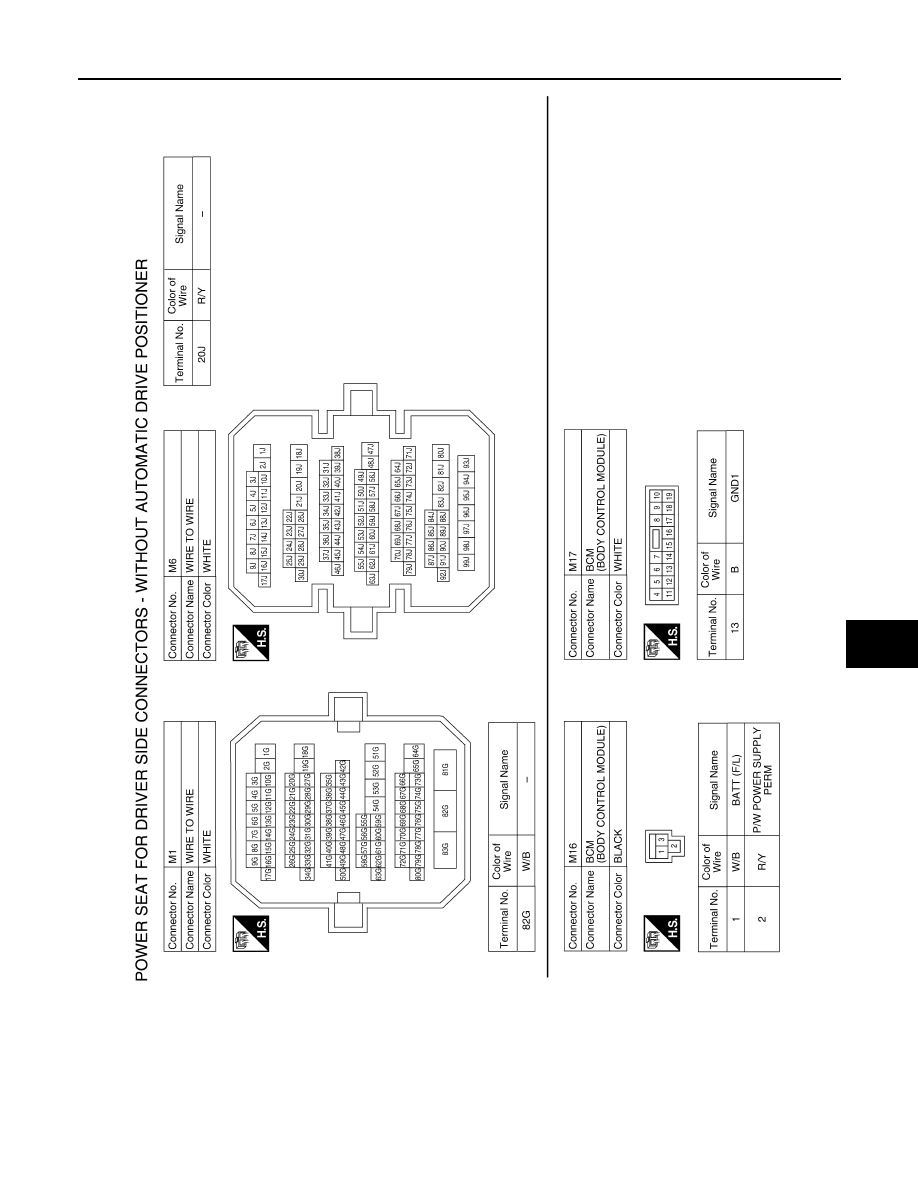

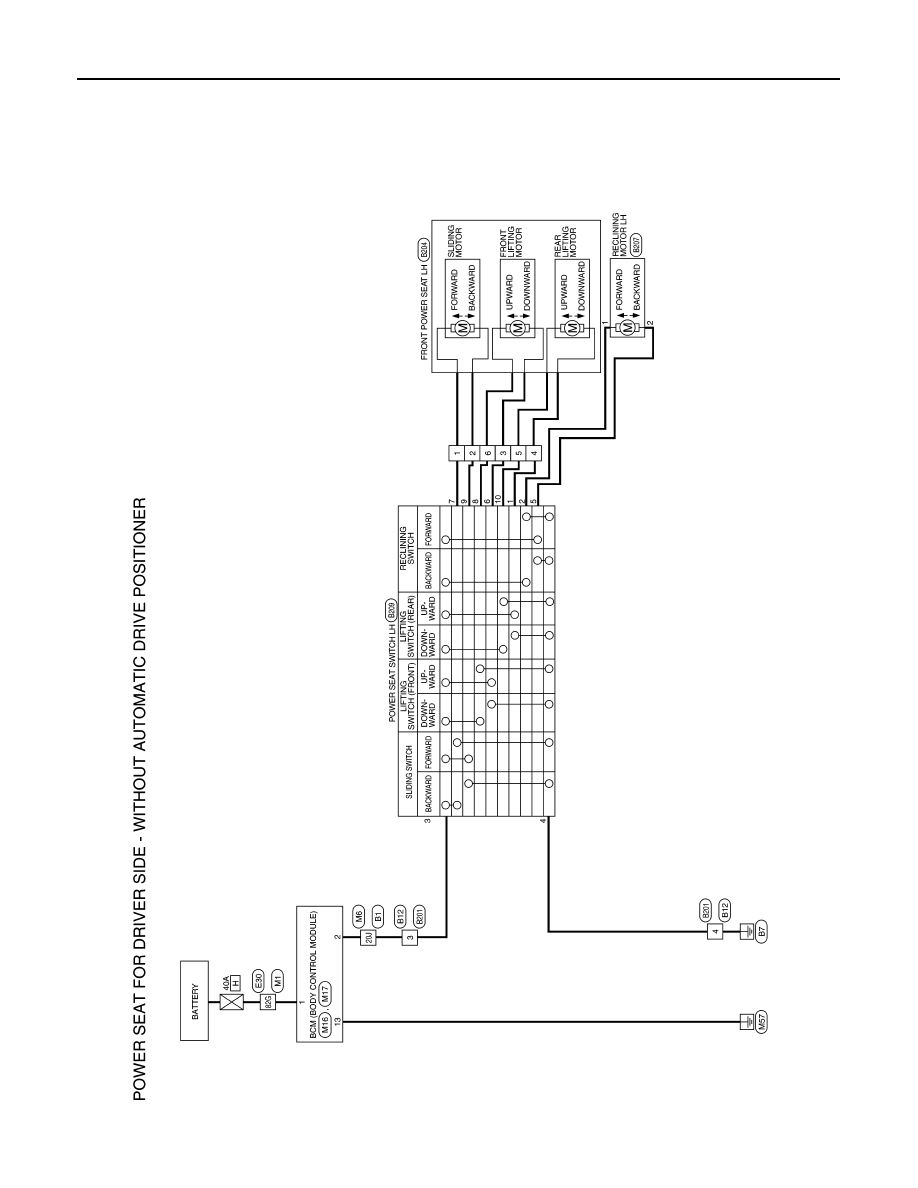

Wiring Diagram - Without Automatic Drive Positioner

INFOID:0000000009468157

ABJWA0372GB

POWER SEAT FOR DRIVER SIDE

SE-95

< WIRING DIAGRAM >

[W/O CLIMATE CONTROLLED SEATS]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

ABJIA0241GB

SE-96

< WIRING DIAGRAM >

[W/O CLIMATE CONTROLLED SEATS]

POWER SEAT FOR DRIVER SIDE

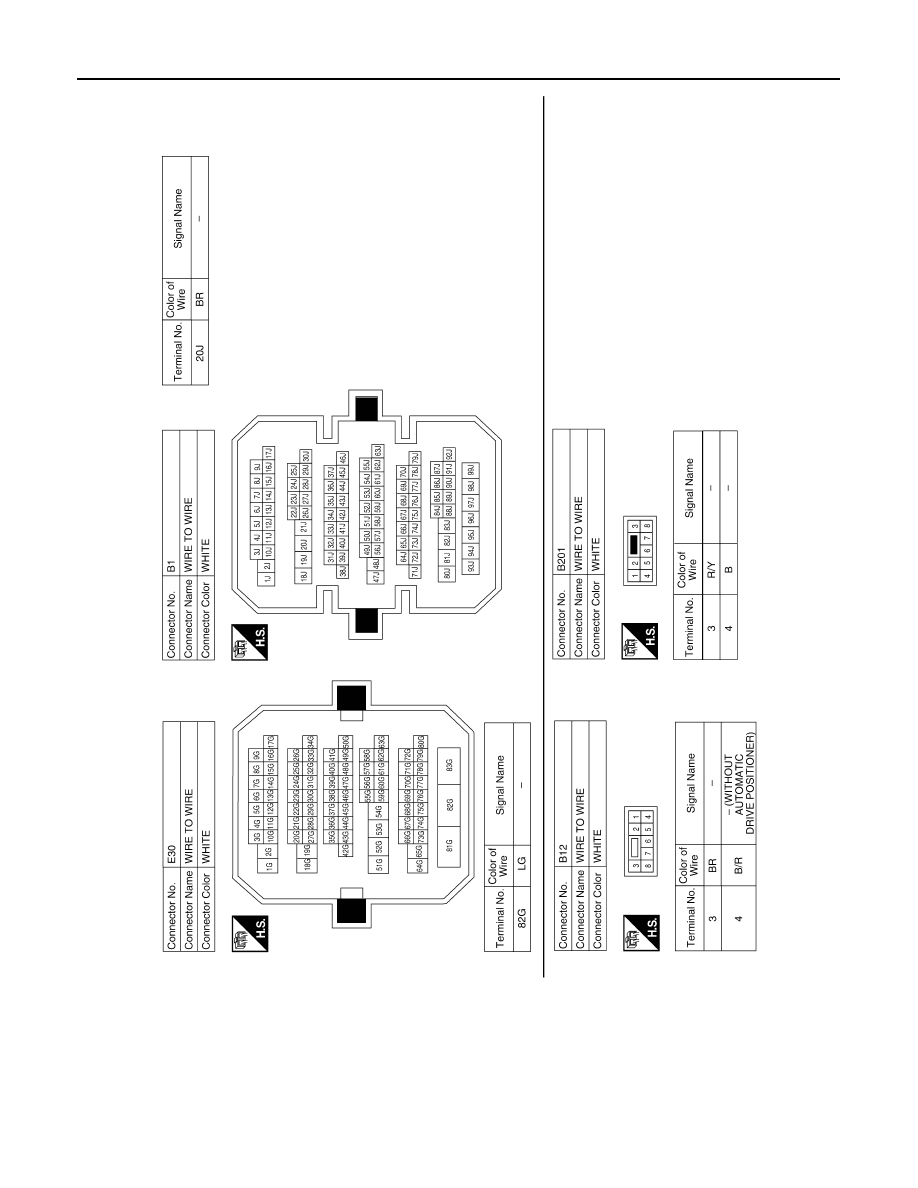

ABJIA0493GB
