LUMBAR SUPPORT SYSTEM

SE-41

< WIRING DIAGRAM >

[WITH CLIMATE CONTROLLED SEATS]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

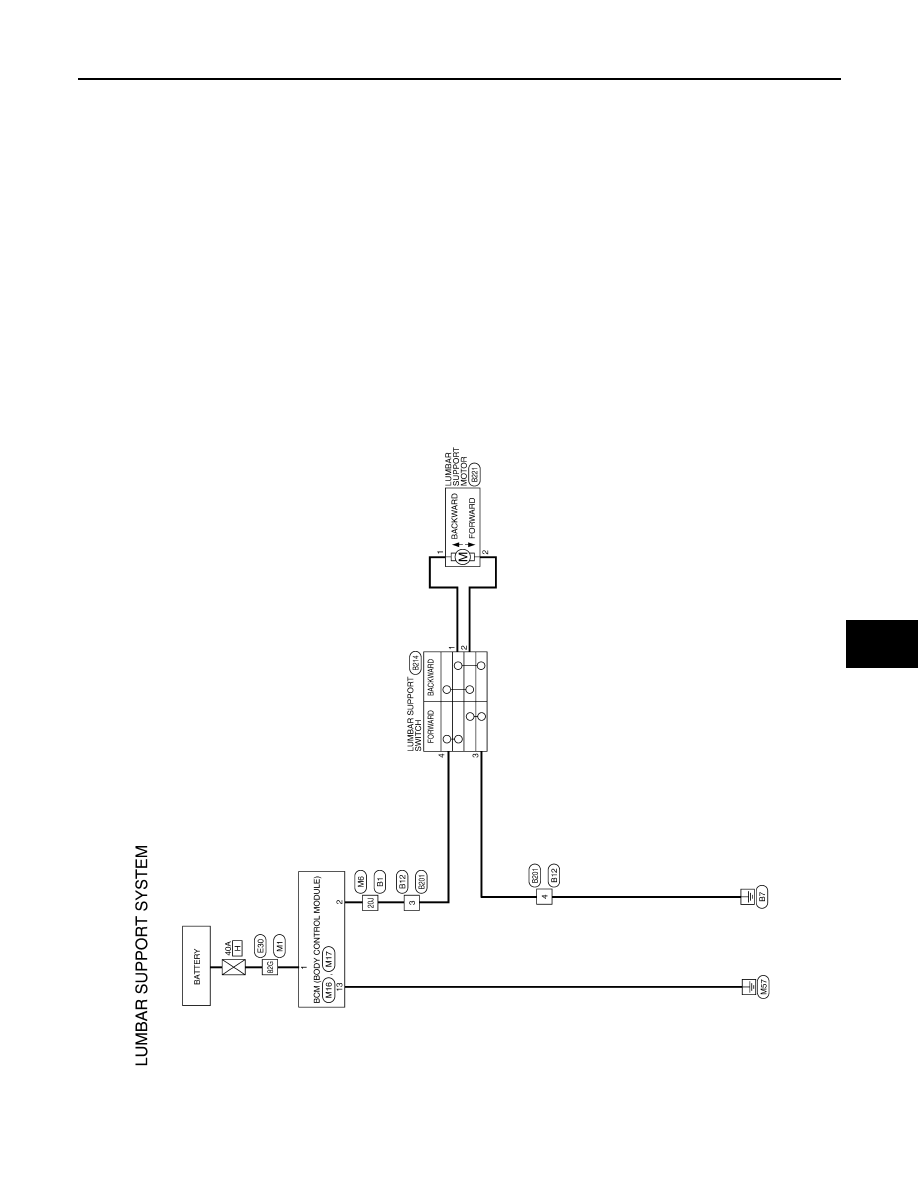

LUMBAR SUPPORT SYSTEM

Wiring Diagram

INFOID:0000000010049490

AAJWA0013GB

SE-42

< WIRING DIAGRAM >

[WITH CLIMATE CONTROLLED SEATS]

LUMBAR SUPPORT SYSTEM

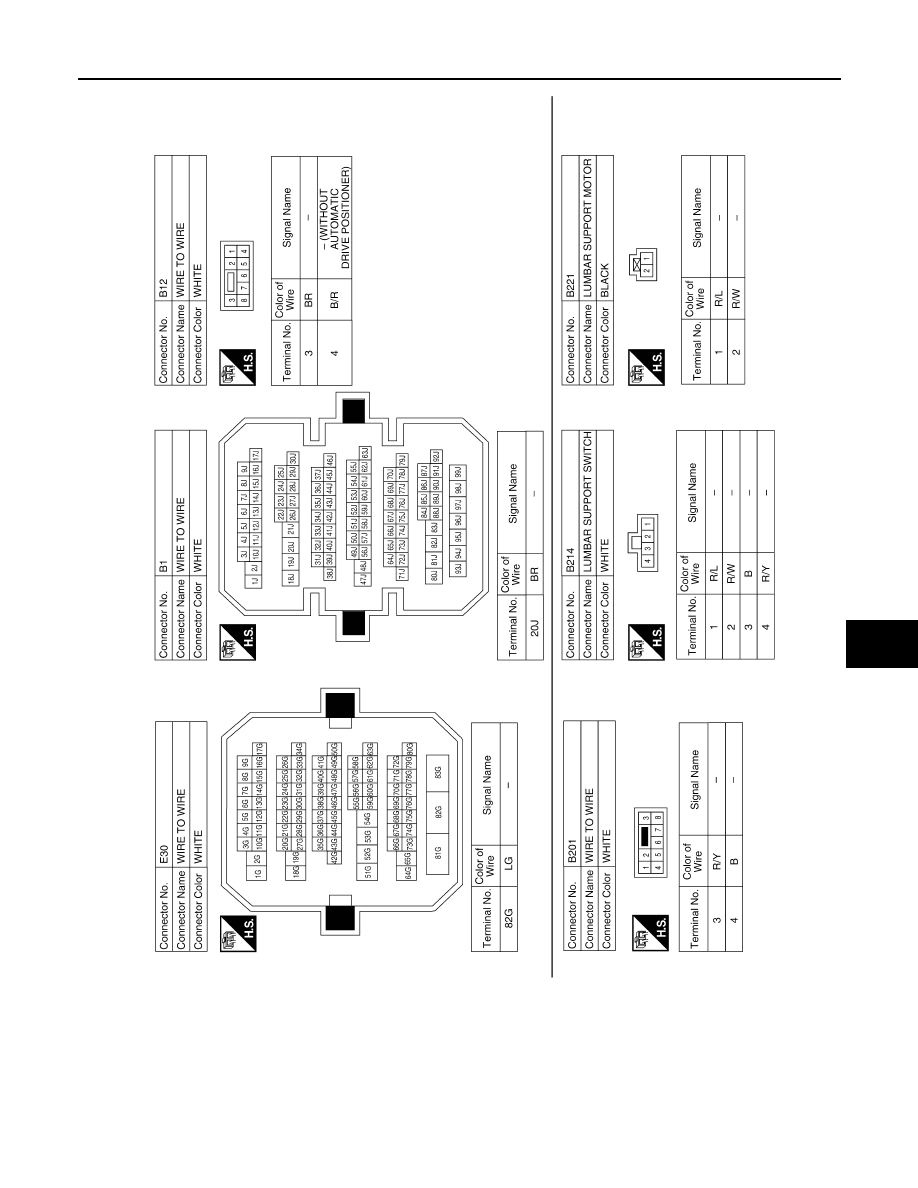

ABJIA0243GB

LUMBAR SUPPORT SYSTEM

SE-43

< WIRING DIAGRAM >

[WITH CLIMATE CONTROLLED SEATS]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

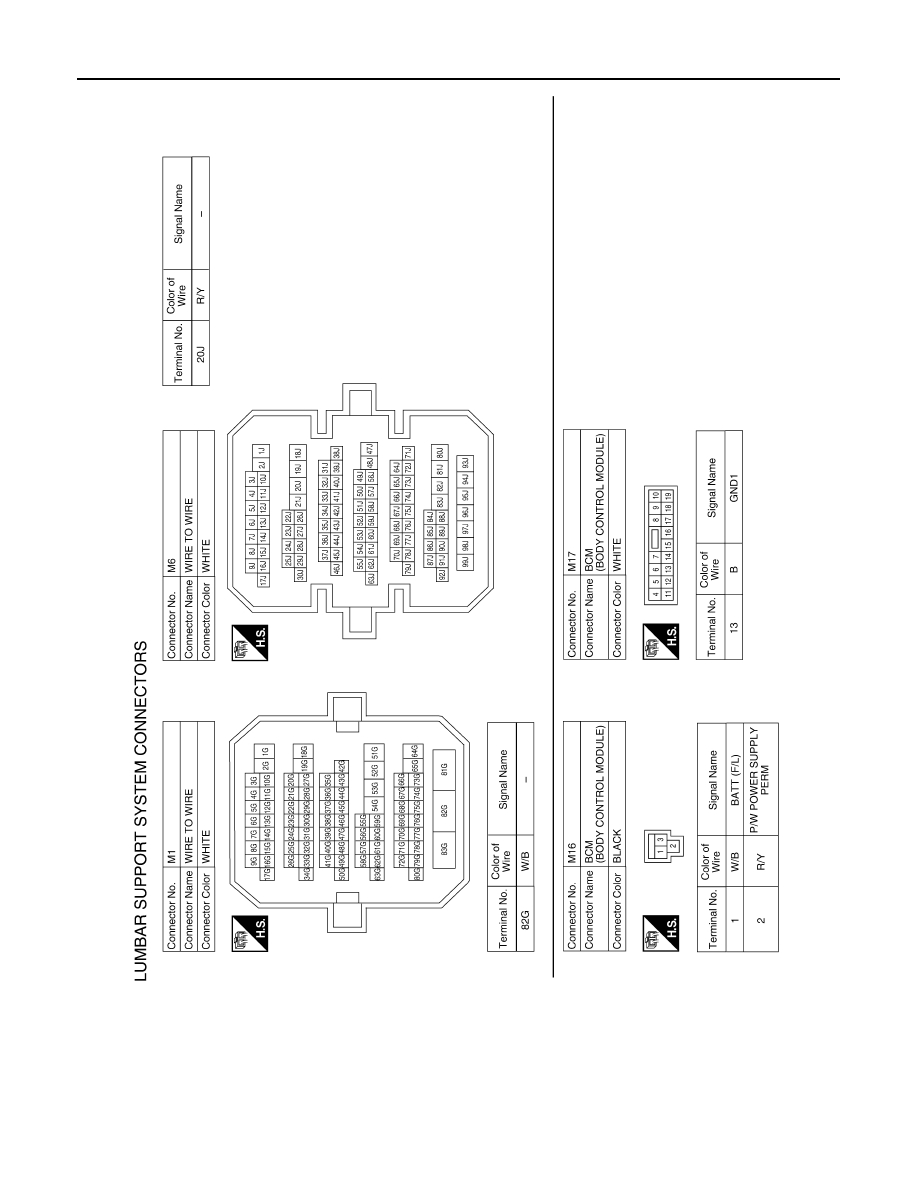

ABJIA0495GB

SE-44

< WIRING DIAGRAM >

[WITH CLIMATE CONTROLLED SEATS]

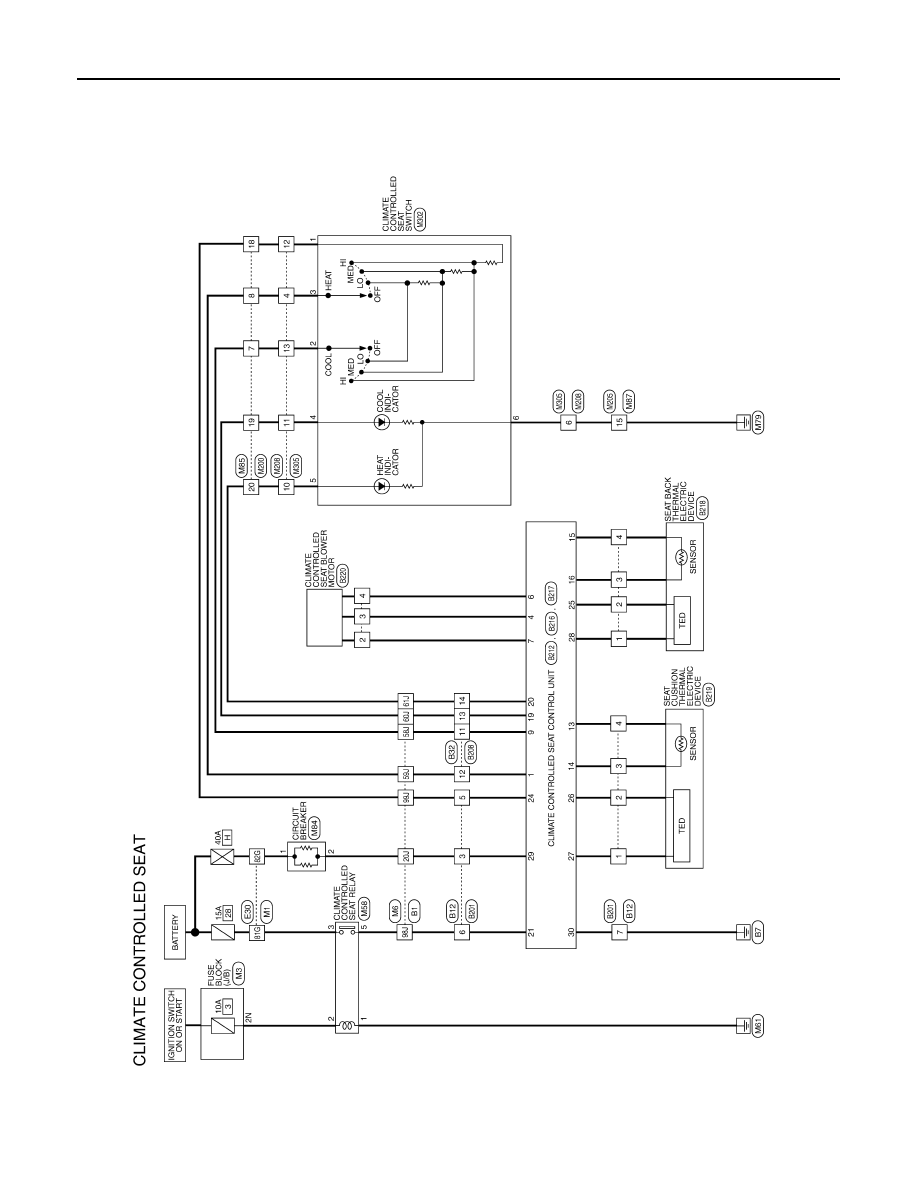

CLIMATE CONTROLLED SEAT

CLIMATE CONTROLLED SEAT

Wiring Diagram

INFOID:0000000010049491

ABJWA0135GB
