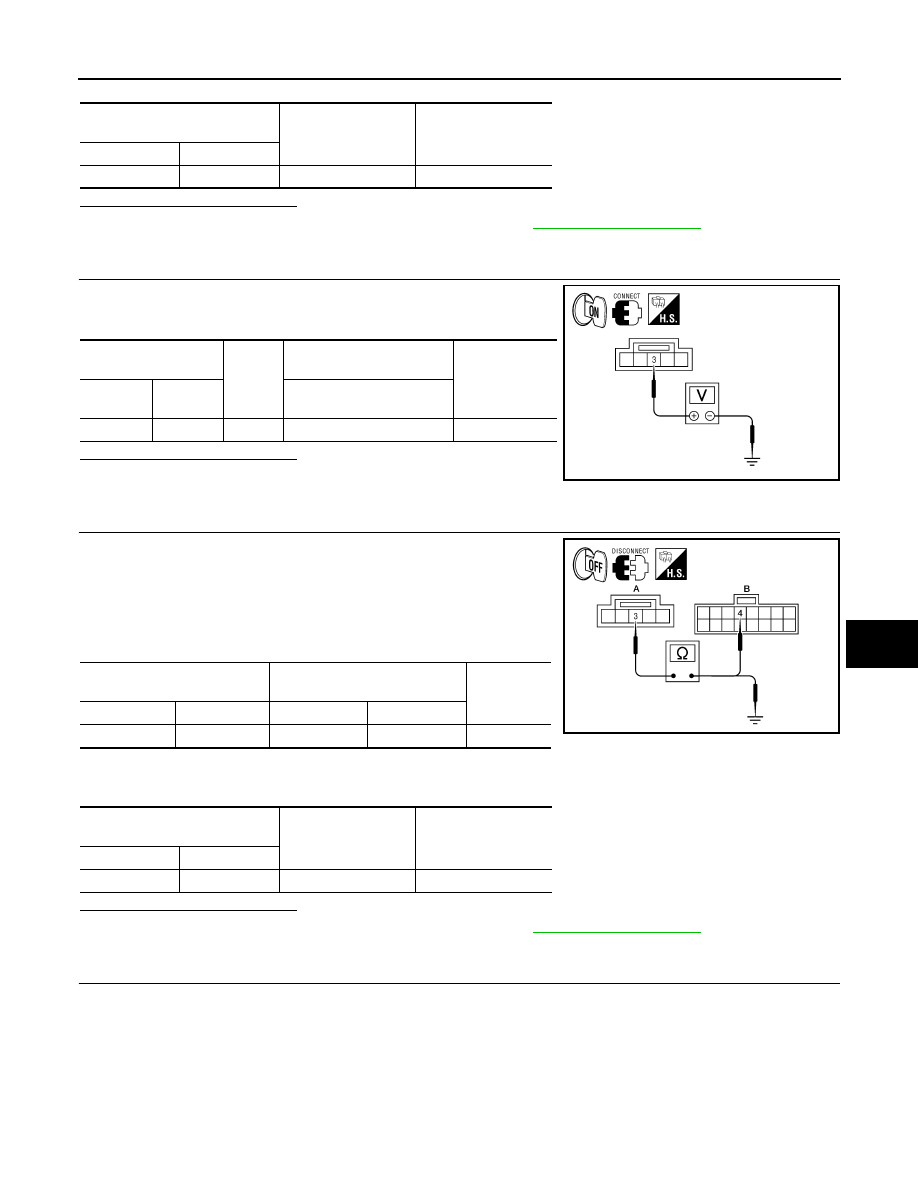

CLIMATE CONTROLLED SEAT BLOWER MOTOR

SE-13

< DTC/CIRCUIT DIAGNOSIS >

[WITH CLIMATE CONTROLLED SEATS]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Is the inspection result normal?

YES

>> Replace climate controlled seat control unit. Refer to

SE-65, "Exploded View"

.

NO

>> Repair harness or connectors.

4.

CHECK CLIMATE CONTROLLED SEAT BLOWER MOTOR SPEED CONTROL SIGNAL

Check voltage between climate controlled seat blower motor con-

nector B220 terminal 3 and ground.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> GO TO 5.

5.

CHECK CLIMATE CONTROLLED SEAT BLOWER MOTOR SPEED CONTROL SIGNAL CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect climate controlled seat blower motor connector and

climate controlled seat control unit connector B212.

3. Check continuity between climate controlled seat blower motor

connector B220 (A) terminal 3 and climate controlled seat con-

trol unit connector B212 (B) terminal 4.

4. Check continuity between climate controlled seat blower motor connector B220 (A) terminal 3 and ground.

Is the inspection result normal?

YES

>> Replace climate controlled seat control unit. Refer to

SE-65, "Exploded View"

.

NO

>> Repair harness or connectors.

6.

CHECK CLIMATE CONTROLLED SEAT BLOWER MOTOR GROUND CIRCUIT

1. Turn ignition switch OFF.

Climate controlled seat blower

motor

Ground

Continuity

Connector

Terminal

B220 (A)

2

—

No

Climate controlled seat

blower motor

Ground

Condition

Voltage

(Approx.)

Connector

Terminal

Climate controlled seat

switch

B220

3

—

HEAT or COOL

4.5V – 8.0V

AWJIA0390ZZ

Climate controlled seat blower

motor

Climate controlled seat control

unit

Continuity

Connector

Terminal

Connector

Terminal

B220 (A)

3

B212 (B)

4

Yes

AWJIA0391ZZ

Climate controlled seat blower

motor

Ground

Continuity

Connector

Terminal

B220 (A)

3

—

No

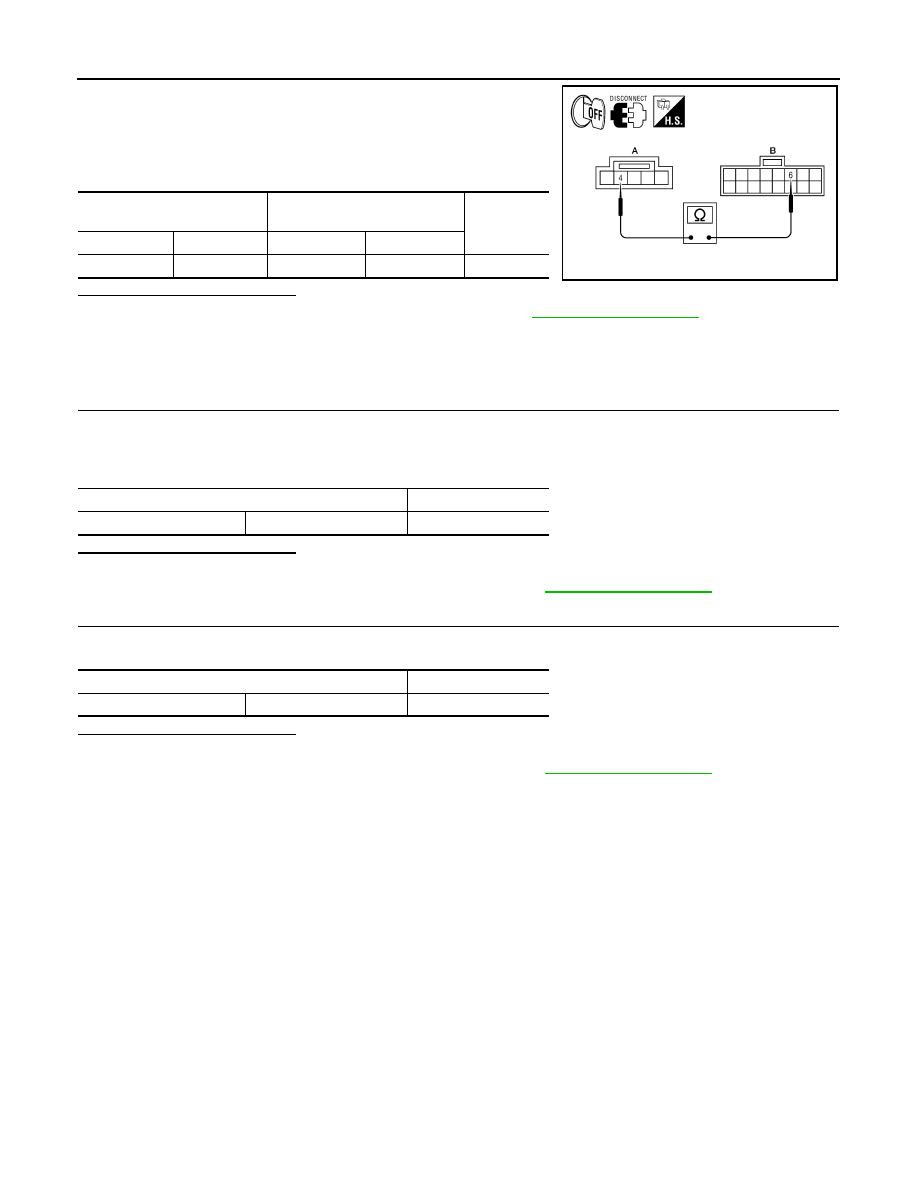

SE-14

< DTC/CIRCUIT DIAGNOSIS >

[WITH CLIMATE CONTROLLED SEATS]

CLIMATE CONTROLLED SEAT BLOWER MOTOR

2. Disconnect climate controlled seat blower motor connector and

climate controlled seat control unit connector B212.

3. Check continuity between climate controlled seat blower motor

connector B220 (A) terminal 4 and climate controlled seat con-

trol unit connector B212 (B) terminal 6.

Is the inspection result normal?

YES

>> Replace climate controlled seat control unit. Refer to

SE-65, "Exploded View"

.

NO

>> Repair harness or connectors.

Component Inspection (Climate Controlled Seat Blower Motor)

INFOID:0000000010049468

1.

CHECK CLIMATE CONTROLLED SEAT BLOWER MOTOR PART 1

1. Turn ignition switch OFF.

2. Disconnect climate controlled seat blower motor connector.

3. Measure the resistance of the climate controlled seat blower motor between terminals 2 and 4.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace climate controlled seat blower motor. Refer to

SE-65, "Exploded View"

.

2.

CHECK CLIMATE CONTROLLED SEAT BLOWER MOTOR PART 2

Measure the resistance of the climate controlled seat blower motor between terminals 3 and 4.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace climate controlled seat blower motor. Refer to

SE-65, "Exploded View"

.

Climate controlled seat blower

motor

Climate controlled seat control

unit

Continuity

Connector

Terminal

Connector

Terminal

B220 (A)

4

B212 (B)

6

Yes

AWJIA0393ZZ

Climate Controlled Seat Blower Motor Terminals

Resistance

2

4

600 – 800

Ω

Climate Controlled Seat Blower Motor Terminals

Resistance

3

4

2.5 – 2.8 M

Ω

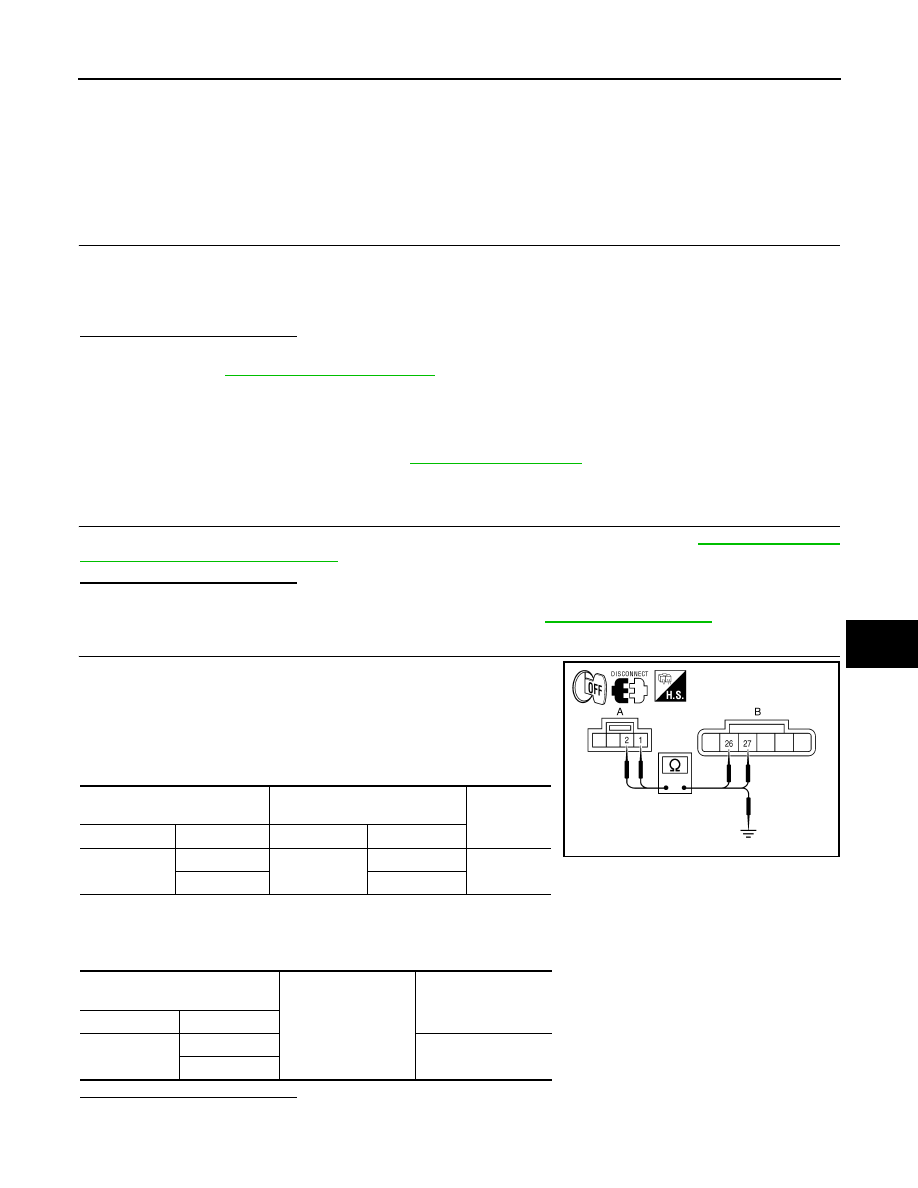

SEAT CUSHION THERMAL ELECTRIC DEVICE

SE-15

< DTC/CIRCUIT DIAGNOSIS >

[WITH CLIMATE CONTROLLED SEATS]

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

SEAT CUSHION THERMAL ELECTRIC DEVICE

Description

INFOID:0000000010049469

Provides cooling and heat for the seat cushion.

Component Function Check

INFOID:0000000010049470

1.

CHECK SEAT CUSHION THERMAL ELECTRIC DEVICE FUNCTION

1. Turn the climate controlled seat switch to the H (Heat) HI position and check that the seat cushion thermal

electric device operates correctly.

2. Turn the climate controlled seat switch to the C (Cool) HI position and check that the seat cushion thermal

electric device operates correctly.

Is the inspection result normal?

YES

>> Seat cushion thermal electric device is OK.

NO

>> Refer to

SE-15, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010049471

Regarding Wiring Diagram information, refer to

SE-44, "Wiring Diagram"

.

1.

CHECK SEAT CUSHION THERMAL ELECTRIC DEVICE

Perform thermal electric device component inspection for the seat cushion. Refer to

SE-16, "Component

Inspection (Thermal Electric Device)"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace seat cushion thermal electric device. Refer to

SE-65, "Exploded View"

.

2.

CHECK SEAT CUSHION THERMAL ELECTRIC DEVICE CIRCUITS

1. Turn ignition switch OFF.

2. Disconnect seat cushion thermal electric device connector and

climate controlled seat control unit connector B217.

3. Check continuity between seat cushion thermal electric device

connector B219 (A) terminals 1, 2 and climate controlled seat

control unit connector B217 (B) terminals 26, 27.

4. Check continuity between seat cushion thermal electric device connector B219 (A) terminals 1, 2 and

ground.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair harness or connectors.

Seat cushion thermal electric

device

Climate controlled seat control

unit

Continuity

Connector

Terminal

Connector

Terminal

B219 (A)

1

B217 (B)

27

Yes

2

26

AWJIA0394ZZ

Seat cushion thermal electric de-

vice

Ground

Continuity

Connector

Terminal

B219 (A)

1

No

2

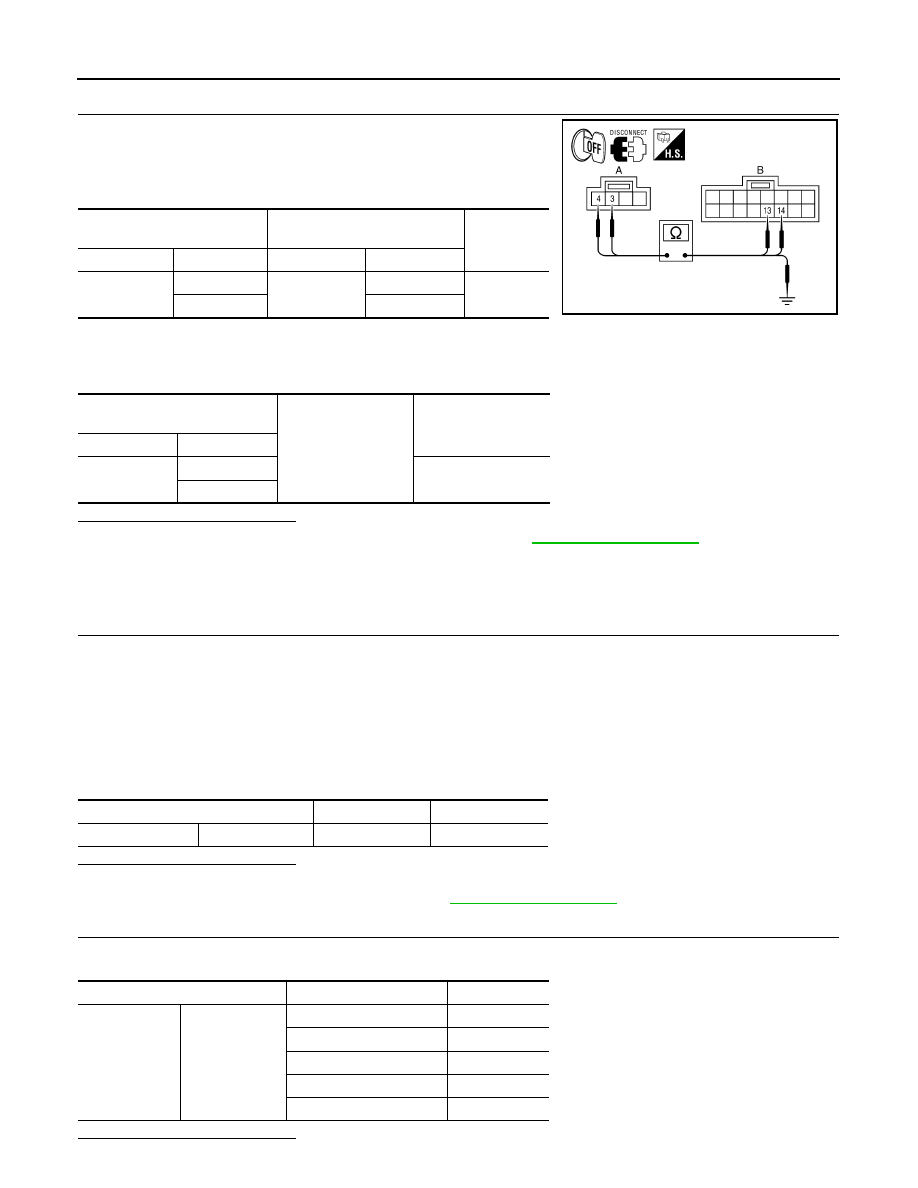

SE-16

< DTC/CIRCUIT DIAGNOSIS >

[WITH CLIMATE CONTROLLED SEATS]

SEAT CUSHION THERMAL ELECTRIC DEVICE

3.

CHECK SEAT CUSHION THERMAL ELECTRIC DEVICE SENSOR CIRCUITS

1. Disconnect climate controlled seat control unit connector B212.

2. Check continuity between seat cushion thermal electric device

connector B219 (A) terminals 3, 4 and climate controlled seat

control unit connector B212 (B) terminals 13, 14.

3. Check continuity between seat cushion thermal electric device connector B219 (A) terminals 3, 4 and

ground.

Is the inspection result normal?

YES

>> Replace climate controlled seat control unit. Refer to

SE-65, "Exploded View"

.

NO

>> Repair harness or connectors.

Component Inspection (Thermal Electric Device)

INFOID:0000000010049472

1.

CHECK THERMAL ELECTRIC DEVICE

1. Turn ignition switch OFF.

2. Disconnect thermal electric device connector.

3. Measure the resistance of the thermal electric device between terminals 1 and 2.

NOTE:

The resistance value in the table below will change under any of the following conditions:

• air blowing across the thermal electric device

• changing the surrounding temperature of the thermal electric device

• measuring at other than 23

°C (73°F)

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Replace thermal electric device. Refer to

SE-65, "Exploded View"

.

2.

CHECK THERMAL ELECTRIC DEVICE SENSOR

Measure the resistance of the thermal electric device sensor between terminals 3 and 4.

Is the inspection result normal?

Seat cushion thermal electric

device

Climate controlled seat control

unit

Continuity

Connector

Terminal

Connector

Terminal

B219 (A)

3

B212 (B)

14

Yes

4

13

AWJIA0395ZZ

Seat cushion thermal electric de-

vice

Ground

Continuity

Connector

Terminal

B219 (A)

3

No

4

Thermal electric device terminals

Temperature

Resistance

1

2

23

°C (73°F)

0.9 – 10

Ω

Thermal electric device terminals

Temperature

Resistance

3

4

0 – 10

° C (32 – 50° F)

2785– 1660

Ω

10 – 20

° C (50 – 68° F)

1840 – 1135

Ω

20 – 30

° C (68 – 86° F)

1265 – 800

Ω

30 – 40

° C (86 – 104° F)

895 – 565

Ω

40 – 50

° C (104 – 122° F)

635 – 425

Ω
