< ECU DIAGNOSIS INFORMATION >

[MONOCHROME DISPLAY - W/O BOSE]

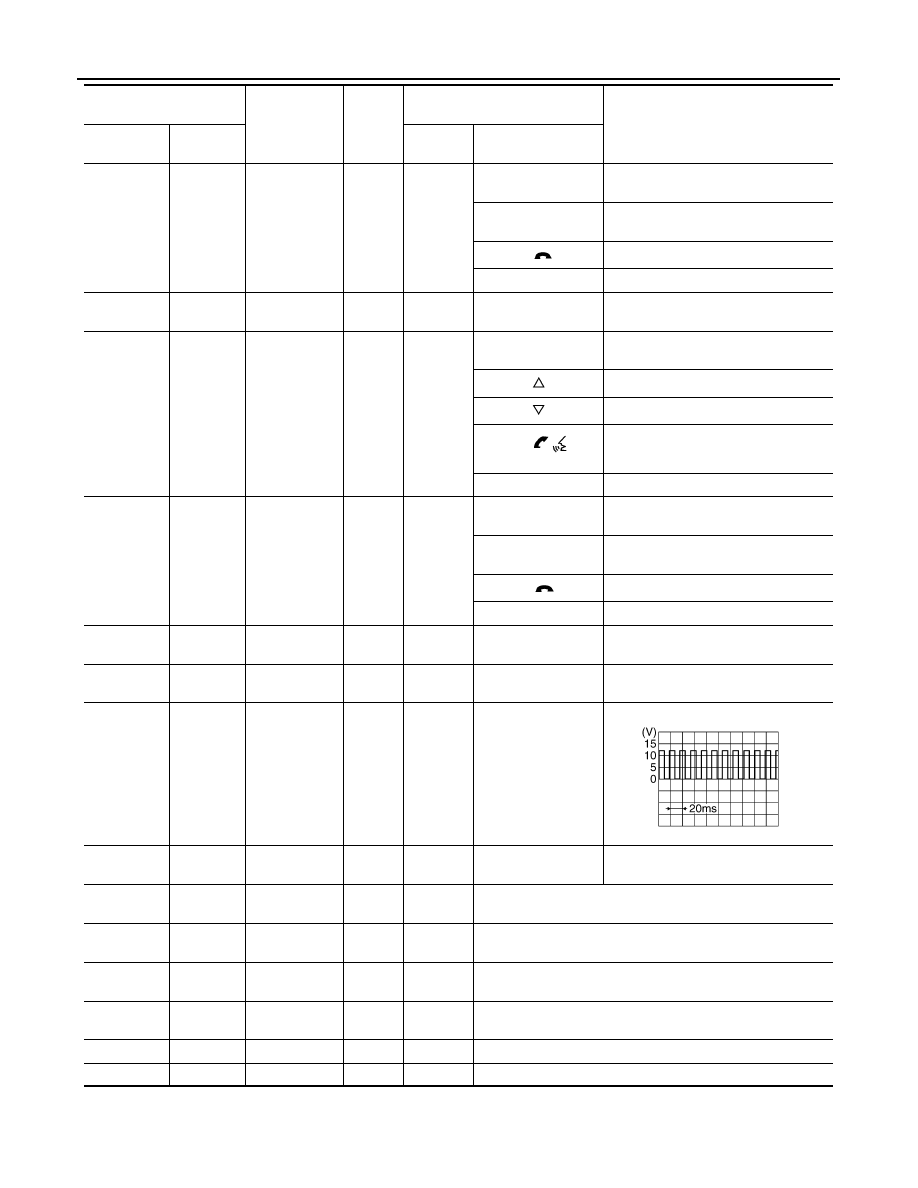

BLUETOOTH® CONTROL UNIT

13

 (P)

Ground

Ladder input 2

Input

ACC/ON

Press VOL DOWN
switch

 0.7 V

Press VOL UP
switch.

1.3 V

Pressing

switch.

2.0 V

Except for above.

3.3 V

14

(R)

-

Ladder ground

Input

-

-

-

17

(G)

Ground

Steering switch
signal A

Output

ON

Depress SOURCE
switch.

0V

Depress

switch.

0.7V

Depress

switch.

1.3V

Depress



switch.

2.0V

Except for above.

3.3V

18

(W)

Ground

Steering switch
signal B

Output

ON

Depress volume
DOWN switch.

0.7V

Depress volume UP
switch.

1.3V

Depress

  switch.

2.0V

Except for above.

3.3V

19

 (LG)

–

Steering switch
ground

Output

–

–

–

23

 (B)

Gnd

Ground

–

–

–

0V

28

 (BR)

–

Vehicle speed

signal (8-

pulse)

Input

ON

When vehicle speed

is approx. 25 MPH

(40 km/h)

29

(R)

Ground

Microphone

power

Output

ON

–

5V

33

(B)

–

Antenna

–

–

–

34

(B)

–

Antenna

–

–

–

35

(L)

–

M-CAN  H1

–

–

–

36

(P)

–

M-CAN  L1

–

–

–

37

–

Shield –

–

–

38

–

Shield –

–

–

Terminal

 (Wire color)

Item

Signal

input/

output

Condition

Reference value

(Approx.)

+

–

Ignition

switch

Operation

PKIA1935E

AV

BLUETOOTH® CONTROL UNIT

AV-53

< ECU DIAGNOSIS INFORMATION >

[MONOCHROME DISPLAY - W/O BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

40

(G)

–

M-CAN  H2

–

–

–

42

(R)

–

M-CAN  L2

–

–

–

Terminal

 (Wire color)

Item

Signal

input/

output

Condition

Reference value

(Approx.)

+

–

Ignition

switch

Operation

AV-54

< WIRING DIAGRAM >

[MONOCHROME DISPLAY - W/O BOSE]

MONOCHROME DISPLAY

WIRING DIAGRAM

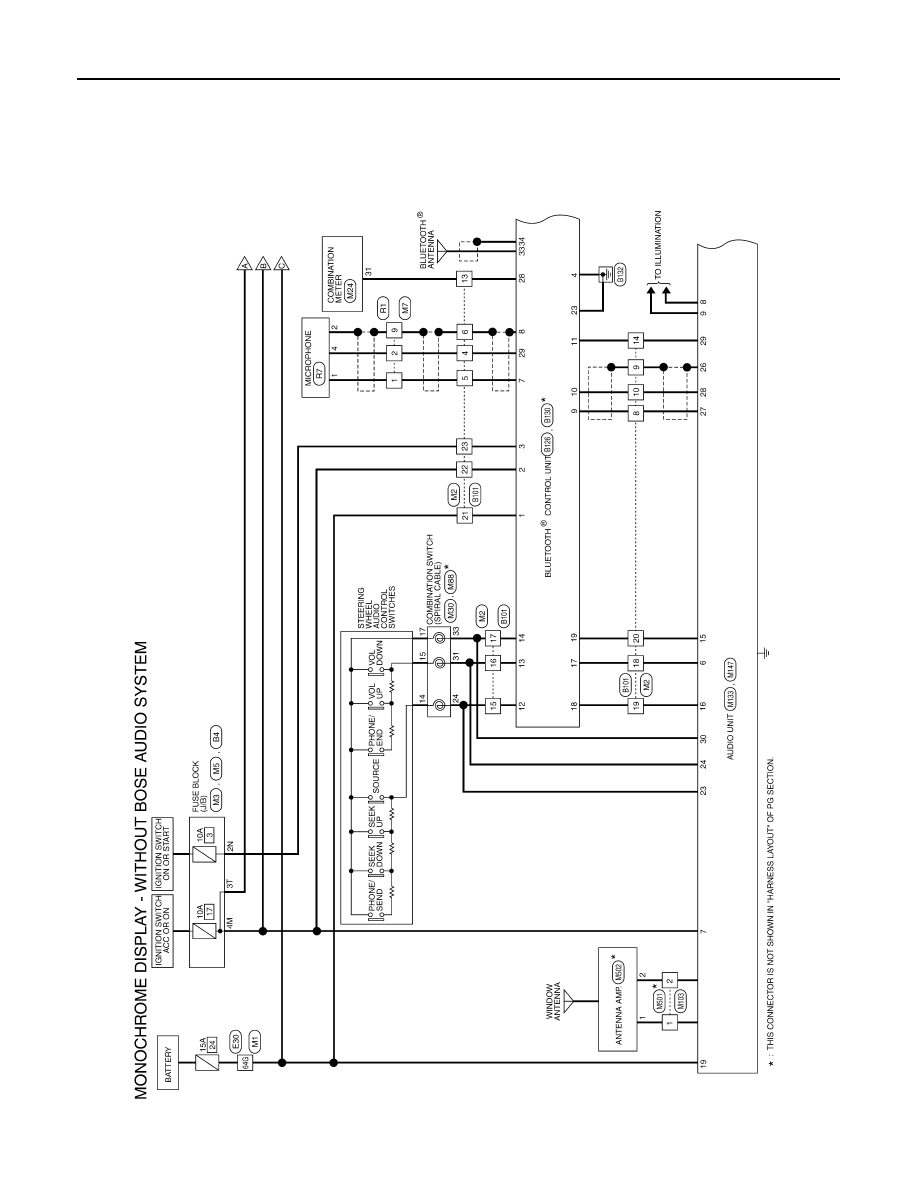

MONOCHROME DISPLAY

Wiring Diagram - Without BOSE Audio system

INFOID:0000000009471190

ABNWA1937GB

AV

MONOCHROME DISPLAY

AV-55

< WIRING DIAGRAM >

[MONOCHROME DISPLAY - W/O BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNWA1512GB
