LIFTING SENSOR (REAR)

4. Check the continuity between driver seat control unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK LIFTING SENSOR (REAR) POWER SUPPLY

1. Connect driver seat control unit.

2. Turn ignition switch ON.

3. Check the voltage between front power seat LH [lifting motor (rear)] harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> GO TO 4

4.

 CHECK LIFTING SENSOR (REAR) POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect driver seat control unit.

3. Check the continuity between driver seat control unit harness connector and front power seat LH [lifting

motor (rear)] harness connector.

4. Check the continuity between driver seat control unit harness connector and ground.

Is the inspection result normal?

YES

>> Replace driver seat control unit. Refer to

ADP-169, "Removal and Installation"

.

NO

>> Repair or replace harness.

5.

 CHECK LIFTING SENSOR (REAR) GROUND

Driver seat control unit

Front power seat LH [lifting motor (rear)]

Continuity

Connector

Terminal

Connector

Terminal

B203

29

B206

8

Yes

Driver seat control unit

Ground

Continuity

Connector

Terminal

B203

29

No

(+)

(–)

Voltage (V)

(Approx.)

Front power seat LH [lifting motor (rear)]

Connector

Terminals

B206

7

Ground

Battery voltage

Driver seat control unit

Front power seat LH [lifting motor (rear)]

Continuity

Connector

Terminal

Connector

Terminal

B203

5

B206

7

Yes

Driver seat control unit

Ground

Continuity

Connector

Terminal

B203

5

No

LIFTING SENSOR (REAR)

ADP-85

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

1. Turn ignition switch OFF.

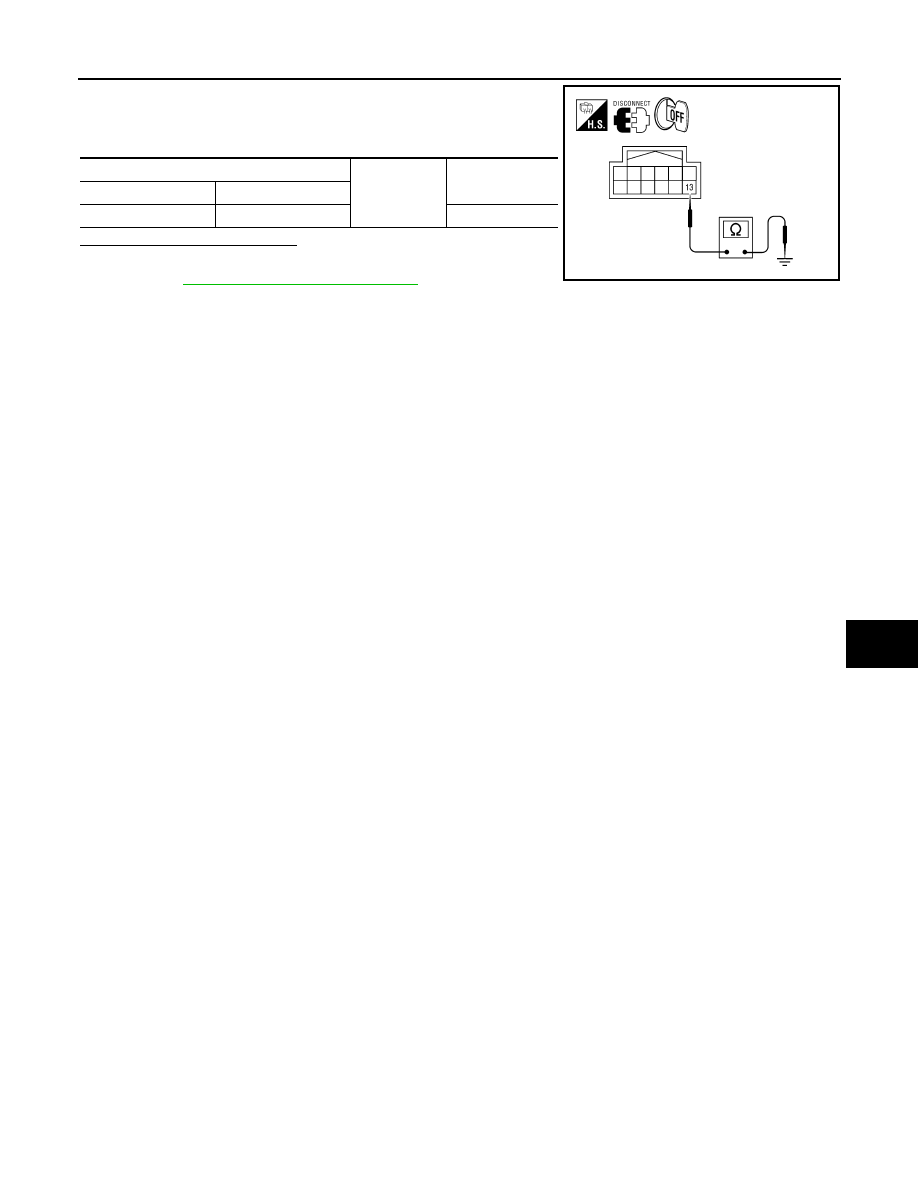

2. Check the continuity between front power seat LH [lifting motor

(rear)] harness connector and ground.

Is the inspection result normal?

YES

>> Replace front power seat LH [lifting motor (rear)]. Refer

to

SE-68, "Removal and Installation"

.

NO

>> Repair or replace harness.

Front power seat LH [lifting motor (rear)]

Ground

Continuity

Connector

Terminal

B206

13

Yes

ALJIA0422ZZ

ADP-86

< DTC/CIRCUIT DIAGNOSIS >

TILT SENSOR

TILT SENSOR

Description

INFOID:0000000010051785

• The tilt sensor is installed to the steering column assembly.

• The pulse signal is input to the driver seat control unit when the tilt is operated.

• The driver seat control unit counts the pulse and calculates the tilt amount of the steering column.

Component Function Check

INFOID:0000000010051786

1.

CHECK FUNCTION

1. Select “TILT PULSE” in “DATA MONITOR” mode with CONSULT.

2. Check tilt sensor signal under the following conditions.

Is the indication normal?

YES

>> Inspection End.

NO

>> Perform diagnosis procedure. Refer to

ADP-86, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000010051787

Regarding Wiring Diagram information, refer to

ADP-150, "Wiring Diagram"

.

1.

 CHECK TILT SENSOR SIGNAL

1. Turn ignition switch ON.

2. Check voltage signal between driver seat control unit connector and ground with oscilloscope.

Is the inspection result normal?

YES

>> Replace driver seat control unit. Refer to

ADP-169, "Removal and Installation"

.

NO

>> GO TO 2

2.

 CHECK TILT SENSOR CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect driver seat control unit and tilt motor.

3. Check continuity between driver seat control unit harness connector and tilt motor harness connector.

Monitor item

Condition

Value

TILT PULSE

Steering column

Operate (UP-WARD)

Change (decrease)

Operate (DOWN-WARD)

Change (increase)

Release

No change

(+)

(–)

Condition

Voltage (V)

(Approx.)

Driver seat control unit

Connector

Terminals

B203

28

Ground

Steering col-
umn

Operate

Other than
above

0 or 5

JMJIA0119ZZ

TILT SENSOR

ADP-87

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

4. Check continuity between driver seat control unit harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK TILT SENSOR POWER SUPPLY

1. Connect driver seat control unit.

2. Turn ignition switch ON.

3. Check voltage between tilt motor harness connector and ground.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> GO TO 4

4.

 CHECK TILT SENSOR POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect automatic drive positioner control unit.

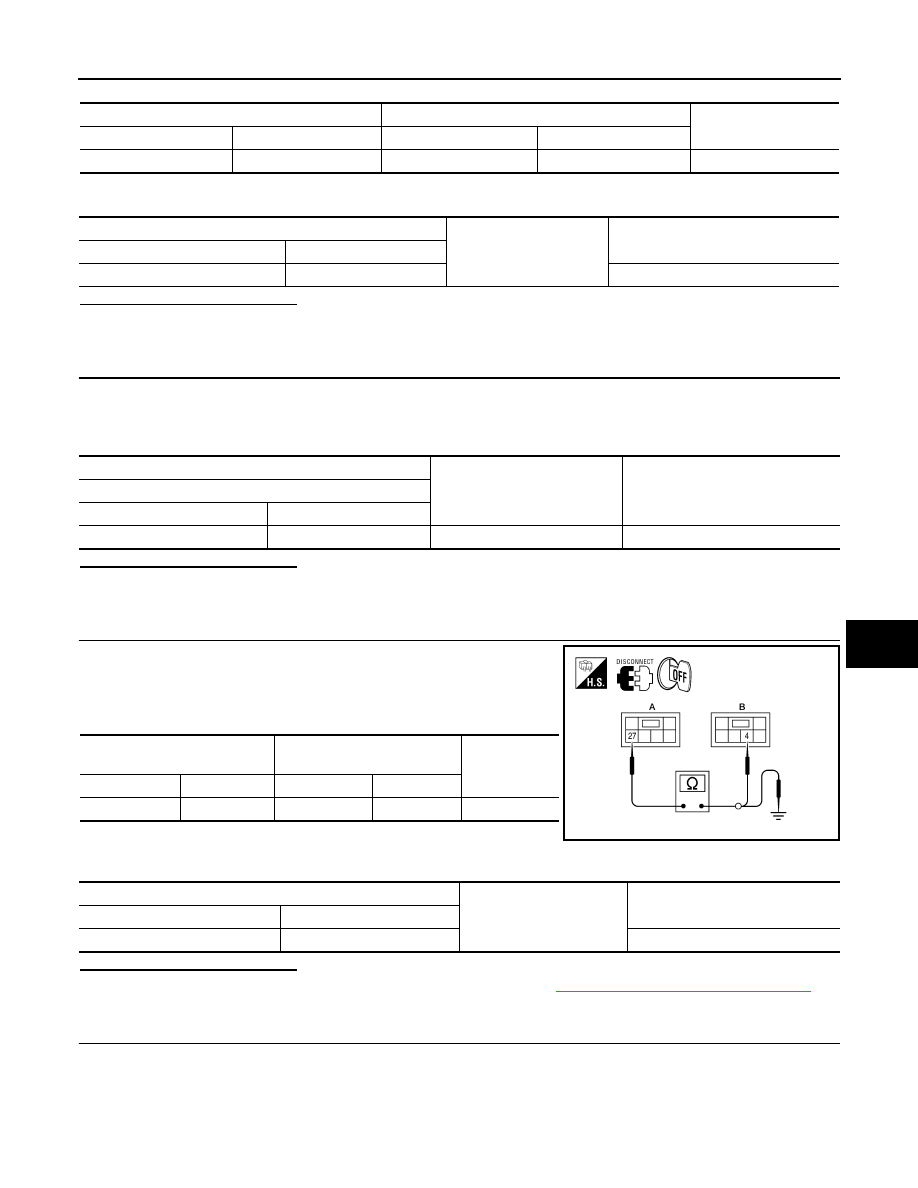

3. Check continuity between automatic drive positioner control unit

harness connector and tilt motor harness connector.

4. Check continuity between automatic drive positioner control unit

harness connector and ground.

Is the inspection result normal?

YES

>> Replace automatic drive positioner control unit. Refer to

ADP-170, "Removal and Installation"

.

NO

>> Repair or replace harness or connector.

5.

 CHECK TILT SENSOR GROUND CIRCUIT

Driver seat control unit

Tilt motor

Continuity

Connector

Terminal

Connector

Terminal

B203

28

M71

5

Yes

Driver seat control unit

Ground

Continuity

Connector

Terminal

B203

28

No

(+)

(–)

Voltage (V)

(Approx.)

Tilt motor

Connector

Terminals

M71

4

Ground

Battery voltage

Automatic drive positioner con-

trol unit

Tilt motor

Continuity

Connector

Terminal

Connector

Terminal

M67 (A)

27

M71 (B)

4

Yes

ALJIA0426ZZ

Automatic drive positioner control unit

Ground

Continuity

Connector

Terminal

M67 (A)

27

No
