Nissan Altima HL32 Hybrid. Manual - part 985

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

SEC-13

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

SEC

Component Parts Location

INFOID:0000000004215964

ALKIA0237ZZ

Front

BCM M16, M17, M18, M19, M21
(view with instrument panel removed)

IPDM E/R E17, E18

ECM E10

Push button ignition switch M38

Stop lamp switch E38
(view with instrument lower cover LH
removed)

SEC-14

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY SYSTEM/ENGINE START FUNCTION

Component Description

INFOID:0000000004215965

Electronic steering column lock M32

Combination meter M24

Remote keyless entry receiver M27
(view with instrument panel removed)

Key slot M40

10. Instrument panel antenna M49

(view with instrument panel removed)

11. Front console antenna M203

(bottom view of console)

12. Rear parcel shelf antenna B29

13. ECVT device (detent switch) M23

Component Reference

BCM

SEC-78

Steering lock unit

SEC-68

Push-button ignition switch

SEC-79

Door switch

DLK-69

ECVT device (detent switch)

SEC-52

Inside key antenna

DLK-59

Remote keyless entry receiver

DLK-113

Stop lamp switch

SEC-46

Park/neutral position switch

Steering lock relay

Security indicator

Key warning lamp

NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

SEC-15

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

SEC

NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

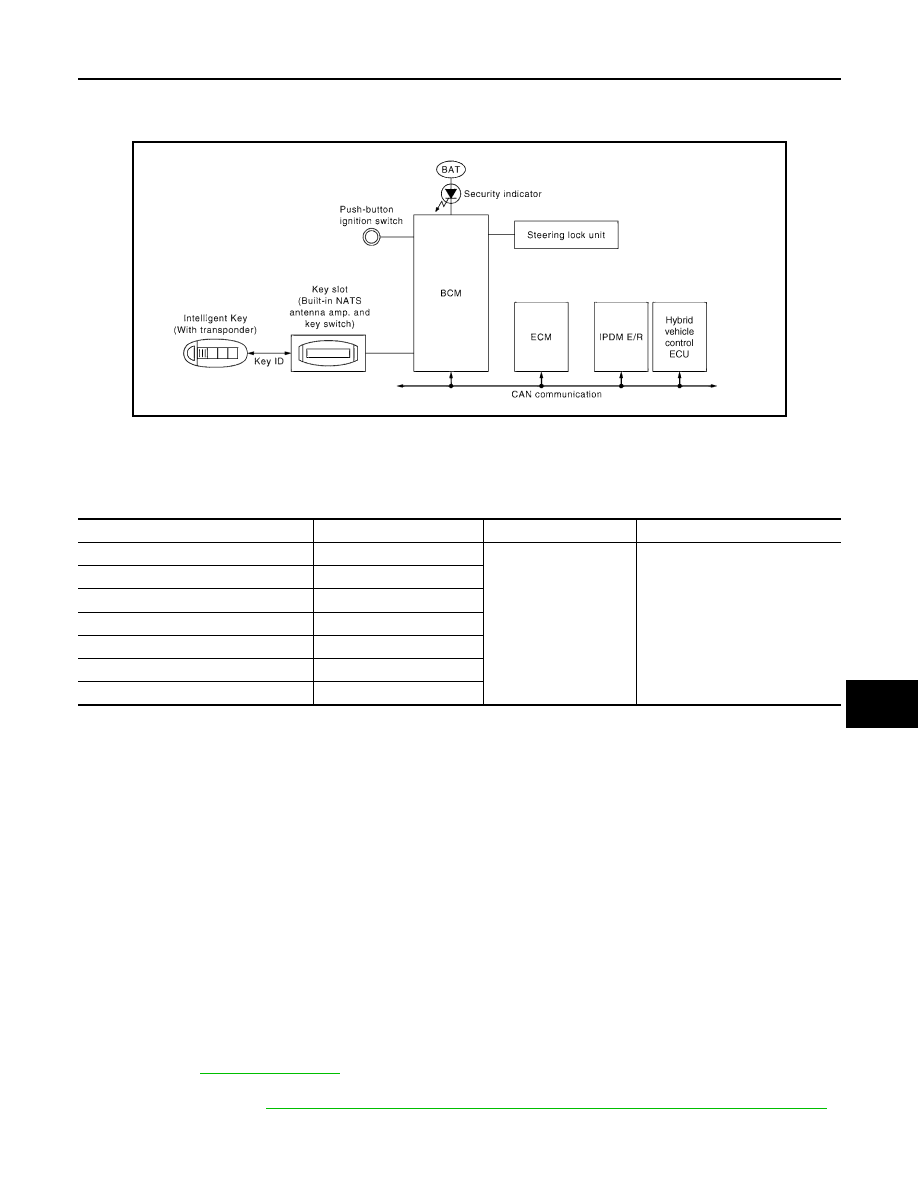

System Diagram

INFOID:0000000004215966

System Description

INFOID:0000000004215967

INPUT/OUTPUT SIGNAL CHART

SYSTEM DESCRIPTION

• The NVIS (NATS) is an anti-theft system by registering an Intelligent Key ID in to the vehicle and prevents

the hybrid system being started by an unregistered Intelligent Key. It has a higher protection against auto

thefts that duplicate mechanical key.

• It performs the ID verification when starting the hybrid system in the same way as the Intelligent Key system.

But, it performs the NVIS (NATS) ID verification when inserting the Intelligent Key and performs the Intelli-

gent Key ID verification when carrying the Intelligent Key.

• The Intelligent Key system of L32 is not the same as the conventional models. The mechanical key inte-

grated in the Intelligent Key cannot start the hybrid system. When the Intelligent Key battery is discharged,

the NVIS (NATS) ID verification memorized to the transponder integrated with Intelligent Key is performed

by inserting the Intelligent Key into the key slot. If the verification results are OK, the hybrid system start

operation can be performed by the push-button ignition switch operation.

• The security indicator always blinks when the Intelligent Key is removed from the key slot and when the

push-button ignition switch is in LOCK position.

• Intelligent Key can be registered with up to 4 keys on request from the owner.

• The specified registration is required when replacing ECM, BCM or Intelligent Key. The registration proce-

dure for NVIS (NATS) and registration procedure for Intelligent Key when installing the BCM, refer to CON-

SULT-III Operation Manual NATS-IVIS/NVIS.

• Possible symptom of NVIS (NATS) malfunction is “hybrid system cannot start”. In L32, the hybrid system can

be started with the Intelligent Key system and NVIS (NATS). Identify the possible causes according to “Work

Flow”, Refer to

SEC-4, "Work Flow"

• If ECM other than Genuine NISSAN part is installed, the hybrid system cannot be started. For ECM replace-

ment procedure, refer to

SEC-9, "ECM RE-COMMUNICATING FUNCTION : Special Repair Requirement"

PRECAUTIONS FOR KEY REGISTRATION

ALKIA1393GB

Switch

Input signal to BCM

BCM function

Actuator

Push-button ignition switch

Push switch

NVIS (NATS)

• Steering lock relay
• Steering lock unit
• KEY warning lamp
• Security indicator lamp

ECVT device

P range

PNP switch

N, P range

Stop lamp switch

Brake ON/OFF

Key slot

Key ID

Each door switch

Door open/close

ECM

Engine status signal

SEC-16

< FUNCTION DIAGNOSIS >

[INTELLIGENT KEY SYSTEM]

NVIS (NISSAN VEHICLE IMMOBILIZER SYSTEM-NATS)

• The key registration is a procedure that erases the current NVIS (NATS) ID once, and then re-registers a

new ID operation. Therefore the registered Intelligent Key is necessary for this procedure. Before starting

the registration operation collect all registered Intelligent Keys from the customer

• When registering the Intelligent Key, performs only one procedure to register simultaneously both ID (NVIS

“NATS” ID registration and Intelligent Key ID registration).

The NVIS (NATS) ID registration is the procedure that registers the ID stored into the transponder (inte-

grated in Intelligent Key) to BCM.

The Intelligent key ID registration is the procedure that registers the ID to BCM.

• When performing the Intelligent Key system registration only, the hybrid system cannot be started by insert-

ing the key into the key slot. When performing the NVIS (NATS) registration only, the hybrid system cannot

be started by the operation when carrying the key. The registration of both systems should be performed.

SECURITY INDICATOR

• Warns that the vehicle is equipped with NVIS (NATS).

• The security indicator always blinks when the Intelligent Key is removed from the key slot and when the igni-

tion switch is in LOCK position.

NOTE:

Because security indicator is highly efficient, the battery is barely affected.

Component Parts Location

INFOID:0000000004215968

Front

BCM M16, M17, M18, M19, M21
(view with instrument panel removed)

IPDM E/R E17, E18

ECM E10

Push-button ignition switch M38

Stop lamp switch E38
(view with instrument lower cover
LH removed)

Electronic steering column lock M32

Combination meter M24

ALKIA0240ZZ
