RF-72

< PRECAUTION >

PRECAUTIONS

• When removing parts with a screw driver or other tool, protect parts by wrapping them with vinyl or tape.

• Keep removed parts protected with cloth.

• If a clip is deformed or damaged, replace it.

• If an unreuseable part is removed, replace it with a new one.

• Tighten bolts and nuts firmly to the specified torque.

• After re-assembly has been completed, make sure each part functions correctly.

• Remove stains in the following manner:

Water-Soluble stains

Oil stains

Dip a cloth in warm water, and squeeze tightly. After wip-
ing the stain, wipe with a soft dry cloth.

Dissolve a synthetic detergent in warm water (density of 2
to 3% or less), dip the cloth, then clean off the stain with
the cloth. Next, dip the cloth in fresh water, then squeeze
tightly. Clean off detergent completely, then wipe entire
area with a soft dry cloth.

Do not use any organic solvent, such as a thinner or benzine to remove stains

PREPARATION

RF-73

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

PREPARATION

PREPARATION

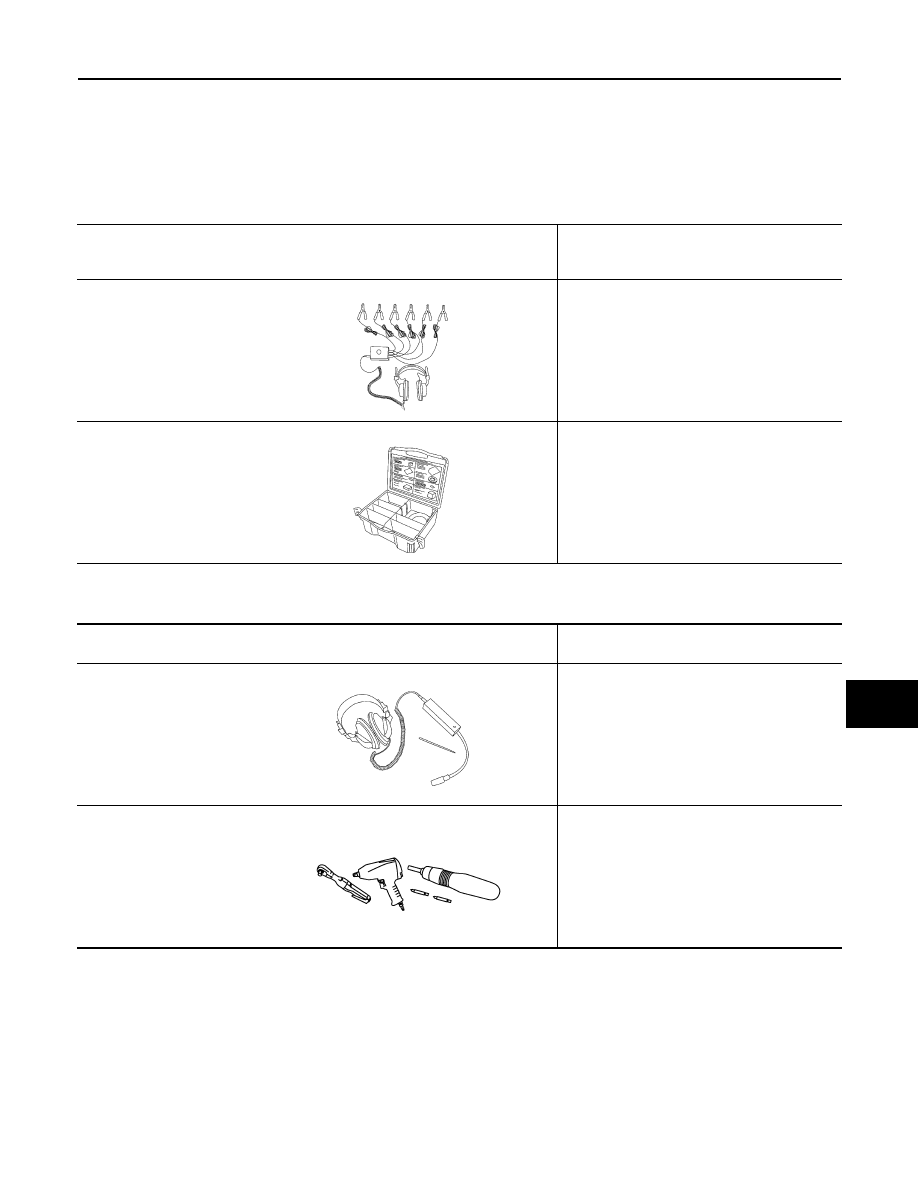

Special Service Tools

INFOID:0000000004216186

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000004216187

Tool number
(Kent-Moore No.)
Tool name

Description

(J-39570)
Chassis ear

Locating the noise

(J-43980)
NISSAN Squeak and Rattle
Kit

Repairing the cause of noise

SIIA0993E

SIIA0994E

Tool name
(Kent-Moore No.)

Description

Engine ear
(J-39565)

Locating the noise

Power tools

Loosening bolts, nuts and screws

SIIA0995E

PIIB1407E

RF-74

< ON-VEHICLE REPAIR >

SUNROOF UNIT ASSEMBLY

ON-VEHICLE REPAIR

SUNROOF UNIT ASSEMBLY

Inspection

INFOID:0000000004216188

WIND DEFLECTOR

1. Open glass lid assembly fully.
2. Visually check for proper installation, damaged/deteriorated components, or foreign objects within mecha-

nism. Correct as required for smooth operation.

3. Check for grease at the wind deflector arm (1) and pivot areas. If

necessary, apply a sufficient amount of grease for non-binding

operation.

⇐:Vehicle front

4. Check that the wind deflector (1) moves freely within the sunroof

unit assembly while manually pressing down and releasing. If a

malfunction is detected, remove the sunroof unit assembly and

visually inspect; refer to

RF-74, "Inspection"

. If damage is found,

replace either wind deflector (1) or sunroof unit assembly as

required.

⇐:Vehicle front

LINK AND WIRE ASSEMBLY

NOTE:

Before replacing a suspect part, make sure it is the source of noise being experienced.
1. Check link to determine if coating film has peeled off excessively enough that substrate is visible. Check

also to determine if link is the source of noise. Replace as necessary.

2. Visually check to determine if a sufficient amount of grease has been applied to wire or rail groove. If not,

add grease as required.

3. Check wire for any damage or deterioration. If any damage is found, replace sunroof unit assembly.

WEATHERSTRIP

1. Visually check weatherstrip for damage, deterioration, or deformation.

• Open glass lid assembly partially to inspect front edge of weatherstrip.

• Tilt up glass lid assembly fully to inspect sides and rear edge of weatherstrip.

If any area of the weatherstrip is found to be damaged, replace the glass lid assembly. Refer to

RF-78,

"Removal and Installation"

.

2. Check for leakage around glass lid assembly.

• Close glass lid assembly.

• Pour water around surface to determine area of concern.

- For gaps or misalignment, adjust glass lid assembly to specifications. Refer to

RF-74, "Inspection"

.

- For damaged sealing surfaces, either replace glass lid assembly

RF-78, "Removal and Installation"

, or

repair the panel

BRM-28, "High Strength Steel (HSS)"

.

DRAIN HOSES

LIIA2336E

WIIA0849E

SUNROOF UNIT ASSEMBLY

RF-75

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

RF

N

O

P

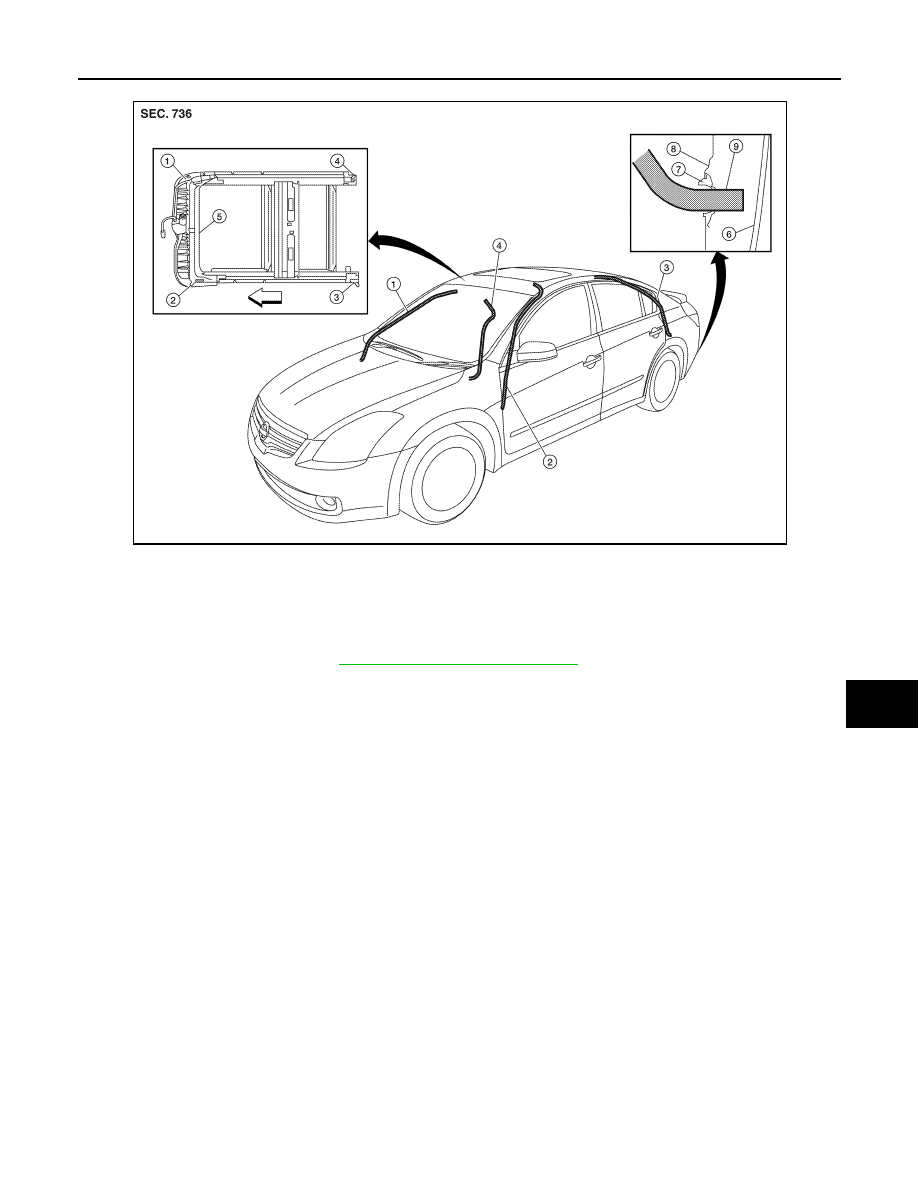

1. Remove the headlining. Refer to

INT-23, "Removal and Installation"

.

2. Visually check drain hoses for:

• Proper connection at sunroof unit assembly drain hose connector(s).

• Damage, pinch, cracks, deterioration.

• Proper fastening and routing on body panels.

3. Pour water through drain hoses to determine watertight performance.

If damaged or leaking portions in any drain hose is found, replace entire drain hose as necessary.

ADJUSTMENT

CAUTION:

• Always work with a helper.

• Handle glass lid assembly with care to prevent damage.

NOTE:

• For easier and more accurate installation, always mark each point before removal.

• After any adjustment, check sunroof operation and glass lid assembly alignment.

1.

Drain hose front RH

2.

Drain hose front LH

3.

Drain hose rear LH

4.

Drain hose rear RH

5.

Sunroof unit assembly

6.

Fascia

7.

Seal

8.

Fender

9.

Drain hose

⇐

Vehicle front

AWKIA1290ZZ
