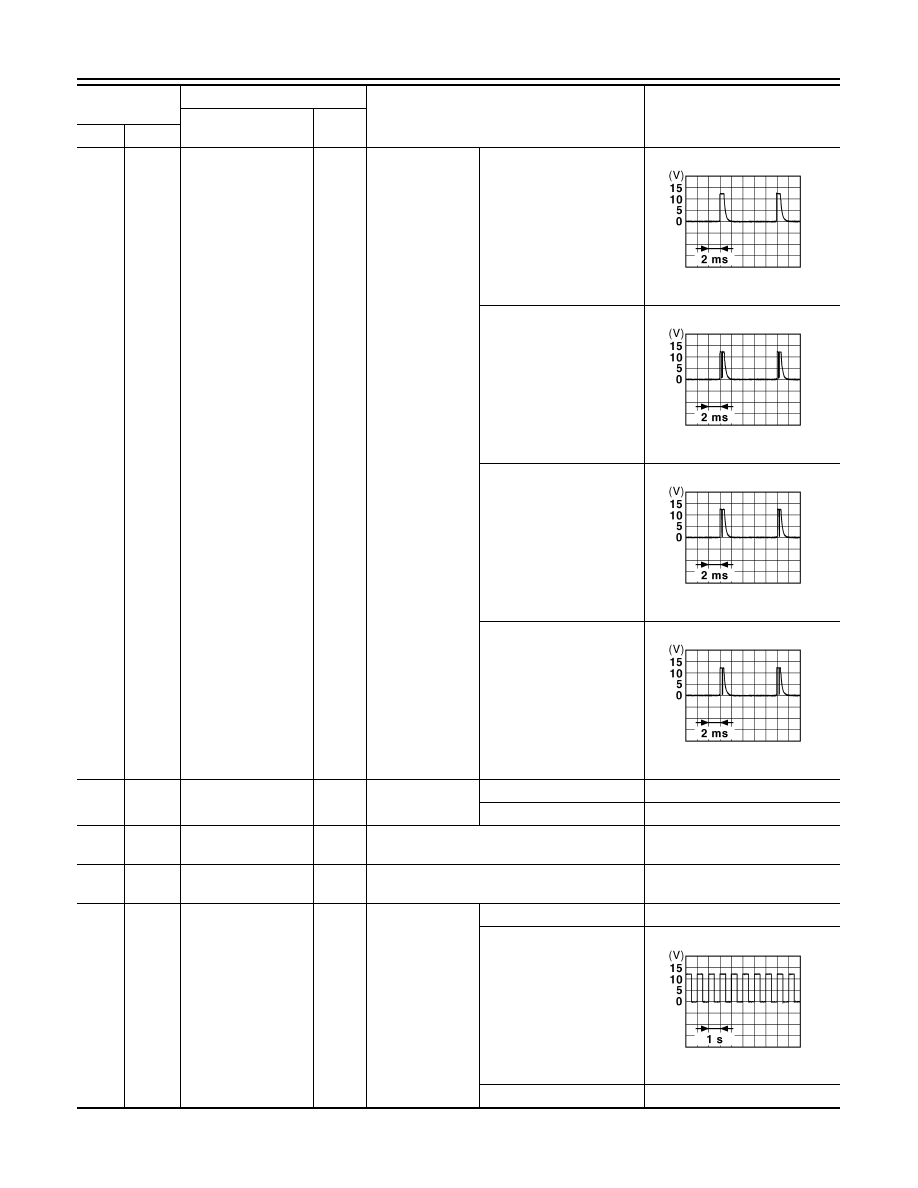

RF-32 < ECU DIAGNOSIS > BCM (BODY CONTROL MODULE) 76 (R/G) Ground Combination switch Input Combination All switch OFF 1.4V Lighting switch high-beam 1.3V Lighting switch 2ND 1.3V Any of the conditions below 1.3V 77 (BR) Ground Push-button ignition Input Engine switch Pressed 0V Not pressed Battery voltage 78 (P) Ground CAN-L Input/ Output — — 79 (L) Ground CAN-H Input/ Output — — 80 (R/L) Ground Key slot illumination Output Key slot illumina- OFF 0V Blinking 6.5V ON Battery voltage Terminal No. (Wire color) Description Condition Value (Approx.) Signal name Input/ Output (+) (-) JPMIA0041GB JPMIA0036GB JPMIA0037GB JPMIA0040GB JPMIA0015GB |
