Nissan Altima HL32 Hybrid. Manual - part 946





PREPARATION

RAX-5

< PREPARATION >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

PREPARATION

PREPARATION

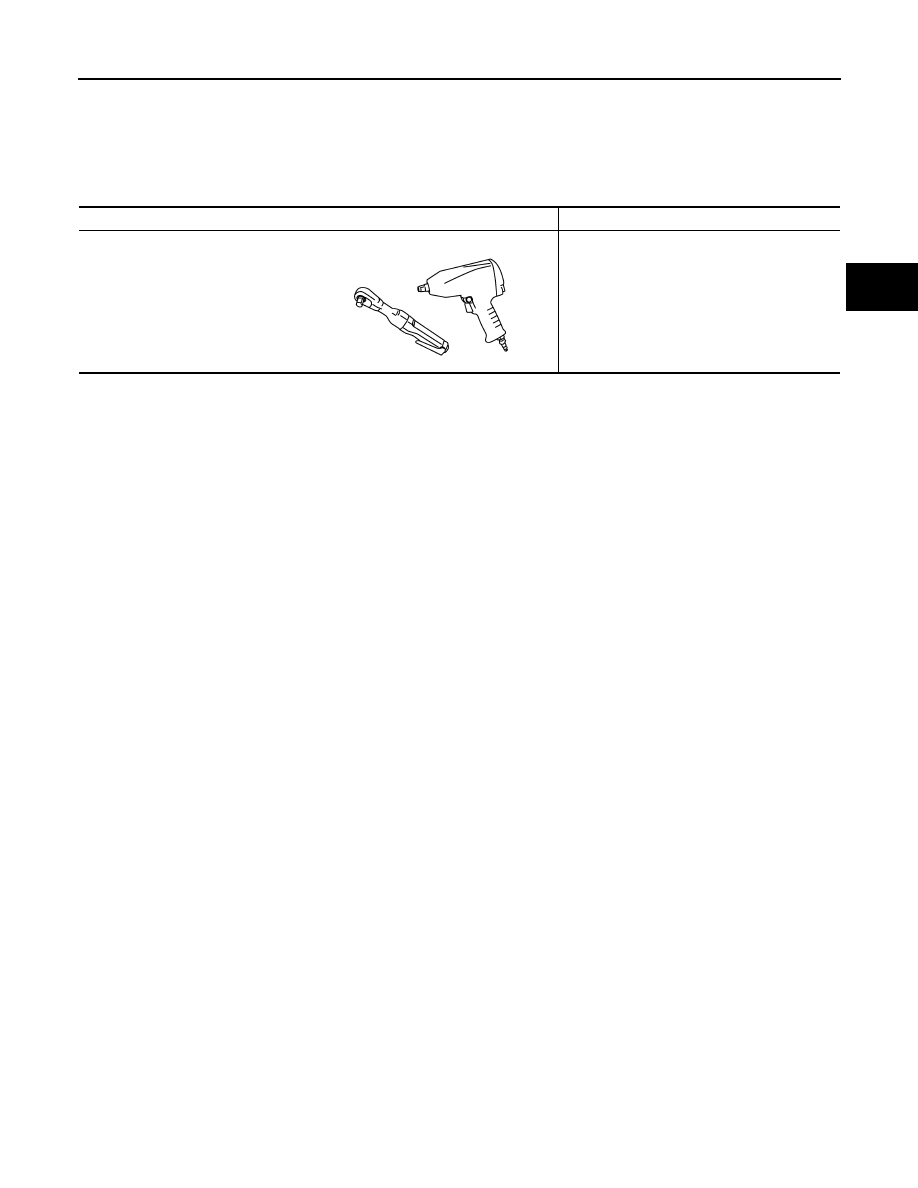

Commercial Service Tool

INFOID:0000000004212421

Tool name

Description

Power tool

Loosening bolts and nuts

PBIC0190E

RAX-6

< ON-VEHICLE MAINTENANCE >

WHEEL HUB

ON-VEHICLE MAINTENANCE

WHEEL HUB

On-vehicle Service

INFOID:0000000004212422

Check axle and suspension parts for excessive play, wear or damage.

• Shake each rear wheel to check for excessive play.

Rear Wheel Bearing

• Check axial end play.

• Check that wheel hub bearings operate smoothly.

• Replace wheel bearing assembly if there is axial end play or wheel

bearing does not turn smoothly. Refer to

RAX-6, "On-vehicle Ser-

vice"

.

SMA525A

Axial end play

: 0.1 mm (0.004 in) or less

LDIA0009E

WHEEL HUB

RAX-7

< ON-VEHICLE REPAIR >

C

E

F

G

H

I

J

K

L

M

A

B

RAX

N

O

P

ON-VEHICLE REPAIR

WHEEL HUB

Exploded View

INFOID:0000000004507224

Removal and Installation

INFOID:0000000004212423

REMOVAL

CAUTION:

Wheel hub assembly does not require maintenance. If any of the following symptoms are noted,

replace the wheel hub assembly.

• A growling noise is emitted from the wheel hub assembly while driving.

• The wheel hub assembly drags or turns roughly.
1. Remove the rear wheel and tire. Refer to

WT-62, "Adjustment"

.

2. Remove the disc rotor and brake caliper assembly using power tool. Refer to

BR-30, "BRAKE CALIPER

ASSEMBLY : Removal and Installation"

CAUTION:

1.

Wheel hub assembly

2.

Disc rotor

3.

Wheel nut

4.

Wheel sensor

A. Refer to

BRC-202, "Removal and In-

stallation"

.

B. Refer to

WT-62, "Adjustment"

.

AWDIA0502GB

RAX-8

< ON-VEHICLE REPAIR >

WHEEL HUB

• Suspend the brake caliper assembly using wire, do not stretch the brake hose.

• Do not depress the brake pedal, or the caliper piston will pop out.

• Do not twist the brake hose.

NOTE:

The brake hose does not need to be disconnected from the brake caliper.
3. Remove the rear wheel sensor, then move it away from the wheel hub assembly. Refer to

BRC-202,

"Removal and Installation"

.

CAUTION:

Failure to remove the wheel sensor may result in damage to the sensor wires and the sensor

being inoperative.

4. Remove the wheel hub assembly from knuckle.

INSPECTION AFTER REMOVAL

Check for any deformity, cracks, or damage on the wheel hub assembly, replace if necessary.

INSTALLATION

Installation is in the reverse order of removal.

• Check that the wheel bearings operate smoothly.

• Check that the wheel hub bearing axial end play is within specifica-

tion.

Axial end play : 0.1 mm (0.004 in) or less

LDIA0009E
