DOOR SWITCH

PWC-37

< COMPONENT DIAGNOSIS >

[LH ONLY WINDOW ANTI-PINCH]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

DOOR SWITCH

Description

INFOID:0000000004215847

Detects door open/close condition and transmits the signal to BCM.

Component Function Check

INFOID:0000000004215848

1.

 CHECK FRONT DOOR SWITCH INPUT SIGNAL

Check (“DOOR SW-DR” and “DOOR SW-AS”) in “DATA MONITOR” mode with CONSULT-III. Refer to

BCS-

33, "RETAINED PWR : CONSULT-III Function (BCM - RETAINED PWR)"

.

Is the inspection result normal?

YES

>> Front door switch circuit is OK.

NO

>> Refer to

PWC-37, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000004215849

1.

 CHECK HARNESS CONTINUITY

Check voltage between BCM connector and ground.

Is the measurement value within the specification?

YES

>> Replace BCM. Refer to

BCS-87, "Removal and Installation"

.

NO

>> GO TO 2

2.

 CHECK HARNESS CONTINUITY

1. Turn ignition switch OFF.

2. Disconnect BCM and front door switch.

3. Check continuity between BCM connector (A) and front door

switch connector (B).

4. Check continuity between BCM connector (A) and ground.

Monitor item

Condition

DOOR SW-DR

OPEN

: ON

CLOSE

: OFF

DOOR SW-AS

OPEN

: ON

CLOSE

: OFF

Terminals

Door condition

Voltage (V)

(Approx.)

(+)

(–)

BCM

 connector

Terminal

M18

32

Ground

Front door

RH

OPEN

0

CLOSE

Battery voltage

58

Front door

LH

OPEN

0

CLOSE

Battery voltage

ALKIA0269ZZ

BCM connector

Terminal

Front door switch

 connector

Terminal

Continuity

M18 (A)

32

RH: B108 (B)

2

Yes

58

LH: B8 (B)

ALKIA0270ZZ

PWC-38

< COMPONENT DIAGNOSIS >

[LH ONLY WINDOW ANTI-PINCH]

DOOR SWITCH

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK BCM OUTPUT SIGNAL

1. Connect BCM connector.

2. Check voltage between BCM connector and ground.

Is the measurement value within the specification?

YES

>> GO TO 4

NO

>> Replace BCM. Refer to

BCS-87, "Removal and Installation"

.

4.

 CHECK FRONT DOOR SWITCH

Check front door switch.

Refer to

PWC-38, "Component Inspection"

.

Is the inspection result normal?

YES

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.

NO

>> Replace front door switch.

Component Inspection

INFOID:0000000004215850

1.

 CHECK FRONT DOOR SWITCH

Check front door switches.

Is the inspection result normal?

YES

>> Front door switch is OK.

NO

>> Replace front door switch.

BCM connector

Terminal

Ground

Continuity

M18

32

No

58

Terminal

Voltage (V)

(Approx.)

(+)

(–)

BCM connector

Terminal

M18

32

Ground

Battery voltage

58

ALKIA0271ZZ

Terminal

Door switch

Continuity

Door switches

2

Ground part of door

switch

Pressed

No

Released

Yes

LIIA2377E

POWER WINDOW LOCK SWITCH

PWC-39

< COMPONENT DIAGNOSIS >

[LH ONLY WINDOW ANTI-PINCH]

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

POWER WINDOW LOCK SWITCH

Description

INFOID:0000000004215851

Ground circuit of main power window and door lock/unlock switch shuts off if power window lock switch of

main power window and door lock/unlock switch is operated. This inhibits all operation, except for the main

switch.

Component Function Check

INFOID:0000000004215852

1.

 CHECK POWER WINDOW LOCK SIGNAL

Exchanges for a normal main power window and door lock/unlock switch, and operation is checked.
Does power window lock operate?

YES

>> Replace main power window and door lock/unlock switch. Refer to

PWC-98, "Removal and Instal-

lation"

. After that,

PWC-8, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Spe-

cial Repair Requirement"

.

NO

>> Check condition of harness and connector.

Special Repair Requirement

INFOID:0000000004215853

1.

 PERFORM INITIALIZATION PROCEDURE

Perform initialization procedure.

Refer to

PWC-8, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Require-

ment"

.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Check intermittent incident. Refer to

GI-42, "Intermittent Incident"

.

PWC-40

< ECU DIAGNOSIS >

[LH ONLY WINDOW ANTI-PINCH]

POWER WINDOW MAIN SWITCH

ECU DIAGNOSIS

POWER WINDOW MAIN SWITCH

Reference Value

INFOID:0000000004215855

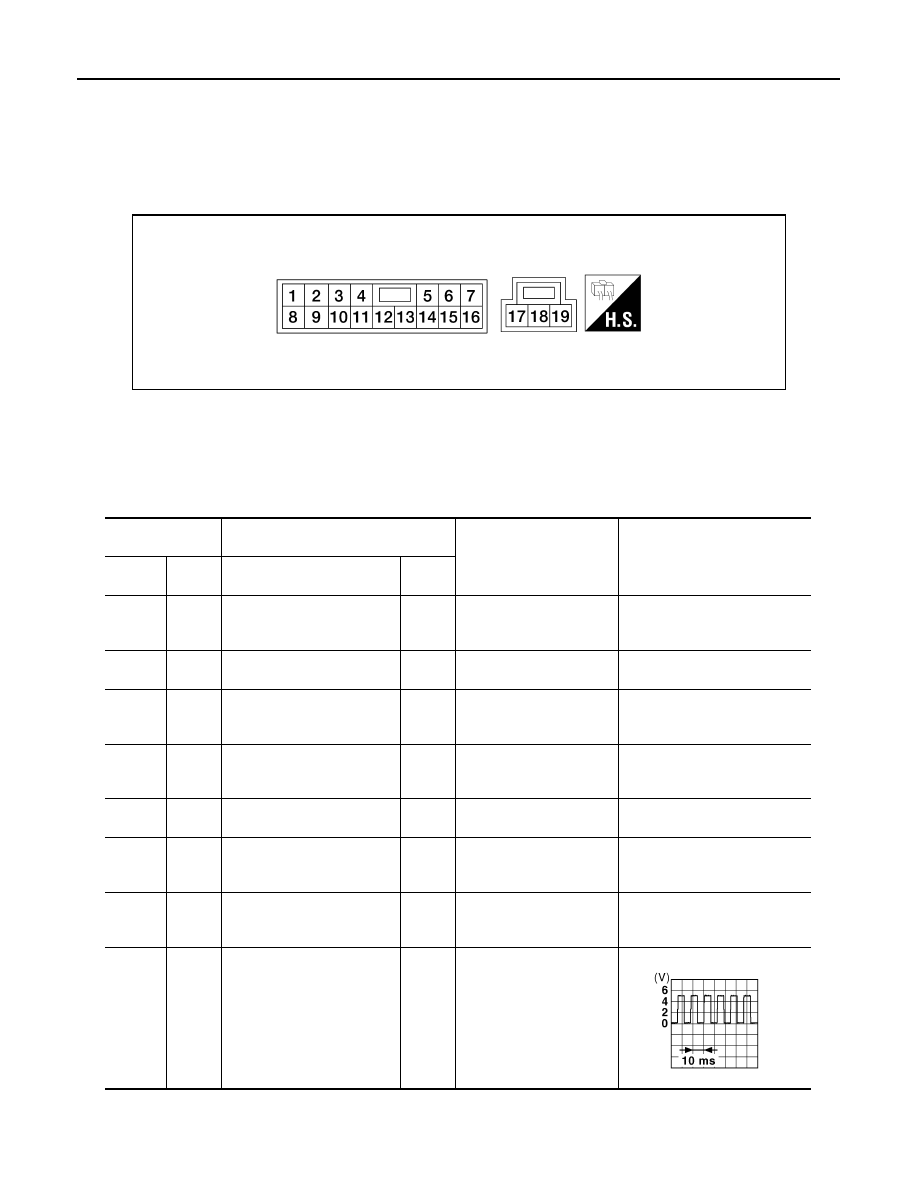

TERMINAL LAYOUT

PHYSICAL VALUES

MAIN POWER WINDOW AND DOOR LOCK/UNLOCK SWITCH

LIIA2455E

Terminal No.

(Wire color)

Description

Condition

Voltage [V]

(Approx.)

+

Signal name

Input/

Output

1

(G/B)

Ground

Rear power window motor LH
UP signal

Output

When rear LH switch in
power window main switch
is operated UP.

Battery voltage

2

(W/B)

Ground Encoder ground

0

3

(G/O)

Ground

Rear power window motor LH
DOWN signal

Output

When rear LH switch in
power window main switch
is operated DOWN.

Battery voltage

5

(G/R)

Ground

Rear power window motor RH
DOWN signal

Output

When rear RH switch in
power window main switch
is operated DOWN.

Battery voltage

6

(GR/R)

Ground

Door key cylinder switch
UNLOCK signal

Input

Key position
(Neutral

→ Unlocked)

→ 0

7

(G/W)

Ground

Rear power window motor RH
UP signal

Output

When rear RH switch in
power window main switch
is operated UP.

Battery voltage

8

(R/B)

11

Front power window motor
RH UP signal

Output

When front RH switch in
power window main switch
is operated UP.

 Battery voltage

9

(G/W)

2

Encoder pulse signal 2

Input

When power window mo-
tor operates.

JMKIA0070GB
