< ON-VEHICLE REPAIR >

INSTRUMENT PANEL ASSEMBLY

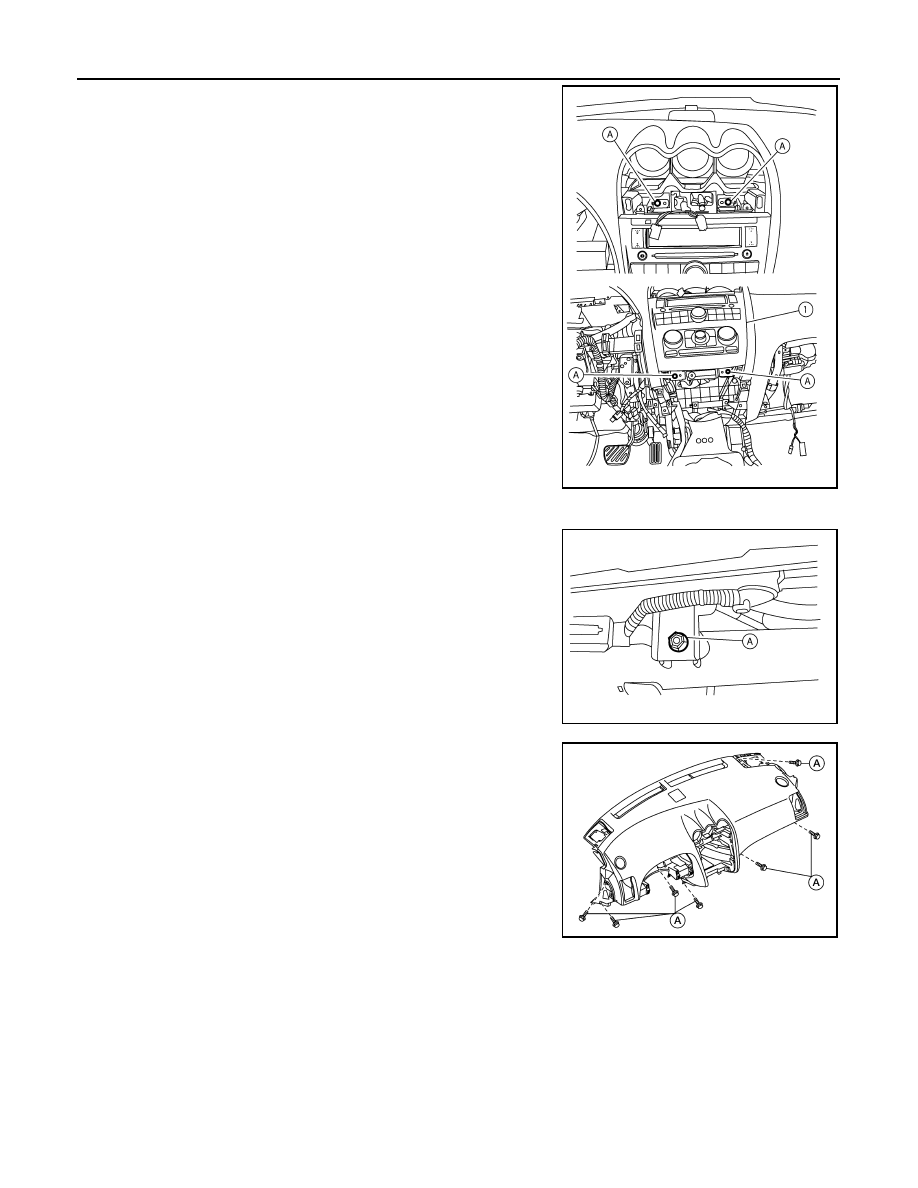

22. Remove the cluster lid C assembly upper and lower screws (A),

then remove the cluster lid C assembly (1).

• Disconnect the harness connectors.

23. Remove both tweeter speaker grilles and disconnect the harness connectors.
24. Remove the passenger air bag bolt (A).

25. Remove the remaining instrument panel screws (A).

26. Disconnect the audio harness connector located near the RH A-pillar.
27. Lift the instrument panel high enough in order to disconnect all the necessary harness connectors, then

remove the instrument panel.

INSTALLATION

Installation is in the reverse order of removal.

• If replacing the Instrument panel transfer all the necessary parts to the new instrument panel.

ALJIA0030ZZ

ALJIA0031ZZ

ALJIA0037ZZ

CENTER CONSOLE ASSEMBLY

IP-17

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

IP

N

O

P

DISASSEMBLY AND ASSEMBLY

CENTER CONSOLE ASSEMBLY

Exploded View

INFOID:0000000004215444

Disassembly and Assembly

INFOID:0000000004215445

DISASSEMBLY

1. Remove the console assembly. Refer to

IP-12, "Removal and Installation"

.

2. Remove the cup holder screws and then remove the cup holder assembly.

1.

CVT finisher

2.

Storage bin

3.

CD changer console bracket

4.

CD changer bracket (LH)

5.

CD changer bracket (RH)

6.

CD changer finisher

7.

Console

8.

Console floor bracket

9.

Console rear finisher (with ventilator grille)

10. Console lid assembly bracket 11. Console lid assembly

12. Cup holder

Clip

Pawl

Metal clip

AWJIA0350ZZ

IP-18

< DISASSEMBLY AND ASSEMBLY >

CENTER CONSOLE ASSEMBLY

3. Remove the console lid screws and remove the console lid.
4. Remove the console rear finisher.
5. Remove the console lid assembly bracket.
6. Remove the power socket from the console. Refer to

PWO-5, "Removal and Installation"

.

7. Remove the heated seat switches (if equipped) from the console.

ASSEMBLY

Assembly is in the reverse order of disassembly.
