HYBRID TRANSAXLE

HBC-33

< FUNCTION DIAGNOSIS >

D

E

F

G

H

I

J

K

L

M

A

B

HBC

N

O

P

Furthermore, the MG ECU calculates the rotational speed based on the amount of change in the position

within a given length of time.

• Because an alternating current flows from this resolver to the excitation coil at a constant frequency, a con-

stant frequency is output to the coils S and C, regardless of the rotor speed. The rotor is oval, and the dis-

tance of the gap between the stator and the rotor varies with the rotation of the rotor. Consequently, the peak

values of the waveforms output by the coils S and C vary in accordance with the position of the rotor.

• The MG ECU constantly monitors these peak values, and connects them to form a virtual waveform. The

MG ECU calculates the absolute position of the rotor from the difference between the values of the coils S

and C. It determines the rotor direction based on the difference between the phases of the virtual waveform

of the coil S and the virtual waveform of the coil C. Furthermore, the MG ECU calculates the rotational speed

based on the amount of change in the rotor position within a given length of time.

JMCIA0055GB

HBC-34

< FUNCTION DIAGNOSIS >

HYBRID TRANSAXLE

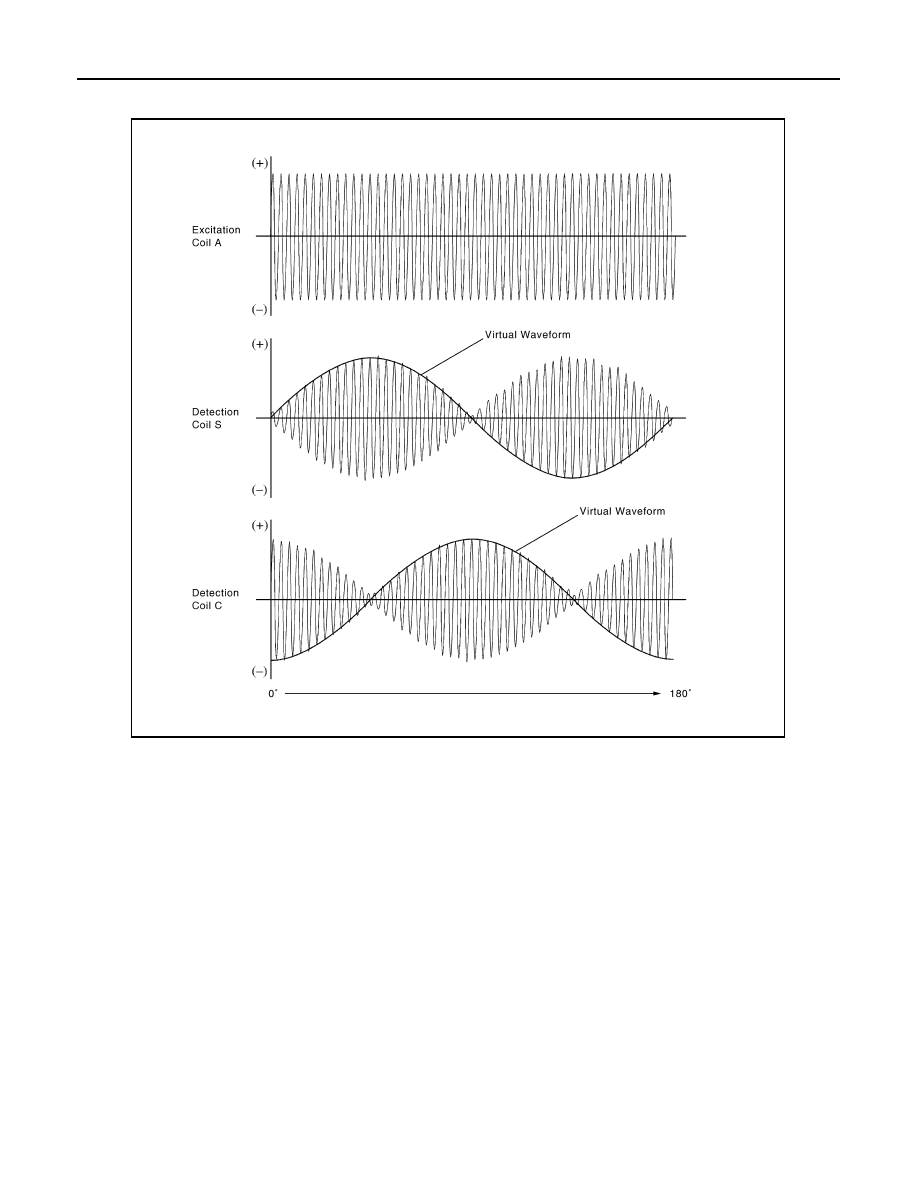

• The diagrams below illustrate the waveforms that are output at coils A, S, and C when the rotor makes a

positive rotation of 180

° from a certain position.

JMCIA0056GB

HYBRID TRANSAXLE

HBC-35

< FUNCTION DIAGNOSIS >

D

E

F

G

H

I

J

K

L

M

A

B

HBC

N

O

P

MOTOR AND GENERATOR : Component Parts Location

INFOID:0000000004211734

1.

Combination meter

2.

READY operation indicator light

3.

Malfunction indicator light

4.

Master warning light

5.

Data link connector

6.

Steering angle sensor

7.

Stop lamp switch

8.

Accelerator pedal position sensor

9.

ACU (Air bag diagnosis sensor unit)

10. Yaw rate/side G sensor

11. Controller (A/C auto AMP.)

12. Vehicle information display indicator

ALCIA0008ZZ

HBC-36

< FUNCTION DIAGNOSIS >

HYBRID TRANSAXLE

1.

Inverter with converter assembly

2.

Water pump with motor & bracket as-
sembly

3.

High voltage fuse and fusible link box
A: HV CONT MAIN fuse 10A
B: IGCT relay
C: IGCT fusible link 50A
D: DC/DC fusible link 120A

4.

HV battery

5.

Auxiliary battery

6.

Frame wire

7.

Hybrid vehicle control ECU
(located under heater box assembly)

8.

Brake ECU

9.

Electric compressor (For A/C)

10. A: Crankshaft position sensor

B: Axle

11. ECM

Vehicle front

ALCIA0009ZZ
