DIAGNOSIS AND REPAIR WORKFLOW

HBC-9

< BASIC INSPECTION >

D

E

F

G

H

I

J

K

L

M

A

B

HBC

N

O

P

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000004211725

DETAILED FLOW

1.

VEHICLE BROUGHT TO WORK SHOP

>> GO TO 2.

2.

CUSTOMER PROBLEM ANALYSIS

Get the detailed information from the customer about the symptom (the condition and the environment when

the incident/malfunction occurred) using the “DIAGNOSTIC WORK SHEET”.

>> GO TO 3.

3.

CONNECT CONSULT-III TO THE DATA LINK CONNECTOR

NOTE:

If the display on the CONSULT-III indicates a communication malfunction, inspect the data link connector.

>> GO TO 4.

4.

CHECK DTC AND SAVE FREEZE FRAME DATA

1. Check DTC.

2. Perform the following procedure if DTC is displayed.

-

Record DTC and freeze frame data.

-

Study the relationship between the cause detected by DTC and the symptom described by the customer.

3. Check related service bulletins for information.

4. Clear DTC.

>> GO TO 5.

5.

CONDUCT VISUAL INSPECTION

Check the vehicle visually.

>> GO TO 6.

6.

CONFIRM THE SYMPTOM

Try to confirm the symptom described by the customer.

DIAGNOSTIC WORK SHEET is useful to verify the incident.

Verify relation between the symptom and the condition when the symptom is detected.

NOTE:

If the engine does not start, perform steps 7 to 8 first.
Is the malfunction occur?

YES

>> GO TO 8.

NO

>> GO TO 7.

7.

DUPLICATE CONDITIONS THAT PRODUCE SYMPTOMS

1. Drive the vehicle under the similar conditions to Freeze Frame Data for certain time.

2. Check DTC.
Is DTC detected?

YES

>> GO TO 8.

NO

>> GO TO 9.

HBC-10

< BASIC INSPECTION >

DIAGNOSIS AND REPAIR WORKFLOW

8.

PERFORM DIAGNOSIS PROCEDURE

Perform the diagnosis procedure related to displayed DTC.

>> GO TO 12.

9.

CHECK HYBRID VEHICLE CONTROL ECU POWER SUPPLY CIRCUIT

Perform the circuit inspection for the hybrid vehicle control ECU power supply circuit.
Is malfunction confirmed?

YES

>> GO TO 11.

NO

>> GO TO 10.

10.

CHECK INTERMITTENT INCIDENT

Perform the trouble diagnosis for intermittent incident.

>> GO TO 11.

11.

IDENTIFY PROBLEM

Check the malfunctioning parts

>> GO TO 12.

12.

ADJUST AND/OR REPAIR

1. Repair or replace the malfunctioning part.

2. Reconnect parts or connectors, disconnected during Diagnosis Procedure, again after repair and replace-

ment.

>> GO TO 13.

13.

CONDUCT CONFIRMATION TEST

Perform the step again that the DTC or malfunction was confirmed in this procedure.

>> INSPECTION END

Diagnostic Work Sheet

INFOID:0000000004211726

DESCRIPTION

There are many operating conditions that lead to the malfunction of

Hybrid vehicle control components. A good grasp of such conditions

can make troubleshooting faster and more accurate.

In general, each customer feels differently about an incident. It is

important to fully understand the symptoms or conditions for a cus-

tomer complaint.

Utilize a diagnostic worksheet like the sample in order to organize all

the information for troubleshooting.

SEF907L

DIAGNOSIS AND REPAIR WORKFLOW

HBC-11

< BASIC INSPECTION >

D

E

F

G

H

I

J

K

L

M

A

B

HBC

N

O

P

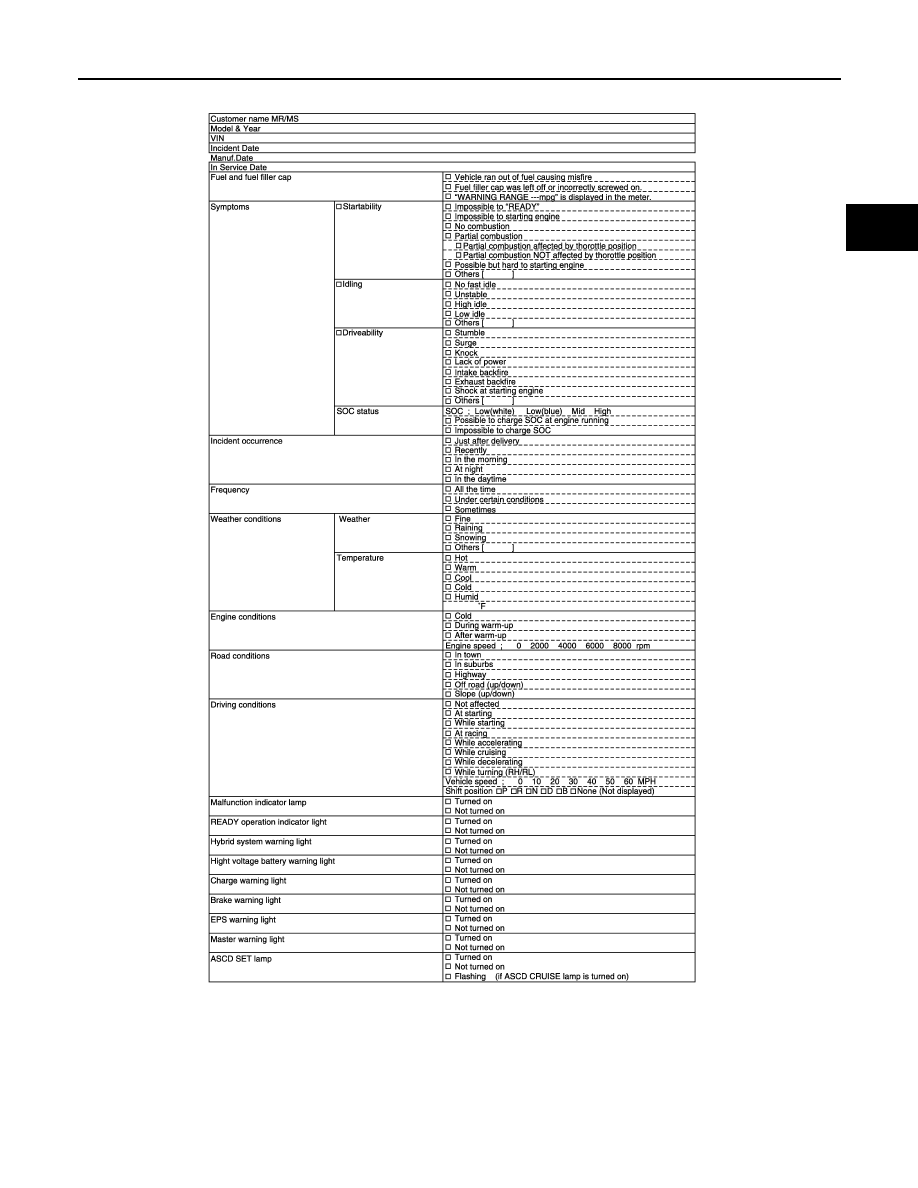

WORK SHEET SAMPLE

JMCIA0171GB

HBC-12

< BASIC INSPECTION >

INSPECTION AND ADJUSTMENT

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT
ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Precaution for replac-
ing hybrid vehicle control ECU

INFOID:0000000004211727

When replacing the hybrid vehicle control ECU, never remove the waterproof sheet.

NOTE:

The hybrid vehicle control ECU is covered with a waterproof sheet. If the waterproof sheet is peeled off, the

labels on the hybrid vehicle control ECU will be removed together with the waterproof sheet. Consequently

important data printed on the label for warranty procedure will be lost.

ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT : Special Repair Re-
quirement

INFOID:0000000004211728

1.

PERFORM INITIALIZATION OF NATS SYSTEM AND REGISTRATION OF ALL NATS IGNITION KEY IDS

Refer to

SEC-9, "ECM RE-COMMUNICATING FUNCTION : Special Repair Requirement"

.

>> END
