ELECTRICAL LEAK DETECTOR

12. Confirm the refrigerant purity in the A/C system using the recovery/recycling equipment and the refriger-

ant identifier equipment.

13. Discharge the A/C system using approved refrigerant recovery/recycling equipment. Repair the leaking fit-

ting or component as necessary.

14. Evacuate and recharge the A/C system and perform the leak test to confirm there are no refrigerant leaks.
15. Conduct the A/C performance test to ensure that the system works properly. Refer to

HAC-152, "Inspec-

tion procedure"

.

REFRIGERATION SYSTEM

HA-27

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

ON-VEHICLE REPAIR

REFRIGERATION SYSTEM

Component

INFOID:0000000004215281

ALIIA0031ZZ

HA-28

< ON-VEHICLE REPAIR >

REFRIGERATION SYSTEM

NOTE:

Refer to

HA-5, "Precaution for Refrigerant Connection"

.

HFC-134a (R-134a) Service Procedure

INFOID:0000000004215282

SETTING OF SERVICE TOOLS AND EQUIPMENT

WARNING:

Avoid breathing the A/C refrigerant and electric compressor oil vapor or mist. Exposure may irritate

eyes, nose, and throat. Remove the HFC-134a (R-134a) from the A/C system using certified service

equipment meeting the requirements of SAE J2210 (R-134a recycling equipment) or SAE J2201 (R-

134a recovery equipment). If an accidental system discharge occurs, ventilate the work area before

resuming service. Additional health and safety information may be obtained from the refrigerant and

electric compressor oil manufacturers.

CAUTION:

Use only Electric Compressor Oil ND-OIL 11 for the electric compressor of the air conditioning sys-

tem. Using other A/C oils may damage the A/C system as they may conduct electricity.

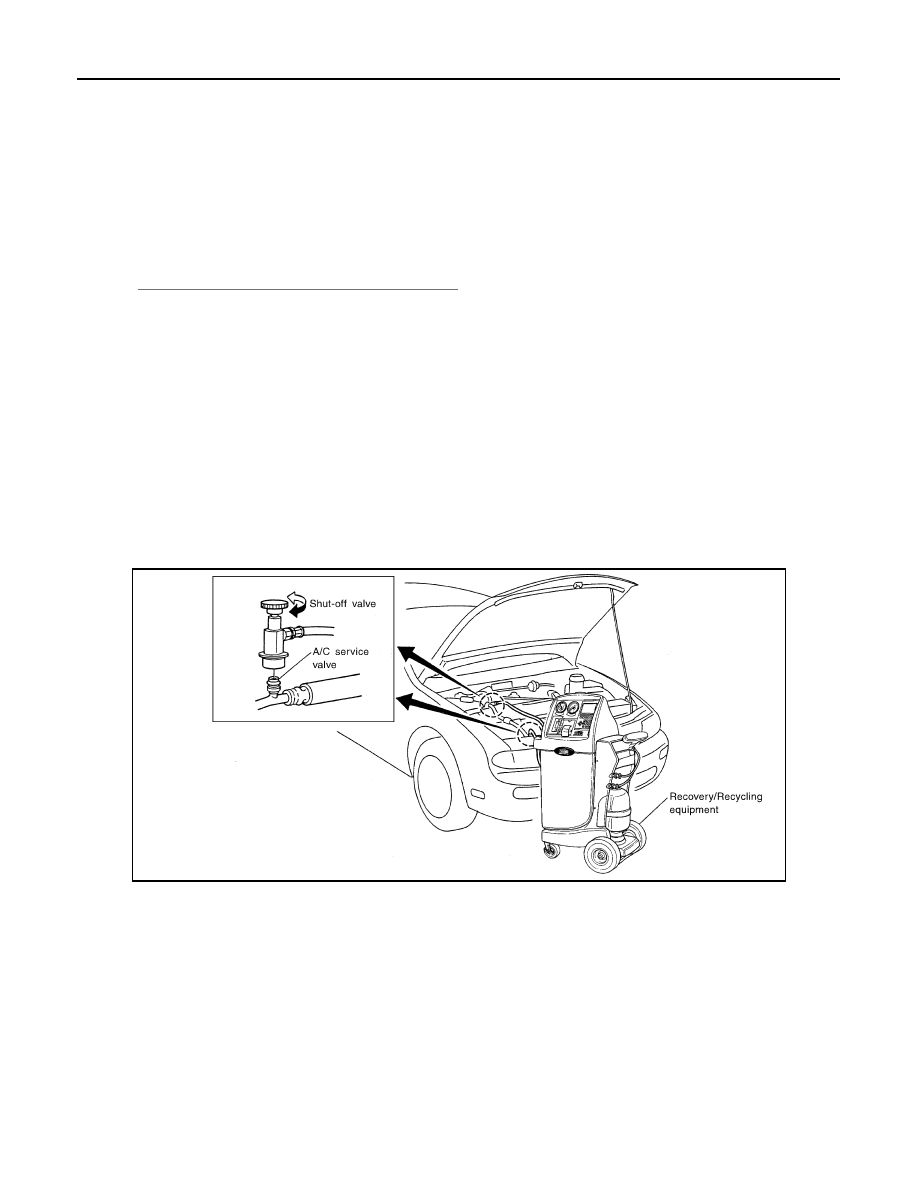

Discharging Refrigerant

1.

Heater and cooling unit assembly

2.

Low-pressure pipe

3.

Low-pressure A/C service valve

4.

Low-pressure flexible hose

5.

Junction pipe

6.

Air deflector RH

7.

Air deflector LH

8.

Refrigerant pressure sensor

9.

Radiator, condenser and liquid tank
assembly

10. Electric compressor

11. High-pressure flexible hose

12. High-pressure A/C service valve

13. High-pressure pipe

14. Heater hoses

15. Heater pump

16. Heater pump bracket

A.

Low-pressure flexible hose to elec-
tric compressor

WJIA0614E

REFRIGERATION SYSTEM

HA-29

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

HA

N

O

P

Evacuating System and Charging Refrigerant

WJIA0615E
