Nissan Altima HL32 Hybrid. Manual - part 432





EXL-128

< ECU DIAGNOSIS >

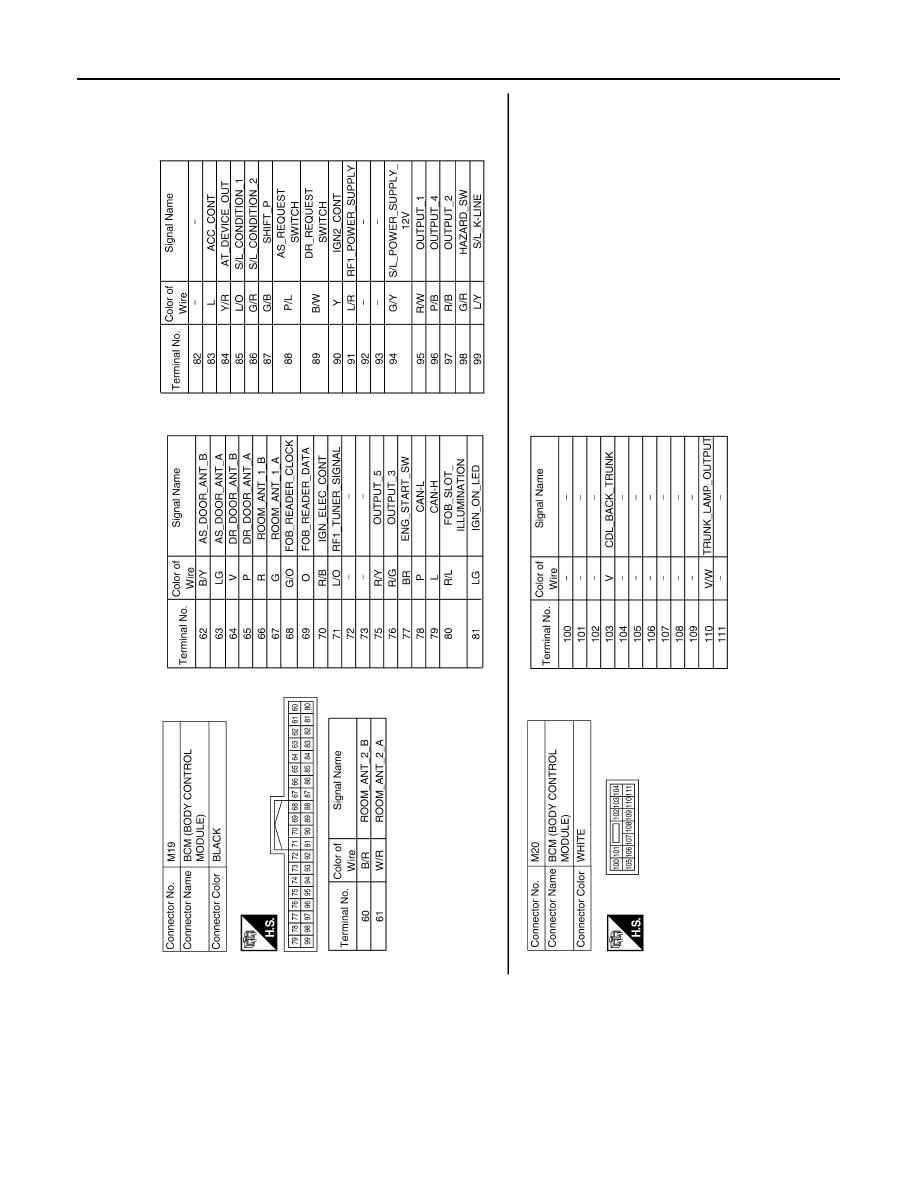

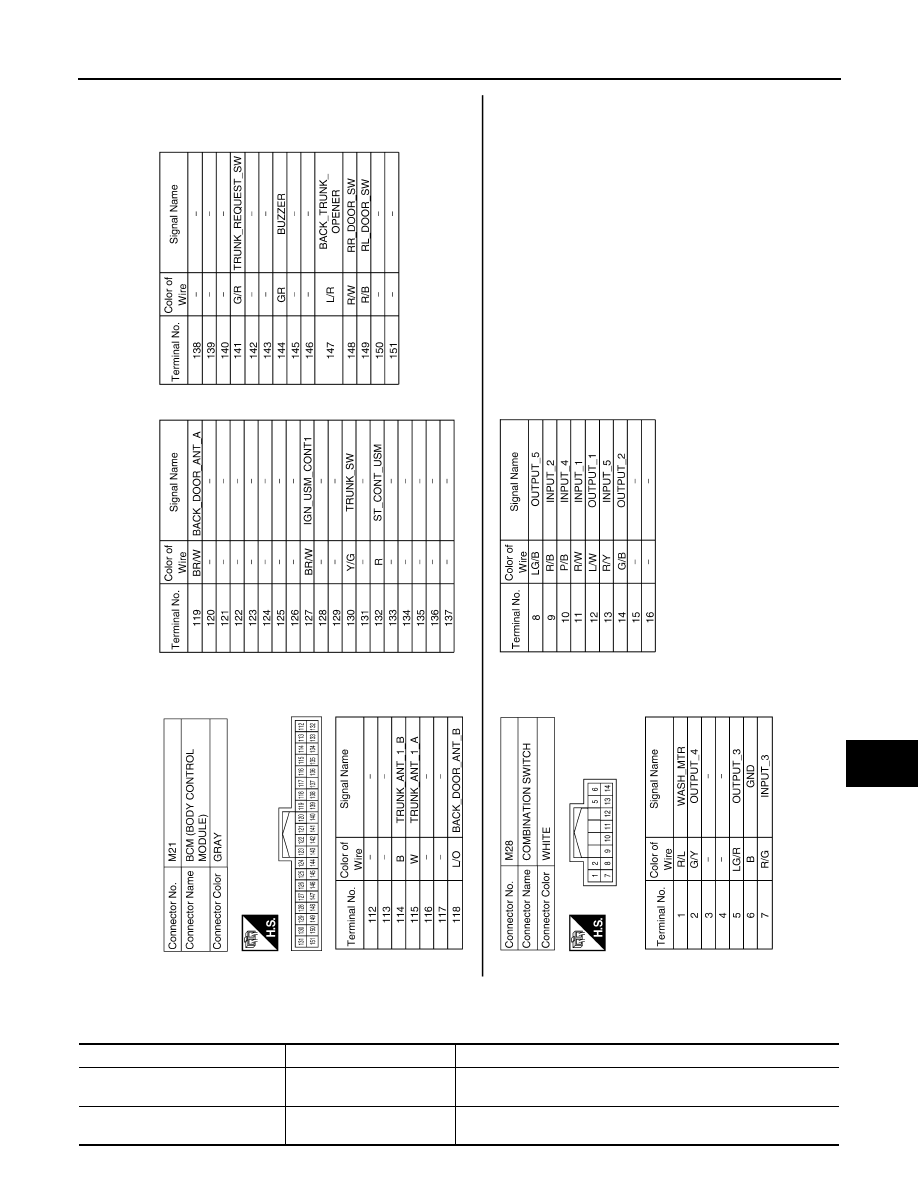

BCM (BODY CONTROL MODULE)

ALMIA0084GB

BCM (BODY CONTROL MODULE)

EXL-129

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

Fail Safe

INFOID:0000000004501338

AWMIA0393GB

Display contents of CONSULT

Fail-safe

Cancellation

B2013: ID DISCORD BCM-S/L

Inhibit hybrid system crank-
ing

Erase DTC

B2014: CHAIN OF S/L-BCM

Inhibit hybrid system crank-
ing

Erase DTC

EXL-130

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

B2190: NATS ANTENNA AMP

Inhibit hybrid system crank-
ing

Erase DTC

B2191: DIFFERENCE OF KEY

Inhibit hybrid system crank-
ing

Erase DTC

B2192: ID DISCORD BCM-ECM

Inhibit hybrid system crank-
ing

Erase DTC

B2193: CHAIN OF BCM-ECM

Inhibit hybrid system crank-
ing

Erase DTC

B2195: ANTI-SCANNING

Inhibit hybrid system crank-
ing

Erase DTC

B2557: VEHICLE SPEED

Inhibit electronic steering
column lock

When normal vehicle speed signals have been received from brake
ECU actuator and electric unit (control unit) for 500 ms

B2562: LOW VOLTAGE

• Inhibit hybrid system

cranking

• Inhibit electronic steering

column lock

100 ms after the power supply voltage increases to more than 8.8 V

B2563: HI VOLTAGE

• Inhibit hybrid system

cranking

• Inhibit electronic steering

column lock

500 ms after the power supply voltage decreases to less than 18 V

B2601: SHIFT POSITION

Inhibit electronic steering
column lock

500 ms after the following signal reception status becomes consis-
tent
• Selector lever P position switch signal
• P range signal (CAN)

B2602: SHIFT POSITION

Inhibit electronic steering
column lock

5 seconds after the following BCM recognition conditions are ful-
filled
• Ignition switch is in the ON position
• Selector lever P position switch signal: Except P position (battery

voltage)

• Vehicle speed: 4 /h or more

B2603: SHIFT POSI STATUS

Inhibit electronic steering
column lock

500 ms after the following BCM recognition conditions are fulfilled
• Ignition switch is in the ON position
• Selector lever P position switch signal: Except P position (battery

voltage)

• Selector lever P/N position signal: Except P and N positions (0 V)

B2604: PNP SW

Inhibit electronic steering
column lock

500 ms after any of the following BCM recognition conditions is ful-
filled
• Status  1
- Ignition switch is in the ON position
- Selector lever P/N position signal: P and N position (battery volt-

age)

- P range signal or N range signal (CAN): ON
• Status  2
- Ignition switch is in the ON position
- Selector lever P/N position signal: Except P and N positions (0 V)
- P range signal and N range signal (CAN): OFF

B2605: PNP SW

Inhibit electronic steering
column lock

500 ms after any of the following BCM recognition conditions is ful-
filled
• Ignition switch is in the ON position
- Power position: IGN
- Selector lever P/N position signal: Except P and N positions (0 V)
- Interlock/PNP switch signal (CAN): OFF
• Status  2
- Ignition switch is in the ON position
- Selector lever P/N position signal: P or N position (battery volt-

age)

- PNP switch signal (CAN): ON

Display contents of CONSULT

Fail-safe

Cancellation

BCM (BODY CONTROL MODULE)

EXL-131

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

DTC Inspection Priority Chart

INFOID:0000000004501339

If some DTCs are displayed at the same time, perform inspections one by one based on the following priority

chart.

B2606: S/L RELAY

Inhibit hybrid system crank-
ing

500 ms after the following CAN signal communication status has
become consistent
• Electronic steering column lock relay signal (Request signal)
• Electronic steering column lock relay signal (Condition signal)

B2607: S/L RELAY

Inhibit hybrid system crank-
ing

500 ms after the following CAN signal communication status has
become consistent
• Electronic steering column lock relay signal (Request signal)
• Electronic steering column lock relay signal (Condition signal)

B2609: S/L STATUS

• Inhibit hybrid system

cranking

• Inhibit electronic steering

column lock

When the following electronic steering column lock conditions
agree
• BCM electronic steering column lock control status
• Electronic steering column lock condition No. 1 signal status
• Electronic steering column lock condition No. 2 signal status

B260A: IGNITION RELAY

Inhibit hybrid system crank-
ing

500 ms after the following conditions are fulfilled
• IGN relay (IPDM E/R) control signal: OFF (Battery voltage)
• Ignition ON signal (CAN to IPDM E/R): OFF (Request signal)
• Ignition ON signal (CAN from IPDM E/R): OFF (Condition signal)

B260F: ENG STATE SIG LOST

Maintains the power supply
position attained at the time
of DTC detection

When any of the following conditions is fulfilled
• Power position changes to ACC
• Receives hybrid system status signal (CAN)

B2612: S/L STATUS

• Inhibit hybrid system

cranking

• Inhibit electronic steering

column lock

When any of the following conditions is fulfilled
• Electronic steering column lock unit status signal (CAN) is re-

ceived normally

• The BCM electronic steering column lock control status matches

the electronic steering column lock status recognized by the
electronic steering column lock unit status signal (CAN from
IPDM E/R)

B2617: STARTER RELAY CIRC

Inhibit hybrid system crank-
ing

1 second after the starter motor relay control inside BCM becomes
normal

B2618: BCM

Inhibit hybrid system crank-
ing

1 second after the ignition relay (IPDM E/R) control inside BCM be-
comes normal

B2619: BCM

Inhibit hybrid system crank-
ing

1 second after the electronic steering column lock unit power sup-
ply output control inside BCM becomes normal

B261E: VEHICLE TYPE

Inhibit hybrid system crank-
ing

BCM initialization

B26E1: ENG STATE NO RECIV

Inhibit hybrid system crank-
ing

When any of the following conditions is fulfilled
• Power position changes to ACC
• Receives hybrid system status signal (CAN)

Display contents of CONSULT

Fail-safe

Cancellation

Priority

DTC

1

• B2562: LOW VOLTAGE
• B2563: HI VOLTAGE
• B261E: VEHICLE TYPE

2

• U1000: CAN COMM CIRCUIT
• U1010: CONTROL UNIT (CAN)

3

• B2190: NATS ANTENNA AMP
• B2191: DIFFERENCE OF KEY
• B2192: ID DISCORD BCM-ECM
• B2193: CHAIN OF BCM-ECM
