EM-98

< SERVICE DATA AND SPECIFICATIONS (SDS)

[QR25DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

Standard and Limit

INFOID:0000000004211263

GENERAL SPECIFICATIONS

DRIVE BELTS

INTAKE MANIFOLD AND EXHAUST MANIFOLD

Unit: mm (in)

SPARK PLUG

Unit: mm (in)

Cylinder arrangement

In-line 4

Displacement cm

3

 (in

3

)

2,488 (151.82)

Bore and stroke mm (in)

89.0 x 100 (3.50 x 3.94)

Valve arrangement

DOHC

Firing order

1-3-4-2

Number of piston rings

Compression

2

Oil

1

Compression ratio

9.5:1

Compression pressure
kPa (kg/cm

2

, psi) / 250 rpm

Standard

900 (9.2, 130.5)

Minimum

710 (7.3, 103)

Differential limit be-
tween cylinders

100 (1.0, 14)

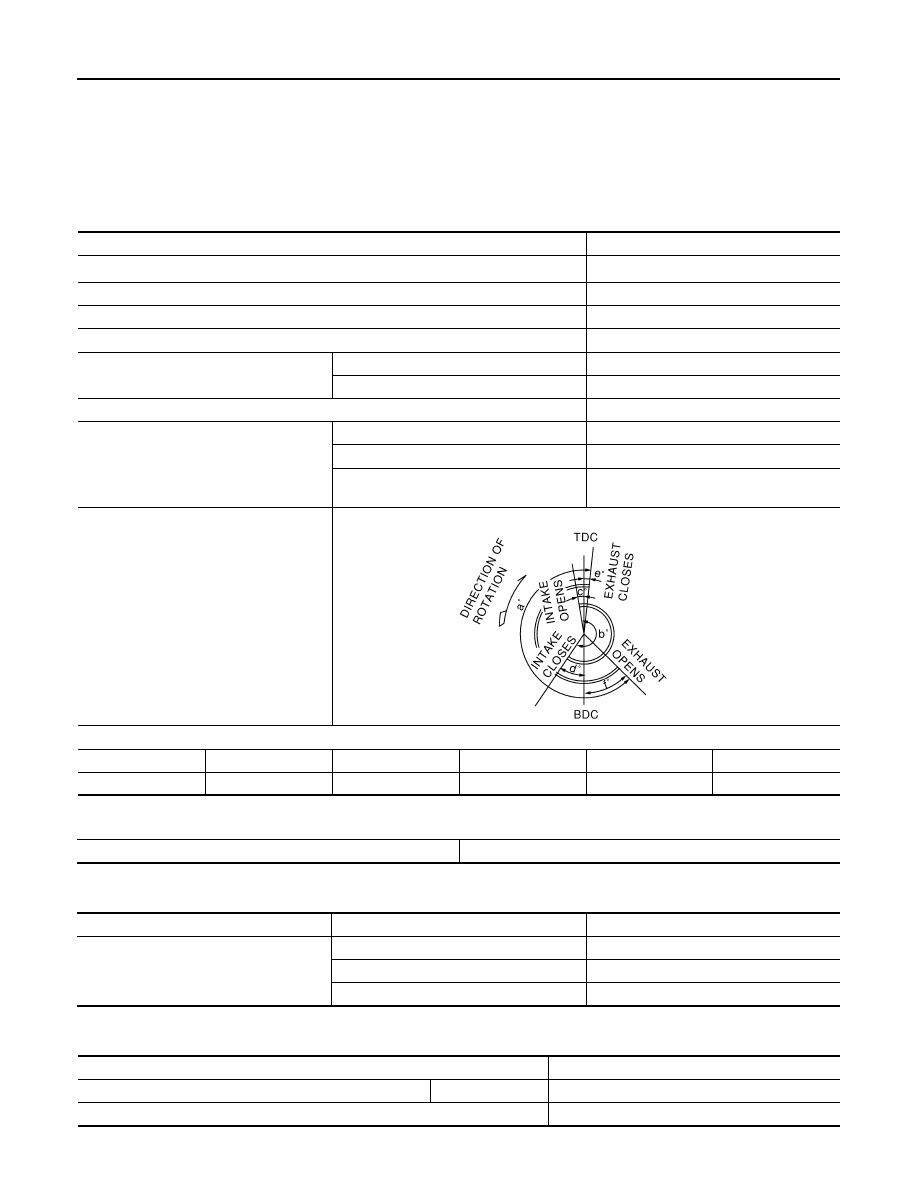

Valve timing

Unit: degree

a

b

c

d

e

f

220

°

232

°

-41

°

93

°

10

°

30

°

PBIC0187E

Tension of drive belts

                         Auto adjustment by auto tensioner

Description

Component

Limit

Surface distortion

Intake manifold adaptor

0.1 (0.004)

Intake manifold

0.1 (0.004)

Exhaust manifold

0.3 (0.012)

Make

NGK

Type

Standard

DILKAR6A-11

Gap (nominal)

1.1 (0.043)

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-99

< SERVICE DATA AND SPECIFICATIONS (SDS)

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

CYLINDER HEAD

Unit: mm (in)

VALVE

Valve Dimensions

Unit: mm (in)

Valve Clearance

Unit: mm (in)

*: Approximately 80

°C (176 °F)

Available Valve Lifter

Description

Limit

Head surface distortion

0.1 (0.004)

PBIC0283E

Valve head diameter (D)

Intake

35.5 - 35.8 (1.398 - 1.409)

Exhaust

30.3 - 30.6 (1.193 - 1.205)

Valve length (L)

Intake

 96.84 (3.8136)

Exhaust

97.9 (3.8543)

Valve stem diameter (d)

Intake

5.965 - 5.980 (0.2348 - 0.2354)

Exhaust

5.955 - 5.970 (0.2344 - 0.2350)

Valve seat angle

α

Intake

45

°15′ - 45°45′

Exhaust

Valve margin (T)

Intake

1.08 (0.0425)

Exhaust

1.38 (0.0543)

SEM188

Cold

Hot*

Intake

 0.24 - 0.32 (0.009 - 0.013)

0.304 - 0.416 (0.012 - 0.016)

Exhaust

 0.26 - 0.34 (0.010 - 0.013)

0.308 - 0.432 (0.012 - 0.017)

EM-100

< SERVICE DATA AND SPECIFICATIONS (SDS)

[QR25DE]

SERVICE DATA AND SPECIFICATIONS (SDS)

Valve Spring

Thickness mm (in)

Identification mark (Stamp)

7.88

788U

7.90

790U

7.92

792U

7.94

794U

7.96

796U

7.98

798U

8.00

800U

8.02

802U

8.04

804U

8.06

806U

8.08

808U

8.10

810U

8.12

812U

8.14

814U

8.16

816U

8.18

818U

8.20

820U

8.22

822U

8.24

824U

8.26

826U

8.28

828U

8.30

830U

8.32

832U

8.34

834U

8.36

836U

8.38

838U

KBIA0119E

Free height standard
mm (in)

Intake

43.72 - 43.92 (1.7213 - 1.7291)

Exhaust

                45.29 - 45.49 (1.7831 - 1.7909)

Pressure standard
N (kg, lb) at height mm (in)

Intake and Exhaust

151 - 175 (15.4 - 17.8, 34 - 39) at 35.30 (1.390)

Out-of-square mm

(in)

1.9 (0.0748)

Installation height mm (in)

Intake

35.30 (1.390)

Exhaust

35.30 (1.390)

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-101

< SERVICE DATA AND SPECIFICATIONS (SDS)

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Valve Lifter

Unit: mm (in)

Valve Guide

Unit: mm (in)

Valve Seat

Installation load N (kg - force, lb - force)

Intake

151 - 175 (15.4 - 17.8, 34 - 39)

Exhaust

151 - 175 (15.4 - 17.8, 34 - 39)

Height during valve open mm (in)

Intake

25.30 (0.9961)

Exhaust

26.76 (1.0535)

Load with valve open N (kg - force, lb - force)

Intake

351 - 394 (35.8 - 40.2, 79 - 89)

Exhaust

318 - 362 (32.4 - 36.9, 71 - 81)

Description

                                              Standard

Valve lifter outer diameter

33.977 - 33.987 (1.3377 - 1.3381)

Lifter lifter bore inner diameter

34.000 - 34.021 (1.3386 - 1.3394)

Clearance between lifter and lifter guide

0.013 - 0.044 (0.0005 - 0.0017)

Description

Standard

Service

Valve guide

Outer diameter

10.023 - 10.034

(0.3946 - 0.3950)

10.223 - 10.234

(0.4025 - 0.4029)

Inner diameter (Finished size)

6.000 - 6.018 (0.2362 - 0.2369)

Cylinder head valve guide hole diameter

9.975 - 9.996

(0.3927 - 0.3935)

10.175 - 10.196

(0.4006 - 0.4014)

Interference fit of valve guide

0.027 - 0.059 (0.0011 - 0.0023)

Standard

Limit

Valve guide clearance

Intake

0.020 - 0.053 (0.0008 - 0.0021)

0.08 (0.003)

Exhaust

0.030 - 0.063 (0.0012 - 0.0025)

0.09 (0.004)

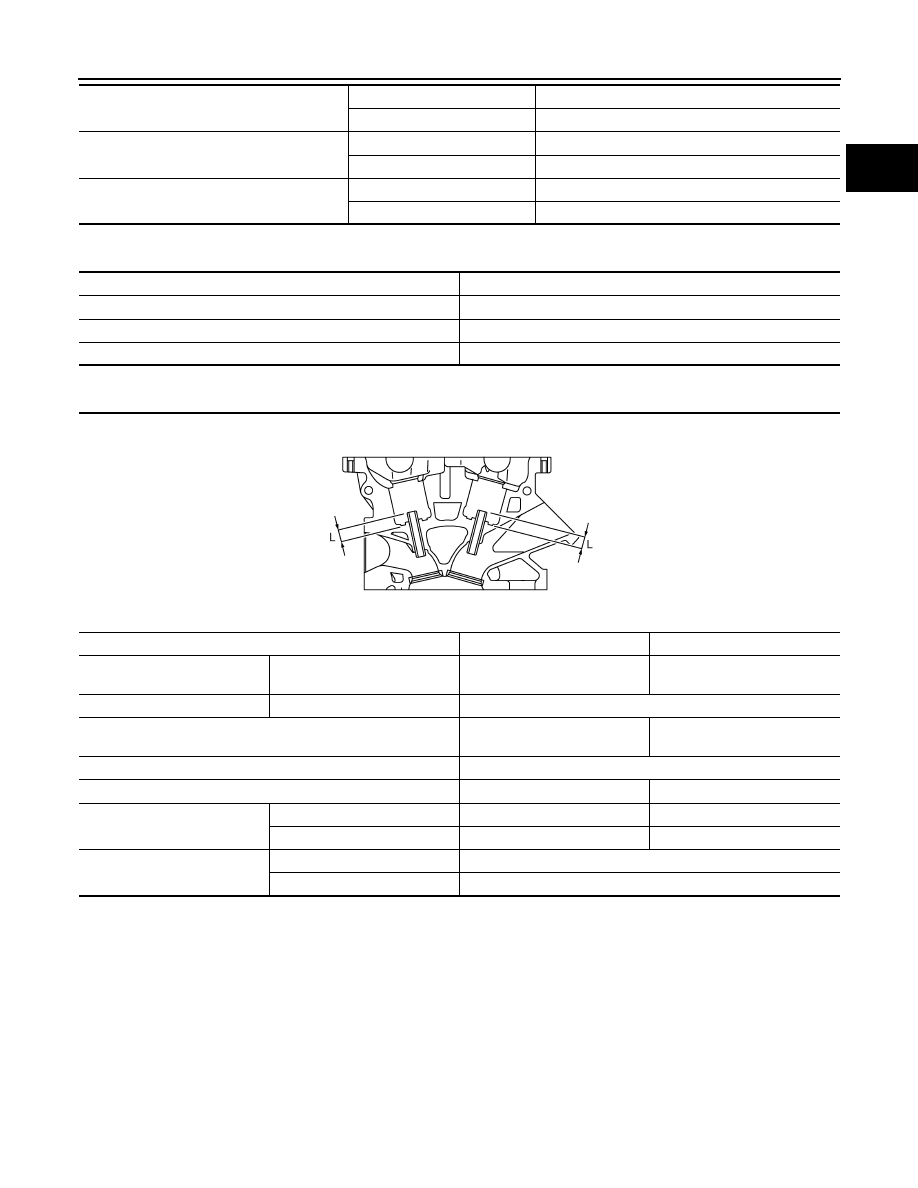

Projection length (L)

Intake

10.1 - 10.3 (0.398 - 0.406)

Exhaust

                               10.0 - 10.4 (0.394 - 0.409)

PBIC0184E
