EC-408
< ECU DIAGNOSIS >
[QR25DE]
ECM
*: Throttle position sensor 2 signal is converted by ECM internally. Thus, it differs from ECM terminal voltage signal.

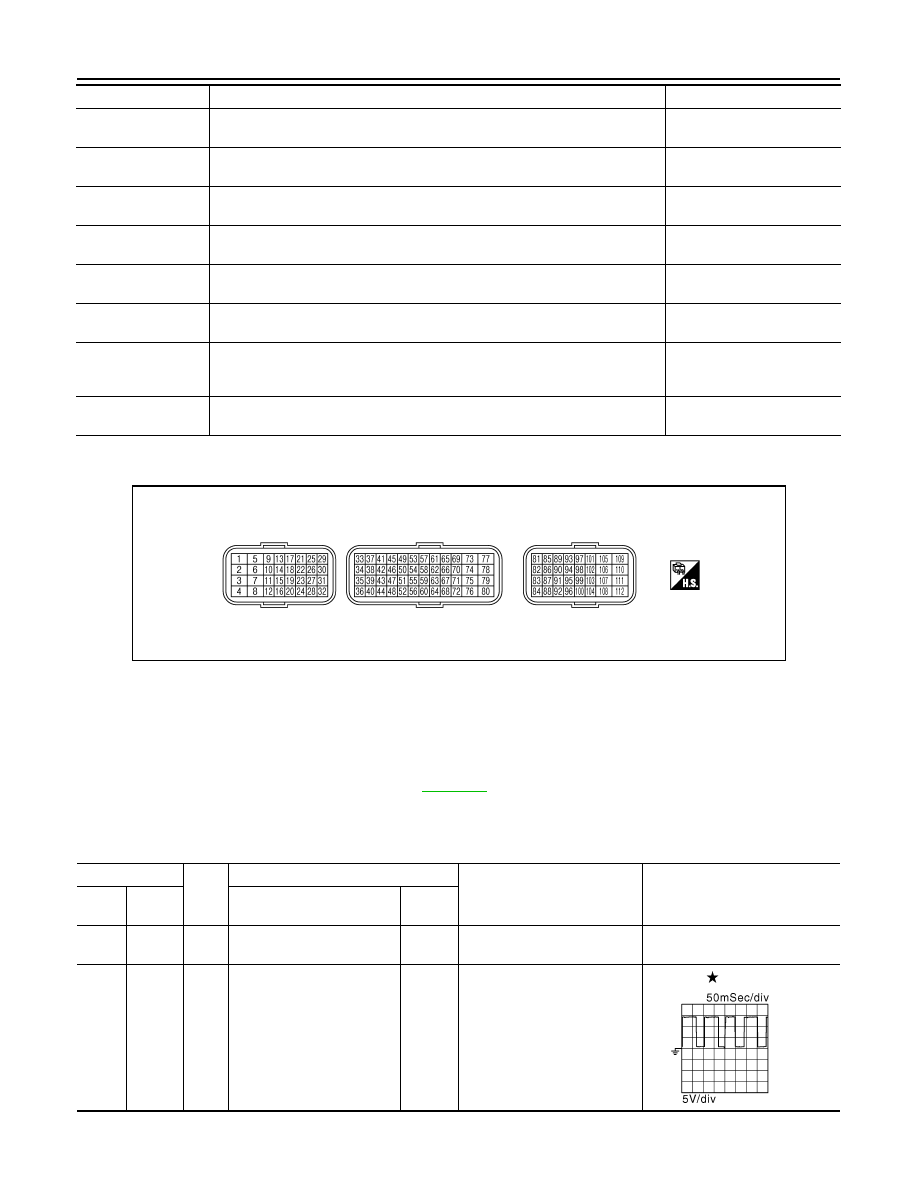

TERMINAL LAYOUT
PHYSICAL VALUES
NOTE:
• ECM is located in the engine room left side near inverter with converter assembly.
• Specification data are reference values and are measured between each terminal and ground.
• Pulse signal is measured by CONSULT-III.
• If necessary, activate “INSPECTION MODE 1” (
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECMs transistor. Use a ground other than ECM terminals, such as the ground.
CATALYST TEMP-
B1
• Engine: Running after warming up
More than 360
°C (680°F)
ENG START RQST
• Ignition switch: ON (READY)
Depending on signals from
Hybrid vehicle control ECU
ENG IDLE RQST
• Ignition switch: ON (READY)
Depending on signals from
Hybrid vehicle control ECU
ENG F/C RQST
• Ignition switch: ON (READY)
Depending on signals from
Hybrid vehicle control ECU
EVAP LEAK DIAG
• Ignition switch: ON
Depending on condition of
EVAP leak diagnosis
EVAP DIAG READY
• Ignition switch: ON (READY)
Depending on ready condi-
tion of EVAP leak diagnosis
ENG START DIAG
• Ignition switch: ON (READY)
Depending on condition of
engine does not start diagno-
sis
ENG ST DIAG RSLT
• Ignition switch: ON (READY)
Depending on result of en-
gine does not start diagnosis
Monitor Item
Condition
Values/Status
PBIA9221J
Terminal No.
Wire
color
Description
Condition
Value
(Approx.)
+
-–
Signal name
Input/
Output
2
Ground
G/W
Throttle control motor relay
power supply
Input
[Ignition switch: ON]
BATTERY VOLTAGE
(11 - 14V)
4
Ground
BR/Y
A/F sensor 1 heater
Output
[Engine is running]
• Warm-up condition
• Idle speed
(More than 140 seconds af-
ter starting engine)
2.9 - 8.8V
JMBIA0082GB
