EC-360

< COMPONENT DIAGNOSIS >

[QR25DE]

P2101 ELECTRIC THROTTLE CONTROL FUNCTION

4. Check the continuity between electric throttle control actuator harness connector and ECM harness con-

nector.

5. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Repair or replace.

8.

CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY

1. Remove the intake air duct.

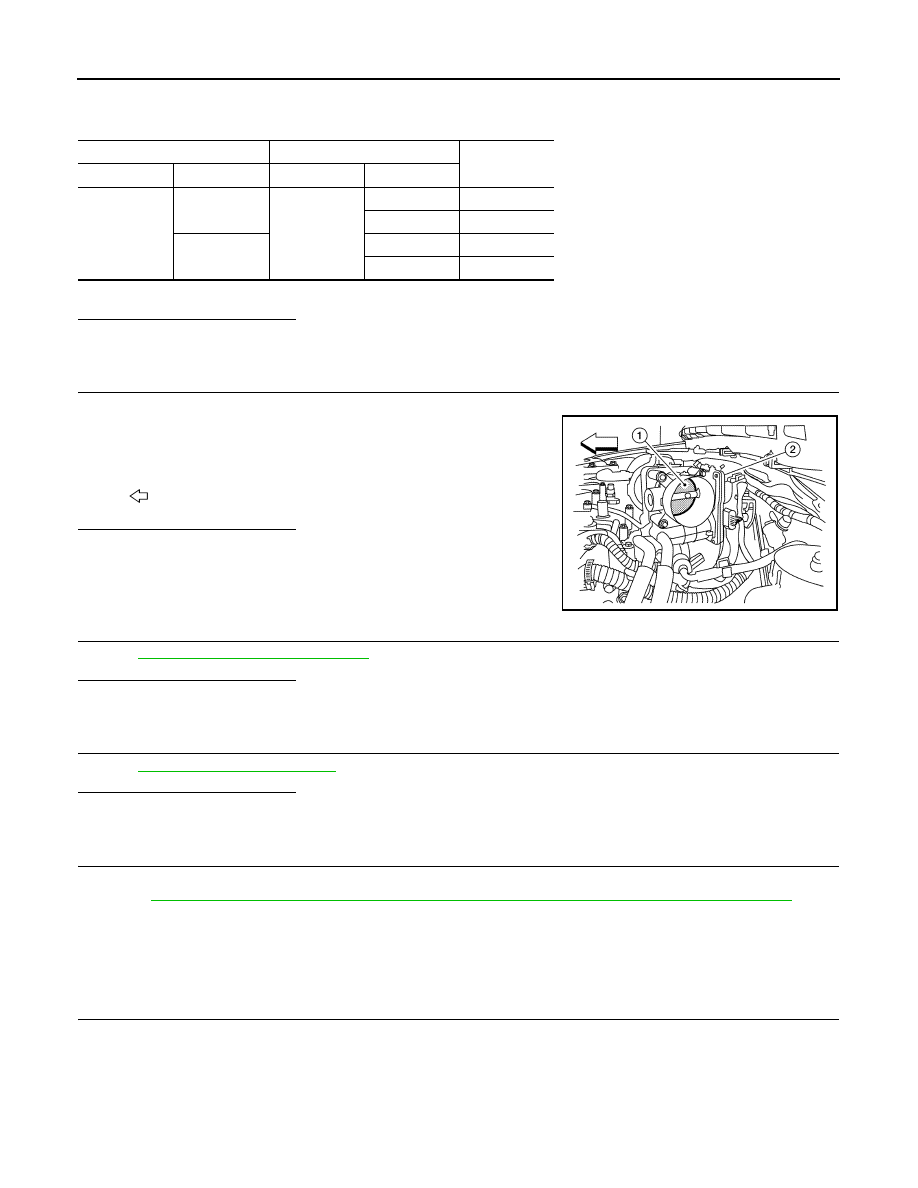

2. Check if foreign matter is caught between the throttle valve (1)

and the housing.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Remove the foreign matter and clean the electric throttle

control actuator inside.

9.

CHECK THROTTLE CONTROL MOTOR

Refer to

EC-360, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> GO TO 11.

10.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> GO TO 11.

NO

>> Repair or replace harness or connectors.

11.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1. Replace electric throttle control actuator.

2. Go to

EC-15, "THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"

.

>> INSPECTION END

Component Inspection

INFOID:0000000004211606

1.

CHECK THROTTLE CONTROL MOTOR

1. Disconnect electric throttle control actuator harness connector.

Electric throttle control actuator

ECM

Continuity

Connector

Terminal

Connector

Terminal

F57

5

F14

5

Not  existed

6

Existed

6

5

Existed

6

Not  existed

2.

Electric throttle control actuator

: Vehicle front

ALBIA0061ZZ

P2101 ELECTRIC THROTTLE CONTROL FUNCTION

EC-361

< COMPONENT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

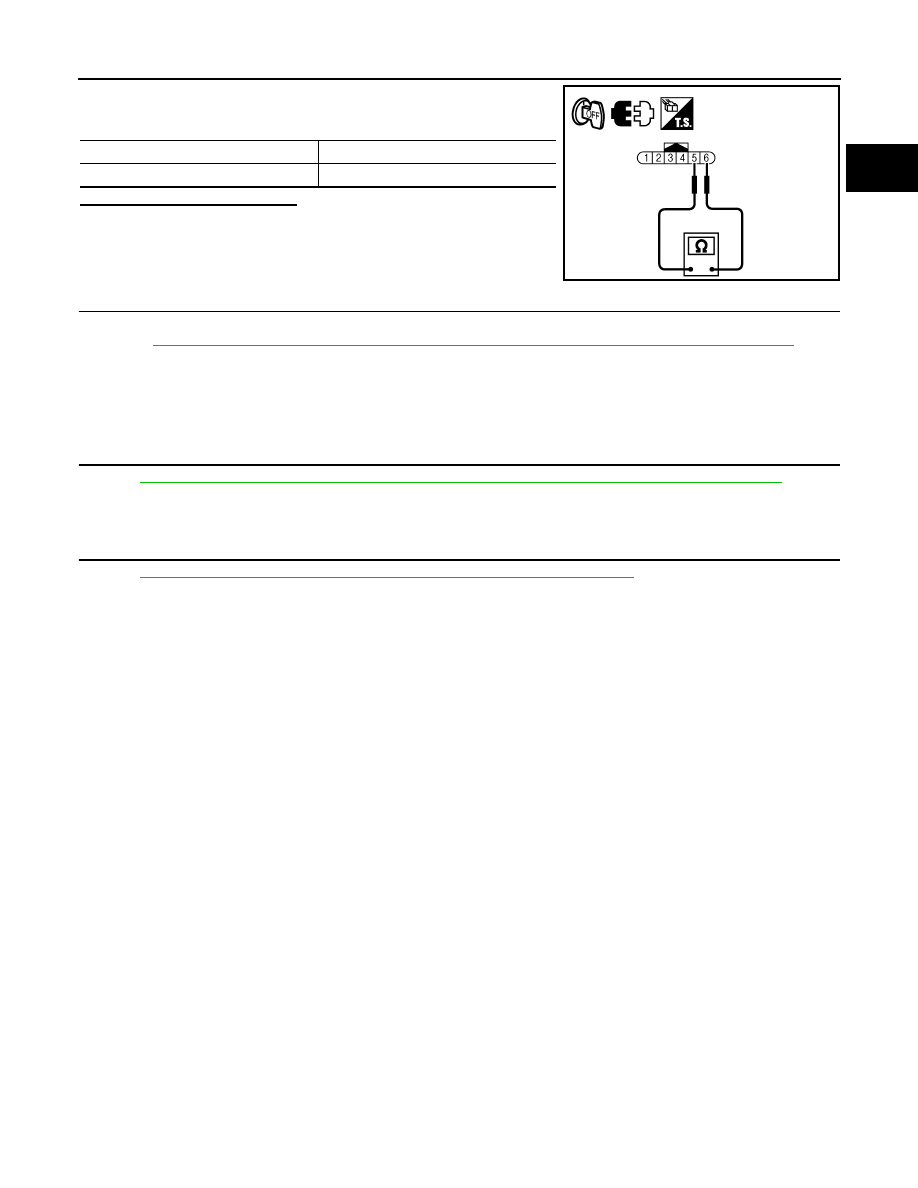

2. Check resistance between electric throttle control actuator termi-

nals as follows.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1. Replace electric throttle control actuator.

2. Go to

EC-15, "THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"

.

>> INSPECTION END

Special Repair Requirement

INFOID:0000000004362832

1.

PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

Refer to

EC-15, "THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"

>> GO TO 2.

2.

PERFORM IDLE AIR VOLUME LEARNING

Refer to

EC-16, "IDLE AIR VOLUME LEARNING : Special Repair Requirement"

>> END

Terminals

Resistance

5 and 6

Approx. 1 - 15

Ω [at 25 °C (77°F)]

PBIB2909E

EC-362

< COMPONENT DIAGNOSIS >

[QR25DE]

P2118 THROTTLE CONTROL MOTOR

P2118 THROTTLE CONTROL MOTOR

Description

INFOID:0000000004211608

The throttle control motor is operated by the ECM and it opens and closes the throttle valve.

The current opening angle of the throttle valve is detected by the throttle position sensor and it provides feed-

back to the ECM to control the throttle control motor to make the throttle valve opening angle properly in

response to driving condition.

DTC Logic

INFOID:0000000004211609

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-

ing the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE

1. Turn ignition switch ON and wait at least 2 seconds.

2. Turn ignition switch ON (READY).

3. Depress the accelerator pedal to start engine, then keep engine running for at least 5 seconds.

4. Check DTC.
Is DTC detected?

YES

>> Go to

EC-362, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000004211610

1.

CHECK GROUND CONNECTION

1. Turn ignition switch OFF.

2. Check ground connection E9. Refer to Ground Inspection in

GI-42, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace ground connection.

2.

CHECK THROTTLE CONTROL MOTOR OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Disconnect electric throttle control actuator harness connector.

2. Disconnect ECM harness connector.

3. Check the continuity between electric throttle control actuator harness connector and ECM harness con-

nector.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P2118

Throttle control motor
circuit short

ECM detects short in both circuits between
ECM and throttle control motor.

• Harness or connectors

(Throttle control motor circuit is shorted.)

• Electric throttle control actuator

(Throttle control motor)

P2118 THROTTLE CONTROL MOTOR

EC-363

< COMPONENT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

4. Also check harness for short to ground and short to power.
Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair or replace.

3.

CHECK THROTTLE CONTROL MOTOR

Refer to

EC-363, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> GO TO 5.

4.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

Is the inspection result normal?

YES

>> GO TO 5.

NO

>> Repair or replace harness or connectors.

5.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1. Replace electric throttle control actuator.

2. Go to

EC-15, "THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"

.

>> INSPECTION END

Component Inspection

INFOID:0000000004363300

1.

CHECK THROTTLE CONTROL MOTOR

1. Disconnect electric throttle control actuator harness connector.

2. Check resistance between electric throttle control actuator termi-

nals as follows.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> GO TO 2.

2.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1. Replace electric throttle control actuator.

2. Go to

EC-15, "THROTTLE VALVE CLOSED POSITION LEARNING : Special Repair Requirement"

.

>> INSPECTION END

Special Repair Requirement

INFOID:0000000004362838

1.

PERFORM THROTTLE VALVE CLOSED POSITION LEARNING

Electric throttle control actuator

ECM

Continuity

Connector

Terminal

Connector Terminal

F57

5

F14

5

Not existed

6

Existed

6

5

Existed

6

Not existed

Terminals

Resistance

5 and 6

Approx. 1 - 15

Ω [at 25 °C (77°F)]

PBIB2909E
