EC-328

< COMPONENT DIAGNOSIS >

[QR25DE]

P1196 POOR ENGINE POWER

P1196 POOR ENGINE POWER

DTC Logic

INFOID:0000000004211567

DTC DETECTION LOGIC

NOTE:

• If DTC P1196 is displayed with DTC P0201, P0202, P0203, P0204, first perform the trouble diagnosis

for DTC P0201, P0202, P0203, P0204. Refer to

EC-237, "DTC Logic"

.

• If DTC P1196 is displayed with DTC P0335, first perform the trouble diagnosis for DTC P0335. Refer

to

EC-251, "DTC Logic"

.

• If DTC P1196 is displayed with DTC P0340, first perform the trouble diagnosis for DTC P0340. Refer

to

EC-255, "DTC Logic"

.

• If DTC P1196 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer

to

EC-318, "DTC Logic"

.

ECM calculates the target torque based on the engine power request signal and the engine speed request sig-

nal sent from HV ECU.

HV ECU calculates the estimated torque based on the generator torque.

ECM compares the calculated target torque with the estimated torque sent from HV ECU.

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-

ing the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.
Do you have CONSULT-III?

YES

>> GO TO 2.

NO

>> GO TO 3.

2.

PERFORM DTC CONFIRMATION PROCEDURE

With CONSULT-III

1. Activate “INSPECTION MODE 1” (

HBC-104

) to start engine, and warm up engine to normal operating

temperature.

2. Turn ignition switch OFF and wait at least 10seconds.

3. Turn ignition switch ON.

4. Turn ignition switch OFF and wait at least 10seconds.

5. Turn ignition switch ON (READY).

6. Select “POOR ENG PWR P1196” of ”ENGINE PERFORMANCE” in “DTC WORK SUPPORT” mode with

CONSULT-III.

7. Touch “START”.

8. Drive vehicle at a speed of 60 km/h (37 MPH) or more until “TESTING” on CONSULT-III changes to

“COMPLETED”. (It will take approximately 10 seconds.)

CAUTION:

Always drive vehicle at a safe speed.

NOTE:

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1196

Poor engine power

The estimated torque is excessively low
compared with the target torque

• Intake air leaks
• Incorrect PCV hose connection
• Mass air flow sensor
• Electric throttle control actuator
• Fuel injector
• Fuel run out
• Incorrect fuel pressure
• Spark plug
• Ignition coil
• Ignition signal circuit is open or shorted
• Insufficient compression

P1196 POOR ENGINE POWER

EC-329

< COMPONENT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Keep the vehicle speed as steady as possible during the cruising.

9. Touch “SELF-DIAG RESULT”.
Which is displayed on CONSULT-III?

OK

>> INSPECTION END

NG

>> Go to

EC-329, "Diagnosis Procedure"

.

3.

PERFORM DTC CONFIRMATION PROCEDURE

 With GST

1. Activate “INSPECTION MODE 1” (

HBC-104

) to start engine, and warm up engine to normal operating

temperature.

2. Turn ignition switch OFF and wait at least 10seconds.

3. Turn ignition switch ON.

4. Turn ignition switch OFF and wait at least 10seconds.

5. Turn ignition switch ON (READY).

6. Drive vehicle at a speed of 60 km/h (37 MPH) or more for at least 10 seconds.

CAUTION:

Always drive vehicle at a safe speed.

NOTE:

Keep the vehicle speed as steady as possible during the cruising.

7. Check DTC.
Is DTC detected?

YES

>> Go to

EC-329, "Diagnosis Procedure"

.

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000004211568

1.

CHECK FOR INTAKE AIR LEAK

1. Activate “INSPECTION MODE 1” (

HBC-104

) to start engine, and let engine idle.

2. Listen for an intake air leak after the mass air flow sensor.

3. Check PCV hose connection.
Intake air leak detected?

YES

>> Repair or replace.

NO

>> GO TO 2.

2.

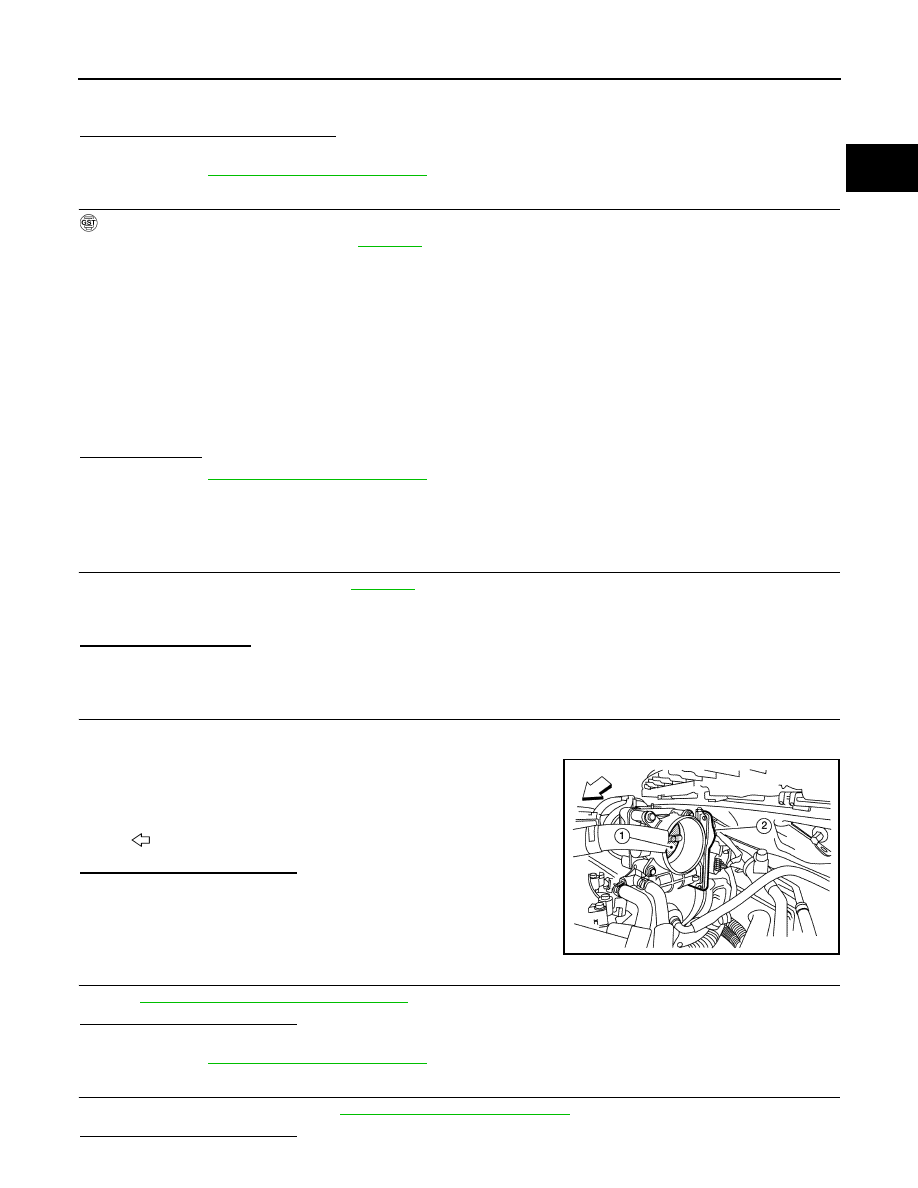

CHECK ELECTRIC THROTTLE CONTROL ACTUATOR VISUALLY

1. Turn ignition switch OFF.

2. Remove the intake air duct.

3. Check if foreign matter is caught between the throttle valve (1)

and the housing.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Remove the foreign matter and clean the electric throttle

control actuator inside.

3.

CHECK FUEL PUMP FUNCTION

Refer to

EC-386, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Go to

EC-386, "Diagnosis Procedure"

.

4.

CHECK MASS AIR FLOW SENSOR

Check mass air flow sensor. Refer to

EC-147, "Component Inspection"

.

Is the inspection result normal?

2.

Electric throttle control actuator

: Vehicle front

ALBIA0150ZZ

EC-330

< COMPONENT DIAGNOSIS >

[QR25DE]

P1196 POOR ENGINE POWER

YES

>> GO TO 5.

NO

>> Replace mass air flow sensor.

5.

CHECK FUEL PRESSURE

1. Check fuel pressure. Refer to

EC-465, "Inspection"

.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> GO TO 6.

6.

 DETECT MALFUNCTIONING PART

Check fuel hoses and fuel tubes for clogging.
Is the inspection result normal?

YES

>> Replace “fuel filter and fuel pump assembly”.

NO

>> Repair or replace

7.

CHECK FUEL INJECTOR

Check fuel injector. Refer to

EC-238, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Replace malfunctioning fuel injector.

8.

CHECK SPARK PLUG

Check spark plug. Refer to

EM-12, "Removal and Installation"

.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Clean or replace spark plug.

9.

CHECK IGNITION COIL AND CIRCUIT

Check ignition coil and circuit. Refer to

EC-390, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> Go to

EC-390, "Diagnosis Procedure"

.

10.

CHECK COMPRESSION PRESSURE

Check compression pressure. Refer to

EM-22, "Compression Pressure"

.

Is the inspection result normal?

YES

>> GO TO 11.

NO

>> Check pistons, piston rings, valves, valve seats and cylinder head gaskets.

11.

CHECK SYMPTOM TABLE

Check items on the lack of power symptom in

EC-454, "Symptom Table"

.

Is the inspection result normal?

YES

>> GO TO 12.

NO

>> Repair or replace.

12.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

>> INSPECTION END

P1197 FUEL RUN OUT

EC-331

< COMPONENT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P1197 FUEL RUN OUT

DTC Logic

INFOID:0000000004211569

DTC DETECTION LOGIC

NOTE:

This DTC may be detected if the vehicle continues turning counterclockwise over a certain speed for a length

of time.

DTC CONFIRMATION PROCEDURE

1.

REFILL FUEL

Refill the fuel until low fuel warning light turned OFF.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE FOR DTC P1195

Perform DTC CONFIRMATION PROCEDURE for DTC P1195. Refer to

EC-325, "DTC Logic"

.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Go to

EC-325, "Diagnosis Procedure"

.

3.

PERFORM DTC CONFIRMATION PROCEDURE FOR DTC P1196

Perform DTC CONFIRMATION PROCEDURE for DTC P1196. Refer to

EC-328, "DTC Logic"

.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

EC-329, "Diagnosis Procedure"

.

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1197

Fuel run out

Detecting condition for P1195 or P1196
is satisfied and low voltage from the fuel
level sensor is sent to ECM

• Out of fuel
