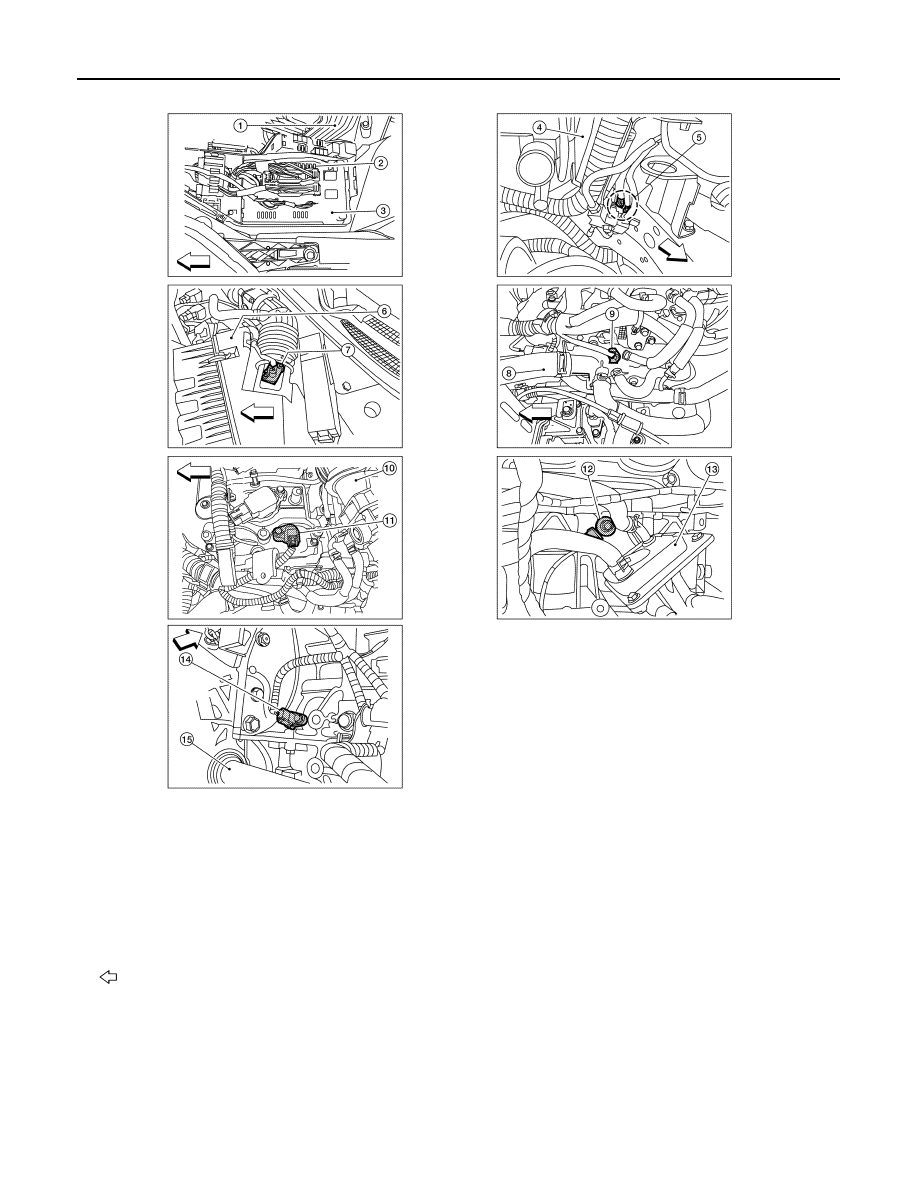

EC-40

< FUNCTION DIAGNOSIS >

[QR25DE]

ELECTRIC IGNITION SYSTEM

1.

Air cleaner assembly

2.

Fuel pump fuse

3.

IPDM E/R

4.

EPS control unit (view with
air cleaner assembly re-
moved)

5.

Engine grounds

6.

Air cleaner assembly

7.

Mass air flow sensor (with
intake temperature sensor)

8.

Upper radiator hose

9.

Engine coolant temperature sensor

10. Intake manifold collector

11. Camshaft position sensor (PHASE)

12. Knock sensor

13. Engine oil cooler

14. Crankshaft position sensor (POS)

15. Drive shaft RH

: Vehicle front

ALBIA0161ZZ

ELECTRIC IGNITION SYSTEM

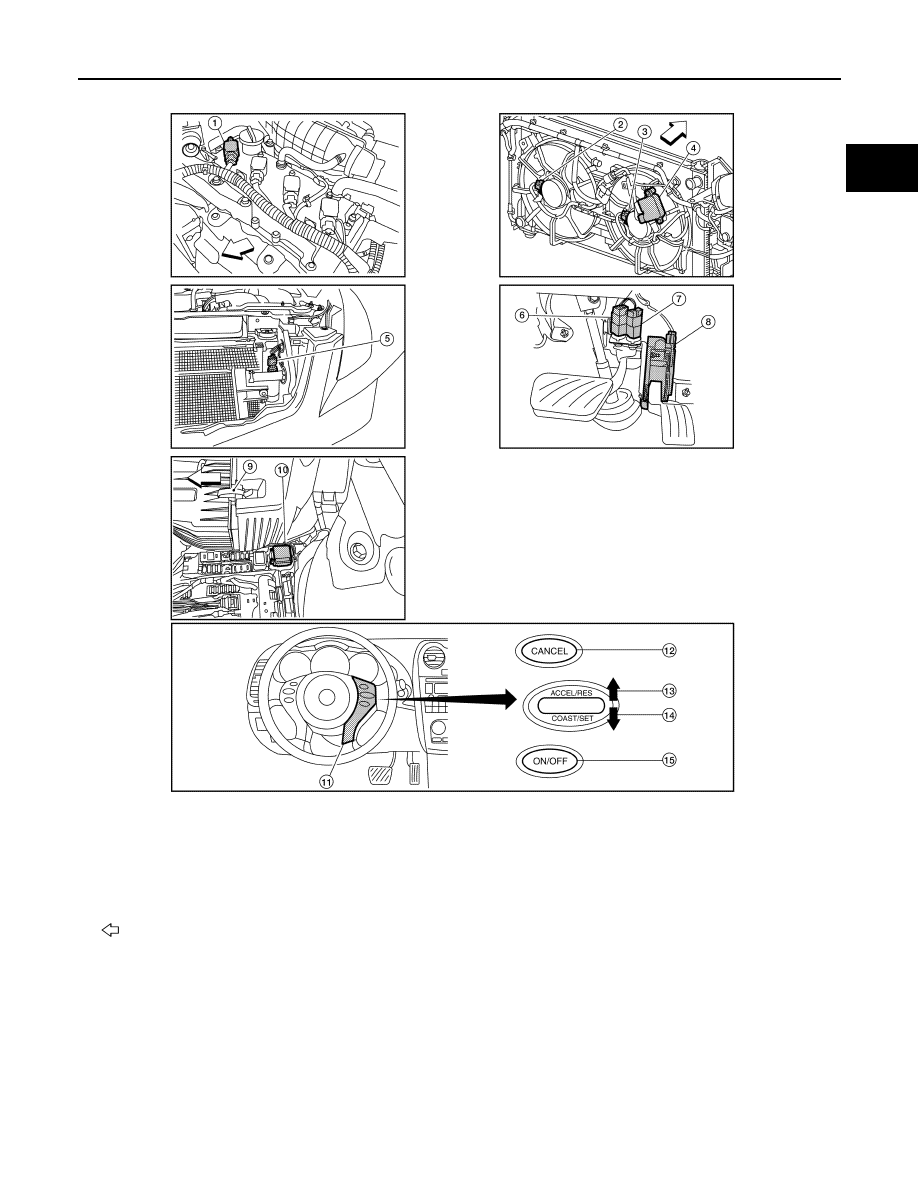

EC-41

< FUNCTION DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

1.

No.1 ignition coil

2.

Cooling fan motor-1

3.

Cooling fan motor-2

4.

Cooling fan control module

5.

Refrigerant pressure sensor

6.

Stop lamp switch

7.

ASCD brake switch

8.

Accelerator pedal position sensor

9.

Air cleaner assembly

10. Cooling fan relay-1

11. ASCD steering switch

12. CANSEC switch

13. RESUME/ACCELERATE switch

14. SET/COAST switch

15. MAIN switch

: Vehicle front

ALBIA0162ZZ

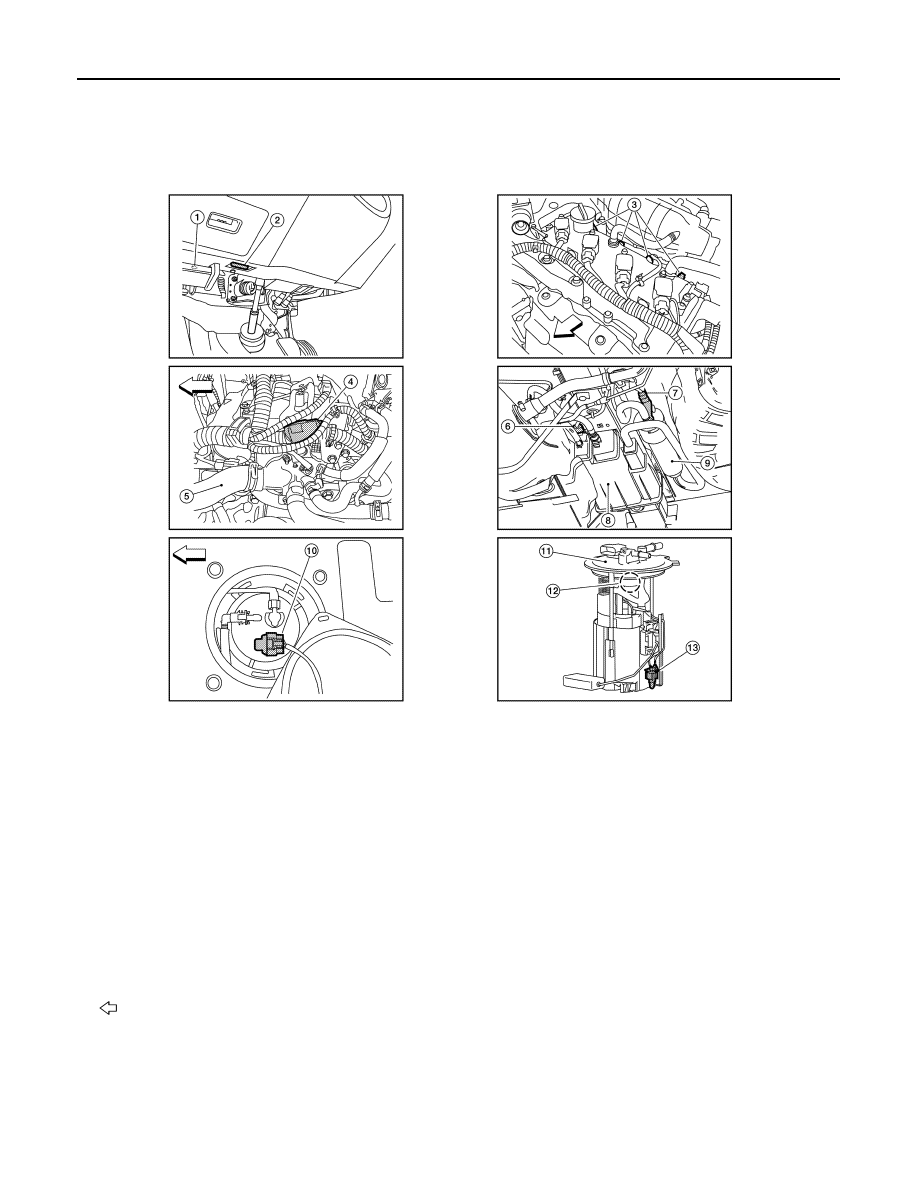

EC-42

< FUNCTION DIAGNOSIS >

[QR25DE]

ELECTRIC IGNITION SYSTEM

1.

Hood opener handle

2.

Data link connector

3.

Fuel injector harness connector

4.

Condenser-2

5.

Upper radiator hose

6.

EVAP control system pressure sen-
sor

7.

EVAP canister vent control valve

8.

EVAP canister (MAIN)

9.

EVAP canister (SUB)

10. Fuel level sensor unit and fuel pump

harness connector
(This illustration is view with rear
seat cushion and inspection hole
cover removed.)

11. Fuel pump assembly

12. Fuel pressure regulator

13. Fuel tank temperature sensor

: Vehicle front

ALBIA0173ZZ

ELECTRIC IGNITION SYSTEM

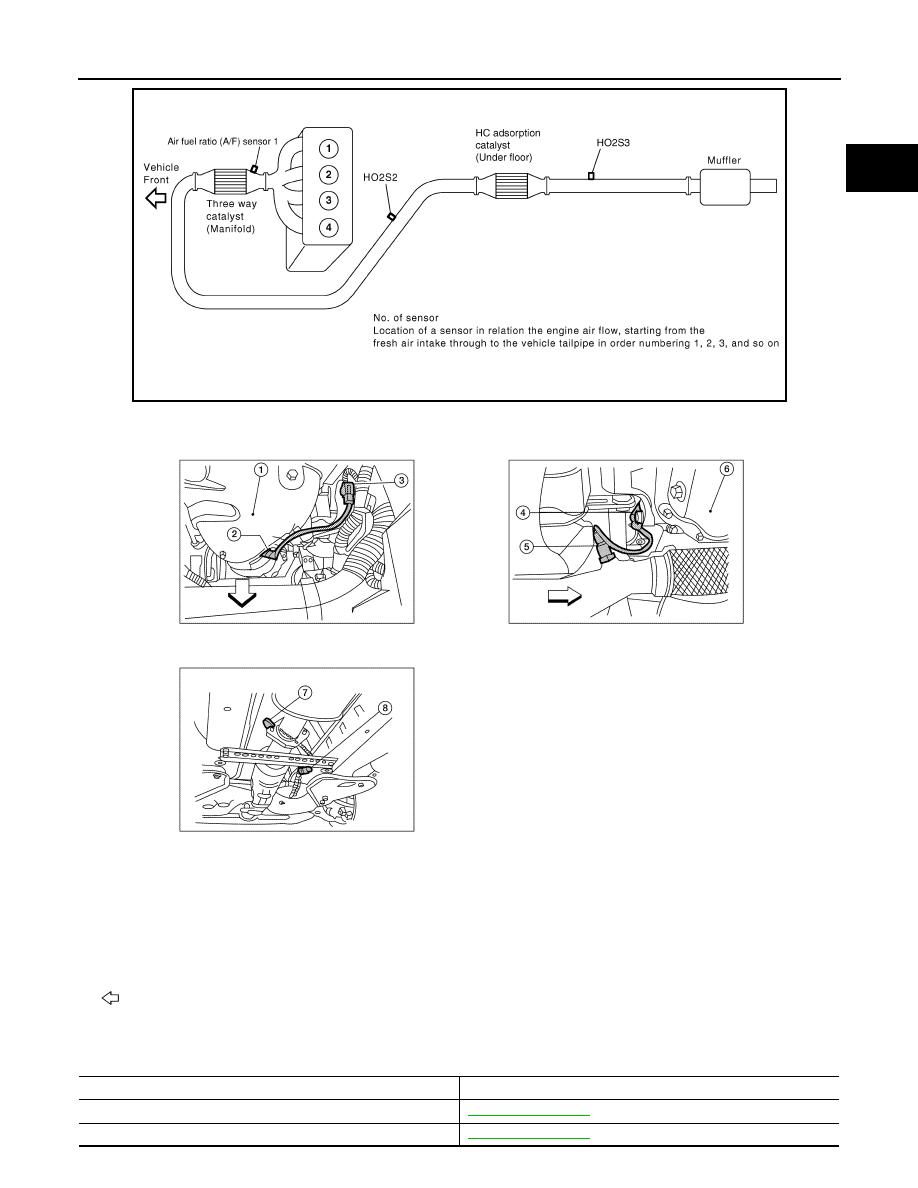

EC-43

< FUNCTION DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Component Description

INFOID:0000000004211329

JMBIA0118GB

1.

Exhaust manifold cover

2.

Air fuel ratio (A/F) sensor 1

3.

Air fuel ratio (A/F) sensor 1 harness
connector

4.

Heated oxygen sensor 2 harness
connector

5.

Heated oxygen sensor 2

6.

Oil pan

7.

Heated oxygen sensor 3

8.

Heated oxygen sensor 3 harness
connector

: Vehicle front

ALBIA0272ZZ

Component

Reference

Camshaft position sensor (PHASE)

EC-255, "Description"

Crankshaft position sensor (POS)

EC-251, "Description"
