EC-20

< FUNCTION DIAGNOSIS >

[QR25DE]

ENGINE CONTROL SYSTEM

Component Parts Location

INFOID:0000000004211320

1.

Intake valve timing control solenoid
valve

2.

Ignition coil (with power transistor)
and spark plug

3.

Knock sensor,
Crankshaft position sensor (POS)

4.

Air fuel ratio (A/F) sensor 1

5.

Camshaft position sensor (PHASE)

6.

Engine coolant temperature sensor

7.

ECM

8.

Refrigerant pressure sensor

9.

IPDM E/R

10. Mass air flow sensor (with intake

temperature sensor)

11. EVAP service port

12. Electric throttle control actuator (with

built in throttle position sensor and
throttle control motor)

13. EVAP canister purge volume control

solenoid valve

14. Fuel injector

ALBIA0138ZZ

ENGINE CONTROL SYSTEM

EC-21

< FUNCTION DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

1.

Throttle valve

2.

Electric throttle control actuator

3.

Electric throttle control actuator har-
ness connector

4.

EVAP service port

5.

EVAP canister purge volume control
solenoid valve

6.

Intake manifold collector

7.

ECM

8.

Intake valve timing control solenoid
valve

: Vehicle front

ALBIA0160ZZ

EC-22

< FUNCTION DIAGNOSIS >

[QR25DE]

ENGINE CONTROL SYSTEM

1.

Air cleaner assembly

2.

Fuel pump fuse

3.

IPDM E/R

4.

EPS control unit (view with
air cleaner assembly re-
moved)

5.

Engine grounds

6.

Air cleaner assembly

7.

Mass air flow sensor (with
intake temperature sensor)

8.

Upper radiator hose

9.

Engine coolant temperature sensor

10. Intake manifold collector

11. Camshaft position sensor (PHASE)

12. Knock sensor

13. Engine oil cooler

14. Crankshaft position sensor (POS)

15. Drive shaft RH

: Vehicle front

ALBIA0161ZZ

ENGINE CONTROL SYSTEM

EC-23

< FUNCTION DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

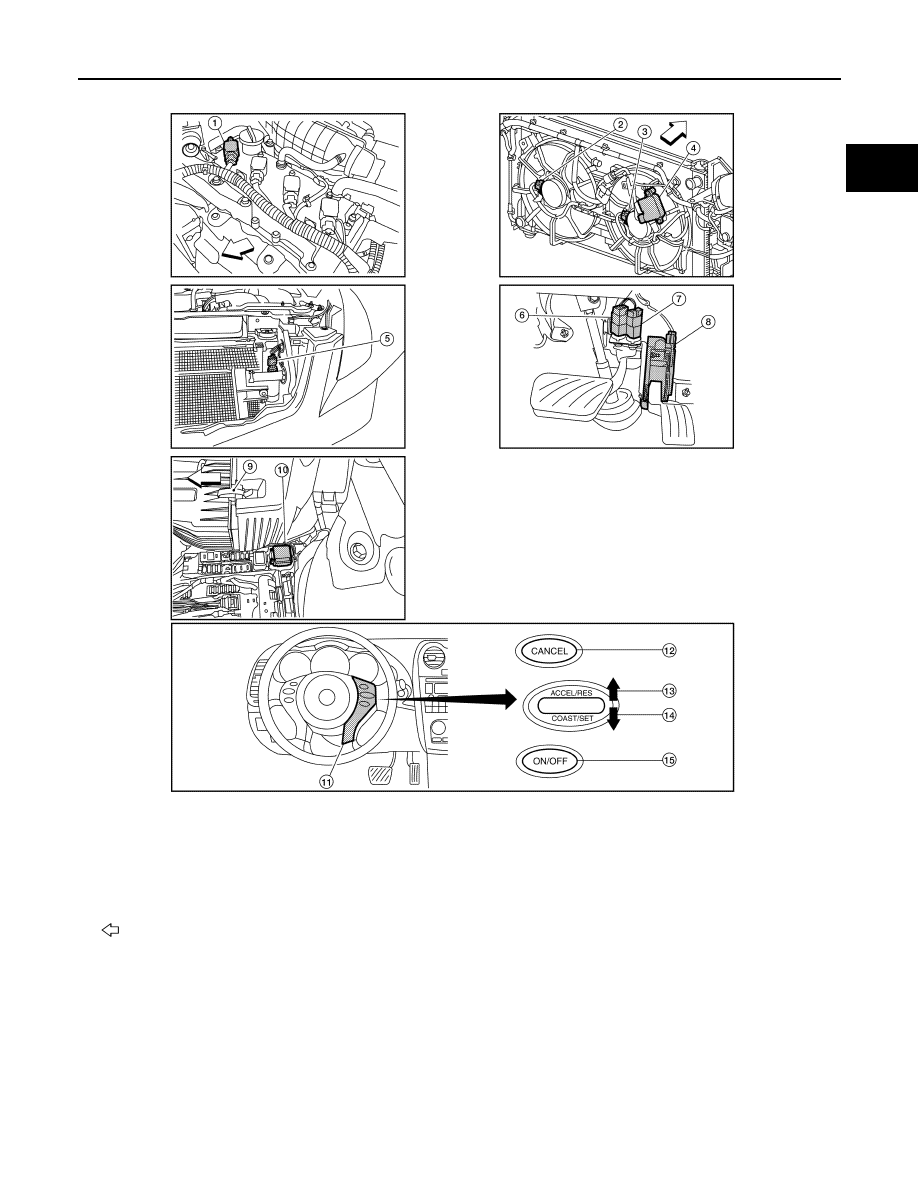

1.

No.1 ignition coil

2.

Cooling fan motor-1

3.

Cooling fan motor-2

4.

Cooling fan control module

5.

Refrigerant pressure sensor

6.

Stop lamp switch

7.

ASCD brake switch

8.

Accelerator pedal position sensor

9.

Air cleaner assembly

10. Cooling fan relay-1

11. ASCD steering switch

12. CANSEC switch

13. RESUME/ACCELERATE switch

14. SET/COAST switch

15. MAIN switch

: Vehicle front

ALBIA0162ZZ
