Nissan Altima HL32 Hybrid. Manual - part 253





TRUNK LID

DLK-233

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

TRUNK LID

TRUNK LID ASSEMBLY
TRUNK LID ASSEMBLY : Removal and Installation

INFOID:0000000004215801

REMOVAL

1. Remove trunk lid finisher. Refer to

INT-27, "Removal and Installation"

.

2. Disconnect the connectors in the trunk lid, and remove the harness clips to pull the harness out of the

trunk lid.

3. Remove the bolts, and remove the trunk lid assembly.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• After installing, apply touch-up paint (the body color) onto the head of the hinge bolts.

• After installing, check operation.

• After installing, perform fitting adjustment. Refer to

DLK-234, "TRUNK LID ASSEMBLY : Adjust-

ment"

.

DLK-234

< ON-VEHICLE REPAIR >

TRUNK LID

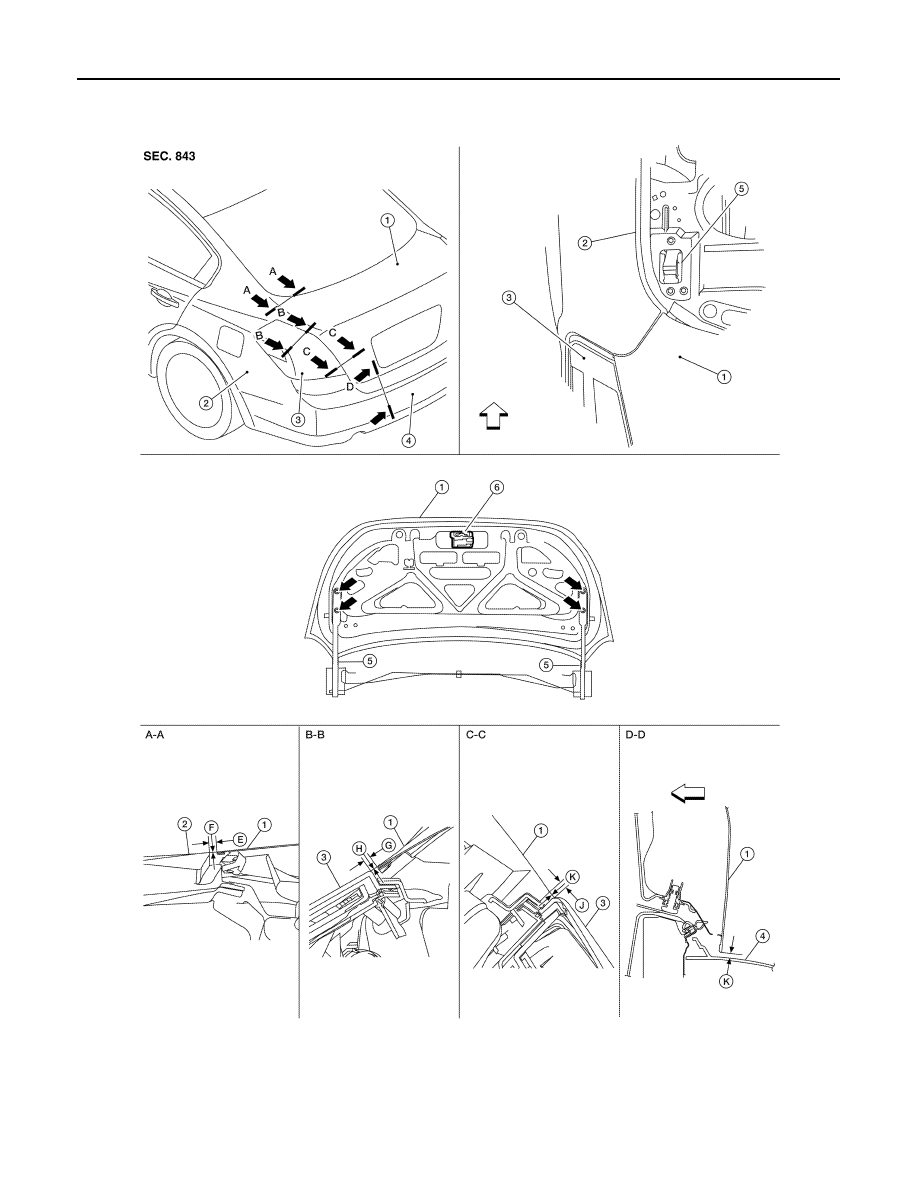

TRUNK LID ASSEMBLY : Adjustment

INFOID:0000000004215802

1.

Trunk lid assembly

2.

Body side outer

3.

Rear combination lamp

4.

Rear bumper fascia

5.

Trunk lid hinge assembly

6.

Trunk lid latch assembly

Front

AWKIA0452GB

TRUNK LID

DLK-235

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Unit: mm (in)

LONGITUDINAL CLEARANCE

Trunk Lid Removed From Hinge

1. Check the clearance and the evenness between the trunk lid and each part by visual and tactile feeling.
2. Loosen the trunk lid to hinge bolts.
3. Move the trunk lid so that the clearance measurements are within specifications.
4. Tighten the trunk lid to hinge bolts.

Trunk Lid Hinge Removed From Vehicle

1. Remove the parcel shelf trim. Refer to

INT-19, "Removal and Installation"

.

2. Loosen the hinge to parcel shelf bolts.
3. Move the trunk lid so that the clearance measurements are within specifications.
4. Tighten the hinge to parcel shelf bolts.
5. Install the parcel shelf trim. Refer to

INT-19, "Removal and Installation"

.

SURFACE HEIGHT ADJUSTMENT

1. Loosen the bumper rubber.
2. Loosen the striker bolts.
3. Lift up the trunk lid approx. 100 - 150 mm (3.94 - 5.91 in) height then close it lightly. Make sure it engages

firmly with the trunk lid closed.

4. Finally tighten the trunk lid striker.

TRUNK LID LOCK
TRUNK LID LOCK : Removal and Installation

INFOID:0000000004215803

LOCK

Removal

1. Remove the trunk lid inner trim panel. Refer to

INT-27, "Removal and Installation"

.

2. Remove the bolts, disconnect the electrical connector, separate the emergency release handle, and

remove the trunk lid lock

Installation

Installation is in the reverse order of removal

Striker

Removal

1. Remove the trunk rear finisher. Refer to

INT-27, "Removal and Installation"

.

2. Remove the bolts and the striker.

Installation

Installation is in the reverse order of removal.

NOTE:

Align the trunk lid lock. Refer to

DLK-234, "TRUNK LID ASSEMBLY : Adjustment"

.

Parts

Standard

Right/left clearance (MAX)

A – A

E

4.0

± 1.0 (0.16 ± 0.04)

2.0 (0.08)

F

-0.5

± 1.0 (-0.02 ± 0.04)

2.0 (0.08)

B – B

G

4.0

± 1.5 (0.16 ± 0.06)

2.0 (0.08)

H

-0.5

± 1.5 (-0.02 ± 0.06)

2.0 (0.08)

C – C

J

4.0

± 2.0 (0.16 ± 0.08)

K

5.9

± 2.0 (0.23 ± 0.08)

D – D

K

5.9

± 2.0 (0.23 ± 0.08)

DLK-236

< ON-VEHICLE REPAIR >

FUEL FILLER LID

FUEL FILLER LID

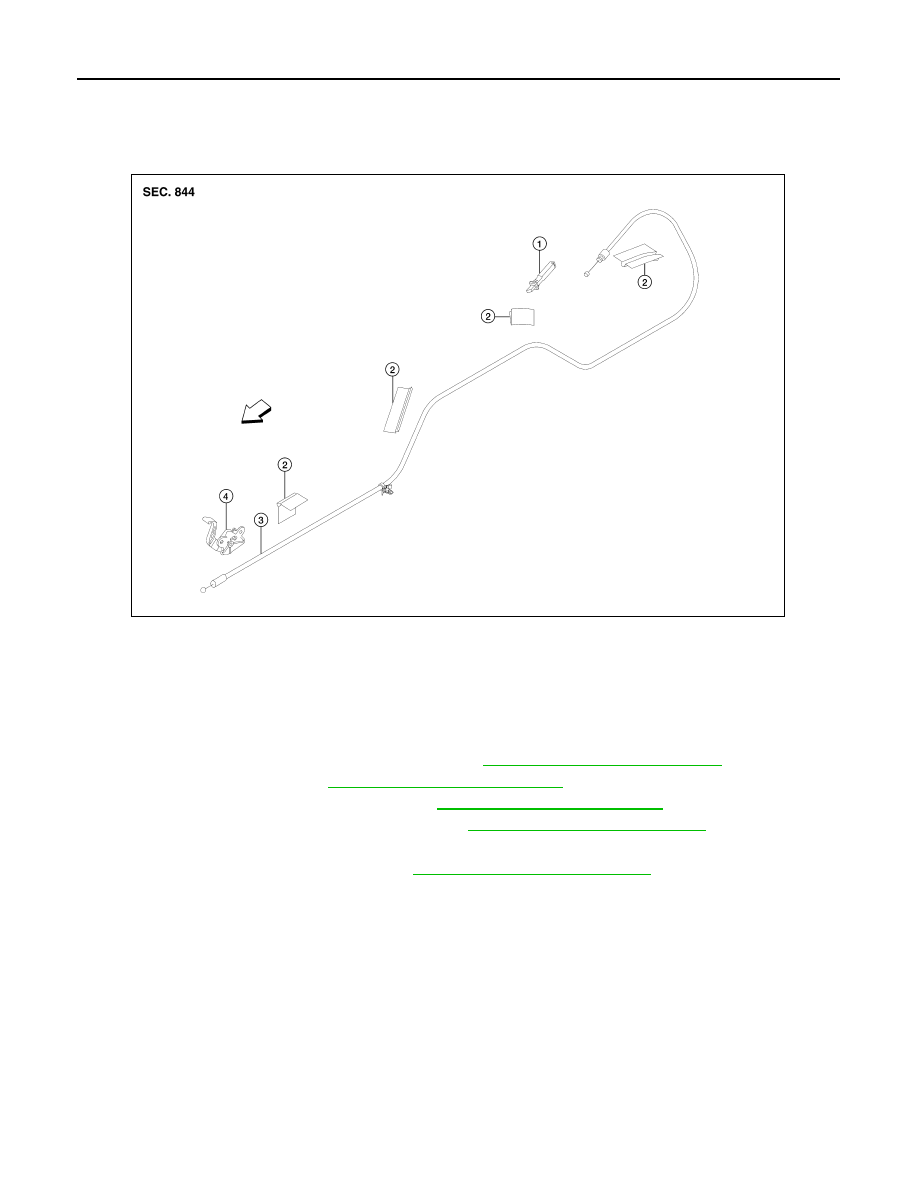

Exploded View

INFOID:0000000004528657

Removal and Installation

INFOID:0000000004528658

REMOVAL

1. Remove the front and rear LH kicking plates. Refer to

INT-16, "Removal and Installation"

.

2. Remove the rear seat. Refer to

SE-22, "Removal and Installation"

.

3. Remove the LH front seat belt anchor. Refer to

SB-9, "Removal and Installation"

.

4. Remove the LH center pillar lower finisher. Refer to

INT-16, "Removal and Installation"

.

5. Position the carpet aside.
6. Remove the LH trunk side finisher. Refer to

INT-27, "Removal and Installation"

.

7. Remove the fuel door opener handle and disconnect the fuel door opener cable.
8. Remove the fuel door latch and disconnect the fuel door opener cable.
9. Remove the fuel door opener cable.

INSTALLATION

Installation is in the reverse order of removal.

1.

Fuel door latch

2.

Cable protector

3.

Fuel door opener cable

4.

Fuel door opener handle

Front

ALKIA1440GB
