Nissan Altima HL32 Hybrid. Manual - part 247

HOOD

DLK-209

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

ON-VEHICLE REPAIR

HOOD

HOOD ASSEMBLY
HOOD ASSEMBLY : Removal and Installation

INFOID:0000000004215788

REMOVAL

1. Remove the hinge nuts (a) and the hood assembly (1).

CAUTION:

Operate with two workers, because of its large size.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

After installing, perform hood fitting adjustment. Refer to

DLK-210, "HOOD ASSEMBLY : Adjustment"

.

ALKIA0015GB

Hood hinge nuts

: 14 N·m (1.4 kg-m, 10 ft-lb)

DLK-210

< ON-VEHICLE REPAIR >

HOOD

HOOD ASSEMBLY : Adjustment

INFOID:0000000004215789

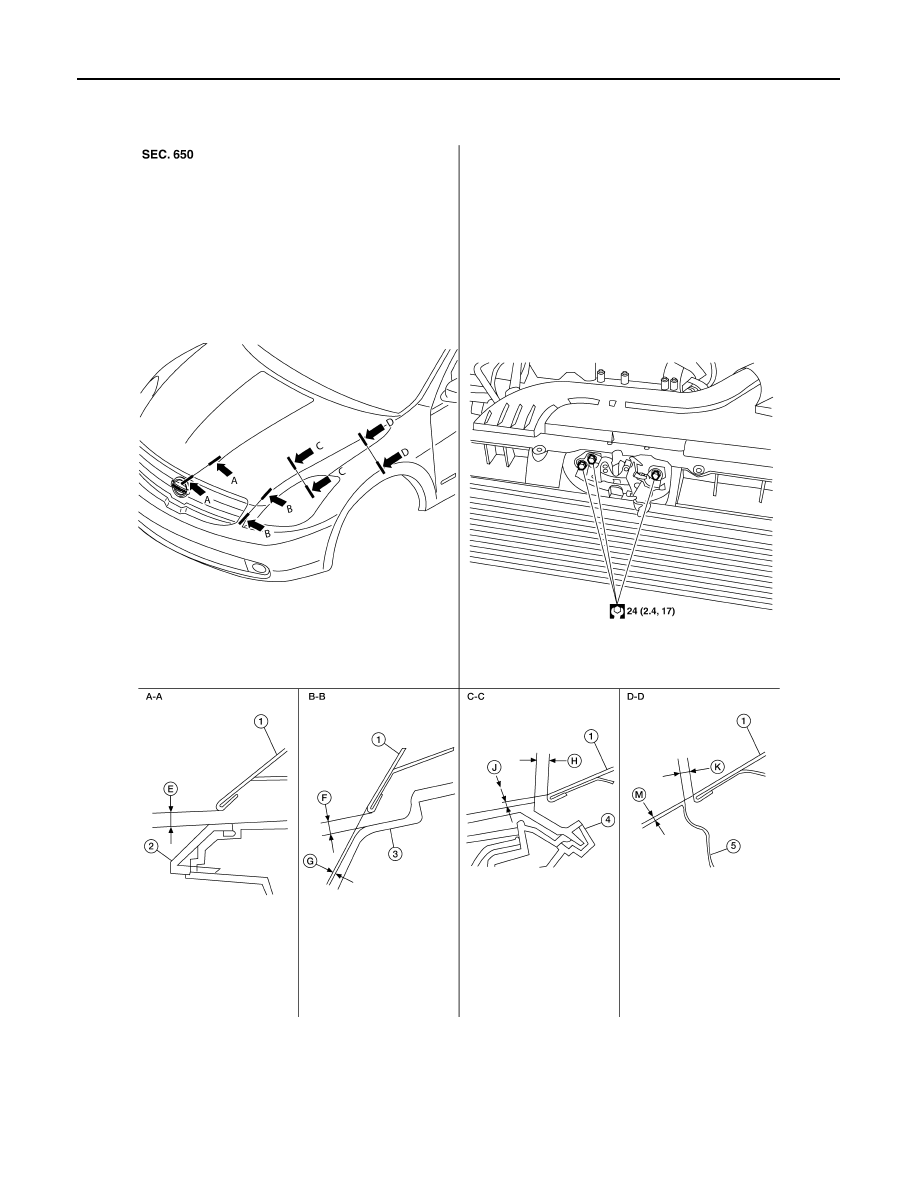

FRONT END HEIGHT ADJUSTMENT AND LATERAL/LONGITUDUNAL CLEARANCE ADJUST-
MENT

1.

Hood assembly

2.

Front grille

3.

Front fascia

4.

Headlamp assembly

5.

Front fender

AWKIA0446GB

HOOD

DLK-211

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

Unit: mm (in)

FRONT END HEIGHT ADJUSTMENT

1. Check the surface height between the hood and each part by visual and tactile feeling.
2. Remove the front grille. Refer to

EXT-16, "Removal and Installation"

.

3. Remove the hood lock.
4. Adjust the surface level difference of the hood, fender and head

lamp by rotating the hood bumpers until the hood becomes 1 to

1.5 mm (0.04 to 0.059 in) lower than the fender.

5. Install and align the hood lock center with the center of the hood striker. Engage the lock with the striker

and check for looseness.

6. Adjust A and B shown in the figure to the following value with hood's own weight by dropping it from

approx. 200 mm (7.87 in) height or by pressing the hood closed lightly (approx. 29 N (3 kg)).

7. After adjustment tighten the hood lock bolts to the specified torque.

LATERAL/LONGITUDUNAL CLEARANCE ADJUSTMENT

1. Check the clearance between the hood and each part by visual and tactile feeling.
2. Loosen the hood hinge bolts.

NOTE:

 The anticorrosive agent applied between the hoodledge and the hood hinges also acts as an adhesive.

This seal must be broken before the hinges will move.

3. Move the hood so that the clearance measurements are within specifications.

Section

Item

Measurement

Standard

Parallelism

Equality

A – A

E

Clearance

5.0

± 2.0 (0.20 ± 0.079)

<= 2.0 (0.079)

—

B – B

F

Clearance

5.0

± 2.0 (0.20 ± 0.079)

<= 2.0 (0.079)

<= 2.2 (0.087)

G

Surface height

1.0

± 2.0 (0.04 ± 0.079)

<= 2.0 (0.079)

<= 2.0 (0.079)

C – C

H

Clearance

4.5

± 2.0 (0.18 ± 0.079)

—

2.1 (0.083)

J

Surface height

1.0

± 2.1 (0.04 ± 0.083)

—

< 2.0 (0.079)

D – D

K

Clearance

4.0

± 1.0 (0.16 ± 0.04)

1.0 (0.04)

1.0 (0.04)

M

Surface height

0.2

± 1.0 (0.01 ± 0.04)

1.0 (0.04)

1.0 (0.04)

ALKIA0023GB

1.

Hood striker

2.

Primary latch

3.

Secondary striker

4.

Secondary latch

A.

20 mm (0.79 in)

B.

6.8 mm (0.27 in)

PIIB5794E

Hood Hinge bolts : 14 Nm (1.4kg-m, 10 ft-lb)

DLK-212

< ON-VEHICLE REPAIR >

HOOD

4. Tighten the hood hinge bolts.

NOTE:

After installation apply touch-up paint onto the hinge bolts and around the base of the hinge.

5. If the clearance measurements between the hood and fender cannot be corrected by moving the hood,

the fender must be adjusted. Refer to

DLK-217, "Removal and Installation"

.

HOOD LOCK CONTROL
HOOD LOCK CONTROL : Component Parts Location

INFOID:0000000004215790

HOOD LOCK CONTROL : Removal and Installation

INFOID:0000000004215791

REMOVAL

1. Remove the front grill. Refer to

EXT-16, "Removal and Installation"

.

2. Remove the LH fender protector. Refer to

EXT-18, "Removal and Installation"

.

3. Remove the hood lock assembly bolts.

4. Disconnect the hood lock cable from the hood lock assembly, and unclip it from the hoodledge.

1.

Hood lock assembly

2.

Hood lock cable

3.

Hoodledge reinforcement

4.

Clip

5.

Hood lock release handle

ALKIA0012GB

ALKIA0027GB
